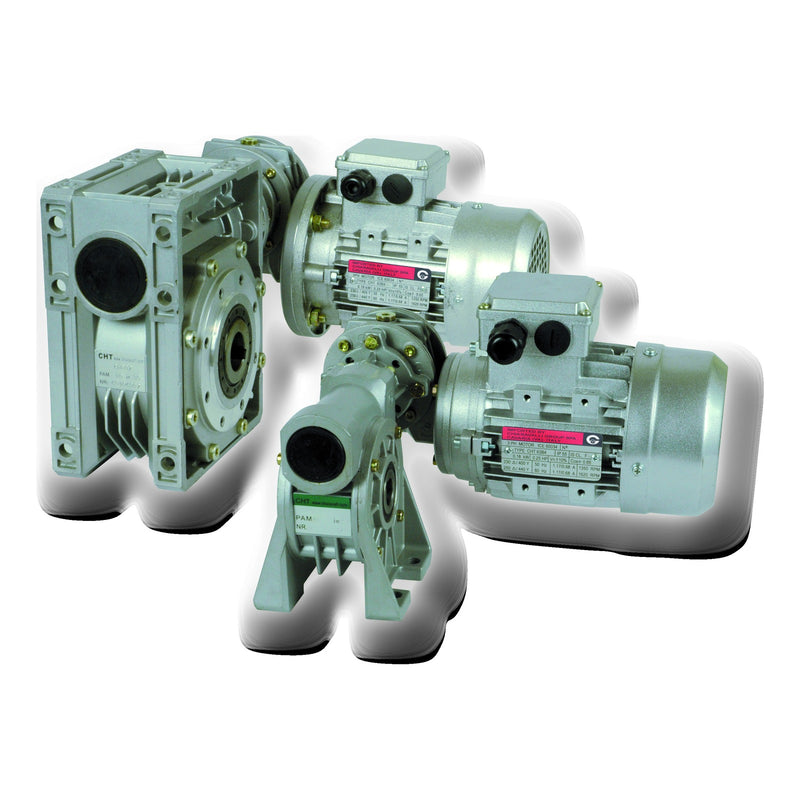

Chiaravalli CH/CH double worm gearbox with motor
Chiaravalli

CH 03/04 Double Worm Gearbox (ratios 245–2760:1)

Worm Gearboxes

Two CH worm gearboxes combined — a CH 03 driving a CH 04 — for total ratios 245–2760:1 and output speeds down to 0.5 r/min. Aluminium housings, hollow output shaft with 18 mm bore, keyed; output flange versions (F / FA / FC) as the CH 04, or the group can be fixed on its feet (CH/CH) or swing on the output (CH/CH..P). The motor bolts to the CH 03's IEC flange (IEC 56 or 63, B5 or B14). The execution (OAD, OAS, OBD, OBS, VAD, VAS, VBD, VBS) sets where the first gear sits on the second — OBS unless you specify otherwise. Centre distance Y between the two input axes: 120.5 mm. Filled for life with synthetic oil — no oil changes, no maintenance; aluminium housing.

Supplied without motor. The first gear can also be ordered as a CHR (input shaft) — ask us.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the total ratio sets the output speed; P1 is the motor power the catalogue pairs with the row and the output torque is at that power. Where the printed power is more than the gear allows (row note), choose by torque. Other ratio combinations of the two single gears are possible on request.

Product Configuration

Select a row to add it to your quote

CH 03/04: 4-pole motor at 1400 r/min on the CH 03; execution OBS unless specified.

CodeRatioMotor flangeMotor P1Output speedOutput torque
CH-03/04 R.245 56F9 245:1 IEC 56 · 9 mm shaft 0.09 kW 5.7 r/min 58 Nm
CH-03/04 R.245 63F11 245:1 IEC 63 · 11 mm shaft 0.09 kW 5.7 r/min 58 Nm
CH-03/04 R.350 56F9 350:1 IEC 56 · 9 mm shaft 0.09 kW 4 r/min 58 Nm
CH-03/04 R.350 63F11 350:1 IEC 63 · 11 mm shaft 0.09 kW 4 r/min 58 Nm
CH-03/04 R.420 56F9 420:1 IEC 56 · 9 mm shaft 0.09 kW 3.3 r/min 58 Nm
CH-03/04 R.420 63F11 420:1 IEC 63 · 11 mm shaft 0.09 kW 3.3 r/min 58 Nm
CH-03/04 R.560 56F9 560:1 IEC 56 · 9 mm shaft 0.09 kW 2.5 r/min 58 Nm
CH-03/04 R.560 63F11 560:1 IEC 63 · 11 mm shaft 0.09 kW 2.5 r/min 58 Nm
CH-03/04 R.700 56F9 700:1 IEC 56 · 9 mm shaft 0.09 kW 2 r/min 58 Nm
CH-03/04 R.700 63F11 700:1 IEC 63 · 11 mm shaft 0.09 kW 2 r/min 58 Nm
CH-03/04 R.840 56F9 840:1 IEC 56 · 9 mm shaft 0.09 kW 1.7 r/min 58 Nm
CH-03/04 R.840 63F11 840:1 IEC 63 · 11 mm shaft 0.09 kW 1.7 r/min 58 Nm
CH-03/04 R.1120 56F9 1120:1 IEC 56 · 9 mm shaft 0.09 kW 1.3 r/min 58 Nm
CH-03/04 R.1120 63F11 1120:1 IEC 63 · 11 mm shaft 0.09 kW 1.3 r/min 58 Nm
CH-03/04 R.1680 56F9 1680:1 IEC 56 · 9 mm shaft 0.09 kW 0.8 r/min 58 Nm
CH-03/04 R.1680 63F11 1680:1 IEC 63 · 11 mm shaft 0.09 kW 0.8 r/min 58 Nm
CH-03/04 R.2100 56F9 2100:1 IEC 56 · 9 mm shaft 0.09 kW 0.7 r/min 58 Nm
CH-03/04 R.2100 63F11 2100:1 IEC 63 · 11 mm shaft 0.09 kW 0.7 r/min 58 Nm
CH-03/04 R.2760 56F9 2760:1 IEC 56 · 9 mm shaft 0.09 kW 0.5 r/min 50 Nm
CH-03/04 R.2760 63F11 2760:1 IEC 63 · 11 mm shaft 0.09 kW 0.5 r/min 50 Nm

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Reading the table

Each row is one total ratio: output speed at 1400 r/min in, the catalogue's motor power P1 and the output torque at that power. The ratios listed are the most frequently requested; multiple other combinations of the two single gears' ratios can be made.
