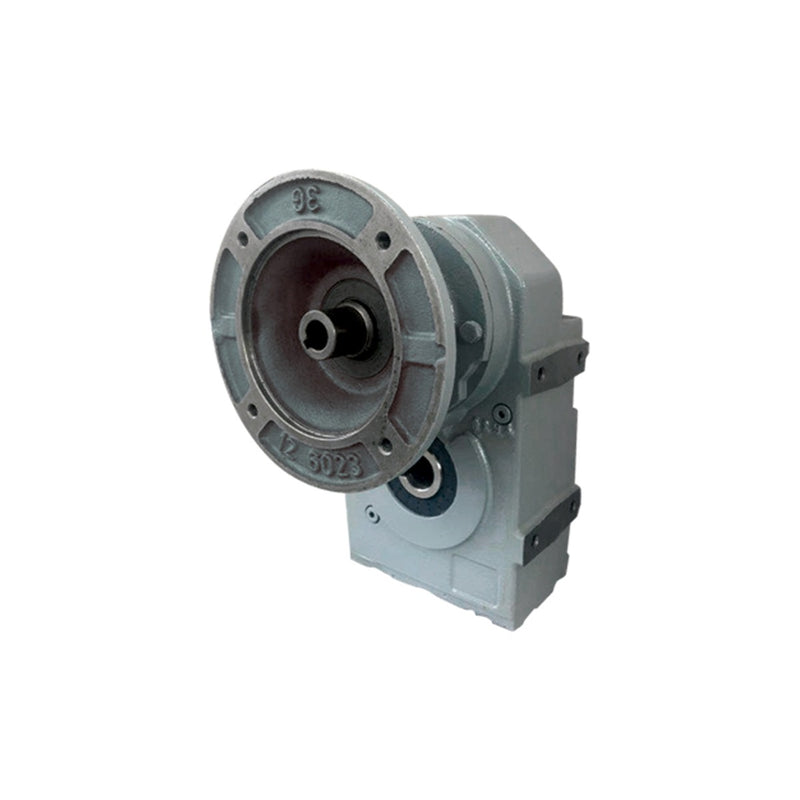

Chiaravalli CH-G D 402 shaft mounted gear unit (chiaravalli.com product image)
Chiaravalli

CH-G D 402 Shaft Mounted Gear Unit (Ø40 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G D 402 parallel shaft mounted gear unit — Chiaravalli's cast iron series: two-stage, size 40, ratios 7.17:1 to 61.05:1. Hollow output shaft Ø40 mm H7 (D version; the M version has a solid shaft). Made to order: the catalogue lists every D/M version (B14 or B5 flange, KS shrink disc, LT rubber buffer, Ç fixing element, M solid shaft) as available on request — ask us for the lead time. Backstop device available on request (specify the free direction of rotation). PAM motor input for IEC 80, 90, 100, 112, 132 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 61.05:1 gives 23 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 2.41 to 11.21 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2GRRadial load FR2 Weight
CH-G D402 61.05 PAM80 61.05:1 IEC 80 · 19 mm shaft 1.1 kW 22.9 r/min 456 Nm 2.19 2.6 kN 18 kN 7.1 kN 37.0 kg
CH-G D402 61.05 PAM90 61.05:1 IEC 90 · 24 mm shaft 2.2 kW 22.9 r/min 913 Nm 1.1 2.6 kN 18 kN 7.1 kN 37.0 kg
CH-G D402 61.05 PAM100 61.05:1 IEC 100 · 28 mm shaft 2.2 kW 22.9 r/min 913 Nm 1.1 2.6 kN 18 kN 7.1 kN 39.0 kg
CH-G D402 61.05 PAM112 61.05:1 IEC 112 · 28 mm shaft 4 kW 22.9 r/min 1660 Nm 0.6 2.6 kN 18 kN 7.1 kN 39.0 kg
CH-G D402 53.44 PAM80 53.44:1 IEC 80 · 19 mm shaft 1.1 kW 26.2 r/min 400 Nm 2.5 2.6 kN 18 kN 6.7 kN 37.0 kg
CH-G D402 53.44 PAM90 53.44:1 IEC 90 · 24 mm shaft 2.2 kW 26.2 r/min 800 Nm 1.25 2.6 kN 18 kN 6.7 kN 37.0 kg
CH-G D402 53.44 PAM100 53.44:1 IEC 100 · 28 mm shaft 2.2 kW 26.2 r/min 800 Nm 1.25 2.6 kN 18 kN 6.7 kN 39.0 kg
CH-G D402 53.44 PAM112 53.44:1 IEC 112 · 28 mm shaft 4 kW 26.2 r/min 1455 Nm 0.69 2.6 kN 18 kN 6.7 kN 39.0 kg
CH-G D402 49.5 PAM80 49.5:1 IEC 80 · 19 mm shaft 1.1 kW 28.3 r/min 369 Nm 2.71 2.5 kN 18 kN 6.5 kN 37.0 kg
CH-G D402 49.5 PAM90 49.5:1 IEC 90 · 24 mm shaft 2.2 kW 28.3 r/min 738 Nm 1.35 2.5 kN 18 kN 6.5 kN 37.0 kg
CH-G D402 49.5 PAM100 49.5:1 IEC 100 · 28 mm shaft 2.2 kW 28.3 r/min 738 Nm 1.35 2.5 kN 18 kN 6.5 kN 39.0 kg
CH-G D402 49.5 PAM112 49.5:1 IEC 112 · 28 mm shaft 4 kW 28.3 r/min 1342 Nm 0.75 2.5 kN 18 kN 6.5 kN 39.0 kg
CH-G D402 42.38 PAM80 42.38:1 IEC 80 · 19 mm shaft 1.1 kW 33 r/min 316 Nm 3.16 2.5 kN 18 kN 6.2 kN 37.0 kg
CH-G D402 42.38 PAM90 42.38:1 IEC 90 · 24 mm shaft 2.2 kW 33 r/min 632 Nm 1.58 2.5 kN 18 kN 6.2 kN 37.0 kg
CH-G D402 42.38 PAM100 42.38:1 IEC 100 · 28 mm shaft 3 kW 33 r/min 862 Nm 1.16 2.5 kN 18 kN 6.2 kN 39.0 kg
CH-G D402 42.38 PAM112 42.38:1 IEC 112 · 28 mm shaft 4 kW 33 r/min 1149 Nm 0.87 2.5 kN 18 kN 6.2 kN 39.0 kg
CH-G D402 42.38 PAM132 42.38:1 IEC 132 · 38 mm shaft 5.5 kW 33 r/min 1580 Nm 0.63 2.5 kN 18 kN 6.2 kN 43.0 kg
CH-G D402 39.44 PAM80 39.44:1 IEC 80 · 19 mm shaft 1.1 kW 35.5 r/min 295 Nm 3.39 2.4 kN 18 kN 6 kN 37.0 kg
CH-G D402 39.44 PAM90 39.44:1 IEC 90 · 24 mm shaft 2.2 kW 35.5 r/min 590 Nm 1.7 2.4 kN 18 kN 6 kN 37.0 kg
CH-G D402 39.44 PAM100 39.44:1 IEC 100 · 28 mm shaft 3 kW 35.5 r/min 804 Nm 1.24 2.4 kN 18 kN 6 kN 39.0 kg
CH-G D402 39.44 PAM112 39.44:1 IEC 112 · 28 mm shaft 4 kW 35.5 r/min 1072 Nm 0.93 2.4 kN 18 kN 6 kN 39.0 kg
CH-G D402 34.36 PAM80 34.36:1 IEC 80 · 19 mm shaft 1.1 kW 40.7 r/min 257 Nm 3.89 2.3 kN 18 kN 5.7 kN 37.0 kg
CH-G D402 34.36 PAM90 34.36:1 IEC 90 · 24 mm shaft 2.2 kW 40.7 r/min 514 Nm 1.95 2.3 kN 18 kN 5.7 kN 37.0 kg
CH-G D402 34.36 PAM100 34.36:1 IEC 100 · 28 mm shaft 3 kW 40.7 r/min 701 Nm 1.43 2.3 kN 18 kN 5.7 kN 39.0 kg
CH-G D402 34.36 PAM112 34.36:1 IEC 112 · 28 mm shaft 4 kW 40.7 r/min 935 Nm 1.07 2.3 kN 18 kN 5.7 kN 39.0 kg
CH-G D402 34.36 PAM132 34.36:1 IEC 132 · 38 mm shaft 5.5 kW 40.7 r/min 1285 Nm 0.78 2.3 kN 18 kN 5.7 kN 43.0 kg
CH-G D402 31.28 PAM80 31.28:1 IEC 80 · 19 mm shaft 1.1 kW 44.8 r/min 234 Nm 4.28 2.3 kN 18 kN 5.5 kN 37.0 kg
CH-G D402 31.28 PAM90 31.28:1 IEC 90 · 24 mm shaft 2.2 kW 44.8 r/min 467 Nm 2.14 2.3 kN 18 kN 5.5 kN 37.0 kg
CH-G D402 31.28 PAM100 31.28:1 IEC 100 · 28 mm shaft 3 kW 44.8 r/min 637 Nm 1.57 2.3 kN 18 kN 5.5 kN 39.0 kg
CH-G D402 31.28 PAM112 31.28:1 IEC 112 · 28 mm shaft 4 kW 44.8 r/min 849 Nm 1.18 2.3 kN 18 kN 5.5 kN 39.0 kg
CH-G D402 31.28 PAM132 31.28:1 IEC 132 · 38 mm shaft 5.5 kW 44.8 r/min 1168 Nm 0.86 2.3 kN 18 kN 5.5 kN 43.0 kg
CH-G D402 28.22 PAM80 28.22:1 IEC 80 · 19 mm shaft 1.1 kW 49.6 r/min 211 Nm 4.26 2.3 kN 18 kN 5.4 kN 37.0 kg
CH-G D402 28.22 PAM90 28.22:1 IEC 90 · 24 mm shaft 2.2 kW 49.6 r/min 422 Nm 2.13 2.3 kN 18 kN 5.4 kN 37.0 kg
CH-G D402 28.22 PAM100 28.22:1 IEC 100 · 28 mm shaft 3 kW 49.6 r/min 576 Nm 1.56 2.3 kN 18 kN 5.4 kN 39.0 kg
CH-G D402 28.22 PAM112 28.22:1 IEC 112 · 28 mm shaft 4 kW 49.6 r/min 768 Nm 1.17 2.3 kN 18 kN 5.4 kN 39.0 kg
CH-G D402 28.22 PAM132 28.22:1 IEC 132 · 38 mm shaft 5.5 kW 49.6 r/min 1055 Nm 0.85 2.3 kN 18 kN 5.4 kN 43.0 kg
CH-G D402 26.83 PAM80 26.83:1 IEC 80 · 19 mm shaft 1.1 kW 52.2 r/min 200 Nm 4.49 2.2 kN 18 kN 5.3 kN 37.0 kg
CH-G D402 26.83 PAM90 26.83:1 IEC 90 · 24 mm shaft 2.2 kW 52.2 r/min 401 Nm 2.25 2.2 kN 18 kN 5.3 kN 37.0 kg
CH-G D402 26.83 PAM100 26.83:1 IEC 100 · 28 mm shaft 3 kW 52.2 r/min 547 Nm 1.65 2.2 kN 18 kN 5.3 kN 39.0 kg
CH-G D402 26.83 PAM112 26.83:1 IEC 112 · 28 mm shaft 4 kW 52.2 r/min 729 Nm 1.24 2.2 kN 18 kN 5.3 kN 39.0 kg
CH-G D402 26.83 PAM132 26.83:1 IEC 132 · 38 mm shaft 5.5 kW 52.2 r/min 1002 Nm 0.9 2.2 kN 18 kN 5.3 kN 43.0 kg
CH-G D402 23.6 PAM80 23.6:1 IEC 80 · 19 mm shaft 1.1 kW 59.3 r/min 176 Nm 4.54 2.2 kN 17.8 kN 5.1 kN 37.0 kg
CH-G D402 23.6 PAM90 23.6:1 IEC 90 · 24 mm shaft 2.2 kW 59.3 r/min 353 Nm 2.27 2.2 kN 17.8 kN 5.1 kN 37.0 kg
CH-G D402 23.6 PAM100 23.6:1 IEC 100 · 28 mm shaft 3 kW 59.3 r/min 481 Nm 1.66 2.2 kN 17.8 kN 5.1 kN 39.0 kg
CH-G D402 23.6 PAM112 23.6:1 IEC 112 · 28 mm shaft 4 kW 59.3 r/min 641 Nm 1.25 2.2 kN 17.8 kN 5.1 kN 39.0 kg
CH-G D402 23.6 PAM132 23.6:1 IEC 132 · 38 mm shaft 5.5 kW 59.3 r/min 882 Nm 0.91 2.2 kN 17.8 kN 5.1 kN 43.0 kg
CH-G D402 21.75 PAM80 21.75:1 IEC 80 · 19 mm shaft 1.1 kW 64.4 r/min 163 Nm 4.92 2.2 kN 17.3 kN 4.9 kN 37.0 kg
CH-G D402 21.75 PAM90 21.75:1 IEC 90 · 24 mm shaft 2.2 kW 64.4 r/min 325 Nm 2.46 2.2 kN 17.3 kN 4.9 kN 37.0 kg
CH-G D402 21.75 PAM100 21.75:1 IEC 100 · 28 mm shaft 3 kW 64.4 r/min 444 Nm 1.8 2.2 kN 17.3 kN 4.9 kN 39.0 kg
CH-G D402 21.75 PAM112 21.75:1 IEC 112 · 28 mm shaft 4 kW 64.4 r/min 591 Nm 1.35 2.2 kN 17.3 kN 4.9 kN 39.0 kg
CH-G D402 21.75 PAM132 21.75:1 IEC 132 · 38 mm shaft 5.5 kW 64.4 r/min 813 Nm 0.98 2.2 kN 17.3 kN 4.9 kN 43.0 kg
CH-G D402 19.8 PAM80 19.8:1 IEC 80 · 19 mm shaft 1.1 kW 70.7 r/min 148 Nm 5.2 2.1 kN 16.8 kN 4.8 kN 37.0 kg
CH-G D402 19.8 PAM90 19.8:1 IEC 90 · 24 mm shaft 2.2 kW 70.7 r/min 296 Nm 2.6 2.1 kN 16.8 kN 4.8 kN 37.0 kg
CH-G D402 19.8 PAM100 19.8:1 IEC 100 · 28 mm shaft 3 kW 70.7 r/min 404 Nm 1.91 2.1 kN 16.8 kN 4.8 kN 39.0 kg
CH-G D402 19.8 PAM112 19.8:1 IEC 112 · 28 mm shaft 5.5 kW 70.7 r/min 740 Nm 1.04 2.1 kN 16.8 kN 4.8 kN 39.0 kg
CH-G D402 19.8 PAM132 19.8:1 IEC 132 · 38 mm shaft 5.5 kW 70.7 r/min 740 Nm 1.04 2.1 kN 16.8 kN 4.8 kN 43.0 kg
CH-G D402 16.99 PAM80 16.99:1 IEC 80 · 19 mm shaft 1.1 kW 82.4 r/min 127 Nm 6.05 2 kN 15.8 kN 4.5 kN 37.0 kg
CH-G D402 16.99 PAM90 16.99:1 IEC 90 · 24 mm shaft 2.2 kW 82.4 r/min 254 Nm 3.03 2 kN 15.8 kN 4.5 kN 37.0 kg
CH-G D402 16.99 PAM100 16.99:1 IEC 100 · 28 mm shaft 3 kW 82.4 r/min 347 Nm 2.22 2 kN 15.8 kN 4.5 kN 39.0 kg
CH-G D402 16.99 PAM112 16.99:1 IEC 112 · 28 mm shaft 5.5 kW 82.4 r/min 636 Nm 1.21 2 kN 15.8 kN 4.5 kN 39.0 kg
CH-G D402 16.99 PAM132 16.99:1 IEC 132 · 38 mm shaft 5.5 kW 82.4 r/min 636 Nm 1.21 2 kN 15.8 kN 4.5 kN 43.0 kg
CH-G D402 15.42 PAM80 15.42:1 IEC 80 · 19 mm shaft 1.1 kW 90.8 r/min 116 Nm 6.66 1.9 kN 15.3 kN 4.4 kN 37.0 kg
CH-G D402 15.42 PAM90 15.42:1 IEC 90 · 24 mm shaft 2.2 kW 90.8 r/min 231 Nm 3.33 1.9 kN 15.3 kN 4.4 kN 37.0 kg
CH-G D402 15.42 PAM100 15.42:1 IEC 100 · 28 mm shaft 3 kW 90.8 r/min 315 Nm 2.44 1.9 kN 15.3 kN 4.4 kN 39.0 kg
CH-G D402 15.42 PAM112 15.42:1 IEC 112 · 28 mm shaft 5.5 kW 90.8 r/min 578 Nm 1.33 1.9 kN 15.3 kN 4.4 kN 39.0 kg
CH-G D402 15.42 PAM132 15.42:1 IEC 132 · 38 mm shaft 5.5 kW 90.8 r/min 578 Nm 1.33 1.9 kN 15.3 kN 4.4 kN 43.0 kg
CH-G D402 12.5 PAM80 12.5:1 IEC 80 · 19 mm shaft 1.1 kW 112 r/min 94 Nm 8 1.6 kN 14.1 kN 4 kN 37.0 kg
CH-G D402 12.5 PAM90 12.5:1 IEC 90 · 24 mm shaft 2.2 kW 112 r/min 188 Nm 4 1.6 kN 14.1 kN 4 kN 37.0 kg
CH-G D402 12.5 PAM100 12.5:1 IEC 100 · 28 mm shaft 3 kW 112 r/min 256 Nm 2.93 1.6 kN 14.1 kN 4 kN 39.0 kg
CH-G D402 12.5 PAM112 12.5:1 IEC 112 · 28 mm shaft 5.5 kW 112 r/min 469 Nm 1.6 1.6 kN 14.1 kN 4 kN 39.0 kg
CH-G D402 12.5 PAM132 12.5:1 IEC 132 · 38 mm shaft 7.5 kW 112 r/min 639 Nm 1.17 1.6 kN 14.1 kN 4 kN 43.0 kg
CH-G D402 11.38 PAM80 11.38:1 IEC 80 · 19 mm shaft 1.1 kW 123 r/min 85 Nm 8.21 1.6 kN 13.8 kN 3.9 kN 37.0 kg
CH-G D402 11.38 PAM90 11.38:1 IEC 90 · 24 mm shaft 2.2 kW 123 r/min 171 Nm 4.1 1.6 kN 13.8 kN 3.9 kN 37.0 kg
CH-G D402 11.38 PAM100 11.38:1 IEC 100 · 28 mm shaft 3 kW 123 r/min 233 Nm 3.01 1.6 kN 13.8 kN 3.9 kN 39.0 kg
CH-G D402 11.38 PAM112 11.38:1 IEC 112 · 28 mm shaft 5.5 kW 123 r/min 426 Nm 1.64 1.6 kN 13.8 kN 3.9 kN 39.0 kg
CH-G D402 11.38 PAM132 11.38:1 IEC 132 · 38 mm shaft 7.5 kW 123 r/min 581 Nm 1.2 1.6 kN 13.8 kN 3.9 kN 43.0 kg
CH-G D402 9.71 PAM80 9.71:1 IEC 80 · 19 mm shaft 1.1 kW 144.1 r/min 73 Nm 8.89 1.5 kN 13.2 kN 3.8 kN 37.0 kg
CH-G D402 9.71 PAM90 9.71:1 IEC 90 · 24 mm shaft 2.2 kW 144.1 r/min 146 Nm 4.45 1.5 kN 13.2 kN 3.8 kN 37.0 kg
CH-G D402 9.71 PAM100 9.71:1 IEC 100 · 28 mm shaft 3 kW 144.1 r/min 199 Nm 3.26 1.5 kN 13.2 kN 3.8 kN 39.0 kg
CH-G D402 9.71 PAM112 9.71:1 IEC 112 · 28 mm shaft 5.5 kW 144.1 r/min 366 Nm 1.78 1.5 kN 13.2 kN 3.8 kN 39.0 kg
CH-G D402 9.71 PAM132 9.71:1 IEC 132 · 38 mm shaft 7.5 kW 144.1 r/min 498 Nm 1.3 1.5 kN 13.2 kN 3.8 kN 43.0 kg
CH-G D402 7.88 PAM80 7.88:1 IEC 80 · 19 mm shaft 1.1 kW 177.8 r/min 59 Nm 10.12 1.3 kN 12.3 kN 3.5 kN 37.0 kg
CH-G D402 7.88 PAM90 7.88:1 IEC 90 · 24 mm shaft 2.2 kW 177.8 r/min 119 Nm 5.06 1.3 kN 12.3 kN 3.5 kN 37.0 kg
CH-G D402 7.88 PAM100 7.88:1 IEC 100 · 28 mm shaft 3 kW 177.8 r/min 162 Nm 3.71 1.3 kN 12.3 kN 3.5 kN 39.0 kg
CH-G D402 7.88 PAM112 7.88:1 IEC 112 · 28 mm shaft 5.5 kW 177.8 r/min 296 Nm 2.02 1.3 kN 12.3 kN 3.5 kN 39.0 kg
CH-G D402 7.88 PAM132 7.88:1 IEC 132 · 38 mm shaft 7.5 kW 177.8 r/min 404 Nm 1.48 1.3 kN 12.3 kN 3.5 kN 43.0 kg
CH-G D402 7.17 PAM80 7.17:1 IEC 80 · 19 mm shaft 1.1 kW 195.3 r/min 54 Nm 10.19 1.3 kN 12 kN 3.4 kN 37.0 kg
CH-G D402 7.17 PAM90 7.17:1 IEC 90 · 24 mm shaft 2.2 kW 195.3 r/min 108 Nm 5.1 1.3 kN 12 kN 3.4 kN 37.0 kg
CH-G D402 7.17 PAM100 7.17:1 IEC 100 · 28 mm shaft 3 kW 195.3 r/min 147 Nm 3.74 1.3 kN 12 kN 3.4 kN 39.0 kg
CH-G D402 7.17 PAM112 7.17:1 IEC 112 · 28 mm shaft 5.5 kW 195.3 r/min 270 Nm 2.04 1.3 kN 12 kN 3.4 kN 39.0 kg
CH-G D402 7.17 PAM132 7.17:1 IEC 132 · 38 mm shaft 7.5 kW 195.3 r/min 368 Nm 1.49 1.3 kN 12 kN 3.4 kN 43.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.
