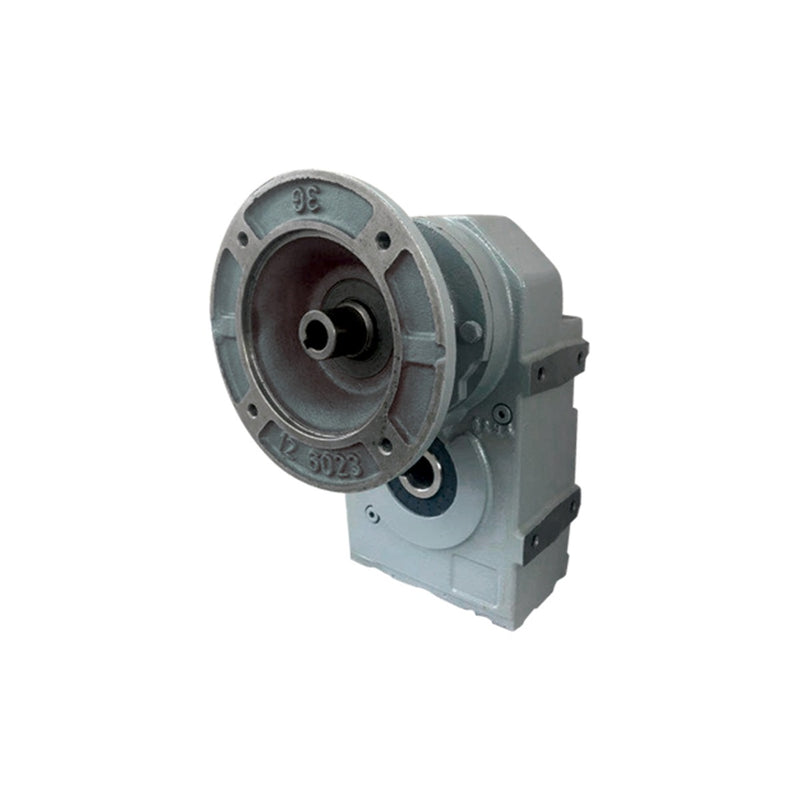

Chiaravalli CH-G D 602 shaft mounted gear unit (chiaravalli.com product image)
Chiaravalli

CH-G D 602 Shaft Mounted Gear Unit (Ø60 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G D 602 parallel shaft mounted gear unit — Chiaravalli's cast iron series: two-stage, size 60, ratios 8.66:1 to 66.88:1. Hollow output shaft Ø60 mm H7 (D version; the M version has a solid shaft). Made to order: the catalogue lists every D/M version (B14 or B5 flange, KS shrink disc, LT rubber buffer, Ç fixing element, M solid shaft) as available on request — ask us for the lead time. Backstop device available on request (specify the free direction of rotation). PAM motor input for IEC 80, 90, 100, 112, 132, 160, 180, 200 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 66.88:1 gives 21 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 6.8 to 27.36 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2GRRadial load FR2 Weight
CH-G D602 66.88 PAM80 66.88:1 IEC 80 · 19 mm shaft 1.1 kW 20.9 r/min 485 Nm 6.18 3.7 kN 30 kN 11 kN 83.0 kg
CH-G D602 66.88 PAM90 66.88:1 IEC 90 · 24 mm shaft 2.2 kW 20.9 r/min 971 Nm 3.09 3.7 kN 30 kN 11 kN 83.0 kg
CH-G D602 66.88 PAM100 66.88:1 IEC 100 · 28 mm shaft 3 kW 20.9 r/min 1324 Nm 2.27 3.7 kN 30 kN 11 kN 87.0 kg
CH-G D602 66.88 PAM112 66.88:1 IEC 112 · 28 mm shaft 5.5 kW 20.9 r/min 2426 Nm 1.24 3.7 kN 30 kN 11 kN 87.0 kg
CH-G D602 66.88 PAM132 66.88:1 IEC 132 · 38 mm shaft 5.5 kW 20.9 r/min 2426 Nm 1.24 3.7 kN 30 kN 11 kN 90.0 kg
CH-G D602 54.47 PAM80 54.47:1 IEC 80 · 19 mm shaft 1.1 kW 25.7 r/min 395 Nm 6.58 3.7 kN 30 kN 10.5 kN 83.0 kg
CH-G D602 54.47 PAM90 54.47:1 IEC 90 · 24 mm shaft 2.2 kW 25.7 r/min 790 Nm 3.29 3.7 kN 30 kN 10.5 kN 83.0 kg
CH-G D602 54.47 PAM100 54.47:1 IEC 100 · 28 mm shaft 3 kW 25.7 r/min 1077 Nm 2.41 3.7 kN 30 kN 10.5 kN 87.0 kg
CH-G D602 54.47 PAM112 54.47:1 IEC 112 · 28 mm shaft 5.5 kW 25.7 r/min 1975 Nm 1.32 3.7 kN 30 kN 10.5 kN 87.0 kg
CH-G D602 54.47 PAM132 54.47:1 IEC 132 · 38 mm shaft 5.5 kW 25.7 r/min 1975 Nm 1.32 3.7 kN 30 kN 10.5 kN 90.0 kg
CH-G D602 49.69 PAM80 49.69:1 IEC 80 · 19 mm shaft 1.1 kW 28.2 r/min 361 Nm 6.65 3.7 kN 30 kN 10.3 kN 83.0 kg
CH-G D602 49.69 PAM90 49.69:1 IEC 90 · 24 mm shaft 2.2 kW 28.2 r/min 721 Nm 3.33 3.7 kN 30 kN 10.3 kN 83.0 kg
CH-G D602 49.69 PAM100 49.69:1 IEC 100 · 28 mm shaft 3 kW 28.2 r/min 984 Nm 2.44 3.7 kN 30 kN 10.3 kN 87.0 kg
CH-G D602 49.69 PAM112 49.69:1 IEC 112 · 28 mm shaft 5.5 kW 28.2 r/min 1803 Nm 1.33 3.7 kN 30 kN 10.3 kN 87.0 kg
CH-G D602 49.69 PAM132 49.69:1 IEC 132 · 38 mm shaft 5.5 kW 28.2 r/min 1803 Nm 1.33 3.7 kN 30 kN 10.3 kN 90.0 kg
CH-G D602 44.19 PAM80 44.19:1 IEC 80 · 19 mm shaft 1.1 kW 31.7 r/min 320 Nm 9.36 3.6 kN 30 kN 9.1 kN 83.0 kg
CH-G D602 44.19 PAM90 44.19:1 IEC 90 · 24 mm shaft 2.2 kW 31.7 r/min 641 Nm 4.68 3.6 kN 30 kN 9.1 kN 83.0 kg
CH-G D602 44.19 PAM100 44.19:1 IEC 100 · 28 mm shaft 3 kW 31.7 r/min 874 Nm 3.43 3.6 kN 30 kN 9.1 kN 87.0 kg
CH-G D602 44.19 PAM112 44.19:1 IEC 112 · 28 mm shaft 5.5 kW 31.7 r/min 1602 Nm 1.87 3.6 kN 30 kN 9.1 kN 87.0 kg
CH-G D602 44.19 PAM132 44.19:1 IEC 132 · 38 mm shaft 7.5 kW 31.7 r/min 2184 Nm 1.37 3.6 kN 30 kN 9.1 kN 90.0 kg
CH-G D602 41.65 PAM100 41.65:1 IEC 100 · 28 mm shaft 3 kW 33.6 r/min 823 Nm 3.65 3.5 kN 30 kN 8.9 kN 87.0 kg
CH-G D602 41.65 PAM112 41.65:1 IEC 112 · 28 mm shaft 5.5 kW 33.6 r/min 1508 Nm 1.99 3.5 kN 30 kN 8.9 kN 87.0 kg
CH-G D602 41.65 PAM132 41.65:1 IEC 132 · 38 mm shaft 7.5 kW 33.6 r/min 2057 Nm 1.46 3.5 kN 30 kN 8.9 kN 90.0 kg
CH-G D602 41.65 PAM160 41.65:1 IEC 160 · 42 mm shaft 11 kW 33.6 r/min 3016 Nm 0.99 3.5 kN 30 kN 8.9 kN 96.0 kg
CH-G D602 41.65 PAM180 41.65:1 IEC 180 · 48 mm shaft 18.5 kW 33.6 r/min 5073 Nm 0.59 3.5 kN 30 kN 8.9 kN 96.0 kg
CH-G D602 35.72 PAM100 35.72:1 IEC 100 · 28 mm shaft 3 kW 39.2 r/min 706 Nm 4.25 3.5 kN 29.1 kN 8.3 kN 87.0 kg
CH-G D602 35.72 PAM112 35.72:1 IEC 112 · 28 mm shaft 5.5 kW 39.2 r/min 1294 Nm 2.32 3.5 kN 29.1 kN 8.3 kN 87.0 kg
CH-G D602 35.72 PAM132 35.72:1 IEC 132 · 38 mm shaft 7.5 kW 39.2 r/min 1765 Nm 1.7 3.5 kN 29.1 kN 8.3 kN 90.0 kg
CH-G D602 35.72 PAM160 35.72:1 IEC 160 · 42 mm shaft 11 kW 39.2 r/min 2588 Nm 1.16 3.5 kN 29.1 kN 8.3 kN 96.0 kg
CH-G D602 35.72 PAM180 35.72:1 IEC 180 · 48 mm shaft 18.5 kW 39.2 r/min 4353 Nm 0.69 3.5 kN 29.1 kN 8.3 kN 96.0 kg
CH-G D602 33.92 PAM100 33.92:1 IEC 100 · 28 mm shaft 3 kW 41.3 r/min 670 Nm 4.48 3.5 kN 28.4 kN 8.1 kN 87.0 kg
CH-G D602 33.92 PAM112 33.92:1 IEC 112 · 28 mm shaft 5.5 kW 41.3 r/min 1229 Nm 2.44 3.5 kN 28.4 kN 8.1 kN 87.0 kg
CH-G D602 33.92 PAM132 33.92:1 IEC 132 · 38 mm shaft 7.5 kW 41.3 r/min 1675 Nm 1.79 3.5 kN 28.4 kN 8.1 kN 90.0 kg
CH-G D602 33.92 PAM160 33.92:1 IEC 160 · 42 mm shaft 11 kW 41.3 r/min 2457 Nm 1.22 3.5 kN 28.4 kN 8.1 kN 96.0 kg
CH-G D602 33.92 PAM180 33.92:1 IEC 180 · 48 mm shaft 18.5 kW 41.3 r/min 4133 Nm 0.73 3.5 kN 28.4 kN 8.1 kN 96.0 kg
CH-G D602 30.95 PAM100 30.95:1 IEC 100 · 28 mm shaft 3 kW 45.2 r/min 612 Nm 4.9 3.4 kN 27.2 kN 7.8 kN 87.0 kg
CH-G D602 30.95 PAM112 30.95:1 IEC 112 · 28 mm shaft 5.5 kW 45.2 r/min 1122 Nm 2.67 3.4 kN 27.2 kN 7.8 kN 87.0 kg
CH-G D602 30.95 PAM132 30.95:1 IEC 132 · 38 mm shaft 7.5 kW 45.2 r/min 1530 Nm 1.96 3.4 kN 27.2 kN 7.8 kN 90.0 kg
CH-G D602 30.95 PAM160 30.95:1 IEC 160 · 42 mm shaft 11 kW 45.2 r/min 2243 Nm 1.34 3.4 kN 27.2 kN 7.8 kN 96.0 kg
CH-G D602 30.95 PAM180 30.95:1 IEC 180 · 48 mm shaft 18.5 kW 45.2 r/min 3773 Nm 0.8 3.4 kN 27.2 kN 7.8 kN 96.0 kg
CH-G D602 29.04 PAM100 29.04:1 IEC 100 · 28 mm shaft 3 kW 48.2 r/min 573 Nm 5.23 3.4 kN 26.4 kN 7.5 kN 87.0 kg
CH-G D602 29.04 PAM112 29.04:1 IEC 112 · 28 mm shaft 5.5 kW 48.2 r/min 1051 Nm 2.85 3.4 kN 26.4 kN 7.5 kN 87.0 kg
CH-G D602 29.04 PAM132 29.04:1 IEC 132 · 38 mm shaft 7.5 kW 48.2 r/min 1433 Nm 2.09 3.4 kN 26.4 kN 7.5 kN 90.0 kg
CH-G D602 29.04 PAM160 29.04:1 IEC 160 · 42 mm shaft 15 kW 48.2 r/min 2866 Nm 1.05 3.4 kN 26.4 kN 7.5 kN 96.0 kg
CH-G D602 29.04 PAM180 29.04:1 IEC 180 · 48 mm shaft 18.5 kW 48.2 r/min 3535 Nm 0.85 3.4 kN 26.4 kN 7.5 kN 96.0 kg
CH-G D602 26.54 PAM100 26.54:1 IEC 100 · 28 mm shaft 3 kW 52.8 r/min 524 Nm 5.72 3.3 kN 25.3 kN 7.2 kN 87.0 kg
CH-G D602 26.54 PAM112 26.54:1 IEC 112 · 28 mm shaft 5.5 kW 52.8 r/min 961 Nm 3.12 3.3 kN 25.3 kN 7.2 kN 87.0 kg
CH-G D602 26.54 PAM132 26.54:1 IEC 132 · 38 mm shaft 7.5 kW 52.8 r/min 1310 Nm 2.29 3.3 kN 25.3 kN 7.2 kN 90.0 kg
CH-G D602 26.54 PAM160 26.54:1 IEC 160 · 42 mm shaft 15 kW 52.8 r/min 2621 Nm 1.14 3.3 kN 25.3 kN 7.2 kN 96.0 kg
CH-G D602 26.54 PAM180 26.54:1 IEC 180 · 48 mm shaft 18.5 kW 52.8 r/min 3232 Nm 0.93 3.3 kN 25.3 kN 7.2 kN 96.0 kg
CH-G D602 23.65 PAM100 23.65:1 IEC 100 · 28 mm shaft 3 kW 59.2 r/min 467 Nm 6.21 3.3 kN 24.3 kN 6.9 kN 87.0 kg
CH-G D602 23.65 PAM112 23.65:1 IEC 112 · 28 mm shaft 5.5 kW 59.2 r/min 856 Nm 3.39 3.3 kN 24.3 kN 6.9 kN 87.0 kg
CH-G D602 23.65 PAM132 23.65:1 IEC 132 · 38 mm shaft 7.5 kW 59.2 r/min 1167 Nm 2.48 3.3 kN 24.3 kN 6.9 kN 90.0 kg
CH-G D602 23.65 PAM160 23.65:1 IEC 160 · 42 mm shaft 15 kW 59.2 r/min 2335 Nm 1.24 3.3 kN 24.3 kN 6.9 kN 96.0 kg
CH-G D602 23.65 PAM180 23.65:1 IEC 180 · 48 mm shaft 18.5 kW 59.2 r/min 2880 Nm 1.01 3.3 kN 24.3 kN 6.9 kN 96.0 kg
CH-G D602 21.58 PAM100 21.58:1 IEC 100 · 28 mm shaft 3 kW 64.9 r/min 426 Nm 6.57 3.2 kN 23.6 kN 6.7 kN 87.0 kg
CH-G D602 21.58 PAM112 21.58:1 IEC 112 · 28 mm shaft 5.5 kW 64.9 r/min 781 Nm 3.59 3.2 kN 23.6 kN 6.7 kN 87.0 kg
CH-G D602 21.58 PAM132 21.58:1 IEC 132 · 38 mm shaft 7.5 kW 64.9 r/min 1065 Nm 2.63 3.2 kN 23.6 kN 6.7 kN 90.0 kg
CH-G D602 21.58 PAM160 21.58:1 IEC 160 · 42 mm shaft 15 kW 64.9 r/min 2130 Nm 1.31 3.2 kN 23.6 kN 6.7 kN 96.0 kg
CH-G D602 21.58 PAM180 21.58:1 IEC 180 · 48 mm shaft 18.5 kW 64.9 r/min 2627 Nm 1.07 3.2 kN 23.6 kN 6.7 kN 96.0 kg
CH-G D602 17.3 PAM160 17.3:1 IEC 160 · 42 mm shaft 15 kW 80.9 r/min 1704 Nm 1.53 3.1 kN 21.9 kN 6.3 kN 96.0 kg
CH-G D602 17.3 PAM180 17.3:1 IEC 180 · 48 mm shaft 22 kW 80.9 r/min 2499 Nm 1.04 3.1 kN 21.9 kN 6.3 kN 96.0 kg
CH-G D602 17.3 PAM200 17.3:1 IEC 200 · 55 mm shaft 30 kW 80.9 r/min 3408 Nm 0.76 3.1 kN 21.9 kN 6.3 kN 112.0 kg
CH-G D602 14.09 PAM160 14.09:1 IEC 160 · 42 mm shaft 15 kW 99.4 r/min 1387 Nm 1.73 3 kN 20.6 kN 5.9 kN 96.0 kg
CH-G D602 14.09 PAM180 14.09:1 IEC 180 · 48 mm shaft 22 kW 99.4 r/min 2035 Nm 1.18 3 kN 20.6 kN 5.9 kN 96.0 kg
CH-G D602 14.09 PAM200 14.09:1 IEC 200 · 55 mm shaft 30 kW 99.4 r/min 2775 Nm 0.87 3 kN 20.6 kN 5.9 kN 112.0 kg
CH-G D602 12.85 PAM160 12.85:1 IEC 160 · 42 mm shaft 15 kW 108.9 r/min 1265 Nm 1.74 3 kN 20.5 kN 5.9 kN 96.0 kg
CH-G D602 12.85 PAM180 12.85:1 IEC 180 · 48 mm shaft 22 kW 108.9 r/min 1856 Nm 1.19 3 kN 20.5 kN 5.9 kN 96.0 kg
CH-G D602 12.85 PAM200 12.85:1 IEC 200 · 55 mm shaft 30 kW 108.9 r/min 2531 Nm 0.87 3 kN 20.5 kN 5.9 kN 112.0 kg
CH-G D602 11.65 PAM160 11.65:1 IEC 160 · 42 mm shaft 15 kW 120.1 r/min 1145 Nm 1.66 3 kN 20.7 kN 5.9 kN 96.0 kg
CH-G D602 11.65 PAM180 11.65:1 IEC 180 · 48 mm shaft 22 kW 120.1 r/min 1679 Nm 1.13 3 kN 20.7 kN 5.9 kN 96.0 kg
CH-G D602 11.65 PAM200 11.65:1 IEC 200 · 55 mm shaft 30 kW 120.1 r/min 2289 Nm 0.83 3 kN 20.7 kN 5.9 kN 112.0 kg
CH-G D602 9.49 PAM160 9.49:1 IEC 160 · 42 mm shaft 15 kW 147.5 r/min 932 Nm 1.82 2.9 kN 19.6 kN 5.6 kN 96.0 kg
CH-G D602 9.49 PAM180 9.49:1 IEC 180 · 48 mm shaft 22 kW 147.5 r/min 1367 Nm 1.24 2.9 kN 19.6 kN 5.6 kN 96.0 kg
CH-G D602 9.49 PAM200 9.49:1 IEC 200 · 55 mm shaft 30 kW 147.5 r/min 1864 Nm 0.91 2.9 kN 19.6 kN 5.6 kN 112.0 kg
CH-G D602 8.66 PAM160 8.66:1 IEC 160 · 42 mm shaft 15 kW 161.7 r/min 850 Nm 1.76 3 kN 19.6 kN 5.6 kN 96.0 kg
CH-G D602 8.66 PAM180 8.66:1 IEC 180 · 48 mm shaft 22 kW 161.7 r/min 1247 Nm 1.2 3 kN 19.6 kN 5.6 kN 96.0 kg
CH-G D602 8.66 PAM200 8.66:1 IEC 200 · 55 mm shaft 30 kW 161.7 r/min 1701 Nm 0.88 3 kN 19.6 kN 5.6 kN 112.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
