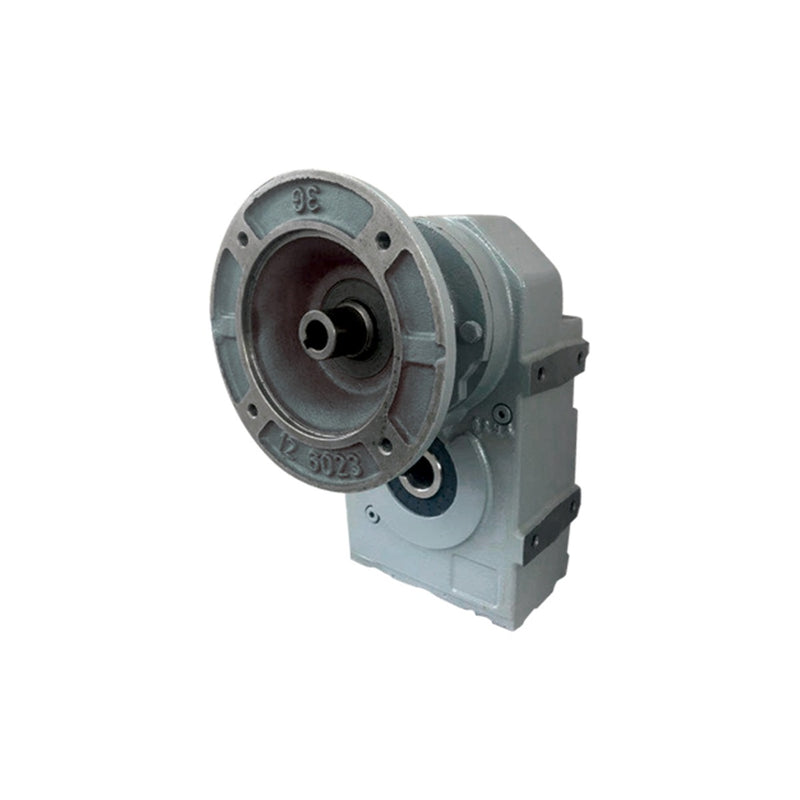

Chiaravalli CH-G D 603 shaft mounted gear unit (chiaravalli.com product image)
Chiaravalli

CH-G D 603 Shaft Mounted Gear Unit (Ø60 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G D 603 parallel shaft mounted gear unit — Chiaravalli's cast iron series: three-stage, size 60, ratios 70.67:1 to 343.64:1. Hollow output shaft Ø60 mm H7 (D version; the M version has a solid shaft). Made to order: the catalogue lists every D/M version (B14 or B5 flange, KS shrink disc, LT rubber buffer, Ç fixing element, M solid shaft) as available on request — ask us for the lead time. Backstop device available on request (specify the free direction of rotation). PAM motor input for IEC 80, 90, 100, 112, 132 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 343.64:1 gives 4 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 1.36 to 5.96 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2GRRadial load FR2 Weight
CH-G D603 343.64 PAM80 343.64:1 IEC 80 · 19 mm shaft 1.1 kW 4.1 r/min 2426 Nm 1.24 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 343.64 PAM90 343.64:1 IEC 90 · 24 mm shaft 1.1 kW 4.1 r/min 2426 Nm 1.24 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 343.64 PAM100 343.64:1 IEC 100 · 28 mm shaft 2.2 kW 4.1 r/min 4853 Nm 0.62 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 343.64 PAM112 343.64:1 IEC 112 · 28 mm shaft 4 kW 4.1 r/min 8824 Nm 0.34 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 300.83 PAM80 300.83:1 IEC 80 · 19 mm shaft 1.1 kW 4.7 r/min 2115 Nm 1.42 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 300.83 PAM90 300.83:1 IEC 90 · 24 mm shaft 1.5 kW 4.7 r/min 2885 Nm 1.04 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 300.83 PAM100 300.83:1 IEC 100 · 28 mm shaft 2.2 kW 4.7 r/min 4231 Nm 0.71 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 300.83 PAM112 300.83:1 IEC 112 · 28 mm shaft 4 kW 4.7 r/min 7692 Nm 0.39 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 279.86 PAM80 279.86:1 IEC 80 · 19 mm shaft 1.1 kW 5 r/min 1976 Nm 1.52 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 279.86 PAM90 279.86:1 IEC 90 · 24 mm shaft 1.5 kW 5 r/min 2695 Nm 1.11 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 279.86 PAM100 279.86:1 IEC 100 · 28 mm shaft 2.2 kW 5 r/min 3952 Nm 0.76 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 279.86 PAM112 279.86:1 IEC 112 · 28 mm shaft 4 kW 5 r/min 7186 Nm 0.42 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 238.56 PAM80 238.56:1 IEC 80 · 19 mm shaft 1.1 kW 5.9 r/min 1684 Nm 1.78 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 238.56 PAM90 238.56:1 IEC 90 · 24 mm shaft 1.5 kW 5.9 r/min 2296 Nm 1.31 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 238.56 PAM100 238.56:1 IEC 100 · 28 mm shaft 2.2 kW 5.9 r/min 3367 Nm 0.89 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 238.56 PAM112 238.56:1 IEC 112 · 28 mm shaft 4 kW 5.9 r/min 6122 Nm 0.49 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 238.56 PAM132 238.56:1 IEC 132 · 38 mm shaft 5.5 kW 5.9 r/min 8418 Nm 0.36 3.9 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 194.28 PAM80 194.28:1 IEC 80 · 19 mm shaft 1.1 kW 7.2 r/min 1369 Nm 2.19 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 194.28 PAM90 194.28:1 IEC 90 · 24 mm shaft 2.2 kW 7.2 r/min 2739 Nm 1.1 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 194.28 PAM100 194.28:1 IEC 100 · 28 mm shaft 2.2 kW 7.2 r/min 2739 Nm 1.1 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 194.28 PAM112 194.28:1 IEC 112 · 28 mm shaft 4 kW 7.2 r/min 4979 Nm 0.6 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 194.28 PAM132 194.28:1 IEC 132 · 38 mm shaft 5.5 kW 7.2 r/min 6846 Nm 0.44 3.9 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 177.25 PAM80 177.25:1 IEC 80 · 19 mm shaft 1.1 kW 7.9 r/min 1250 Nm 2.4 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 177.25 PAM90 177.25:1 IEC 90 · 24 mm shaft 2.2 kW 7.9 r/min 2500 Nm 1.2 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 177.25 PAM100 177.25:1 IEC 100 · 28 mm shaft 2.2 kW 7.9 r/min 2500 Nm 1.2 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 177.25 PAM112 177.25:1 IEC 112 · 28 mm shaft 4 kW 7.9 r/min 4545 Nm 0.66 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 177.25 PAM132 177.25:1 IEC 132 · 38 mm shaft 5.5 kW 7.9 r/min 6250 Nm 0.48 3.9 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 150.99 PAM80 150.99:1 IEC 80 · 19 mm shaft 1.1 kW 9.3 r/min 1065 Nm 2.82 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 150.99 PAM90 150.99:1 IEC 90 · 24 mm shaft 2.2 kW 9.3 r/min 2129 Nm 1.41 3.9 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 150.99 PAM100 150.99:1 IEC 100 · 28 mm shaft 3 kW 9.3 r/min 2903 Nm 1.03 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 150.99 PAM112 150.99:1 IEC 112 · 28 mm shaft 4 kW 9.3 r/min 3871 Nm 0.78 3.9 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 150.99 PAM132 150.99:1 IEC 132 · 38 mm shaft 5.5 kW 9.3 r/min 5323 Nm 0.56 3.9 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 133.43 PAM80 133.43:1 IEC 80 · 19 mm shaft 1.1 kW 10.5 r/min 940 Nm 3.19 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 133.43 PAM90 133.43:1 IEC 90 · 24 mm shaft 2.2 kW 10.5 r/min 1880 Nm 1.6 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 133.43 PAM100 133.43:1 IEC 100 · 28 mm shaft 3 kW 10.5 r/min 2564 Nm 1.17 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 133.43 PAM112 133.43:1 IEC 112 · 28 mm shaft 4 kW 10.5 r/min 3419 Nm 0.88 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 133.43 PAM132 133.43:1 IEC 132 · 38 mm shaft 5.5 kW 10.5 r/min 4701 Nm 0.64 3.8 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 122.97 PAM80 122.97:1 IEC 80 · 19 mm shaft 1.1 kW 11.4 r/min 868 Nm 3.45 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 122.97 PAM90 122.97:1 IEC 90 · 24 mm shaft 2.2 kW 11.4 r/min 1737 Nm 1.73 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 122.97 PAM100 122.97:1 IEC 100 · 28 mm shaft 3 kW 11.4 r/min 2368 Nm 1.27 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 122.97 PAM112 122.97:1 IEC 112 · 28 mm shaft 4 kW 11.4 r/min 3158 Nm 0.95 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 122.97 PAM132 122.97:1 IEC 132 · 38 mm shaft 5.5 kW 11.4 r/min 4342 Nm 0.69 3.8 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 112.19 PAM80 112.19:1 IEC 80 · 19 mm shaft 1.1 kW 12.5 r/min 791 Nm 3.79 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 112.19 PAM90 112.19:1 IEC 90 · 24 mm shaft 2.2 kW 12.5 r/min 1583 Nm 1.9 3.8 kN 30 kN 11.2 kN 83.0 kg
CH-G D603 112.19 PAM100 112.19:1 IEC 100 · 28 mm shaft 3 kW 12.5 r/min 2158 Nm 1.39 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 112.19 PAM112 112.19:1 IEC 112 · 28 mm shaft 4 kW 12.5 r/min 2878 Nm 1.04 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 112.19 PAM132 112.19:1 IEC 132 · 38 mm shaft 5.5 kW 12.5 r/min 3957 Nm 0.76 3.8 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 86.78 PAM100 86.78:1 IEC 100 · 28 mm shaft 3 kW 16.1 r/min 1670 Nm 1.8 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 86.78 PAM112 86.78:1 IEC 112 · 28 mm shaft 4 kW 16.1 r/min 2226 Nm 1.35 3.8 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 86.78 PAM132 86.78:1 IEC 132 · 38 mm shaft 5.5 kW 16.1 r/min 3061 Nm 0.98 3.8 kN 30 kN 11.2 kN 90.0 kg
CH-G D603 70.67 PAM100 70.67:1 IEC 100 · 28 mm shaft 3 kW 19.8 r/min 1359 Nm 1.99 3.7 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 70.67 PAM112 70.67:1 IEC 112 · 28 mm shaft 5.5 kW 19.8 r/min 2492 Nm 1.08 3.7 kN 30 kN 11.2 kN 87.0 kg
CH-G D603 70.67 PAM132 70.67:1 IEC 132 · 38 mm shaft 5.5 kW 19.8 r/min 2492 Nm 1.08 3.7 kN 30 kN 11.2 kN 90.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.
