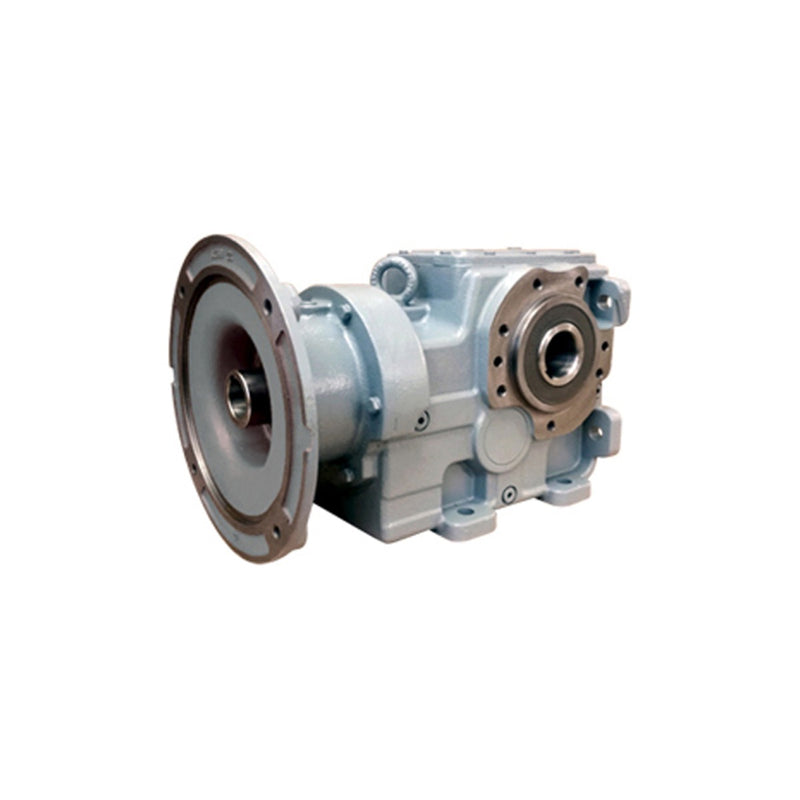

Chiaravalli CH-G K100390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K100390 Helical Bevel Gear Unit (Ø100 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K100390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 100, ratios 8.69:1 to 152.74:1. This is the K … DA-B14 version — foot-flange mounting with a Ø100 mm H7 hollow output shaft — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 160, 180, 200, 225, 250, 280 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 152.74:1 gives 9 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 13.86 to 127.46 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K100390 152.74 DA-B14 PAM160 152.74:1 IEC 160 · 42 mm shaft 11 kW 9.2 r/min 10317 Nm 1.26 10 kN 80 kN 65 kN 390.0 kg
CH-G K100390 152.74 DA-B14 PAM180 152.74:1 IEC 180 · 48 mm shaft 18.5 kW 9.2 r/min 17352 Nm 0.75 10 kN 80 kN 65 kN 390.0 kg
CH-G K100390 136.95 DA-B14 PAM160 136.95:1 IEC 160 · 42 mm shaft 15 kW 10.2 r/min 12613 Nm 1.03 9.9 kN 80 kN 65 kN 390.0 kg
CH-G K100390 136.95 DA-B14 PAM180 136.95:1 IEC 180 · 48 mm shaft 18.5 kW 10.2 r/min 15556 Nm 0.84 9.9 kN 80 kN 65 kN 390.0 kg
CH-G K100390 124.56 DA-B14 PAM160 124.56:1 IEC 160 · 42 mm shaft 15 kW 11.2 r/min 11471 Nm 1.13 9.9 kN 80 kN 65 kN 390.0 kg
CH-G K100390 124.56 DA-B14 PAM180 124.56:1 IEC 180 · 48 mm shaft 18.5 kW 11.2 r/min 14147 Nm 0.92 9.9 kN 80 kN 65 kN 390.0 kg
CH-G K100390 112.66 DA-B14 PAM160 112.66:1 IEC 160 · 42 mm shaft 15 kW 12.4 r/min 10372 Nm 1.25 9.8 kN 80 kN 65 kN 390.0 kg
CH-G K100390 112.66 DA-B14 PAM180 112.66:1 IEC 180 · 48 mm shaft 18.5 kW 12.4 r/min 12793 Nm 1.02 9.8 kN 80 kN 65 kN 390.0 kg
CH-G K100390 102.47 DA-B14 PAM160 102.47:1 IEC 160 · 42 mm shaft 15 kW 13.7 r/min 9439 Nm 1.38 9.8 kN 80 kN 65 kN 390.0 kg
CH-G K100390 102.47 DA-B14 PAM180 102.47:1 IEC 180 · 48 mm shaft 18.5 kW 13.7 r/min 11641 Nm 1.12 9.8 kN 80 kN 65 kN 390.0 kg
CH-G K100390 102.47 DA-B14 PAM200 102.47:1 IEC 200 · 55 mm shaft 30 kW 13.7 r/min 18877 Nm 0.69 9.8 kN 80 kN 65 kN 455.0 kg
CH-G K100390 94.85 DA-B14 PAM160 94.85:1 IEC 160 · 42 mm shaft 15 kW 14.8 r/min 8737 Nm 1.49 9.7 kN 80 kN 65 kN 390.0 kg
CH-G K100390 94.85 DA-B14 PAM180 94.85:1 IEC 180 · 48 mm shaft 22 kW 14.8 r/min 12814 Nm 1.01 9.7 kN 80 kN 65 kN 390.0 kg
CH-G K100390 94.85 DA-B14 PAM200 94.85:1 IEC 200 · 55 mm shaft 30 kW 14.8 r/min 17473 Nm 0.74 9.7 kN 80 kN 65 kN 455.0 kg
CH-G K100390 86.27 DA-B14 PAM160 86.27:1 IEC 160 · 42 mm shaft 15 kW 16.2 r/min 7943 Nm 1.64 9.7 kN 80 kN 65 kN 390.0 kg
CH-G K100390 86.27 DA-B14 PAM180 86.27:1 IEC 180 · 48 mm shaft 22 kW 16.2 r/min 11650 Nm 1.12 9.7 kN 80 kN 65 kN 390.0 kg
CH-G K100390 86.27 DA-B14 PAM200 86.27:1 IEC 200 · 55 mm shaft 30 kW 16.2 r/min 15886 Nm 0.82 9.7 kN 80 kN 65 kN 455.0 kg
CH-G K100390 75.56 DA-B14 PAM160 75.56:1 IEC 160 · 42 mm shaft 15 kW 18.5 r/min 6959 Nm 1.87 9.6 kN 80 kN 65 kN 390.0 kg
CH-G K100390 75.56 DA-B14 PAM180 75.56:1 IEC 180 · 48 mm shaft 22 kW 18.5 r/min 10207 Nm 1.27 9.6 kN 80 kN 65 kN 390.0 kg
CH-G K100390 75.56 DA-B14 PAM200 75.56:1 IEC 200 · 55 mm shaft 30 kW 18.5 r/min 13919 Nm 0.93 9.6 kN 80 kN 65 kN 455.0 kg
CH-G K100390 68.72 DA-B14 PAM160 68.72:1 IEC 160 · 42 mm shaft 15 kW 20.4 r/min 6329 Nm 2.05 9.5 kN 80 kN 65 kN 390.0 kg
CH-G K100390 68.72 DA-B14 PAM180 68.72:1 IEC 180 · 48 mm shaft 22 kW 20.4 r/min 9283 Nm 1.4 9.5 kN 80 kN 65 kN 390.0 kg
CH-G K100390 68.72 DA-B14 PAM200 68.72:1 IEC 200 · 55 mm shaft 30 kW 20.4 r/min 12658 Nm 1.03 9.5 kN 80 kN 65 kN 455.0 kg
CH-G K100390 68.72 DA-B14 PAM225 68.72:1 IEC 225 · 60 mm shaft 37 kW 20.4 r/min 15612 Nm 0.83 9.5 kN 80 kN 65 kN 461.0 kg
CH-G K100390 58.01 DA-B14 PAM160 58.01:1 IEC 160 · 42 mm shaft 15 kW 24.1 r/min 5342 Nm 2.43 9.4 kN 80 kN 65 kN 390.0 kg
CH-G K100390 58.01 DA-B14 PAM180 58.01:1 IEC 180 · 48 mm shaft 22 kW 24.1 r/min 7836 Nm 1.66 9.4 kN 80 kN 65 kN 390.0 kg
CH-G K100390 58.01 DA-B14 PAM200 58.01:1 IEC 200 · 55 mm shaft 30 kW 24.1 r/min 10685 Nm 1.22 9.4 kN 80 kN 65 kN 455.0 kg
CH-G K100390 58.01 DA-B14 PAM225 58.01:1 IEC 225 · 60 mm shaft 37 kW 24.1 r/min 13178 Nm 0.99 9.4 kN 80 kN 65 kN 461.0 kg
CH-G K100390 58.01 DA-B14 PAM250 58.01:1 IEC 250 · 65 mm shaft 55 kW 24.1 r/min 19589 Nm 0.66 9.4 kN 80 kN 65 kN 480.0 kg
CH-G K100390 52.76 DA-B14 PAM160 52.76:1 IEC 160 · 42 mm shaft 15 kW 26.5 r/min 4859 Nm 2.68 9.3 kN 80 kN 65 kN 390.0 kg
CH-G K100390 52.76 DA-B14 PAM180 52.76:1 IEC 180 · 48 mm shaft 22 kW 26.5 r/min 7127 Nm 1.82 9.3 kN 80 kN 65 kN 390.0 kg
CH-G K100390 52.76 DA-B14 PAM200 52.76:1 IEC 200 · 55 mm shaft 30 kW 26.5 r/min 9718 Nm 1.34 9.3 kN 80 kN 65 kN 455.0 kg
CH-G K100390 52.76 DA-B14 PAM225 52.76:1 IEC 225 · 60 mm shaft 37 kW 26.5 r/min 11986 Nm 1.08 9.3 kN 80 kN 65 kN 461.0 kg
CH-G K100390 52.76 DA-B14 PAM250 52.76:1 IEC 250 · 65 mm shaft 55 kW 26.5 r/min 17817 Nm 0.73 9.3 kN 80 kN 65 kN 480.0 kg
CH-G K100390 50.31 DA-B14 PAM160 50.31:1 IEC 160 · 42 mm shaft 15 kW 27.8 r/min 4633 Nm 2.81 9.2 kN 80 kN 65 kN 390.0 kg
CH-G K100390 50.31 DA-B14 PAM180 50.31:1 IEC 180 · 48 mm shaft 22 kW 27.8 r/min 6795 Nm 1.91 9.2 kN 80 kN 65 kN 390.0 kg
CH-G K100390 50.31 DA-B14 PAM200 50.31:1 IEC 200 · 55 mm shaft 30 kW 27.8 r/min 9266 Nm 1.4 9.2 kN 80 kN 65 kN 455.0 kg
CH-G K100390 50.31 DA-B14 PAM225 50.31:1 IEC 225 · 60 mm shaft 37 kW 27.8 r/min 11428 Nm 1.14 9.2 kN 80 kN 65 kN 461.0 kg
CH-G K100390 50.31 DA-B14 PAM250 50.31:1 IEC 250 · 65 mm shaft 55 kW 27.8 r/min 16987 Nm 0.77 9.2 kN 80 kN 65 kN 480.0 kg
CH-G K100390 44.36 DA-B14 PAM160 44.36:1 IEC 160 · 42 mm shaft 15 kW 31.6 r/min 4085 Nm 2.94 9.2 kN 78.2 kN 65 kN 390.0 kg
CH-G K100390 44.36 DA-B14 PAM180 44.36:1 IEC 180 · 48 mm shaft 22 kW 31.6 r/min 5992 Nm 2 9.2 kN 78.2 kN 65 kN 390.0 kg
CH-G K100390 44.36 DA-B14 PAM200 44.36:1 IEC 200 · 55 mm shaft 30 kW 31.6 r/min 8171 Nm 1.47 9.2 kN 78.2 kN 65 kN 455.0 kg
CH-G K100390 44.36 DA-B14 PAM225 44.36:1 IEC 225 · 60 mm shaft 37 kW 31.6 r/min 10077 Nm 1.19 9.2 kN 78.2 kN 65 kN 461.0 kg
CH-G K100390 44.36 DA-B14 PAM250 44.36:1 IEC 250 · 65 mm shaft 55 kW 31.6 r/min 14980 Nm 0.8 9.2 kN 78.2 kN 65 kN 480.0 kg
CH-G K100390 40.07 DA-B14 PAM160 40.07:1 IEC 160 · 42 mm shaft 15 kW 34.9 r/min 3690 Nm 3.44 9 kN 73.6 kN 65 kN 390.0 kg
CH-G K100390 40.07 DA-B14 PAM180 40.07:1 IEC 180 · 48 mm shaft 22 kW 34.9 r/min 5412 Nm 2.35 9 kN 73.6 kN 65 kN 390.0 kg
CH-G K100390 40.07 DA-B14 PAM200 40.07:1 IEC 200 · 55 mm shaft 30 kW 34.9 r/min 7379 Nm 1.72 9 kN 73.6 kN 65 kN 455.0 kg
CH-G K100390 40.07 DA-B14 PAM225 40.07:1 IEC 225 · 60 mm shaft 45 kW 34.9 r/min 11069 Nm 1.15 9 kN 73.6 kN 65 kN 461.0 kg
CH-G K100390 40.07 DA-B14 PAM250 40.07:1 IEC 250 · 65 mm shaft 55 kW 34.9 r/min 13529 Nm 0.94 9 kN 73.6 kN 65 kN 480.0 kg
CH-G K100390 36.96 DA-B14 PAM160 36.96:1 IEC 160 · 42 mm shaft 15 kW 37.9 r/min 3403 Nm 3.61 8.9 kN 71.9 kN 65 kN 390.0 kg
CH-G K100390 36.96 DA-B14 PAM180 36.96:1 IEC 180 · 48 mm shaft 22 kW 37.9 r/min 4992 Nm 2.46 8.9 kN 71.9 kN 65 kN 390.0 kg
CH-G K100390 36.96 DA-B14 PAM200 36.96:1 IEC 200 · 55 mm shaft 30 kW 37.9 r/min 6807 Nm 1.81 8.9 kN 71.9 kN 65 kN 455.0 kg
CH-G K100390 36.96 DA-B14 PAM225 36.96:1 IEC 225 · 60 mm shaft 45 kW 37.9 r/min 10210 Nm 1.2 8.9 kN 71.9 kN 65 kN 461.0 kg
CH-G K100390 36.96 DA-B14 PAM250 36.96:1 IEC 250 · 65 mm shaft 55 kW 37.9 r/min 12479 Nm 0.99 8.9 kN 71.9 kN 65 kN 480.0 kg
CH-G K100390 33.62 DA-B14 PAM160 33.62:1 IEC 160 · 42 mm shaft 15 kW 41.6 r/min 3096 Nm 3.84 8.8 kN 69.8 kN 65 kN 390.0 kg
CH-G K100390 33.62 DA-B14 PAM180 33.62:1 IEC 180 · 48 mm shaft 22 kW 41.6 r/min 4541 Nm 2.62 8.8 kN 69.8 kN 65 kN 390.0 kg
CH-G K100390 33.62 DA-B14 PAM200 33.62:1 IEC 200 · 55 mm shaft 30 kW 41.6 r/min 6193 Nm 1.92 8.8 kN 69.8 kN 65 kN 455.0 kg
CH-G K100390 33.62 DA-B14 PAM225 33.62:1 IEC 225 · 60 mm shaft 45 kW 41.6 r/min 9289 Nm 1.28 8.8 kN 69.8 kN 65 kN 461.0 kg
CH-G K100390 33.62 DA-B14 PAM250 33.62:1 IEC 250 · 65 mm shaft 55 kW 41.6 r/min 11353 Nm 1.05 8.8 kN 69.8 kN 65 kN 480.0 kg
CH-G K100390 30.33 DA-B14 PAM160 30.33:1 IEC 160 · 42 mm shaft 15 kW 46.2 r/min 2793 Nm 4.12 8.7 kN 67.5 kN 65 kN 390.0 kg
CH-G K100390 30.33 DA-B14 PAM180 30.33:1 IEC 180 · 48 mm shaft 22 kW 46.2 r/min 4097 Nm 2.81 8.7 kN 67.5 kN 65 kN 390.0 kg
CH-G K100390 30.33 DA-B14 PAM200 30.33:1 IEC 200 · 55 mm shaft 30 kW 46.2 r/min 5586 Nm 2.06 8.7 kN 67.5 kN 65 kN 455.0 kg
CH-G K100390 30.33 DA-B14 PAM225 30.33:1 IEC 225 · 60 mm shaft 45 kW 46.2 r/min 8379 Nm 1.37 8.7 kN 67.5 kN 65 kN 461.0 kg
CH-G K100390 30.33 DA-B14 PAM250 30.33:1 IEC 250 · 65 mm shaft 55 kW 46.2 r/min 10241 Nm 1.12 8.7 kN 67.5 kN 65 kN 480.0 kg
CH-G K100390 30.33 DA-B14 PAM280 30.33:1 IEC 280 · 75 mm shaft 75 kW 46.2 r/min 13965 Nm 0.82 8.7 kN 67.5 kN 65 kN 480.0 kg
CH-G K100390 28.27 DA-B14 PAM160 28.27:1 IEC 160 · 42 mm shaft 15 kW 49.5 r/min 2603 Nm 3.92 8.8 kN 67.7 kN 65 kN 390.0 kg
CH-G K100390 28.27 DA-B14 PAM180 28.27:1 IEC 180 · 48 mm shaft 22 kW 49.5 r/min 3818 Nm 2.67 8.8 kN 67.7 kN 65 kN 390.0 kg
CH-G K100390 28.27 DA-B14 PAM200 28.27:1 IEC 200 · 55 mm shaft 30 kW 49.5 r/min 5207 Nm 1.96 8.8 kN 67.7 kN 65 kN 455.0 kg
CH-G K100390 28.27 DA-B14 PAM225 28.27:1 IEC 225 · 60 mm shaft 45 kW 49.5 r/min 7810 Nm 1.31 8.8 kN 67.7 kN 65 kN 461.0 kg
CH-G K100390 28.27 DA-B14 PAM250 28.27:1 IEC 250 · 65 mm shaft 55 kW 49.5 r/min 9546 Nm 1.07 8.8 kN 67.7 kN 65 kN 480.0 kg
CH-G K100390 26.01 DA-B14 PAM160 26.01:1 IEC 160 · 42 mm shaft 15 kW 53.8 r/min 2395 Nm 4.63 8.5 kN 63.9 kN 63.9 kN 390.0 kg
CH-G K100390 26.01 DA-B14 PAM180 26.01:1 IEC 180 · 48 mm shaft 22 kW 53.8 r/min 3513 Nm 3.16 8.5 kN 63.9 kN 63.9 kN 390.0 kg
CH-G K100390 26.01 DA-B14 PAM200 26.01:1 IEC 200 · 55 mm shaft 30 kW 53.8 r/min 4791 Nm 2.32 8.5 kN 63.9 kN 63.9 kN 455.0 kg
CH-G K100390 26.01 DA-B14 PAM225 26.01:1 IEC 225 · 60 mm shaft 45 kW 53.8 r/min 7186 Nm 1.54 8.5 kN 63.9 kN 63.9 kN 461.0 kg
CH-G K100390 26.01 DA-B14 PAM250 26.01:1 IEC 250 · 65 mm shaft 55 kW 53.8 r/min 8783 Nm 1.26 8.5 kN 63.9 kN 63.9 kN 480.0 kg
CH-G K100390 26.01 DA-B14 PAM280 26.01:1 IEC 280 · 75 mm shaft 75 kW 53.8 r/min 11977 Nm 0.93 8.5 kN 63.9 kN 63.9 kN 480.0 kg
CH-G K100390 23.66 DA-B14 PAM160 23.66:1 IEC 160 · 42 mm shaft 15 kW 59.2 r/min 2179 Nm 4.82 8.5 kN 62.4 kN 62.4 kN 390.0 kg
CH-G K100390 23.66 DA-B14 PAM180 23.66:1 IEC 180 · 48 mm shaft 22 kW 59.2 r/min 3195 Nm 3.29 8.5 kN 62.4 kN 62.4 kN 390.0 kg
CH-G K100390 23.66 DA-B14 PAM200 23.66:1 IEC 200 · 55 mm shaft 30 kW 59.2 r/min 4357 Nm 2.41 8.5 kN 62.4 kN 62.4 kN 455.0 kg
CH-G K100390 23.66 DA-B14 PAM225 23.66:1 IEC 225 · 60 mm shaft 45 kW 59.2 r/min 6536 Nm 1.61 8.5 kN 62.4 kN 62.4 kN 461.0 kg
CH-G K100390 23.66 DA-B14 PAM250 23.66:1 IEC 250 · 65 mm shaft 55 kW 59.2 r/min 7989 Nm 1.31 8.5 kN 62.4 kN 62.4 kN 480.0 kg
CH-G K100390 23.66 DA-B14 PAM280 23.66:1 IEC 280 · 75 mm shaft 75 kW 59.2 r/min 10894 Nm 0.96 8.5 kN 62.4 kN 62.4 kN 480.0 kg
CH-G K100390 21.43 DA-B14 PAM160 21.43:1 IEC 160 · 42 mm shaft 15 kW 65.3 r/min 1973 Nm 5.27 8.3 kN 60 kN 60 kN 390.0 kg
CH-G K100390 21.43 DA-B14 PAM180 21.43:1 IEC 180 · 48 mm shaft 22 kW 65.3 r/min 2894 Nm 3.59 8.3 kN 60 kN 60 kN 390.0 kg
CH-G K100390 21.43 DA-B14 PAM200 21.43:1 IEC 200 · 55 mm shaft 30 kW 65.3 r/min 3947 Nm 2.64 8.3 kN 60 kN 60 kN 455.0 kg
CH-G K100390 21.43 DA-B14 PAM225 21.43:1 IEC 225 · 60 mm shaft 45 kW 65.3 r/min 5920 Nm 1.76 8.3 kN 60 kN 60 kN 461.0 kg
CH-G K100390 21.43 DA-B14 PAM250 21.43:1 IEC 250 · 65 mm shaft 55 kW 65.3 r/min 7236 Nm 1.44 8.3 kN 60 kN 60 kN 480.0 kg
CH-G K100390 21.43 DA-B14 PAM280 21.43:1 IEC 280 · 75 mm shaft 75 kW 65.3 r/min 9867 Nm 1.05 8.3 kN 60 kN 60 kN 480.0 kg
CH-G K100390 19.61 DA-B14 PAM160 19.61:1 IEC 160 · 42 mm shaft 15 kW 71.4 r/min 1806 Nm 5.93 8 kN 57.1 kN 57.1 kN 390.0 kg
CH-G K100390 19.61 DA-B14 PAM180 19.61:1 IEC 180 · 48 mm shaft 22 kW 71.4 r/min 2649 Nm 4.04 8 kN 57.1 kN 57.1 kN 390.0 kg
CH-G K100390 19.61 DA-B14 PAM200 19.61:1 IEC 200 · 55 mm shaft 30 kW 71.4 r/min 3612 Nm 2.96 8 kN 57.1 kN 57.1 kN 455.0 kg
CH-G K100390 19.61 DA-B14 PAM225 19.61:1 IEC 225 · 60 mm shaft 45 kW 71.4 r/min 5417 Nm 1.98 8 kN 57.1 kN 57.1 kN 461.0 kg
CH-G K100390 19.61 DA-B14 PAM250 19.61:1 IEC 250 · 65 mm shaft 55 kW 71.4 r/min 6621 Nm 1.62 8 kN 57.1 kN 57.1 kN 480.0 kg
CH-G K100390 17.69 DA-B14 PAM160 17.69:1 IEC 160 · 42 mm shaft 15 kW 79.2 r/min 1629 Nm 6.38 7.9 kN 55.1 kN 55.1 kN 390.0 kg
CH-G K100390 17.69 DA-B14 PAM180 17.69:1 IEC 180 · 48 mm shaft 22 kW 79.2 r/min 2389 Nm 4.35 7.9 kN 55.1 kN 55.1 kN 390.0 kg
CH-G K100390 17.69 DA-B14 PAM200 17.69:1 IEC 200 · 55 mm shaft 30 kW 79.2 r/min 3258 Nm 3.19 7.9 kN 55.1 kN 55.1 kN 455.0 kg
CH-G K100390 17.69 DA-B14 PAM225 17.69:1 IEC 225 · 60 mm shaft 45 kW 79.2 r/min 4887 Nm 2.13 7.9 kN 55.1 kN 55.1 kN 461.0 kg
CH-G K100390 17.69 DA-B14 PAM250 17.69:1 IEC 250 · 65 mm shaft 55 kW 79.2 r/min 5973 Nm 1.74 7.9 kN 55.1 kN 55.1 kN 480.0 kg
CH-G K100390 17.69 DA-B14 PAM280 17.69:1 IEC 280 · 75 mm shaft 90 kW 79.2 r/min 9774 Nm 1.06 7.9 kN 55.1 kN 55.1 kN 480.0 kg
CH-G K100390 16.09 DA-B14 PAM180 16.09:1 IEC 180 · 48 mm shaft 22 kW 87 r/min 2173 Nm 4.56 7.8 kN 53.7 kN 53.7 kN 390.0 kg
CH-G K100390 16.09 DA-B14 PAM200 16.09:1 IEC 200 · 55 mm shaft 30 kW 87 r/min 2963 Nm 3.34 7.8 kN 53.7 kN 53.7 kN 455.0 kg
CH-G K100390 16.09 DA-B14 PAM225 16.09:1 IEC 225 · 60 mm shaft 45 kW 87 r/min 4445 Nm 2.23 7.8 kN 53.7 kN 53.7 kN 461.0 kg
CH-G K100390 16.09 DA-B14 PAM250 16.09:1 IEC 250 · 65 mm shaft 55 kW 87 r/min 5433 Nm 1.82 7.8 kN 53.7 kN 53.7 kN 480.0 kg
CH-G K100390 16.09 DA-B14 PAM280 16.09:1 IEC 280 · 75 mm shaft 90 kW 87 r/min 8890 Nm 1.11 7.8 kN 53.7 kN 53.7 kN 480.0 kg
CH-G K100390 15.22 DA-B14 PAM180 15.22:1 IEC 180 · 48 mm shaft 22 kW 92 r/min 2056 Nm 4.86 7.6 kN 52.3 kN 52.3 kN 390.0 kg
CH-G K100390 15.22 DA-B14 PAM200 15.22:1 IEC 200 · 55 mm shaft 30 kW 92 r/min 2803 Nm 3.57 7.6 kN 52.3 kN 52.3 kN 455.0 kg
CH-G K100390 15.22 DA-B14 PAM225 15.22:1 IEC 225 · 60 mm shaft 45 kW 92 r/min 4205 Nm 2.38 7.6 kN 52.3 kN 52.3 kN 461.0 kg
CH-G K100390 15.22 DA-B14 PAM250 15.22:1 IEC 250 · 65 mm shaft 55 kW 92 r/min 5139 Nm 1.95 7.6 kN 52.3 kN 52.3 kN 480.0 kg
CH-G K100390 15.22 DA-B14 PAM280 15.22:1 IEC 280 · 75 mm shaft 90 kW 92 r/min 8410 Nm 1.19 7.6 kN 52.3 kN 52.3 kN 480.0 kg
CH-G K100390 13.8 DA-B14 PAM180 13.8:1 IEC 180 · 48 mm shaft 22 kW 101.5 r/min 1864 Nm 5.15 7.4 kN 50.8 kN 50.8 kN 390.0 kg
CH-G K100390 13.8 DA-B14 PAM200 13.8:1 IEC 200 · 55 mm shaft 30 kW 101.5 r/min 2542 Nm 3.78 7.4 kN 50.8 kN 50.8 kN 455.0 kg
CH-G K100390 13.8 DA-B14 PAM225 13.8:1 IEC 225 · 60 mm shaft 45 kW 101.5 r/min 3813 Nm 2.52 7.4 kN 50.8 kN 50.8 kN 461.0 kg
CH-G K100390 13.8 DA-B14 PAM250 13.8:1 IEC 250 · 65 mm shaft 55 kW 101.5 r/min 4660 Nm 2.06 7.4 kN 50.8 kN 50.8 kN 480.0 kg
CH-G K100390 13.8 DA-B14 PAM280 13.8:1 IEC 280 · 75 mm shaft 90 kW 101.5 r/min 7625 Nm 1.26 7.4 kN 50.8 kN 50.8 kN 480.0 kg
CH-G K100390 12.55 DA-B14 PAM180 12.55:1 IEC 180 · 48 mm shaft 22 kW 111.6 r/min 1695 Nm 5.19 7.4 kN 50.1 kN 50.1 kN 390.0 kg
CH-G K100390 12.55 DA-B14 PAM200 12.55:1 IEC 200 · 55 mm shaft 30 kW 111.6 r/min 2312 Nm 3.81 7.4 kN 50.1 kN 50.1 kN 455.0 kg
CH-G K100390 12.55 DA-B14 PAM225 12.55:1 IEC 225 · 60 mm shaft 45 kW 111.6 r/min 3467 Nm 2.54 7.4 kN 50.1 kN 50.1 kN 461.0 kg
CH-G K100390 12.55 DA-B14 PAM250 12.55:1 IEC 250 · 65 mm shaft 55 kW 111.6 r/min 4238 Nm 2.08 7.4 kN 50.1 kN 50.1 kN 480.0 kg
CH-G K100390 12.55 DA-B14 PAM280 12.55:1 IEC 280 · 75 mm shaft 90 kW 111.6 r/min 6935 Nm 1.27 7.4 kN 50.1 kN 50.1 kN 480.0 kg
CH-G K100390 11.64 DA-B14 PAM180 11.64:1 IEC 180 · 48 mm shaft 22 kW 120.3 r/min 1572 Nm 4.9 7.6 kN 50.4 kN 50.4 kN 390.0 kg
CH-G K100390 11.64 DA-B14 PAM200 11.64:1 IEC 200 · 55 mm shaft 30 kW 120.3 r/min 2144 Nm 3.59 7.6 kN 50.4 kN 50.4 kN 455.0 kg
CH-G K100390 11.64 DA-B14 PAM225 11.64:1 IEC 225 · 60 mm shaft 45 kW 120.3 r/min 3216 Nm 2.39 7.6 kN 50.4 kN 50.4 kN 461.0 kg
CH-G K100390 11.64 DA-B14 PAM250 11.64:1 IEC 250 · 65 mm shaft 55 kW 120.3 r/min 3930 Nm 1.96 7.6 kN 50.4 kN 50.4 kN 480.0 kg
CH-G K100390 11.64 DA-B14 PAM280 11.64:1 IEC 280 · 75 mm shaft 90 kW 120.3 r/min 6432 Nm 1.2 7.6 kN 50.4 kN 50.4 kN 480.0 kg
CH-G K100390 10.34 DA-B14 PAM180 10.34:1 IEC 180 · 48 mm shaft 22 kW 135.4 r/min 1397 Nm 5.66 7.1 kN 47.6 kN 47.6 kN 390.0 kg
CH-G K100390 10.34 DA-B14 PAM200 10.34:1 IEC 200 · 55 mm shaft 30 kW 135.4 r/min 1904 Nm 4.15 7.1 kN 47.6 kN 47.6 kN 455.0 kg
CH-G K100390 10.34 DA-B14 PAM225 10.34:1 IEC 225 · 60 mm shaft 45 kW 135.4 r/min 2857 Nm 2.77 7.1 kN 47.6 kN 47.6 kN 461.0 kg
CH-G K100390 10.34 DA-B14 PAM250 10.34:1 IEC 250 · 65 mm shaft 55 kW 135.4 r/min 3491 Nm 2.26 7.1 kN 47.6 kN 47.6 kN 480.0 kg
CH-G K100390 10.34 DA-B14 PAM280 10.34:1 IEC 280 · 75 mm shaft 90 kW 135.4 r/min 5713 Nm 1.38 7.1 kN 47.6 kN 47.6 kN 480.0 kg
CH-G K100390 8.69 DA-B14 PAM180 8.69:1 IEC 180 · 48 mm shaft 22 kW 161 r/min 1174 Nm 5.79 7.1 kN 46.1 kN 46.1 kN 390.0 kg
CH-G K100390 8.69 DA-B14 PAM200 8.69:1 IEC 200 · 55 mm shaft 30 kW 161 r/min 1601 Nm 4.25 7.1 kN 46.1 kN 46.1 kN 455.0 kg
CH-G K100390 8.69 DA-B14 PAM225 8.69:1 IEC 225 · 60 mm shaft 45 kW 161 r/min 2401 Nm 2.83 7.1 kN 46.1 kN 46.1 kN 461.0 kg
CH-G K100390 8.69 DA-B14 PAM250 8.69:1 IEC 250 · 65 mm shaft 55 kW 161 r/min 2934 Nm 2.32 7.1 kN 46.1 kN 46.1 kN 480.0 kg
CH-G K100390 8.69 DA-B14 PAM280 8.69:1 IEC 280 · 75 mm shaft 90 kW 161 r/min 4802 Nm 1.42 7.1 kN 46.1 kN 46.1 kN 480.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.
