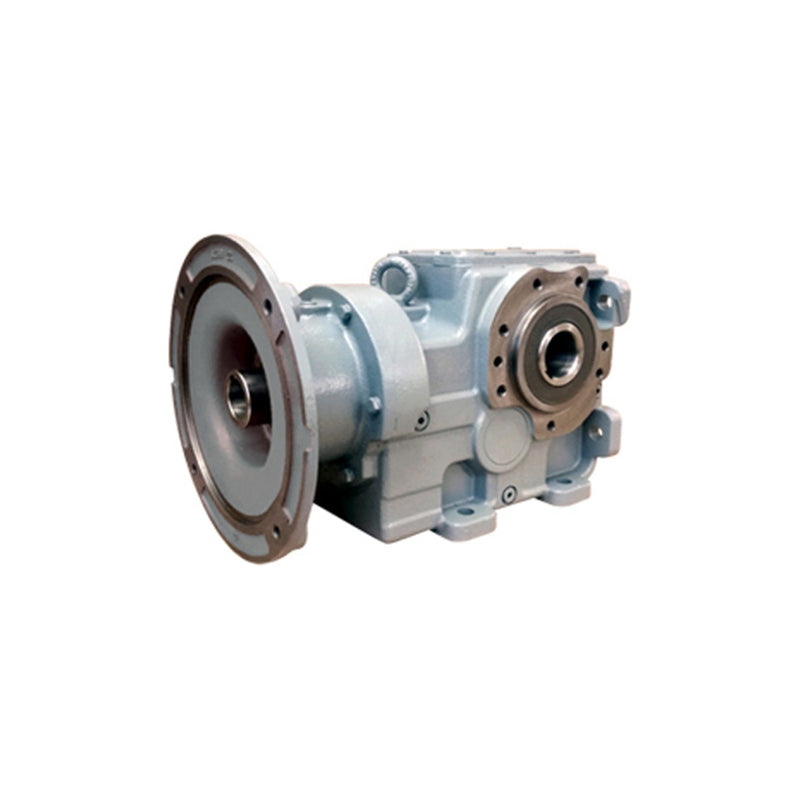

CH-G K35390 Helical Bevel Gear Unit (Ø35 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K35390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 35, ratios 5.74:1 to 158.67:1. This is the K … DA-B14 version — foot-flange mounting with a Ø35 mm H7 hollow output shaft (Ø40 H7 option) — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 63, 71, 80, 90, 100, 112 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 158.67:1 gives 9 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 0.62 to 8.27 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K35390 158.67 DA-B14 PAM63 158.67:1 IEC 63 · 11 mm shaft 0.25 kW 8.9 r/min 242 Nm 2.48 1.1 kN 12 kN 6.3 kN 21.0 kg
CH-G K35390 158.67 DA-B14 PAM71 158.67:1 IEC 71 · 14 mm shaft 0.55 kW 8.9 r/min 532 Nm 1.13 1.1 kN 12 kN 6.3 kN 22.0 kg
CH-G K35390 158.67 DA-B14 PAM80 158.67:1 IEC 80 · 19 mm shaft 0.55 kW 8.9 r/min 532 Nm 1.13 1.1 kN 12 kN 6.3 kN 23.0 kg
CH-G K35390 140.25 DA-B14 PAM63 140.25:1 IEC 63 · 11 mm shaft 0.25 kW 10.1 r/min 214 Nm 2.8 1.1 kN 12 kN 6.1 kN 21.0 kg
CH-G K35390 140.25 DA-B14 PAM71 140.25:1 IEC 71 · 14 mm shaft 0.55 kW 10.1 r/min 471 Nm 1.27 1.1 kN 12 kN 6.1 kN 22.0 kg
CH-G K35390 140.25 DA-B14 PAM80 140.25:1 IEC 80 · 19 mm shaft 0.55 kW 10.1 r/min 471 Nm 1.27 1.1 kN 12 kN 6.1 kN 23.0 kg
CH-G K35390 125.18 DA-B14 PAM63 125.18:1 IEC 63 · 11 mm shaft 0.25 kW 11.3 r/min 190 Nm 3.16 1.1 kN 12 kN 5.8 kN 21.0 kg
CH-G K35390 125.18 DA-B14 PAM71 125.18:1 IEC 71 · 14 mm shaft 0.55 kW 11.3 r/min 418 Nm 1.44 1.1 kN 12 kN 5.8 kN 22.0 kg
CH-G K35390 125.18 DA-B14 PAM80 125.18:1 IEC 80 · 19 mm shaft 0.75 kW 11.3 r/min 570 Nm 1.05 1.1 kN 12 kN 5.8 kN 23.0 kg
CH-G K35390 112.63 DA-B14 PAM63 112.63:1 IEC 63 · 11 mm shaft 0.25 kW 12.5 r/min 172 Nm 3.48 1.1 kN 12 kN 5.6 kN 21.0 kg
CH-G K35390 112.63 DA-B14 PAM71 112.63:1 IEC 71 · 14 mm shaft 0.55 kW 12.5 r/min 379 Nm 1.58 1.1 kN 12 kN 5.6 kN 22.0 kg
CH-G K35390 112.63 DA-B14 PAM80 112.63:1 IEC 80 · 19 mm shaft 0.75 kW 12.5 r/min 517 Nm 1.16 1.1 kN 12 kN 5.6 kN 23.0 kg
CH-G K35390 102 DA-B14 PAM63 102:1 IEC 63 · 11 mm shaft 0.25 kW 13.8 r/min 155 Nm 3.88 1.1 kN 12 kN 5.4 kN 21.0 kg
CH-G K35390 102 DA-B14 PAM71 102:1 IEC 71 · 14 mm shaft 0.55 kW 13.8 r/min 340 Nm 1.76 1.1 kN 12 kN 5.4 kN 22.0 kg
CH-G K35390 102 DA-B14 PAM80 102:1 IEC 80 · 19 mm shaft 0.75 kW 13.8 r/min 464 Nm 1.29 1.1 kN 12 kN 5.4 kN 23.0 kg
CH-G K35390 91.04 DA-B14 PAM63 91.04:1 IEC 63 · 11 mm shaft 0.25 kW 15.5 r/min 139 Nm 4.32 1.1 kN 12 kN 5.2 kN 21.0 kg
CH-G K35390 91.04 DA-B14 PAM71 91.04:1 IEC 71 · 14 mm shaft 0.55 kW 15.5 r/min 306 Nm 1.96 1.1 kN 12 kN 5.2 kN 22.0 kg
CH-G K35390 91.04 DA-B14 PAM80 91.04:1 IEC 80 · 19 mm shaft 0.75 kW 15.5 r/min 417 Nm 1.44 1.1 kN 12 kN 5.2 kN 23.0 kg
CH-G K35390 78.09 DA-B14 PAM63 78.09:1 IEC 63 · 11 mm shaft 0.25 kW 18.1 r/min 119 Nm 5.04 1.1 kN 12 kN 4.9 kN 21.0 kg
CH-G K35390 78.09 DA-B14 PAM71 78.09:1 IEC 71 · 14 mm shaft 0.55 kW 18.1 r/min 262 Nm 2.29 1.1 kN 12 kN 4.9 kN 22.0 kg
CH-G K35390 78.09 DA-B14 PAM80 78.09:1 IEC 80 · 19 mm shaft 1.1 kW 18.1 r/min 524 Nm 1.15 1.1 kN 12 kN 4.9 kN 23.0 kg
CH-G K35390 78.09 DA-B14 PAM90 78.09:1 IEC 90 · 24 mm shaft 1.1 kW 18.1 r/min 524 Nm 1.15 1.1 kN 12 kN 4.9 kN 23.0 kg
CH-G K35390 69.7 DA-B14 PAM63 69.7:1 IEC 63 · 11 mm shaft 0.25 kW 20.2 r/min 106 Nm 5.64 1 kN 12 kN 4.7 kN 21.0 kg
CH-G K35390 69.7 DA-B14 PAM71 69.7:1 IEC 71 · 14 mm shaft 0.55 kW 20.2 r/min 234 Nm 2.56 1 kN 12 kN 4.7 kN 22.0 kg
CH-G K35390 69.7 DA-B14 PAM80 69.7:1 IEC 80 · 19 mm shaft 1.1 kW 20.2 r/min 468 Nm 1.28 1 kN 12 kN 4.7 kN 23.0 kg
CH-G K35390 69.7 DA-B14 PAM90 69.7:1 IEC 90 · 24 mm shaft 1.1 kW 20.2 r/min 468 Nm 1.28 1 kN 12 kN 4.7 kN 23.0 kg
CH-G K35390 57.38 DA-B14 PAM71 57.38:1 IEC 71 · 14 mm shaft 0.55 kW 24.6 r/min 192 Nm 3.13 1 kN 12 kN 4.3 kN 22.0 kg
CH-G K35390 57.38 DA-B14 PAM80 57.38:1 IEC 80 · 19 mm shaft 1.1 kW 24.6 r/min 384 Nm 1.56 1 kN 12 kN 4.3 kN 23.0 kg
CH-G K35390 57.38 DA-B14 PAM90 57.38:1 IEC 90 · 24 mm shaft 1.5 kW 24.6 r/min 523 Nm 1.15 1 kN 12 kN 4.3 kN 23.0 kg
CH-G K35390 57.38 DA-B14 PAM100 57.38:1 IEC 100 · 28 mm shaft 2.2 kW 24.6 r/min 767 Nm 0.78 1 kN 12 kN 4.3 kN 27.0 kg
CH-G K35390 57.38 DA-B14 PAM112 57.38:1 IEC 112 · 28 mm shaft 4 kW 24.6 r/min 1395 Nm 0.43 1 kN 12 kN 4.3 kN 27.0 kg
CH-G K35390 51.21 DA-B14 PAM71 51.21:1 IEC 71 · 14 mm shaft 0.55 kW 27.6 r/min 172 Nm 3.49 1 kN 12 kN 4.1 kN 22.0 kg
CH-G K35390 51.21 DA-B14 PAM80 51.21:1 IEC 80 · 19 mm shaft 1.1 kW 27.6 r/min 344 Nm 1.75 1 kN 12 kN 4.1 kN 23.0 kg
CH-G K35390 51.21 DA-B14 PAM90 51.21:1 IEC 90 · 24 mm shaft 1.5 kW 27.6 r/min 469 Nm 1.28 1 kN 12 kN 4.1 kN 23.0 kg
CH-G K35390 51.21 DA-B14 PAM100 51.21:1 IEC 100 · 28 mm shaft 2.2 kW 27.6 r/min 688 Nm 0.87 1 kN 12 kN 4.1 kN 27.0 kg
CH-G K35390 51.21 DA-B14 PAM112 51.21:1 IEC 112 · 28 mm shaft 4 kW 27.6 r/min 1250 Nm 0.48 1 kN 12 kN 4.1 kN 27.0 kg
CH-G K35390 43.56 DA-B14 PAM71 43.56:1 IEC 71 · 14 mm shaft 0.55 kW 32.4 r/min 146 Nm 4.11 1 kN 12 kN 3.9 kN 22.0 kg
CH-G K35390 43.56 DA-B14 PAM80 43.56:1 IEC 80 · 19 mm shaft 1.1 kW 32.4 r/min 292 Nm 2.05 1 kN 12 kN 3.9 kN 23.0 kg
CH-G K35390 43.56 DA-B14 PAM90 43.56:1 IEC 90 · 24 mm shaft 2.2 kW 32.4 r/min 584 Nm 1.03 1 kN 12 kN 3.9 kN 23.0 kg
CH-G K35390 43.56 DA-B14 PAM100 43.56:1 IEC 100 · 28 mm shaft 2.2 kW 32.4 r/min 584 Nm 1.03 1 kN 12 kN 3.9 kN 27.0 kg
CH-G K35390 43.56 DA-B14 PAM112 43.56:1 IEC 112 · 28 mm shaft 4 kW 32.4 r/min 1062 Nm 0.56 1 kN 12 kN 3.9 kN 27.0 kg
CH-G K35390 38.88 DA-B14 PAM71 38.88:1 IEC 71 · 14 mm shaft 0.55 kW 36.3 r/min 130 Nm 4.6 0.9 kN 12 kN 3.7 kN 22.0 kg
CH-G K35390 38.88 DA-B14 PAM80 38.88:1 IEC 80 · 19 mm shaft 1.1 kW 36.3 r/min 261 Nm 2.3 0.9 kN 12 kN 3.7 kN 23.0 kg
CH-G K35390 38.88 DA-B14 PAM90 38.88:1 IEC 90 · 24 mm shaft 2.2 kW 36.3 r/min 522 Nm 1.15 0.9 kN 12 kN 3.7 kN 23.0 kg
CH-G K35390 38.88 DA-B14 PAM100 38.88:1 IEC 100 · 28 mm shaft 2.2 kW 36.3 r/min 522 Nm 1.15 0.9 kN 12 kN 3.7 kN 27.0 kg
CH-G K35390 38.88 DA-B14 PAM112 38.88:1 IEC 112 · 28 mm shaft 4 kW 36.3 r/min 949 Nm 0.63 0.9 kN 12 kN 3.7 kN 27.0 kg
CH-G K35390 33.7 DA-B14 PAM71 33.7:1 IEC 71 · 14 mm shaft 0.55 kW 41.9 r/min 113 Nm 5.31 0.9 kN 12 kN 3.5 kN 22.0 kg
CH-G K35390 33.7 DA-B14 PAM80 33.7:1 IEC 80 · 19 mm shaft 1.1 kW 41.9 r/min 226 Nm 2.65 0.9 kN 12 kN 3.5 kN 23.0 kg
CH-G K35390 33.7 DA-B14 PAM90 33.7:1 IEC 90 · 24 mm shaft 2.2 kW 41.9 r/min 452 Nm 1.33 0.9 kN 12 kN 3.5 kN 23.0 kg
CH-G K35390 33.7 DA-B14 PAM100 33.7:1 IEC 100 · 28 mm shaft 2.2 kW 41.9 r/min 452 Nm 1.33 0.9 kN 12 kN 3.5 kN 27.0 kg
CH-G K35390 33.7 DA-B14 PAM112 33.7:1 IEC 112 · 28 mm shaft 4 kW 41.9 r/min 822 Nm 0.73 0.9 kN 12 kN 3.5 kN 27.0 kg
CH-G K35390 28.25 DA-B14 PAM80 28.25:1 IEC 80 · 19 mm shaft 1.1 kW 49.9 r/min 189 Nm 3.17 0.8 kN 11.4 kN 3.3 kN 23.0 kg
CH-G K35390 28.25 DA-B14 PAM90 28.25:1 IEC 90 · 24 mm shaft 2.2 kW 49.9 r/min 378 Nm 1.59 0.8 kN 11.4 kN 3.3 kN 23.0 kg
CH-G K35390 28.25 DA-B14 PAM100 28.25:1 IEC 100 · 28 mm shaft 3 kW 49.9 r/min 516 Nm 1.16 0.8 kN 11.4 kN 3.3 kN 27.0 kg
CH-G K35390 28.25 DA-B14 PAM112 28.25:1 IEC 112 · 28 mm shaft 4 kW 49.9 r/min 688 Nm 0.87 0.8 kN 11.4 kN 3.3 kN 27.0 kg
CH-G K35390 26.3 DA-B14 PAM80 26.3:1 IEC 80 · 19 mm shaft 1.1 kW 53.7 r/min 176 Nm 3.41 0.8 kN 11.1 kN 3.2 kN 23.0 kg
CH-G K35390 26.3 DA-B14 PAM90 26.3:1 IEC 90 · 24 mm shaft 2.2 kW 53.7 r/min 352 Nm 1.7 0.8 kN 11.1 kN 3.2 kN 23.0 kg
CH-G K35390 26.3 DA-B14 PAM100 26.3:1 IEC 100 · 28 mm shaft 3 kW 53.7 r/min 480 Nm 1.25 0.8 kN 11.1 kN 3.2 kN 27.0 kg
CH-G K35390 26.3 DA-B14 PAM112 26.3:1 IEC 112 · 28 mm shaft 4 kW 53.7 r/min 640 Nm 0.94 0.8 kN 11.1 kN 3.2 kN 27.0 kg
CH-G K35390 22.5 DA-B14 PAM71 22.5:1 IEC 71 · 14 mm shaft 0.55 kW 62.5 r/min 76 Nm 7.93 0.7 kN 10.4 kN 3 kN 22.0 kg
CH-G K35390 22.5 DA-B14 PAM80 22.5:1 IEC 80 · 19 mm shaft 1.1 kW 62.5 r/min 151 Nm 3.96 0.7 kN 10.4 kN 3 kN 23.0 kg
CH-G K35390 22.5 DA-B14 PAM90 22.5:1 IEC 90 · 24 mm shaft 2.2 kW 62.5 r/min 303 Nm 1.98 0.7 kN 10.4 kN 3 kN 23.0 kg
CH-G K35390 22.5 DA-B14 PAM100 22.5:1 IEC 100 · 28 mm shaft 3 kW 62.5 r/min 413 Nm 1.45 0.7 kN 10.4 kN 3 kN 27.0 kg
CH-G K35390 22.5 DA-B14 PAM112 22.5:1 IEC 112 · 28 mm shaft 4 kW 62.5 r/min 550 Nm 1.09 0.7 kN 10.4 kN 3 kN 27.0 kg
CH-G K35390 17.08 DA-B14 PAM71 17.08:1 IEC 71 · 14 mm shaft 0.55 kW 82.3 r/min 57 Nm 10.45 0.6 kN 9.2 kN 2.6 kN 22.0 kg
CH-G K35390 17.08 DA-B14 PAM80 17.08:1 IEC 80 · 19 mm shaft 1.1 kW 82.3 r/min 115 Nm 5.23 0.6 kN 9.2 kN 2.6 kN 23.0 kg
CH-G K35390 17.08 DA-B14 PAM90 17.08:1 IEC 90 · 24 mm shaft 2.2 kW 82.3 r/min 230 Nm 2.61 0.6 kN 9.2 kN 2.6 kN 23.0 kg
CH-G K35390 17.08 DA-B14 PAM100 17.08:1 IEC 100 · 28 mm shaft 3 kW 82.3 r/min 313 Nm 1.92 0.6 kN 9.2 kN 2.6 kN 27.0 kg
CH-G K35390 17.08 DA-B14 PAM112 17.08:1 IEC 112 · 28 mm shaft 5.5 kW 82.3 r/min 574 Nm 1.05 0.6 kN 9.2 kN 2.6 kN 27.0 kg
CH-G K35390 15.25 DA-B14 PAM71 15.25:1 IEC 71 · 14 mm shaft 0.55 kW 92.3 r/min 51 Nm 11.51 0.5 kN 8.9 kN 2.5 kN 22.0 kg
CH-G K35390 15.25 DA-B14 PAM80 15.25:1 IEC 80 · 19 mm shaft 1.1 kW 92.3 r/min 103 Nm 5.75 0.5 kN 8.9 kN 2.5 kN 23.0 kg
CH-G K35390 15.25 DA-B14 PAM90 15.25:1 IEC 90 · 24 mm shaft 2.2 kW 92.3 r/min 205 Nm 2.88 0.5 kN 8.9 kN 2.5 kN 23.0 kg
CH-G K35390 15.25 DA-B14 PAM100 15.25:1 IEC 100 · 28 mm shaft 3 kW 92.3 r/min 280 Nm 2.11 0.5 kN 8.9 kN 2.5 kN 27.0 kg
CH-G K35390 15.25 DA-B14 PAM112 15.25:1 IEC 112 · 28 mm shaft 5.5 kW 92.3 r/min 513 Nm 1.15 0.5 kN 8.9 kN 2.5 kN 27.0 kg
CH-G K35390 13.21 DA-B14 PAM71 13.21:1 IEC 71 · 14 mm shaft 0.55 kW 106.5 r/min 44 Nm 13.29 0.4 kN 8.3 kN 2.4 kN 22.0 kg
CH-G K35390 13.21 DA-B14 PAM80 13.21:1 IEC 80 · 19 mm shaft 1.1 kW 106.5 r/min 89 Nm 6.65 0.4 kN 8.3 kN 2.4 kN 23.0 kg
CH-G K35390 13.21 DA-B14 PAM90 13.21:1 IEC 90 · 24 mm shaft 2.2 kW 106.5 r/min 178 Nm 3.32 0.4 kN 8.3 kN 2.4 kN 23.0 kg
CH-G K35390 13.21 DA-B14 PAM100 13.21:1 IEC 100 · 28 mm shaft 3 kW 106.5 r/min 242 Nm 2.44 0.4 kN 8.3 kN 2.4 kN 27.0 kg
CH-G K35390 13.21 DA-B14 PAM112 13.21:1 IEC 112 · 28 mm shaft 5.5 kW 106.5 r/min 444 Nm 1.33 0.4 kN 8.3 kN 2.4 kN 27.0 kg
CH-G K35390 12.41 DA-B14 PAM80 12.41:1 IEC 80 · 19 mm shaft 1.1 kW 113.3 r/min 83 Nm 6.95 0.4 kN 8.1 kN 2.3 kN 23.0 kg
CH-G K35390 12.41 DA-B14 PAM90 12.41:1 IEC 90 · 24 mm shaft 2.2 kW 113.3 r/min 167 Nm 3.48 0.4 kN 8.1 kN 2.3 kN 23.0 kg
CH-G K35390 12.41 DA-B14 PAM100 12.41:1 IEC 100 · 28 mm shaft 3 kW 113.3 r/min 227 Nm 2.55 0.4 kN 8.1 kN 2.3 kN 27.0 kg
CH-G K35390 12.41 DA-B14 PAM112 12.41:1 IEC 112 · 28 mm shaft 5.5 kW 113.3 r/min 417 Nm 1.39 0.4 kN 8.1 kN 2.3 kN 27.0 kg
CH-G K35390 11.08 DA-B14 PAM80 11.08:1 IEC 80 · 19 mm shaft 1.1 kW 127 r/min 74 Nm 7.25 0.3 kN 7.9 kN 2.3 kN 23.0 kg
CH-G K35390 11.08 DA-B14 PAM90 11.08:1 IEC 90 · 24 mm shaft 2.2 kW 127 r/min 149 Nm 3.63 0.3 kN 7.9 kN 2.3 kN 23.0 kg
CH-G K35390 11.08 DA-B14 PAM100 11.08:1 IEC 100 · 28 mm shaft 3 kW 127 r/min 203 Nm 2.66 0.3 kN 7.9 kN 2.3 kN 27.0 kg
CH-G K35390 11.08 DA-B14 PAM112 11.08:1 IEC 112 · 28 mm shaft 5.5 kW 127 r/min 372 Nm 1.45 0.3 kN 7.9 kN 2.3 kN 27.0 kg
CH-G K35390 10.31 DA-B14 PAM80 10.31:1 IEC 80 · 19 mm shaft 1.1 kW 136.4 r/min 69 Nm 7.5 0.3 kN 7.8 kN 2.2 kN 23.0 kg
CH-G K35390 10.31 DA-B14 PAM90 10.31:1 IEC 90 · 24 mm shaft 2.2 kW 136.4 r/min 139 Nm 3.75 0.3 kN 7.8 kN 2.2 kN 23.0 kg
CH-G K35390 10.31 DA-B14 PAM100 10.31:1 IEC 100 · 28 mm shaft 3 kW 136.4 r/min 189 Nm 2.75 0.3 kN 7.8 kN 2.2 kN 27.0 kg
CH-G K35390 10.31 DA-B14 PAM112 10.31:1 IEC 112 · 28 mm shaft 5.5 kW 136.4 r/min 347 Nm 1.5 0.3 kN 7.8 kN 2.2 kN 27.0 kg
CH-G K35390 9.2 DA-B14 PAM80 9.2:1 IEC 80 · 19 mm shaft 1.1 kW 152.8 r/min 62 Nm 7.44 0.3 kN 7.7 kN 2.2 kN 23.0 kg
CH-G K35390 9.2 DA-B14 PAM90 9.2:1 IEC 90 · 24 mm shaft 2.2 kW 152.8 r/min 124 Nm 3.72 0.3 kN 7.7 kN 2.2 kN 23.0 kg
CH-G K35390 9.2 DA-B14 PAM100 9.2:1 IEC 100 · 28 mm shaft 3 kW 152.8 r/min 169 Nm 2.73 0.3 kN 7.7 kN 2.2 kN 27.0 kg
CH-G K35390 9.2 DA-B14 PAM112 9.2:1 IEC 112 · 28 mm shaft 5.5 kW 152.8 r/min 309 Nm 1.49 0.3 kN 7.7 kN 2.2 kN 27.0 kg
CH-G K35390 7.36 DA-B14 PAM71 7.36:1 IEC 71 · 14 mm shaft 0.55 kW 191.2 r/min 25 Nm 14.16 0.4 kN 7.5 kN 2.1 kN 22.0 kg
CH-G K35390 7.36 DA-B14 PAM80 7.36:1 IEC 80 · 19 mm shaft 1.1 kW 191.2 r/min 49 Nm 7.08 0.4 kN 7.5 kN 2.1 kN 23.0 kg
CH-G K35390 7.36 DA-B14 PAM90 7.36:1 IEC 90 · 24 mm shaft 2.2 kW 191.2 r/min 99 Nm 3.54 0.4 kN 7.5 kN 2.1 kN 23.0 kg
CH-G K35390 7.36 DA-B14 PAM100 7.36:1 IEC 100 · 28 mm shaft 3 kW 191.2 r/min 135 Nm 2.6 0.4 kN 7.5 kN 2.1 kN 27.0 kg
CH-G K35390 7.36 DA-B14 PAM112 7.36:1 IEC 112 · 28 mm shaft 5.5 kW 191.2 r/min 247 Nm 1.42 0.4 kN 7.5 kN 2.1 kN 27.0 kg
CH-G K35390 6.91 DA-B14 PAM80 6.91:1 IEC 80 · 19 mm shaft 1.1 kW 203.5 r/min 46 Nm 7.32 0.3 kN 7.3 kN 2.1 kN 23.0 kg
CH-G K35390 6.91 DA-B14 PAM90 6.91:1 IEC 90 · 24 mm shaft 2.2 kW 203.5 r/min 93 Nm 3.66 0.3 kN 7.3 kN 2.1 kN 23.0 kg
CH-G K35390 6.91 DA-B14 PAM100 6.91:1 IEC 100 · 28 mm shaft 3 kW 203.5 r/min 127 Nm 2.68 0.3 kN 7.3 kN 2.1 kN 27.0 kg
CH-G K35390 6.91 DA-B14 PAM112 6.91:1 IEC 112 · 28 mm shaft 5.5 kW 203.5 r/min 232 Nm 1.46 0.3 kN 7.3 kN 2.1 kN 27.0 kg
CH-G K35390 5.74 DA-B14 PAM80 5.74:1 IEC 80 · 19 mm shaft 1.1 kW 245 r/min 39 Nm 7.52 0.3 kN 7 kN 2 kN 23.0 kg
CH-G K35390 5.74 DA-B14 PAM90 5.74:1 IEC 90 · 24 mm shaft 2.2 kW 245 r/min 77 Nm 3.76 0.3 kN 7 kN 2 kN 23.0 kg
CH-G K35390 5.74 DA-B14 PAM100 5.74:1 IEC 100 · 28 mm shaft 3 kW 245 r/min 105 Nm 2.76 0.3 kN 7 kN 2 kN 27.0 kg
CH-G K35390 5.74 DA-B14 PAM112 5.74:1 IEC 112 · 28 mm shaft 5.5 kW 245 r/min 193 Nm 1.5 0.3 kN 7 kN 2 kN 27.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
