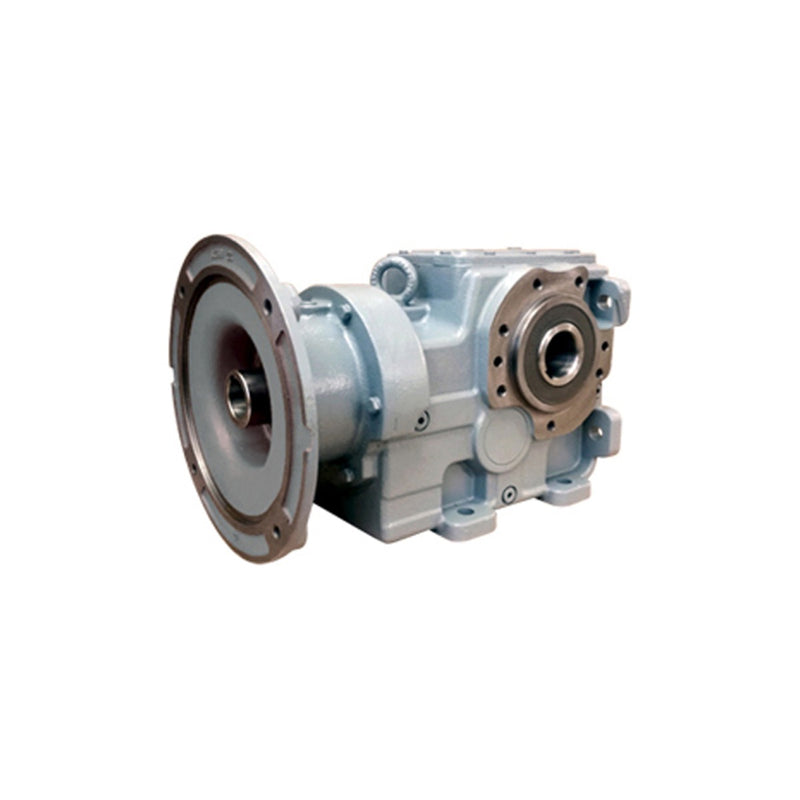

Chiaravalli CH-G K40390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K40390 Helical Bevel Gear Unit (Ø40 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K40390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 40, ratios 7.82:1 to 142.18:1. This is the K … DA-B14 version — foot-flange mounting with a Ø40 mm H7 hollow output shaft (Ø45 H7 option) — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 80, 90, 100, 112, 132 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 142.18:1 gives 10 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 0.97 to 11.32 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K40390 142.18 DA-B14 PAM80 142.18:1 IEC 80 · 19 mm shaft 0.75 kW 9.8 r/min 657 Nm 1.29 2.5 kN 18 kN 9.5 kN 33.0 kg
CH-G K40390 142.18 DA-B14 PAM90 142.18:1 IEC 90 · 24 mm shaft 1.1 kW 9.8 r/min 964 Nm 0.88 2.5 kN 18 kN 9.5 kN 33.0 kg
CH-G K40390 142.18 DA-B14 PAM100 142.18:1 IEC 100 · 28 mm shaft 2.2 kW 9.8 r/min 1928 Nm 0.44 2.5 kN 18 kN 9.5 kN 35.0 kg
CH-G K40390 142.18 DA-B14 PAM112 142.18:1 IEC 112 · 28 mm shaft 4 kW 9.8 r/min 3505 Nm 0.24 2.5 kN 18 kN 9.5 kN 35.0 kg
CH-G K40390 124.46 DA-B14 PAM80 124.46:1 IEC 80 · 19 mm shaft 1.1 kW 11.2 r/min 842 Nm 1.01 2.5 kN 18 kN 9.1 kN 33.0 kg
CH-G K40390 124.46 DA-B14 PAM90 124.46:1 IEC 90 · 24 mm shaft 1.1 kW 11.2 r/min 842 Nm 1.01 2.5 kN 18 kN 9.1 kN 33.0 kg
CH-G K40390 124.46 DA-B14 PAM100 124.46:1 IEC 100 · 28 mm shaft 2.2 kW 11.2 r/min 1685 Nm 0.5 2.5 kN 18 kN 9.1 kN 35.0 kg
CH-G K40390 124.46 DA-B14 PAM112 124.46:1 IEC 112 · 28 mm shaft 4 kW 11.2 r/min 3063 Nm 0.28 2.5 kN 18 kN 9.1 kN 35.0 kg
CH-G K40390 114.17 DA-B14 PAM80 114.17:1 IEC 80 · 19 mm shaft 1.1 kW 12.3 r/min 773 Nm 1.1 2.5 kN 18 kN 8.8 kN 33.0 kg
CH-G K40390 114.17 DA-B14 PAM90 114.17:1 IEC 90 · 24 mm shaft 1.1 kW 12.3 r/min 773 Nm 1.1 2.5 kN 18 kN 8.8 kN 33.0 kg
CH-G K40390 114.17 DA-B14 PAM100 114.17:1 IEC 100 · 28 mm shaft 2.2 kW 12.3 r/min 1545 Nm 0.55 2.5 kN 18 kN 8.8 kN 35.0 kg
CH-G K40390 114.17 DA-B14 PAM112 114.17:1 IEC 112 · 28 mm shaft 4 kW 12.3 r/min 2810 Nm 0.3 2.5 kN 18 kN 8.8 kN 35.0 kg
CH-G K40390 103.4 DA-B14 PAM80 103.4:1 IEC 80 · 19 mm shaft 1.1 kW 13.5 r/min 698 Nm 1.22 2.5 kN 18 kN 8.5 kN 33.0 kg
CH-G K40390 103.4 DA-B14 PAM90 103.4:1 IEC 90 · 24 mm shaft 1.1 kW 13.5 r/min 698 Nm 1.22 2.5 kN 18 kN 8.5 kN 33.0 kg
CH-G K40390 103.4 DA-B14 PAM100 103.4:1 IEC 100 · 28 mm shaft 2.2 kW 13.5 r/min 1396 Nm 0.61 2.5 kN 18 kN 8.5 kN 35.0 kg
CH-G K40390 103.4 DA-B14 PAM112 103.4:1 IEC 112 · 28 mm shaft 4 kW 13.5 r/min 2537 Nm 0.34 2.5 kN 18 kN 8.5 kN 35.0 kg
CH-G K40390 98.7 DA-B14 PAM80 98.7:1 IEC 80 · 19 mm shaft 1.1 kW 14.2 r/min 668 Nm 1.27 2.5 kN 18 kN 8.3 kN 33.0 kg
CH-G K40390 98.7 DA-B14 PAM90 98.7:1 IEC 90 · 24 mm shaft 1.1 kW 14.2 r/min 668 Nm 1.27 2.5 kN 18 kN 8.3 kN 33.0 kg
CH-G K40390 98.7 DA-B14 PAM100 98.7:1 IEC 100 · 28 mm shaft 2.2 kW 14.2 r/min 1336 Nm 0.64 2.5 kN 18 kN 8.3 kN 35.0 kg
CH-G K40390 98.7 DA-B14 PAM112 98.7:1 IEC 112 · 28 mm shaft 4 kW 14.2 r/min 2429 Nm 0.35 2.5 kN 18 kN 8.3 kN 35.0 kg
CH-G K40390 98.7 DA-B14 PAM132 98.7:1 IEC 132 · 38 mm shaft 5.5 kW 14.2 r/min 3339 Nm 0.25 2.5 kN 18 kN 8.3 kN 39.0 kg
CH-G K40390 90.52 DA-B14 PAM80 90.52:1 IEC 80 · 19 mm shaft 1.1 kW 15.5 r/min 611 Nm 1.39 2.5 kN 18 kN 8.1 kN 33.0 kg
CH-G K40390 90.52 DA-B14 PAM90 90.52:1 IEC 90 · 24 mm shaft 1.5 kW 15.5 r/min 833 Nm 1.02 2.5 kN 18 kN 8.1 kN 33.0 kg
CH-G K40390 90.52 DA-B14 PAM100 90.52:1 IEC 100 · 28 mm shaft 2.2 kW 15.5 r/min 1222 Nm 0.7 2.5 kN 18 kN 8.1 kN 35.0 kg
CH-G K40390 90.52 DA-B14 PAM112 90.52:1 IEC 112 · 28 mm shaft 4 kW 15.5 r/min 2222 Nm 0.38 2.5 kN 18 kN 8.1 kN 35.0 kg
CH-G K40390 79.26 DA-B14 PAM80 79.26:1 IEC 80 · 19 mm shaft 1.1 kW 17.7 r/min 534 Nm 1.59 2.5 kN 18 kN 7.7 kN 33.0 kg
CH-G K40390 79.26 DA-B14 PAM90 79.26:1 IEC 90 · 24 mm shaft 1.5 kW 17.7 r/min 729 Nm 1.17 2.5 kN 18 kN 7.7 kN 33.0 kg
CH-G K40390 79.26 DA-B14 PAM100 79.26:1 IEC 100 · 28 mm shaft 2.2 kW 17.7 r/min 1069 Nm 0.8 2.5 kN 18 kN 7.7 kN 35.0 kg
CH-G K40390 79.26 DA-B14 PAM112 79.26:1 IEC 112 · 28 mm shaft 4 kW 17.7 r/min 1943 Nm 0.44 2.5 kN 18 kN 7.7 kN 35.0 kg
CH-G K40390 79.26 DA-B14 PAM132 79.26:1 IEC 132 · 38 mm shaft 5.5 kW 17.7 r/min 2671 Nm 0.32 2.5 kN 18 kN 7.7 kN 39.0 kg
CH-G K40390 71.78 DA-B14 PAM80 71.78:1 IEC 80 · 19 mm shaft 1.1 kW 19.5 r/min 484 Nm 1.75 2.5 kN 18 kN 7.4 kN 33.0 kg
CH-G K40390 71.78 DA-B14 PAM90 71.78:1 IEC 90 · 24 mm shaft 1.5 kW 19.5 r/min 661 Nm 1.29 2.5 kN 18 kN 7.4 kN 33.0 kg
CH-G K40390 71.78 DA-B14 PAM100 71.78:1 IEC 100 · 28 mm shaft 2.2 kW 19.5 r/min 969 Nm 0.88 2.5 kN 18 kN 7.4 kN 35.0 kg
CH-G K40390 71.78 DA-B14 PAM112 71.78:1 IEC 112 · 28 mm shaft 4 kW 19.5 r/min 1762 Nm 0.48 2.5 kN 18 kN 7.4 kN 35.0 kg
CH-G K40390 71.78 DA-B14 PAM132 71.78:1 IEC 132 · 38 mm shaft 5.5 kW 19.5 r/min 2422 Nm 0.35 2.5 kN 18 kN 7.4 kN 39.0 kg
CH-G K40390 67.78 DA-B14 PAM80 67.78:1 IEC 80 · 19 mm shaft 1.1 kW 20.7 r/min 458 Nm 1.85 2.5 kN 18 kN 7.2 kN 33.0 kg
CH-G K40390 67.78 DA-B14 PAM90 67.78:1 IEC 90 · 24 mm shaft 1.5 kW 20.7 r/min 625 Nm 1.36 2.5 kN 18 kN 7.2 kN 33.0 kg
CH-G K40390 67.78 DA-B14 PAM100 67.78:1 IEC 100 · 28 mm shaft 2.2 kW 20.7 r/min 917 Nm 0.93 2.5 kN 18 kN 7.2 kN 35.0 kg
CH-G K40390 67.78 DA-B14 PAM112 67.78:1 IEC 112 · 28 mm shaft 4 kW 20.7 r/min 1667 Nm 0.51 2.5 kN 18 kN 7.2 kN 35.0 kg
CH-G K40390 67.78 DA-B14 PAM132 67.78:1 IEC 132 · 38 mm shaft 5.5 kW 20.7 r/min 2292 Nm 0.37 2.5 kN 18 kN 7.2 kN 39.0 kg
CH-G K40390 62.47 DA-B14 PAM80 62.47:1 IEC 80 · 19 mm shaft 1.1 kW 22.4 r/min 421 Nm 2.02 2.5 kN 18 kN 7 kN 33.0 kg
CH-G K40390 62.47 DA-B14 PAM90 62.47:1 IEC 90 · 24 mm shaft 2.2 kW 22.4 r/min 842 Nm 1.01 2.5 kN 18 kN 7 kN 33.0 kg
CH-G K40390 62.47 DA-B14 PAM100 62.47:1 IEC 100 · 28 mm shaft 2.2 kW 22.4 r/min 842 Nm 1.01 2.5 kN 18 kN 7 kN 35.0 kg
CH-G K40390 62.47 DA-B14 PAM112 62.47:1 IEC 112 · 28 mm shaft 4 kW 22.4 r/min 1532 Nm 0.56 2.5 kN 18 kN 7 kN 35.0 kg
CH-G K40390 62.47 DA-B14 PAM132 62.47:1 IEC 132 · 38 mm shaft 5.5 kW 22.4 r/min 2106 Nm 0.4 2.5 kN 18 kN 7 kN 39.0 kg
CH-G K40390 58.81 DA-B14 PAM80 58.81:1 IEC 80 · 19 mm shaft 1.1 kW 23.8 r/min 398 Nm 2.14 2.5 kN 18 kN 6.9 kN 33.0 kg
CH-G K40390 58.81 DA-B14 PAM90 58.81:1 IEC 90 · 24 mm shaft 2.2 kW 23.8 r/min 796 Nm 1.07 2.5 kN 18 kN 6.9 kN 33.0 kg
CH-G K40390 58.81 DA-B14 PAM100 58.81:1 IEC 100 · 28 mm shaft 2.2 kW 23.8 r/min 796 Nm 1.07 2.5 kN 18 kN 6.9 kN 35.0 kg
CH-G K40390 58.81 DA-B14 PAM112 58.81:1 IEC 112 · 28 mm shaft 4 kW 23.8 r/min 1447 Nm 0.59 2.5 kN 18 kN 6.9 kN 35.0 kg
CH-G K40390 58.81 DA-B14 PAM132 58.81:1 IEC 132 · 38 mm shaft 5.5 kW 23.8 r/min 1989 Nm 0.43 2.5 kN 18 kN 6.9 kN 39.0 kg
CH-G K40390 54.43 DA-B14 PAM80 54.43:1 IEC 80 · 19 mm shaft 1.1 kW 25.7 r/min 368 Nm 2.31 2.5 kN 18 kN 6.7 kN 33.0 kg
CH-G K40390 54.43 DA-B14 PAM90 54.43:1 IEC 90 · 24 mm shaft 2.2 kW 25.7 r/min 736 Nm 1.15 2.5 kN 18 kN 6.7 kN 33.0 kg
CH-G K40390 54.43 DA-B14 PAM100 54.43:1 IEC 100 · 28 mm shaft 2.2 kW 25.7 r/min 736 Nm 1.15 2.5 kN 18 kN 6.7 kN 35.0 kg
CH-G K40390 54.43 DA-B14 PAM112 54.43:1 IEC 112 · 28 mm shaft 4 kW 25.7 r/min 1339 Nm 0.64 2.5 kN 18 kN 6.7 kN 35.0 kg
CH-G K40390 54.43 DA-B14 PAM132 54.43:1 IEC 132 · 38 mm shaft 5.5 kW 25.7 r/min 1841 Nm 0.46 2.5 kN 18 kN 6.7 kN 39.0 kg
CH-G K40390 50.17 DA-B14 PAM80 50.17:1 IEC 80 · 19 mm shaft 1.1 kW 27.9 r/min 339 Nm 2.51 2.5 kN 18 kN 6.5 kN 33.0 kg
CH-G K40390 50.17 DA-B14 PAM90 50.17:1 IEC 90 · 24 mm shaft 2.2 kW 27.9 r/min 678 Nm 1.25 2.5 kN 18 kN 6.5 kN 33.0 kg
CH-G K40390 50.17 DA-B14 PAM100 50.17:1 IEC 100 · 28 mm shaft 2.2 kW 27.9 r/min 678 Nm 1.25 2.5 kN 18 kN 6.5 kN 35.0 kg
CH-G K40390 50.17 DA-B14 PAM112 50.17:1 IEC 112 · 28 mm shaft 4 kW 27.9 r/min 1232 Nm 0.69 2.5 kN 18 kN 6.5 kN 35.0 kg
CH-G K40390 50.17 DA-B14 PAM132 50.17:1 IEC 132 · 38 mm shaft 5.5 kW 27.9 r/min 1694 Nm 0.5 2.5 kN 18 kN 6.5 kN 39.0 kg
CH-G K40390 44.78 DA-B14 PAM80 44.78:1 IEC 80 · 19 mm shaft 1.1 kW 31.3 r/min 303 Nm 2.81 2.5 kN 18 kN 6.2 kN 33.0 kg
CH-G K40390 44.78 DA-B14 PAM90 44.78:1 IEC 90 · 24 mm shaft 2.2 kW 31.3 r/min 605 Nm 1.4 2.5 kN 18 kN 6.2 kN 33.0 kg
CH-G K40390 44.78 DA-B14 PAM100 44.78:1 IEC 100 · 28 mm shaft 3 kW 31.3 r/min 825 Nm 1.03 2.5 kN 18 kN 6.2 kN 35.0 kg
CH-G K40390 44.78 DA-B14 PAM112 44.78:1 IEC 112 · 28 mm shaft 4 kW 31.3 r/min 1100 Nm 0.77 2.5 kN 18 kN 6.2 kN 35.0 kg
CH-G K40390 44.78 DA-B14 PAM132 44.78:1 IEC 132 · 38 mm shaft 5.5 kW 31.3 r/min 1513 Nm 0.56 2.5 kN 18 kN 6.2 kN 39.0 kg
CH-G K40390 42.28 DA-B14 PAM80 42.28:1 IEC 80 · 19 mm shaft 1.1 kW 33.1 r/min 286 Nm 2.97 2.5 kN 18 kN 6 kN 33.0 kg
CH-G K40390 42.28 DA-B14 PAM90 42.28:1 IEC 90 · 24 mm shaft 2.2 kW 33.1 r/min 572 Nm 1.49 2.5 kN 18 kN 6 kN 33.0 kg
CH-G K40390 42.28 DA-B14 PAM100 42.28:1 IEC 100 · 28 mm shaft 3 kW 33.1 r/min 780 Nm 1.09 2.5 kN 18 kN 6 kN 35.0 kg
CH-G K40390 42.28 DA-B14 PAM112 42.28:1 IEC 112 · 28 mm shaft 4 kW 33.1 r/min 1040 Nm 0.82 2.5 kN 18 kN 6 kN 35.0 kg
CH-G K40390 42.28 DA-B14 PAM132 42.28:1 IEC 132 · 38 mm shaft 5.5 kW 33.1 r/min 1430 Nm 0.59 2.5 kN 18 kN 6 kN 39.0 kg
CH-G K40390 38.97 DA-B14 PAM80 38.97:1 IEC 80 · 19 mm shaft 1.1 kW 35.9 r/min 263 Nm 3.23 2.5 kN 18 kN 5.9 kN 33.0 kg
CH-G K40390 38.97 DA-B14 PAM90 38.97:1 IEC 90 · 24 mm shaft 2.2 kW 35.9 r/min 527 Nm 1.61 2.5 kN 18 kN 5.9 kN 33.0 kg
CH-G K40390 38.97 DA-B14 PAM100 38.97:1 IEC 100 · 28 mm shaft 3 kW 35.9 r/min 718 Nm 1.18 2.5 kN 18 kN 5.9 kN 35.0 kg
CH-G K40390 38.97 DA-B14 PAM112 38.97:1 IEC 112 · 28 mm shaft 4 kW 35.9 r/min 958 Nm 0.89 2.5 kN 18 kN 5.9 kN 35.0 kg
CH-G K40390 38.97 DA-B14 PAM132 38.97:1 IEC 132 · 38 mm shaft 5.5 kW 35.9 r/min 1317 Nm 0.65 2.5 kN 18 kN 5.9 kN 39.0 kg
CH-G K40390 33.95 DA-B14 PAM80 33.95:1 IEC 80 · 19 mm shaft 1.1 kW 41.2 r/min 229 Nm 3.71 2.5 kN 18 kN 5.5 kN 33.0 kg
CH-G K40390 33.95 DA-B14 PAM90 33.95:1 IEC 90 · 24 mm shaft 2.2 kW 41.2 r/min 458 Nm 1.85 2.5 kN 18 kN 5.5 kN 33.0 kg
CH-G K40390 33.95 DA-B14 PAM100 33.95:1 IEC 100 · 28 mm shaft 3 kW 41.2 r/min 625 Nm 1.36 2.5 kN 18 kN 5.5 kN 35.0 kg
CH-G K40390 33.95 DA-B14 PAM112 33.95:1 IEC 112 · 28 mm shaft 4 kW 41.2 r/min 833 Nm 1.02 2.5 kN 18 kN 5.5 kN 35.0 kg
CH-G K40390 33.95 DA-B14 PAM132 33.95:1 IEC 132 · 38 mm shaft 5.5 kW 41.2 r/min 1146 Nm 0.74 2.5 kN 18 kN 5.5 kN 39.0 kg
CH-G K40390 31.29 DA-B14 PAM80 31.29:1 IEC 80 · 19 mm shaft 1.1 kW 44.7 r/min 212 Nm 4.02 2.5 kN 18 kN 5.4 kN 33.0 kg
CH-G K40390 31.29 DA-B14 PAM90 31.29:1 IEC 90 · 24 mm shaft 2.2 kW 44.7 r/min 423 Nm 2.01 2.5 kN 18 kN 5.4 kN 33.0 kg
CH-G K40390 31.29 DA-B14 PAM100 31.29:1 IEC 100 · 28 mm shaft 3 kW 44.7 r/min 577 Nm 1.47 2.5 kN 18 kN 5.4 kN 35.0 kg
CH-G K40390 31.29 DA-B14 PAM112 31.29:1 IEC 112 · 28 mm shaft 4 kW 44.7 r/min 769 Nm 1.11 2.5 kN 18 kN 5.4 kN 35.0 kg
CH-G K40390 31.29 DA-B14 PAM132 31.29:1 IEC 132 · 38 mm shaft 5.5 kW 44.7 r/min 1058 Nm 0.8 2.5 kN 18 kN 5.4 kN 39.0 kg
CH-G K40390 28.83 DA-B14 PAM80 28.83:1 IEC 80 · 19 mm shaft 1.1 kW 48.6 r/min 195 Nm 4.36 2.4 kN 18 kN 5.2 kN 33.0 kg
CH-G K40390 28.83 DA-B14 PAM90 28.83:1 IEC 90 · 24 mm shaft 2.2 kW 48.6 r/min 390 Nm 2.18 2.4 kN 18 kN 5.2 kN 33.0 kg
CH-G K40390 28.83 DA-B14 PAM100 28.83:1 IEC 100 · 28 mm shaft 3 kW 48.6 r/min 531 Nm 1.6 2.4 kN 18 kN 5.2 kN 35.0 kg
CH-G K40390 28.83 DA-B14 PAM112 28.83:1 IEC 112 · 28 mm shaft 4 kW 48.6 r/min 708 Nm 1.2 2.4 kN 18 kN 5.2 kN 35.0 kg
CH-G K40390 28.83 DA-B14 PAM132 28.83:1 IEC 132 · 38 mm shaft 5.5 kW 48.6 r/min 974 Nm 0.87 2.4 kN 18 kN 5.2 kN 39.0 kg
CH-G K40390 26.11 DA-B14 PAM80 26.11:1 IEC 80 · 19 mm shaft 1.1 kW 53.6 r/min 176 Nm 4.82 2.3 kN 17.6 kN 5 kN 33.0 kg
CH-G K40390 26.11 DA-B14 PAM90 26.11:1 IEC 90 · 24 mm shaft 2.2 kW 53.6 r/min 353 Nm 2.41 2.3 kN 17.6 kN 5 kN 33.0 kg
CH-G K40390 26.11 DA-B14 PAM100 26.11:1 IEC 100 · 28 mm shaft 3 kW 53.6 r/min 481 Nm 1.77 2.3 kN 17.6 kN 5 kN 35.0 kg
CH-G K40390 26.11 DA-B14 PAM112 26.11:1 IEC 112 · 28 mm shaft 4 kW 53.6 r/min 642 Nm 1.33 2.3 kN 17.6 kN 5 kN 35.0 kg
CH-G K40390 26.11 DA-B14 PAM132 26.11:1 IEC 132 · 38 mm shaft 5.5 kW 53.6 r/min 882 Nm 0.96 2.3 kN 17.6 kN 5 kN 39.0 kg
CH-G K40390 22.4 DA-B14 PAM80 22.4:1 IEC 80 · 19 mm shaft 1.1 kW 62.5 r/min 151 Nm 5.62 2.2 kN 16.5 kN 4.7 kN 33.0 kg
CH-G K40390 22.4 DA-B14 PAM90 22.4:1 IEC 90 · 24 mm shaft 2.2 kW 62.5 r/min 303 Nm 2.81 2.2 kN 16.5 kN 4.7 kN 33.0 kg
CH-G K40390 22.4 DA-B14 PAM100 22.4:1 IEC 100 · 28 mm shaft 3 kW 62.5 r/min 413 Nm 2.06 2.2 kN 16.5 kN 4.7 kN 35.0 kg
CH-G K40390 22.4 DA-B14 PAM112 22.4:1 IEC 112 · 28 mm shaft 5.5 kW 62.5 r/min 756 Nm 1.12 2.2 kN 16.5 kN 4.7 kN 35.0 kg
CH-G K40390 22.4 DA-B14 PAM132 22.4:1 IEC 132 · 38 mm shaft 5.5 kW 62.5 r/min 756 Nm 1.12 2.2 kN 16.5 kN 4.7 kN 39.0 kg
CH-G K40390 17.98 DA-B14 PAM80 17.98:1 IEC 80 · 19 mm shaft 1.1 kW 77.8 r/min 121 Nm 7 2 kN 15.1 kN 4.3 kN 33.0 kg
CH-G K40390 17.98 DA-B14 PAM90 17.98:1 IEC 90 · 24 mm shaft 2.2 kW 77.8 r/min 243 Nm 3.5 2 kN 15.1 kN 4.3 kN 33.0 kg
CH-G K40390 17.98 DA-B14 PAM100 17.98:1 IEC 100 · 28 mm shaft 3 kW 77.8 r/min 331 Nm 2.57 2 kN 15.1 kN 4.3 kN 35.0 kg
CH-G K40390 17.98 DA-B14 PAM112 17.98:1 IEC 112 · 28 mm shaft 5.5 kW 77.8 r/min 607 Nm 1.4 2 kN 15.1 kN 4.3 kN 35.0 kg
CH-G K40390 17.98 DA-B14 PAM132 17.98:1 IEC 132 · 38 mm shaft 7.5 kW 77.8 r/min 828 Nm 1.03 2 kN 15.1 kN 4.3 kN 39.0 kg
CH-G K40390 16.29 DA-B14 PAM80 16.29:1 IEC 80 · 19 mm shaft 1.1 kW 86 r/min 110 Nm 7.73 1.9 kN 14.5 kN 4.1 kN 33.0 kg
CH-G K40390 16.29 DA-B14 PAM90 16.29:1 IEC 90 · 24 mm shaft 2.2 kW 86 r/min 220 Nm 3.86 1.9 kN 14.5 kN 4.1 kN 33.0 kg
CH-G K40390 16.29 DA-B14 PAM100 16.29:1 IEC 100 · 28 mm shaft 3 kW 86 r/min 300 Nm 2.83 1.9 kN 14.5 kN 4.1 kN 35.0 kg
CH-G K40390 16.29 DA-B14 PAM112 16.29:1 IEC 112 · 28 mm shaft 5.5 kW 86 r/min 550 Nm 1.55 1.9 kN 14.5 kN 4.1 kN 35.0 kg
CH-G K40390 16.29 DA-B14 PAM132 16.29:1 IEC 132 · 38 mm shaft 7.5 kW 86 r/min 750 Nm 1.13 1.9 kN 14.5 kN 4.1 kN 39.0 kg
CH-G K40390 14.11 DA-B14 PAM80 14.11:1 IEC 80 · 19 mm shaft 1.1 kW 99.2 r/min 95 Nm 8.5 1.8 kN 13.9 kN 4 kN 33.0 kg
CH-G K40390 14.11 DA-B14 PAM90 14.11:1 IEC 90 · 24 mm shaft 2.2 kW 99.2 r/min 191 Nm 4.25 1.8 kN 13.9 kN 4 kN 33.0 kg
CH-G K40390 14.11 DA-B14 PAM100 14.11:1 IEC 100 · 28 mm shaft 3 kW 99.2 r/min 260 Nm 3.12 1.8 kN 13.9 kN 4 kN 35.0 kg
CH-G K40390 14.11 DA-B14 PAM112 14.11:1 IEC 112 · 28 mm shaft 5.5 kW 99.2 r/min 476 Nm 1.7 1.8 kN 13.9 kN 4 kN 35.0 kg
CH-G K40390 14.11 DA-B14 PAM132 14.11:1 IEC 132 · 38 mm shaft 7.5 kW 99.2 r/min 650 Nm 1.25 1.8 kN 13.9 kN 4 kN 39.0 kg
CH-G K40390 11.33 DA-B14 PAM80 11.33:1 IEC 80 · 19 mm shaft 1.1 kW 123.6 r/min 77 Nm 9.8 1.7 kN 12.9 kN 3.7 kN 33.0 kg
CH-G K40390 11.33 DA-B14 PAM90 11.33:1 IEC 90 · 24 mm shaft 2.2 kW 123.6 r/min 153 Nm 4.9 1.7 kN 12.9 kN 3.7 kN 33.0 kg
CH-G K40390 11.33 DA-B14 PAM100 11.33:1 IEC 100 · 28 mm shaft 3 kW 123.6 r/min 209 Nm 3.59 1.7 kN 12.9 kN 3.7 kN 35.0 kg
CH-G K40390 11.33 DA-B14 PAM112 11.33:1 IEC 112 · 28 mm shaft 5.5 kW 123.6 r/min 383 Nm 1.96 1.7 kN 12.9 kN 3.7 kN 35.0 kg
CH-G K40390 11.33 DA-B14 PAM132 11.33:1 IEC 132 · 38 mm shaft 7.5 kW 123.6 r/min 522 Nm 1.44 1.7 kN 12.9 kN 3.7 kN 39.0 kg
CH-G K40390 10.26 DA-B14 PAM80 10.26:1 IEC 80 · 19 mm shaft 1.1 kW 136.4 r/min 69 Nm 9.38 1.7 kN 12.8 kN 3.7 kN 33.0 kg
CH-G K40390 10.26 DA-B14 PAM90 10.26:1 IEC 90 · 24 mm shaft 2.2 kW 136.4 r/min 139 Nm 4.69 1.7 kN 12.8 kN 3.7 kN 33.0 kg
CH-G K40390 10.26 DA-B14 PAM100 10.26:1 IEC 100 · 28 mm shaft 3 kW 136.4 r/min 189 Nm 3.44 1.7 kN 12.8 kN 3.7 kN 35.0 kg
CH-G K40390 10.26 DA-B14 PAM112 10.26:1 IEC 112 · 28 mm shaft 5.5 kW 136.4 r/min 346 Nm 1.88 1.7 kN 12.8 kN 3.7 kN 35.0 kg
CH-G K40390 10.26 DA-B14 PAM132 10.26:1 IEC 132 · 38 mm shaft 7.5 kW 136.4 r/min 472 Nm 1.38 1.7 kN 12.8 kN 3.7 kN 39.0 kg
CH-G K40390 8.63 DA-B14 PAM80 8.63:1 IEC 80 · 19 mm shaft 1.1 kW 162.2 r/min 58 Nm 10.29 1.6 kN 12 kN 3.4 kN 33.0 kg
CH-G K40390 8.63 DA-B14 PAM90 8.63:1 IEC 90 · 24 mm shaft 2.2 kW 162.2 r/min 117 Nm 5.15 1.6 kN 12 kN 3.4 kN 33.0 kg
CH-G K40390 8.63 DA-B14 PAM100 8.63:1 IEC 100 · 28 mm shaft 3 kW 162.2 r/min 159 Nm 3.77 1.6 kN 12 kN 3.4 kN 35.0 kg
CH-G K40390 8.63 DA-B14 PAM112 8.63:1 IEC 112 · 28 mm shaft 5.5 kW 162.2 r/min 292 Nm 2.06 1.6 kN 12 kN 3.4 kN 35.0 kg
CH-G K40390 8.63 DA-B14 PAM132 8.63:1 IEC 132 · 38 mm shaft 7.5 kW 162.2 r/min 398 Nm 1.51 1.6 kN 12 kN 3.4 kN 39.0 kg
CH-G K40390 7.82 DA-B14 PAM80 7.82:1 IEC 80 · 19 mm shaft 1.1 kW 179.1 r/min 53 Nm 9.46 1.7 kN 12 kN 3.4 kN 33.0 kg
CH-G K40390 7.82 DA-B14 PAM90 7.82:1 IEC 90 · 24 mm shaft 2.2 kW 179.1 r/min 106 Nm 4.73 1.7 kN 12 kN 3.4 kN 33.0 kg
CH-G K40390 7.82 DA-B14 PAM100 7.82:1 IEC 100 · 28 mm shaft 3 kW 179.1 r/min 144 Nm 3.47 1.7 kN 12 kN 3.4 kN 35.0 kg
CH-G K40390 7.82 DA-B14 PAM112 7.82:1 IEC 112 · 28 mm shaft 5.5 kW 179.1 r/min 264 Nm 1.89 1.7 kN 12 kN 3.4 kN 35.0 kg
CH-G K40390 7.82 DA-B14 PAM132 7.82:1 IEC 132 · 38 mm shaft 7.5 kW 179.1 r/min 360 Nm 1.39 1.7 kN 12 kN 3.4 kN 39.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.
