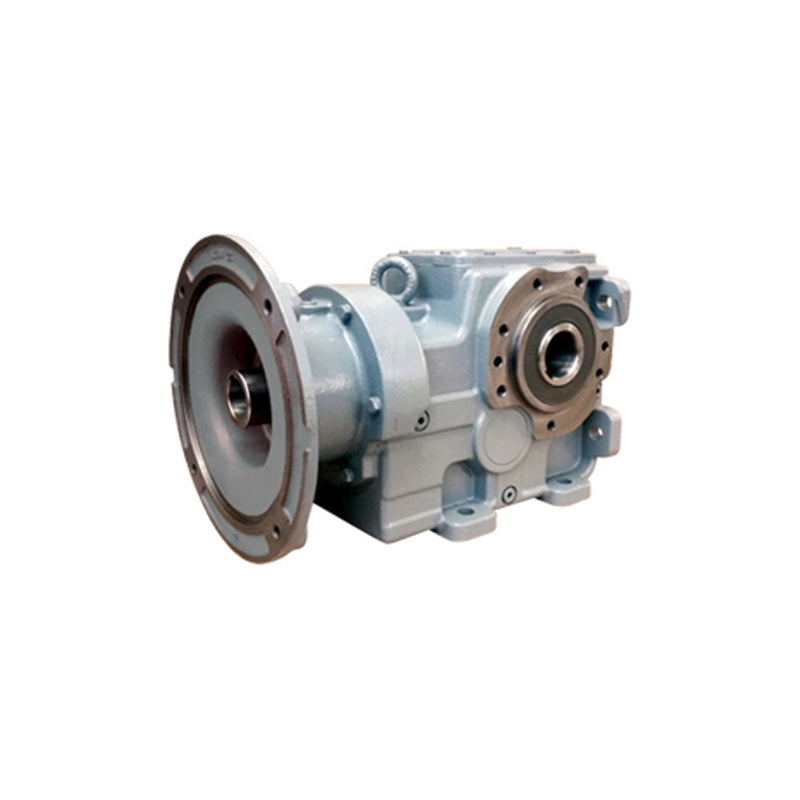

Chiaravalli CH-G K50390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K50390 Helical Bevel Gear Unit (Ø50 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K50390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 50, ratios 8.13:1 to 161.23:1. This is the K … DA-B14 version — foot-flange mounting with a Ø50 mm H7 hollow output shaft — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 80, 90, 100, 112, 132, 160 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 161.23:1 gives 9 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 1.82 to 16.32 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K50390 161.23 DA-B14 PAM80 161.23:1 IEC 80 · 19 mm shaft 1.1 kW 8.7 r/min 1088 Nm 1.65 2.8 kN 22 kN 11.8 kN 59.0 kg
CH-G K50390 161.23 DA-B14 PAM90 161.23:1 IEC 90 · 24 mm shaft 1.5 kW 8.7 r/min 1484 Nm 1.21 2.8 kN 22 kN 11.8 kN 59.0 kg
CH-G K50390 161.23 DA-B14 PAM100 161.23:1 IEC 100 · 28 mm shaft 2.2 kW 8.7 r/min 2176 Nm 0.83 2.8 kN 22 kN 11.8 kN 61.0 kg
CH-G K50390 161.23 DA-B14 PAM112 161.23:1 IEC 112 · 28 mm shaft 4 kW 8.7 r/min 3956 Nm 0.46 2.8 kN 22 kN 11.8 kN 61.0 kg
CH-G K50390 141.14 DA-B14 PAM80 141.14:1 IEC 80 · 19 mm shaft 1.1 kW 9.9 r/min 952 Nm 1.89 2.7 kN 22 kN 11.2 kN 59.0 kg
CH-G K50390 141.14 DA-B14 PAM90 141.14:1 IEC 90 · 24 mm shaft 1.5 kW 9.9 r/min 1298 Nm 1.39 2.7 kN 22 kN 11.2 kN 59.0 kg
CH-G K50390 141.14 DA-B14 PAM100 141.14:1 IEC 100 · 28 mm shaft 2.2 kW 9.9 r/min 1904 Nm 0.95 2.7 kN 22 kN 11.2 kN 61.0 kg
CH-G K50390 141.14 DA-B14 PAM112 141.14:1 IEC 112 · 28 mm shaft 4 kW 9.9 r/min 3462 Nm 0.52 2.7 kN 22 kN 11.2 kN 61.0 kg
CH-G K50390 129.64 DA-B14 PAM80 129.64:1 IEC 80 · 19 mm shaft 1.1 kW 10.8 r/min 876 Nm 2.05 2.7 kN 22 kN 10.9 kN 59.0 kg
CH-G K50390 129.64 DA-B14 PAM90 129.64:1 IEC 90 · 24 mm shaft 2.2 kW 10.8 r/min 1752 Nm 1.03 2.7 kN 22 kN 10.9 kN 59.0 kg
CH-G K50390 129.64 DA-B14 PAM100 129.64:1 IEC 100 · 28 mm shaft 2.2 kW 10.8 r/min 1752 Nm 1.03 2.7 kN 22 kN 10.9 kN 61.0 kg
CH-G K50390 129.64 DA-B14 PAM112 129.64:1 IEC 112 · 28 mm shaft 4 kW 10.8 r/min 3186 Nm 0.56 2.7 kN 22 kN 10.9 kN 61.0 kg
CH-G K50390 117.49 DA-B14 PAM80 117.49:1 IEC 80 · 19 mm shaft 1.1 kW 11.9 r/min 792 Nm 2.27 2.7 kN 22 kN 10.5 kN 59.0 kg
CH-G K50390 117.49 DA-B14 PAM90 117.49:1 IEC 90 · 24 mm shaft 2.2 kW 11.9 r/min 1584 Nm 1.14 2.7 kN 22 kN 10.5 kN 59.0 kg
CH-G K50390 117.49 DA-B14 PAM100 117.49:1 IEC 100 · 28 mm shaft 2.2 kW 11.9 r/min 1584 Nm 1.14 2.7 kN 22 kN 10.5 kN 61.0 kg
CH-G K50390 117.49 DA-B14 PAM112 117.49:1 IEC 112 · 28 mm shaft 4 kW 11.9 r/min 2880 Nm 0.63 2.7 kN 22 kN 10.5 kN 61.0 kg
CH-G K50390 111.93 DA-B14 PAM80 111.93:1 IEC 80 · 19 mm shaft 1.1 kW 12.5 r/min 756 Nm 2.38 2.7 kN 22 kN 10.3 kN 59.0 kg
CH-G K50390 111.93 DA-B14 PAM90 111.93:1 IEC 90 · 24 mm shaft 2.2 kW 12.5 r/min 1511 Nm 1.19 2.7 kN 22 kN 10.3 kN 59.0 kg
CH-G K50390 111.93 DA-B14 PAM100 111.93:1 IEC 100 · 28 mm shaft 2.2 kW 12.5 r/min 1511 Nm 1.19 2.7 kN 22 kN 10.3 kN 61.0 kg
CH-G K50390 111.93 DA-B14 PAM112 111.93:1 IEC 112 · 28 mm shaft 4 kW 12.5 r/min 2748 Nm 0.66 2.7 kN 22 kN 10.3 kN 61.0 kg
CH-G K50390 111.93 DA-B14 PAM132 111.93:1 IEC 132 · 38 mm shaft 5.5 kW 12.5 r/min 3779 Nm 0.48 2.7 kN 22 kN 10.3 kN 65.0 kg
CH-G K50390 102.86 DA-B14 PAM80 102.86:1 IEC 80 · 19 mm shaft 1.1 kW 13.6 r/min 695 Nm 2.59 2.7 kN 22 kN 10 kN 59.0 kg
CH-G K50390 102.86 DA-B14 PAM90 102.86:1 IEC 90 · 24 mm shaft 2.2 kW 13.6 r/min 1389 Nm 1.3 2.7 kN 22 kN 10 kN 59.0 kg
CH-G K50390 102.86 DA-B14 PAM100 102.86:1 IEC 100 · 28 mm shaft 2.2 kW 13.6 r/min 1389 Nm 1.3 2.7 kN 22 kN 10 kN 61.0 kg
CH-G K50390 102.86 DA-B14 PAM112 102.86:1 IEC 112 · 28 mm shaft 4 kW 13.6 r/min 2526 Nm 0.71 2.7 kN 22 kN 10 kN 61.0 kg
CH-G K50390 90 DA-B14 PAM80 90:1 IEC 80 · 19 mm shaft 1.1 kW 15.6 r/min 607 Nm 2.96 2.6 kN 22 kN 9.5 kN 59.0 kg
CH-G K50390 90 DA-B14 PAM90 90:1 IEC 90 · 24 mm shaft 2.2 kW 15.6 r/min 1215 Nm 1.48 2.6 kN 22 kN 9.5 kN 59.0 kg
CH-G K50390 90 DA-B14 PAM100 90:1 IEC 100 · 28 mm shaft 3 kW 15.6 r/min 1656 Nm 1.09 2.6 kN 22 kN 9.5 kN 61.0 kg
CH-G K50390 90 DA-B14 PAM112 90:1 IEC 112 · 28 mm shaft 4 kW 15.6 r/min 2209 Nm 0.82 2.6 kN 22 kN 9.5 kN 61.0 kg
CH-G K50390 90 DA-B14 PAM132 90:1 IEC 132 · 38 mm shaft 5.5 kW 15.6 r/min 3037 Nm 0.59 2.6 kN 22 kN 9.5 kN 65.0 kg
CH-G K50390 81.57 DA-B14 PAM80 81.57:1 IEC 80 · 19 mm shaft 1.1 kW 17.2 r/min 552 Nm 3.26 2.6 kN 22 kN 9.1 kN 59.0 kg
CH-G K50390 81.57 DA-B14 PAM90 81.57:1 IEC 90 · 24 mm shaft 2.2 kW 17.2 r/min 1103 Nm 1.63 2.6 kN 22 kN 9.1 kN 59.0 kg
CH-G K50390 81.57 DA-B14 PAM100 81.57:1 IEC 100 · 28 mm shaft 3 kW 17.2 r/min 1504 Nm 1.2 2.6 kN 22 kN 9.1 kN 61.0 kg
CH-G K50390 81.57 DA-B14 PAM112 81.57:1 IEC 112 · 28 mm shaft 4 kW 17.2 r/min 2006 Nm 0.9 2.6 kN 22 kN 9.1 kN 61.0 kg
CH-G K50390 81.57 DA-B14 PAM132 81.57:1 IEC 132 · 38 mm shaft 5.5 kW 17.2 r/min 2758 Nm 0.65 2.6 kN 22 kN 9.1 kN 65.0 kg
CH-G K50390 76.87 DA-B14 PAM80 76.87:1 IEC 80 · 19 mm shaft 1.1 kW 18.2 r/min 519 Nm 3.27 2.6 kN 22 kN 9 kN 59.0 kg
CH-G K50390 76.87 DA-B14 PAM90 76.87:1 IEC 90 · 24 mm shaft 2.2 kW 18.2 r/min 1039 Nm 1.64 2.6 kN 22 kN 9 kN 59.0 kg
CH-G K50390 76.87 DA-B14 PAM100 76.87:1 IEC 100 · 28 mm shaft 3 kW 18.2 r/min 1417 Nm 1.2 2.6 kN 22 kN 9 kN 61.0 kg
CH-G K50390 76.87 DA-B14 PAM112 76.87:1 IEC 112 · 28 mm shaft 4 kW 18.2 r/min 1889 Nm 0.9 2.6 kN 22 kN 9 kN 61.0 kg
CH-G K50390 76.87 DA-B14 PAM132 76.87:1 IEC 132 · 38 mm shaft 5.5 kW 18.2 r/min 2597 Nm 0.65 2.6 kN 22 kN 9 kN 65.0 kg
CH-G K50390 70.84 DA-B14 PAM80 70.84:1 IEC 80 · 19 mm shaft 1.1 kW 19.8 r/min 478 Nm 3.55 2.5 kN 22 kN 8.7 kN 59.0 kg
CH-G K50390 70.84 DA-B14 PAM90 70.84:1 IEC 90 · 24 mm shaft 2.2 kW 19.8 r/min 957 Nm 1.78 2.5 kN 22 kN 8.7 kN 59.0 kg
CH-G K50390 70.84 DA-B14 PAM100 70.84:1 IEC 100 · 28 mm shaft 3 kW 19.8 r/min 1304 Nm 1.3 2.5 kN 22 kN 8.7 kN 61.0 kg
CH-G K50390 70.84 DA-B14 PAM112 70.84:1 IEC 112 · 28 mm shaft 4 kW 19.8 r/min 1739 Nm 0.98 2.5 kN 22 kN 8.7 kN 61.0 kg
CH-G K50390 70.84 DA-B14 PAM132 70.84:1 IEC 132 · 38 mm shaft 5.5 kW 19.8 r/min 2391 Nm 0.71 2.5 kN 22 kN 8.7 kN 65.0 kg
CH-G K50390 66.83 DA-B14 PAM80 66.83:1 IEC 80 · 19 mm shaft 1.1 kW 20.9 r/min 452 Nm 3.76 2.5 kN 22 kN 8.5 kN 59.0 kg
CH-G K50390 66.83 DA-B14 PAM90 66.83:1 IEC 90 · 24 mm shaft 2.2 kW 20.9 r/min 903 Nm 1.88 2.5 kN 22 kN 8.5 kN 59.0 kg
CH-G K50390 66.83 DA-B14 PAM100 66.83:1 IEC 100 · 28 mm shaft 3 kW 20.9 r/min 1232 Nm 1.38 2.5 kN 22 kN 8.5 kN 61.0 kg
CH-G K50390 66.83 DA-B14 PAM112 66.83:1 IEC 112 · 28 mm shaft 4 kW 20.9 r/min 1643 Nm 1.03 2.5 kN 22 kN 8.5 kN 61.0 kg
CH-G K50390 66.83 DA-B14 PAM132 66.83:1 IEC 132 · 38 mm shaft 5.5 kW 20.9 r/min 2258 Nm 0.75 2.5 kN 22 kN 8.5 kN 65.0 kg
CH-G K50390 63.93 DA-B14 PAM80 63.93:1 IEC 80 · 19 mm shaft 1.1 kW 21.9 r/min 432 Nm 3.94 2.5 kN 22 kN 8.3 kN 59.0 kg
CH-G K50390 63.93 DA-B14 PAM90 63.93:1 IEC 90 · 24 mm shaft 2.2 kW 21.9 r/min 864 Nm 1.97 2.5 kN 22 kN 8.3 kN 59.0 kg
CH-G K50390 63.93 DA-B14 PAM100 63.93:1 IEC 100 · 28 mm shaft 3 kW 21.9 r/min 1178 Nm 1.44 2.5 kN 22 kN 8.3 kN 61.0 kg
CH-G K50390 63.93 DA-B14 PAM112 63.93:1 IEC 112 · 28 mm shaft 4 kW 21.9 r/min 1570 Nm 1.08 2.5 kN 22 kN 8.3 kN 61.0 kg
CH-G K50390 63.93 DA-B14 PAM132 63.93:1 IEC 132 · 38 mm shaft 5.5 kW 21.9 r/min 2159 Nm 0.79 2.5 kN 22 kN 8.3 kN 65.0 kg
CH-G K50390 56.96 DA-B14 PAM80 56.96:1 IEC 80 · 19 mm shaft 1.1 kW 24.6 r/min 385 Nm 4.42 2.4 kN 22 kN 8 kN 59.0 kg
CH-G K50390 56.96 DA-B14 PAM90 56.96:1 IEC 90 · 24 mm shaft 2.2 kW 24.6 r/min 770 Nm 2.21 2.4 kN 22 kN 8 kN 59.0 kg
CH-G K50390 56.96 DA-B14 PAM100 56.96:1 IEC 100 · 28 mm shaft 3 kW 24.6 r/min 1049 Nm 1.62 2.4 kN 22 kN 8 kN 61.0 kg
CH-G K50390 56.96 DA-B14 PAM112 56.96:1 IEC 112 · 28 mm shaft 4 kW 24.6 r/min 1399 Nm 1.22 2.4 kN 22 kN 8 kN 61.0 kg
CH-G K50390 56.96 DA-B14 PAM132 56.96:1 IEC 132 · 38 mm shaft 5.5 kW 24.6 r/min 1924 Nm 0.88 2.4 kN 22 kN 8 kN 65.0 kg
CH-G K50390 51.63 DA-B14 PAM80 51.63:1 IEC 80 · 19 mm shaft 1.1 kW 27.1 r/min 349 Nm 4.87 2.4 kN 22 kN 7.7 kN 59.0 kg
CH-G K50390 51.63 DA-B14 PAM90 51.63:1 IEC 90 · 24 mm shaft 2.2 kW 27.1 r/min 698 Nm 2.44 2.4 kN 22 kN 7.7 kN 59.0 kg
CH-G K50390 51.63 DA-B14 PAM100 51.63:1 IEC 100 · 28 mm shaft 3 kW 27.1 r/min 951 Nm 1.79 2.4 kN 22 kN 7.7 kN 61.0 kg
CH-G K50390 51.63 DA-B14 PAM112 51.63:1 IEC 112 · 28 mm shaft 4 kW 27.1 r/min 1269 Nm 1.34 2.4 kN 22 kN 7.7 kN 61.0 kg
CH-G K50390 51.63 DA-B14 PAM132 51.63:1 IEC 132 · 38 mm shaft 5.5 kW 27.1 r/min 1744 Nm 0.97 2.4 kN 22 kN 7.7 kN 65.0 kg
CH-G K50390 48.89 DA-B14 PAM80 48.89:1 IEC 80 · 19 mm shaft 1.1 kW 28.6 r/min 330 Nm 5.15 2.3 kN 22 kN 7.6 kN 59.0 kg
CH-G K50390 48.89 DA-B14 PAM90 48.89:1 IEC 90 · 24 mm shaft 2.2 kW 28.6 r/min 661 Nm 2.57 2.3 kN 22 kN 7.6 kN 59.0 kg
CH-G K50390 48.89 DA-B14 PAM100 48.89:1 IEC 100 · 28 mm shaft 3 kW 28.6 r/min 901 Nm 1.89 2.3 kN 22 kN 7.6 kN 61.0 kg
CH-G K50390 48.89 DA-B14 PAM112 48.89:1 IEC 112 · 28 mm shaft 5.5 kW 28.6 r/min 1652 Nm 1.03 2.3 kN 22 kN 7.6 kN 61.0 kg
CH-G K50390 48.89 DA-B14 PAM132 48.89:1 IEC 132 · 38 mm shaft 5.5 kW 28.6 r/min 1652 Nm 1.03 2.3 kN 22 kN 7.6 kN 65.0 kg
CH-G K50390 46.59 DA-B14 PAM80 46.59:1 IEC 80 · 19 mm shaft 1.1 kW 30 r/min 315 Nm 5.4 2.3 kN 22 kN 7.4 kN 59.0 kg
CH-G K50390 46.59 DA-B14 PAM90 46.59:1 IEC 90 · 24 mm shaft 2.2 kW 30 r/min 630 Nm 2.7 2.3 kN 22 kN 7.4 kN 59.0 kg
CH-G K50390 46.59 DA-B14 PAM100 46.59:1 IEC 100 · 28 mm shaft 3 kW 30 r/min 859 Nm 1.98 2.3 kN 22 kN 7.4 kN 61.0 kg
CH-G K50390 46.59 DA-B14 PAM112 46.59:1 IEC 112 · 28 mm shaft 5.5 kW 30 r/min 1574 Nm 1.08 2.3 kN 22 kN 7.4 kN 61.0 kg
CH-G K50390 46.59 DA-B14 PAM132 46.59:1 IEC 132 · 38 mm shaft 5.5 kW 30 r/min 1574 Nm 1.08 2.3 kN 22 kN 7.4 kN 65.0 kg
CH-G K50390 43.91 DA-B14 PAM80 43.91:1 IEC 80 · 19 mm shaft 1.1 kW 31.9 r/min 296 Nm 5.74 2.2 kN 22 kN 7.2 kN 59.0 kg
CH-G K50390 43.91 DA-B14 PAM90 43.91:1 IEC 90 · 24 mm shaft 2.2 kW 31.9 r/min 593 Nm 2.87 2.2 kN 22 kN 7.2 kN 59.0 kg
CH-G K50390 43.91 DA-B14 PAM100 43.91:1 IEC 100 · 28 mm shaft 3 kW 31.9 r/min 808 Nm 2.1 2.2 kN 22 kN 7.2 kN 61.0 kg
CH-G K50390 43.91 DA-B14 PAM112 43.91:1 IEC 112 · 28 mm shaft 5.5 kW 31.9 r/min 1482 Nm 1.15 2.2 kN 22 kN 7.2 kN 61.0 kg
CH-G K50390 43.91 DA-B14 PAM132 43.91:1 IEC 132 · 38 mm shaft 5.5 kW 31.9 r/min 1482 Nm 1.15 2.2 kN 22 kN 7.2 kN 65.0 kg
CH-G K50390 40.46 DA-B14 PAM80 40.46:1 IEC 80 · 19 mm shaft 1.1 kW 34.6 r/min 273 Nm 6.22 2.2 kN 22 kN 7 kN 59.0 kg
CH-G K50390 40.46 DA-B14 PAM90 40.46:1 IEC 90 · 24 mm shaft 2.2 kW 34.6 r/min 547 Nm 3.11 2.2 kN 22 kN 7 kN 59.0 kg
CH-G K50390 40.46 DA-B14 PAM100 40.46:1 IEC 100 · 28 mm shaft 3 kW 34.6 r/min 746 Nm 2.28 2.2 kN 22 kN 7 kN 61.0 kg
CH-G K50390 40.46 DA-B14 PAM112 40.46:1 IEC 112 · 28 mm shaft 5.5 kW 34.6 r/min 1367 Nm 1.24 2.2 kN 22 kN 7 kN 61.0 kg
CH-G K50390 40.46 DA-B14 PAM132 40.46:1 IEC 132 · 38 mm shaft 5.5 kW 34.6 r/min 1367 Nm 1.24 2.2 kN 22 kN 7 kN 65.0 kg
CH-G K50390 35.3 DA-B14 PAM80 35.3:1 IEC 80 · 19 mm shaft 1.1 kW 39.7 r/min 239 Nm 7.13 2.1 kN 22 kN 6.6 kN 59.0 kg
CH-G K50390 35.3 DA-B14 PAM90 35.3:1 IEC 90 · 24 mm shaft 2.2 kW 39.7 r/min 477 Nm 3.56 2.1 kN 22 kN 6.6 kN 59.0 kg
CH-G K50390 35.3 DA-B14 PAM100 35.3:1 IEC 100 · 28 mm shaft 3 kW 39.7 r/min 651 Nm 2.61 2.1 kN 22 kN 6.6 kN 61.0 kg
CH-G K50390 35.3 DA-B14 PAM112 35.3:1 IEC 112 · 28 mm shaft 5.5 kW 39.7 r/min 1193 Nm 1.43 2.1 kN 22 kN 6.6 kN 61.0 kg
CH-G K50390 35.3 DA-B14 PAM132 35.3:1 IEC 132 · 38 mm shaft 7.5 kW 39.7 r/min 1626 Nm 1.05 2.1 kN 22 kN 6.6 kN 65.0 kg
CH-G K50390 32.54 DA-B14 PAM80 32.54:1 IEC 80 · 19 mm shaft 1.1 kW 43 r/min 220 Nm 7.74 2 kN 22 kN 6.4 kN 59.0 kg
CH-G K50390 32.54 DA-B14 PAM90 32.54:1 IEC 90 · 24 mm shaft 2.2 kW 43 r/min 439 Nm 3.87 2 kN 22 kN 6.4 kN 59.0 kg
CH-G K50390 32.54 DA-B14 PAM100 32.54:1 IEC 100 · 28 mm shaft 3 kW 43 r/min 599 Nm 2.84 2 kN 22 kN 6.4 kN 61.0 kg
CH-G K50390 32.54 DA-B14 PAM112 32.54:1 IEC 112 · 28 mm shaft 5.5 kW 43 r/min 1099 Nm 1.55 2 kN 22 kN 6.4 kN 61.0 kg
CH-G K50390 32.54 DA-B14 PAM132 32.54:1 IEC 132 · 38 mm shaft 7.5 kW 43 r/min 1498 Nm 1.13 2 kN 22 kN 6.4 kN 65.0 kg
CH-G K50390 29.67 DA-B14 PAM80 29.67:1 IEC 80 · 19 mm shaft 1.1 kW 47.2 r/min 200 Nm 7.98 2 kN 22 kN 6.3 kN 59.0 kg
CH-G K50390 29.67 DA-B14 PAM90 29.67:1 IEC 90 · 24 mm shaft 2.2 kW 47.2 r/min 401 Nm 3.99 2 kN 22 kN 6.3 kN 59.0 kg
CH-G K50390 29.67 DA-B14 PAM100 29.67:1 IEC 100 · 28 mm shaft 3 kW 47.2 r/min 547 Nm 2.93 2 kN 22 kN 6.3 kN 61.0 kg
CH-G K50390 29.67 DA-B14 PAM112 29.67:1 IEC 112 · 28 mm shaft 5.5 kW 47.2 r/min 1002 Nm 1.6 2 kN 22 kN 6.3 kN 61.0 kg
CH-G K50390 29.67 DA-B14 PAM132 29.67:1 IEC 132 · 38 mm shaft 7.5 kW 47.2 r/min 1367 Nm 1.17 2 kN 22 kN 6.3 kN 65.0 kg
CH-G K50390 29.67 DA-B14 PAM160 29.67:1 IEC 160 · 42 mm shaft 11 kW 47.2 r/min 2005 Nm 0.8 2 kN 22 kN 6.3 kN 72.0 kg
CH-G K50390 25.65 DA-B14 PAM80 25.65:1 IEC 80 · 19 mm shaft 1.1 kW 54.6 r/min 173 Nm 8.66 1.9 kN 21.1 kN 6 kN 59.0 kg
CH-G K50390 25.65 DA-B14 PAM90 25.65:1 IEC 90 · 24 mm shaft 2.2 kW 54.6 r/min 346 Nm 4.33 1.9 kN 21.1 kN 6 kN 59.0 kg
CH-G K50390 25.65 DA-B14 PAM100 25.65:1 IEC 100 · 28 mm shaft 3 kW 54.6 r/min 472 Nm 3.18 1.9 kN 21.1 kN 6 kN 61.0 kg
CH-G K50390 25.65 DA-B14 PAM112 25.65:1 IEC 112 · 28 mm shaft 5.5 kW 54.6 r/min 866 Nm 1.73 1.9 kN 21.1 kN 6 kN 61.0 kg
CH-G K50390 25.65 DA-B14 PAM132 25.65:1 IEC 132 · 38 mm shaft 7.5 kW 54.6 r/min 1180 Nm 1.27 1.9 kN 21.1 kN 6 kN 65.0 kg
CH-G K50390 25.65 DA-B14 PAM160 25.65:1 IEC 160 · 42 mm shaft 11 kW 54.6 r/min 1731 Nm 0.87 1.9 kN 21.1 kN 6 kN 72.0 kg
CH-G K50390 23.26 DA-B14 PAM80 23.26:1 IEC 80 · 19 mm shaft 1.1 kW 60.2 r/min 157 Nm 8.91 1.8 kN 20.4 kN 5.8 kN 59.0 kg
CH-G K50390 23.26 DA-B14 PAM90 23.26:1 IEC 90 · 24 mm shaft 2.2 kW 60.2 r/min 314 Nm 4.45 1.8 kN 20.4 kN 5.8 kN 59.0 kg
CH-G K50390 23.26 DA-B14 PAM100 23.26:1 IEC 100 · 28 mm shaft 3 kW 60.2 r/min 429 Nm 3.27 1.8 kN 20.4 kN 5.8 kN 61.0 kg
CH-G K50390 23.26 DA-B14 PAM112 23.26:1 IEC 112 · 28 mm shaft 5.5 kW 60.2 r/min 786 Nm 1.78 1.8 kN 20.4 kN 5.8 kN 61.0 kg
CH-G K50390 23.26 DA-B14 PAM132 23.26:1 IEC 132 · 38 mm shaft 7.5 kW 60.2 r/min 1071 Nm 1.31 1.8 kN 20.4 kN 5.8 kN 65.0 kg
CH-G K50390 23.26 DA-B14 PAM160 23.26:1 IEC 160 · 42 mm shaft 11 kW 60.2 r/min 1571 Nm 0.89 1.8 kN 20.4 kN 5.8 kN 72.0 kg
CH-G K50390 18.7 DA-B14 PAM80 18.7:1 IEC 80 · 19 mm shaft 1.1 kW 74.9 r/min 126 Nm 11.08 1.6 kN 18.7 kN 5.3 kN 59.0 kg
CH-G K50390 18.7 DA-B14 PAM90 18.7:1 IEC 90 · 24 mm shaft 2.2 kW 74.9 r/min 253 Nm 5.54 1.6 kN 18.7 kN 5.3 kN 59.0 kg
CH-G K50390 18.7 DA-B14 PAM100 18.7:1 IEC 100 · 28 mm shaft 3 kW 74.9 r/min 345 Nm 4.06 1.6 kN 18.7 kN 5.3 kN 61.0 kg
CH-G K50390 18.7 DA-B14 PAM112 18.7:1 IEC 112 · 28 mm shaft 5.5 kW 74.9 r/min 632 Nm 2.22 1.6 kN 18.7 kN 5.3 kN 61.0 kg
CH-G K50390 18.7 DA-B14 PAM132 18.7:1 IEC 132 · 38 mm shaft 7.5 kW 74.9 r/min 861 Nm 1.63 1.6 kN 18.7 kN 5.3 kN 65.0 kg
CH-G K50390 18.7 DA-B14 PAM160 18.7:1 IEC 160 · 42 mm shaft 11 kW 74.9 r/min 1263 Nm 1.11 1.6 kN 18.7 kN 5.3 kN 72.0 kg
CH-G K50390 16.95 DA-B14 PAM80 16.95:1 IEC 80 · 19 mm shaft 1.1 kW 82.6 r/min 114 Nm 12.23 1.4 kN 18 kN 5.1 kN 59.0 kg
CH-G K50390 16.95 DA-B14 PAM90 16.95:1 IEC 90 · 24 mm shaft 2.2 kW 82.6 r/min 229 Nm 6.11 1.4 kN 18 kN 5.1 kN 59.0 kg
CH-G K50390 16.95 DA-B14 PAM100 16.95:1 IEC 100 · 28 mm shaft 3 kW 82.6 r/min 312 Nm 4.48 1.4 kN 18 kN 5.1 kN 61.0 kg
CH-G K50390 16.95 DA-B14 PAM112 16.95:1 IEC 112 · 28 mm shaft 5.5 kW 82.6 r/min 572 Nm 2.45 1.4 kN 18 kN 5.1 kN 61.0 kg
CH-G K50390 16.95 DA-B14 PAM132 16.95:1 IEC 132 · 38 mm shaft 7.5 kW 82.6 r/min 781 Nm 1.79 1.4 kN 18 kN 5.1 kN 65.0 kg
CH-G K50390 16.95 DA-B14 PAM160 16.95:1 IEC 160 · 42 mm shaft 11 kW 82.6 r/min 1145 Nm 1.22 1.4 kN 18 kN 5.1 kN 72.0 kg
CH-G K50390 14.65 DA-B14 PAM80 14.65:1 IEC 80 · 19 mm shaft 1.1 kW 95.6 r/min 99 Nm 12.13 1.4 kN 17.6 kN 5 kN 59.0 kg
CH-G K50390 14.65 DA-B14 PAM90 14.65:1 IEC 90 · 24 mm shaft 2.2 kW 95.6 r/min 198 Nm 6.06 1.4 kN 17.6 kN 5 kN 59.0 kg
CH-G K50390 14.65 DA-B14 PAM100 14.65:1 IEC 100 · 28 mm shaft 3 kW 95.6 r/min 270 Nm 4.45 1.4 kN 17.6 kN 5 kN 61.0 kg
CH-G K50390 14.65 DA-B14 PAM112 14.65:1 IEC 112 · 28 mm shaft 5.5 kW 95.6 r/min 495 Nm 2.43 1.4 kN 17.6 kN 5 kN 61.0 kg
CH-G K50390 14.65 DA-B14 PAM132 14.65:1 IEC 132 · 38 mm shaft 7.5 kW 95.6 r/min 675 Nm 1.78 1.4 kN 17.6 kN 5 kN 65.0 kg
CH-G K50390 14.65 DA-B14 PAM160 14.65:1 IEC 160 · 42 mm shaft 11 kW 95.6 r/min 990 Nm 1.21 1.4 kN 17.6 kN 5 kN 72.0 kg
CH-G K50390 11.78 DA-B14 PAM80 11.78:1 IEC 80 · 19 mm shaft 1.1 kW 118.8 r/min 80 Nm 12.57 1.4 kN 16.7 kN 4.8 kN 59.0 kg
CH-G K50390 11.78 DA-B14 PAM90 11.78:1 IEC 90 · 24 mm shaft 2.2 kW 118.8 r/min 159 Nm 6.29 1.4 kN 16.7 kN 4.8 kN 59.0 kg
CH-G K50390 11.78 DA-B14 PAM100 11.78:1 IEC 100 · 28 mm shaft 3 kW 118.8 r/min 217 Nm 4.61 1.4 kN 16.7 kN 4.8 kN 61.0 kg
CH-G K50390 11.78 DA-B14 PAM112 11.78:1 IEC 112 · 28 mm shaft 5.5 kW 118.8 r/min 398 Nm 2.51 1.4 kN 16.7 kN 4.8 kN 61.0 kg
CH-G K50390 11.78 DA-B14 PAM132 11.78:1 IEC 132 · 38 mm shaft 7.5 kW 118.8 r/min 542 Nm 1.84 1.4 kN 16.7 kN 4.8 kN 65.0 kg
CH-G K50390 11.78 DA-B14 PAM160 11.78:1 IEC 160 · 42 mm shaft 11 kW 118.8 r/min 795 Nm 1.26 1.4 kN 16.7 kN 4.8 kN 72.0 kg
CH-G K50390 10.68 DA-B14 PAM80 10.68:1 IEC 80 · 19 mm shaft 1.1 kW 131.1 r/min 72 Nm 13.86 1.2 kN 16.1 kN 4.6 kN 59.0 kg
CH-G K50390 10.68 DA-B14 PAM90 10.68:1 IEC 90 · 24 mm shaft 2.2 kW 131.1 r/min 144 Nm 6.93 1.2 kN 16.1 kN 4.6 kN 59.0 kg
CH-G K50390 10.68 DA-B14 PAM100 10.68:1 IEC 100 · 28 mm shaft 3 kW 131.1 r/min 197 Nm 5.08 1.2 kN 16.1 kN 4.6 kN 61.0 kg
CH-G K50390 10.68 DA-B14 PAM112 10.68:1 IEC 112 · 28 mm shaft 5.5 kW 131.1 r/min 361 Nm 2.77 1.2 kN 16.1 kN 4.6 kN 61.0 kg
CH-G K50390 10.68 DA-B14 PAM132 10.68:1 IEC 132 · 38 mm shaft 7.5 kW 131.1 r/min 492 Nm 2.03 1.2 kN 16.1 kN 4.6 kN 65.0 kg
CH-G K50390 10.68 DA-B14 PAM160 10.68:1 IEC 160 · 42 mm shaft 15 kW 131.1 r/min 984 Nm 1.02 1.2 kN 16.1 kN 4.6 kN 72.0 kg
CH-G K50390 8.98 DA-B14 PAM80 8.98:1 IEC 80 · 19 mm shaft 1.1 kW 156 r/min 61 Nm 14.84 1 kN 15.1 kN 4.3 kN 59.0 kg
CH-G K50390 8.98 DA-B14 PAM90 8.98:1 IEC 90 · 24 mm shaft 2.2 kW 156 r/min 121 Nm 7.42 1 kN 15.1 kN 4.3 kN 59.0 kg
CH-G K50390 8.98 DA-B14 PAM100 8.98:1 IEC 100 · 28 mm shaft 3 kW 156 r/min 165 Nm 5.44 1 kN 15.1 kN 4.3 kN 61.0 kg
CH-G K50390 8.98 DA-B14 PAM112 8.98:1 IEC 112 · 28 mm shaft 5.5 kW 156 r/min 303 Nm 2.97 1 kN 15.1 kN 4.3 kN 61.0 kg
CH-G K50390 8.98 DA-B14 PAM132 8.98:1 IEC 132 · 38 mm shaft 7.5 kW 156 r/min 414 Nm 2.18 1 kN 15.1 kN 4.3 kN 65.0 kg
CH-G K50390 8.98 DA-B14 PAM160 8.98:1 IEC 160 · 42 mm shaft 15 kW 156 r/min 827 Nm 1.09 1 kN 15.1 kN 4.3 kN 72.0 kg
CH-G K50390 8.13 DA-B14 PAM80 8.13:1 IEC 80 · 19 mm shaft 1.1 kW 172.1 r/min 55 Nm 14.57 1.1 kN 14.9 kN 4.2 kN 59.0 kg
CH-G K50390 8.13 DA-B14 PAM90 8.13:1 IEC 90 · 24 mm shaft 2.2 kW 172.1 r/min 110 Nm 7.29 1.1 kN 14.9 kN 4.2 kN 59.0 kg
CH-G K50390 8.13 DA-B14 PAM100 8.13:1 IEC 100 · 28 mm shaft 3 kW 172.1 r/min 150 Nm 5.34 1.1 kN 14.9 kN 4.2 kN 61.0 kg
CH-G K50390 8.13 DA-B14 PAM112 8.13:1 IEC 112 · 28 mm shaft 5.5 kW 172.1 r/min 274 Nm 2.91 1.1 kN 14.9 kN 4.2 kN 61.0 kg
CH-G K50390 8.13 DA-B14 PAM132 8.13:1 IEC 132 · 38 mm shaft 7.5 kW 172.1 r/min 374 Nm 2.14 1.1 kN 14.9 kN 4.2 kN 65.0 kg
CH-G K50390 8.13 DA-B14 PAM160 8.13:1 IEC 160 · 42 mm shaft 15 kW 172.1 r/min 749 Nm 1.07 1.1 kN 14.9 kN 4.2 kN 72.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
