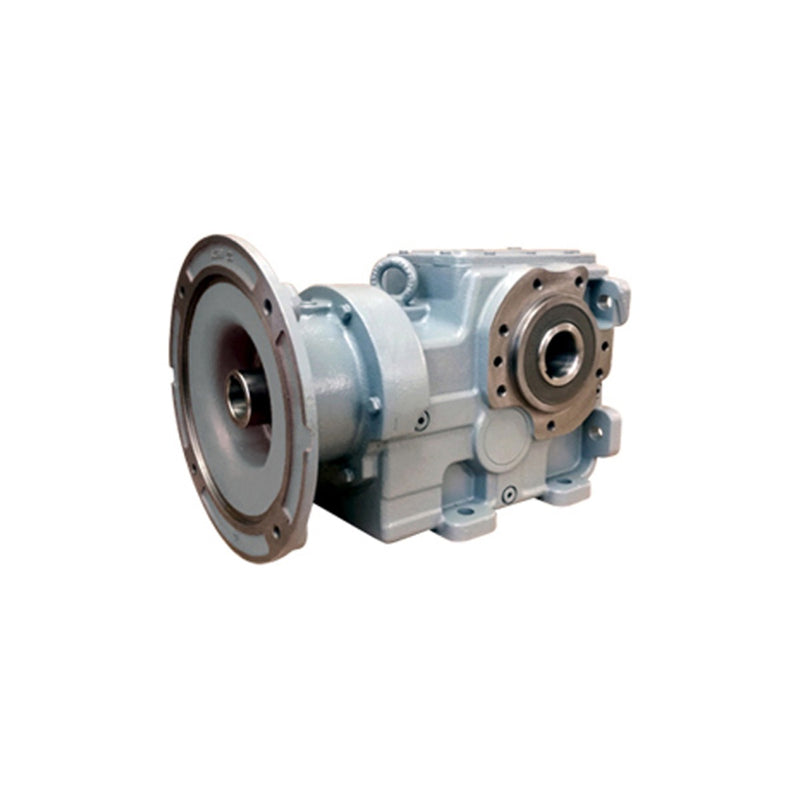

Chiaravalli CH-G K60390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K60390 Helical Bevel Gear Unit (Ø60 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K60390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 60, ratios 7.97:1 to 183.08:1. This is the K … DA-B14 version — foot-flange mounting with a Ø60 mm H7 hollow output shaft — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 90, 100, 112, 132, 160, 180 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 183.08:1 gives 8 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 3.11 to 30.85 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K60390 183.08 DA-B14 PAM90 183.08:1 IEC 90 · 24 mm shaft 2.2 kW 7.6 r/min 2476 Nm 1.41 3.9 kN 30 kN 14.8 kN 80.0 kg
CH-G K60390 183.08 DA-B14 PAM100 183.08:1 IEC 100 · 28 mm shaft 3 kW 7.6 r/min 3376 Nm 1.04 3.9 kN 30 kN 14.8 kN 84.0 kg
CH-G K60390 183.08 DA-B14 PAM112 183.08:1 IEC 112 · 28 mm shaft 4 kW 7.6 r/min 4502 Nm 0.78 3.9 kN 30 kN 14.8 kN 84.0 kg
CH-G K60390 183.08 DA-B14 PAM132 183.08:1 IEC 132 · 38 mm shaft 5.5 kW 7.6 r/min 6190 Nm 0.57 3.9 kN 30 kN 14.8 kN 87.0 kg
CH-G K60390 162.63 DA-B14 PAM90 162.63:1 IEC 90 · 24 mm shaft 2.2 kW 8.6 r/min 2194 Nm 1.6 3.8 kN 30 kN 14 kN 80.0 kg
CH-G K60390 162.63 DA-B14 PAM100 162.63:1 IEC 100 · 28 mm shaft 3 kW 8.6 r/min 2991 Nm 1.17 3.8 kN 30 kN 14 kN 84.0 kg
CH-G K60390 162.63 DA-B14 PAM112 162.63:1 IEC 112 · 28 mm shaft 4 kW 8.6 r/min 3989 Nm 0.88 3.8 kN 30 kN 14 kN 84.0 kg
CH-G K60390 162.63 DA-B14 PAM132 162.63:1 IEC 132 · 38 mm shaft 5.5 kW 8.6 r/min 5484 Nm 0.64 3.8 kN 30 kN 14 kN 87.0 kg
CH-G K60390 146.59 DA-B14 PAM90 146.59:1 IEC 90 · 24 mm shaft 2.2 kW 9.6 r/min 1979 Nm 1.77 3.8 kN 30 kN 13.4 kN 80.0 kg
CH-G K60390 146.59 DA-B14 PAM100 146.59:1 IEC 100 · 28 mm shaft 3 kW 9.6 r/min 2699 Nm 1.3 3.8 kN 30 kN 13.4 kN 84.0 kg
CH-G K60390 146.59 DA-B14 PAM112 146.59:1 IEC 112 · 28 mm shaft 4 kW 9.6 r/min 3599 Nm 0.97 3.8 kN 30 kN 13.4 kN 84.0 kg
CH-G K60390 146.59 DA-B14 PAM132 146.59:1 IEC 132 · 38 mm shaft 5.5 kW 9.6 r/min 4949 Nm 0.71 3.8 kN 30 kN 13.4 kN 87.0 kg
CH-G K60390 131.96 DA-B14 PAM90 131.96:1 IEC 90 · 24 mm shaft 2.2 kW 10.6 r/min 1782 Nm 1.96 3.8 kN 30 kN 12.8 kN 80.0 kg
CH-G K60390 131.96 DA-B14 PAM100 131.96:1 IEC 100 · 28 mm shaft 3 kW 10.6 r/min 2431 Nm 1.44 3.8 kN 30 kN 12.8 kN 84.0 kg
CH-G K60390 131.96 DA-B14 PAM112 131.96:1 IEC 112 · 28 mm shaft 4 kW 10.6 r/min 3241 Nm 1.08 3.8 kN 30 kN 12.8 kN 84.0 kg
CH-G K60390 131.96 DA-B14 PAM132 131.96:1 IEC 132 · 38 mm shaft 5.5 kW 10.6 r/min 4456 Nm 0.79 3.8 kN 30 kN 12.8 kN 87.0 kg
CH-G K60390 121.39 DA-B14 PAM90 121.39:1 IEC 90 · 24 mm shaft 2.2 kW 11.5 r/min 1638 Nm 2.14 3.8 kN 30 kN 12.3 kN 80.0 kg
CH-G K60390 121.39 DA-B14 PAM100 121.39:1 IEC 100 · 28 mm shaft 3 kW 11.5 r/min 2234 Nm 1.57 3.8 kN 30 kN 12.3 kN 84.0 kg
CH-G K60390 121.39 DA-B14 PAM112 121.39:1 IEC 112 · 28 mm shaft 4 kW 11.5 r/min 2979 Nm 1.18 3.8 kN 30 kN 12.3 kN 84.0 kg
CH-G K60390 121.39 DA-B14 PAM132 121.39:1 IEC 132 · 38 mm shaft 5.5 kW 11.5 r/min 4096 Nm 0.85 3.8 kN 30 kN 12.3 kN 87.0 kg
CH-G K60390 108.31 DA-B14 PAM90 108.31:1 IEC 90 · 24 mm shaft 2.2 kW 12.9 r/min 1464 Nm 2.39 3.8 kN 30 kN 11.7 kN 80.0 kg
CH-G K60390 108.31 DA-B14 PAM100 108.31:1 IEC 100 · 28 mm shaft 3 kW 12.9 r/min 1996 Nm 1.75 3.8 kN 30 kN 11.7 kN 84.0 kg
CH-G K60390 108.31 DA-B14 PAM112 108.31:1 IEC 112 · 28 mm shaft 4 kW 12.9 r/min 2662 Nm 1.32 3.8 kN 30 kN 11.7 kN 84.0 kg
CH-G K60390 108.31 DA-B14 PAM132 108.31:1 IEC 132 · 38 mm shaft 5.5 kW 12.9 r/min 3660 Nm 0.96 3.8 kN 30 kN 11.7 kN 87.0 kg
CH-G K60390 101.29 DA-B14 PAM100 101.29:1 IEC 100 · 28 mm shaft 3 kW 13.8 r/min 1865 Nm 1.88 3.7 kN 30 kN 11.3 kN 84.0 kg
CH-G K60390 101.29 DA-B14 PAM112 101.29:1 IEC 112 · 28 mm shaft 5.5 kW 13.8 r/min 3419 Nm 1.02 3.7 kN 30 kN 11.3 kN 84.0 kg
CH-G K60390 101.29 DA-B14 PAM132 101.29:1 IEC 132 · 38 mm shaft 5.5 kW 13.8 r/min 3419 Nm 1.02 3.7 kN 30 kN 11.3 kN 87.0 kg
CH-G K60390 101.29 DA-B14 PAM160 101.29:1 IEC 160 · 42 mm shaft 11 kW 13.8 r/min 6838 Nm 0.51 3.7 kN 30 kN 11.3 kN 93.0 kg
CH-G K60390 101.29 DA-B14 PAM180 101.29:1 IEC 180 · 48 mm shaft 18.5 kW 13.8 r/min 11501 Nm 0.3 3.7 kN 30 kN 11.3 kN 93.0 kg
CH-G K60390 91.3 DA-B14 PAM100 91.3:1 IEC 100 · 28 mm shaft 3 kW 15.3 r/min 1683 Nm 2.08 3.7 kN 30 kN 10.8 kN 84.0 kg
CH-G K60390 91.3 DA-B14 PAM112 91.3:1 IEC 112 · 28 mm shaft 5.5 kW 15.3 r/min 3085 Nm 1.13 3.7 kN 30 kN 10.8 kN 84.0 kg
CH-G K60390 91.3 DA-B14 PAM132 91.3:1 IEC 132 · 38 mm shaft 5.5 kW 15.3 r/min 3085 Nm 1.13 3.7 kN 30 kN 10.8 kN 87.0 kg
CH-G K60390 91.3 DA-B14 PAM160 91.3:1 IEC 160 · 42 mm shaft 11 kW 15.3 r/min 6170 Nm 0.57 3.7 kN 30 kN 10.8 kN 93.0 kg
CH-G K60390 91.3 DA-B14 PAM180 91.3:1 IEC 180 · 48 mm shaft 18.5 kW 15.3 r/min 10377 Nm 0.34 3.7 kN 30 kN 10.8 kN 93.0 kg
CH-G K60390 81.18 DA-B14 PAM90 81.18:1 IEC 90 · 24 mm shaft 2.2 kW 17.2 r/min 1097 Nm 3.19 3.7 kN 30 kN 10.2 kN 80.0 kg
CH-G K60390 81.18 DA-B14 PAM100 81.18:1 IEC 100 · 28 mm shaft 3 kW 17.2 r/min 1496 Nm 2.34 3.7 kN 30 kN 10.2 kN 84.0 kg
CH-G K60390 81.18 DA-B14 PAM112 81.18:1 IEC 112 · 28 mm shaft 5.5 kW 17.2 r/min 2742 Nm 1.28 3.7 kN 30 kN 10.2 kN 84.0 kg
CH-G K60390 81.18 DA-B14 PAM132 81.18:1 IEC 132 · 38 mm shaft 5.5 kW 17.2 r/min 2742 Nm 1.28 3.7 kN 30 kN 10.2 kN 87.0 kg
CH-G K60390 75.6 DA-B14 PAM100 75.6:1 IEC 100 · 28 mm shaft 3 kW 18.5 r/min 1393 Nm 2.51 3.6 kN 30 kN 9.9 kN 84.0 kg
CH-G K60390 75.6 DA-B14 PAM112 75.6:1 IEC 112 · 28 mm shaft 5.5 kW 18.5 r/min 2553 Nm 1.37 3.6 kN 30 kN 9.9 kN 84.0 kg
CH-G K60390 75.6 DA-B14 PAM132 75.6:1 IEC 132 · 38 mm shaft 7.5 kW 18.5 r/min 3481 Nm 1.01 3.6 kN 30 kN 9.9 kN 87.0 kg
CH-G K60390 75.6 DA-B14 PAM160 75.6:1 IEC 160 · 42 mm shaft 11 kW 18.5 r/min 5106 Nm 0.69 3.6 kN 30 kN 9.9 kN 93.0 kg
CH-G K60390 75.6 DA-B14 PAM180 75.6:1 IEC 180 · 48 mm shaft 18.5 kW 18.5 r/min 8588 Nm 0.41 3.6 kN 30 kN 9.9 kN 93.0 kg
CH-G K60390 70.62 DA-B14 PAM100 70.62:1 IEC 100 · 28 mm shaft 3 kW 19.8 r/min 1301 Nm 2.54 3.6 kN 30 kN 9.8 kN 84.0 kg
CH-G K60390 70.62 DA-B14 PAM112 70.62:1 IEC 112 · 28 mm shaft 5.5 kW 19.8 r/min 2385 Nm 1.38 3.6 kN 30 kN 9.8 kN 84.0 kg
CH-G K60390 70.62 DA-B14 PAM132 70.62:1 IEC 132 · 38 mm shaft 7.5 kW 19.8 r/min 3252 Nm 1.01 3.6 kN 30 kN 9.8 kN 87.0 kg
CH-G K60390 70.62 DA-B14 PAM160 70.62:1 IEC 160 · 42 mm shaft 11 kW 19.8 r/min 4770 Nm 0.69 3.6 kN 30 kN 9.8 kN 93.0 kg
CH-G K60390 70.62 DA-B14 PAM180 70.62:1 IEC 180 · 48 mm shaft 18.5 kW 19.8 r/min 8022 Nm 0.41 3.6 kN 30 kN 9.8 kN 93.0 kg
CH-G K60390 63.65 DA-B14 PAM100 63.65:1 IEC 100 · 28 mm shaft 3 kW 22 r/min 1173 Nm 2.81 3.6 kN 30 kN 9.3 kN 84.0 kg
CH-G K60390 63.65 DA-B14 PAM112 63.65:1 IEC 112 · 28 mm shaft 5.5 kW 22 r/min 2150 Nm 1.53 3.6 kN 30 kN 9.3 kN 84.0 kg
CH-G K60390 63.65 DA-B14 PAM132 63.65:1 IEC 132 · 38 mm shaft 7.5 kW 22 r/min 2932 Nm 1.13 3.6 kN 30 kN 9.3 kN 87.0 kg
CH-G K60390 63.65 DA-B14 PAM160 63.65:1 IEC 160 · 42 mm shaft 11 kW 22 r/min 4301 Nm 0.77 3.6 kN 30 kN 9.3 kN 93.0 kg
CH-G K60390 63.65 DA-B14 PAM180 63.65:1 IEC 180 · 48 mm shaft 18.5 kW 22 r/min 7233 Nm 0.46 3.6 kN 30 kN 9.3 kN 93.0 kg
CH-G K60390 60.34 DA-B14 PAM100 60.34:1 IEC 100 · 28 mm shaft 3 kW 23.2 r/min 1111 Nm 2.88 3.6 kN 30 kN 9.2 kN 84.0 kg
CH-G K60390 60.34 DA-B14 PAM112 60.34:1 IEC 112 · 28 mm shaft 5.5 kW 23.2 r/min 2037 Nm 1.57 3.6 kN 30 kN 9.2 kN 84.0 kg
CH-G K60390 60.34 DA-B14 PAM132 60.34:1 IEC 132 · 38 mm shaft 7.5 kW 23.2 r/min 2778 Nm 1.15 3.6 kN 30 kN 9.2 kN 87.0 kg
CH-G K60390 60.34 DA-B14 PAM160 60.34:1 IEC 160 · 42 mm shaft 11 kW 23.2 r/min 4074 Nm 0.79 3.6 kN 30 kN 9.2 kN 93.0 kg
CH-G K60390 60.34 DA-B14 PAM180 60.34:1 IEC 180 · 48 mm shaft 18.5 kW 23.2 r/min 6852 Nm 0.47 3.6 kN 30 kN 9.2 kN 93.0 kg
CH-G K60390 55.28 DA-B14 PAM100 55.28:1 IEC 100 · 28 mm shaft 3 kW 25.3 r/min 1018 Nm 3.14 3.6 kN 30 kN 8.8 kN 84.0 kg
CH-G K60390 55.28 DA-B14 PAM112 55.28:1 IEC 112 · 28 mm shaft 5.5 kW 25.3 r/min 1866 Nm 1.71 3.6 kN 30 kN 8.8 kN 84.0 kg
CH-G K60390 55.28 DA-B14 PAM132 55.28:1 IEC 132 · 38 mm shaft 7.5 kW 25.3 r/min 2545 Nm 1.26 3.6 kN 30 kN 8.8 kN 87.0 kg
CH-G K60390 55.28 DA-B14 PAM160 55.28:1 IEC 160 · 42 mm shaft 11 kW 25.3 r/min 3733 Nm 0.86 3.6 kN 30 kN 8.8 kN 93.0 kg
CH-G K60390 55.28 DA-B14 PAM180 55.28:1 IEC 180 · 48 mm shaft 18.5 kW 25.3 r/min 6278 Nm 0.51 3.6 kN 30 kN 8.8 kN 93.0 kg
CH-G K60390 50.56 DA-B14 PAM100 50.56:1 IEC 100 · 28 mm shaft 3 kW 27.7 r/min 931 Nm 3.44 3.5 kN 29.6 kN 8.5 kN 84.0 kg
CH-G K60390 50.56 DA-B14 PAM112 50.56:1 IEC 112 · 28 mm shaft 5.5 kW 27.7 r/min 1707 Nm 1.87 3.5 kN 29.6 kN 8.5 kN 84.0 kg
CH-G K60390 50.56 DA-B14 PAM132 50.56:1 IEC 132 · 38 mm shaft 7.5 kW 27.7 r/min 2328 Nm 1.37 3.5 kN 29.6 kN 8.5 kN 87.0 kg
CH-G K60390 50.56 DA-B14 PAM160 50.56:1 IEC 160 · 42 mm shaft 11 kW 27.7 r/min 3414 Nm 0.94 3.5 kN 29.6 kN 8.5 kN 93.0 kg
CH-G K60390 50.56 DA-B14 PAM180 50.56:1 IEC 180 · 48 mm shaft 18.5 kW 27.7 r/min 5742 Nm 0.56 3.5 kN 29.6 kN 8.5 kN 93.0 kg
CH-G K60390 45.57 DA-B14 PAM100 45.57:1 IEC 100 · 28 mm shaft 3 kW 30.7 r/min 840 Nm 3.57 3.5 kN 29 kN 8.3 kN 84.0 kg
CH-G K60390 45.57 DA-B14 PAM112 45.57:1 IEC 112 · 28 mm shaft 5.5 kW 30.7 r/min 1539 Nm 1.95 3.5 kN 29 kN 8.3 kN 84.0 kg
CH-G K60390 45.57 DA-B14 PAM132 45.57:1 IEC 132 · 38 mm shaft 7.5 kW 30.7 r/min 2099 Nm 1.43 3.5 kN 29 kN 8.3 kN 87.0 kg
CH-G K60390 45.57 DA-B14 PAM160 45.57:1 IEC 160 · 42 mm shaft 11 kW 30.7 r/min 3078 Nm 0.97 3.5 kN 29 kN 8.3 kN 93.0 kg
CH-G K60390 45.57 DA-B14 PAM180 45.57:1 IEC 180 · 48 mm shaft 18.5 kW 30.7 r/min 5177 Nm 0.58 3.5 kN 29 kN 8.3 kN 93.0 kg
CH-G K60390 41.26 DA-B14 PAM100 41.26:1 IEC 100 · 28 mm shaft 3 kW 33.9 r/min 760 Nm 3.68 3.5 kN 28.5 kN 8.2 kN 84.0 kg
CH-G K60390 41.26 DA-B14 PAM112 41.26:1 IEC 112 · 28 mm shaft 5.5 kW 33.9 r/min 1394 Nm 2.01 3.5 kN 28.5 kN 8.2 kN 84.0 kg
CH-G K60390 41.26 DA-B14 PAM132 41.26:1 IEC 132 · 38 mm shaft 7.5 kW 33.9 r/min 1900 Nm 1.47 3.5 kN 28.5 kN 8.2 kN 87.0 kg
CH-G K60390 41.26 DA-B14 PAM160 41.26:1 IEC 160 · 42 mm shaft 11 kW 33.9 r/min 2787 Nm 1 3.5 kN 28.5 kN 8.2 kN 93.0 kg
CH-G K60390 41.26 DA-B14 PAM180 41.26:1 IEC 180 · 48 mm shaft 18.5 kW 33.9 r/min 4688 Nm 0.6 3.5 kN 28.5 kN 8.2 kN 93.0 kg
CH-G K60390 35.25 DA-B14 PAM100 35.25:1 IEC 100 · 28 mm shaft 3 kW 39.7 r/min 649 Nm 4.31 3.4 kN 26.5 kN 7.6 kN 84.0 kg
CH-G K60390 35.25 DA-B14 PAM112 35.25:1 IEC 112 · 28 mm shaft 5.5 kW 39.7 r/min 1190 Nm 2.35 3.4 kN 26.5 kN 7.6 kN 84.0 kg
CH-G K60390 35.25 DA-B14 PAM132 35.25:1 IEC 132 · 38 mm shaft 7.5 kW 39.7 r/min 1623 Nm 1.73 3.4 kN 26.5 kN 7.6 kN 87.0 kg
CH-G K60390 35.25 DA-B14 PAM160 35.25:1 IEC 160 · 42 mm shaft 11 kW 39.7 r/min 2380 Nm 1.18 3.4 kN 26.5 kN 7.6 kN 93.0 kg
CH-G K60390 35.25 DA-B14 PAM180 35.25:1 IEC 180 · 48 mm shaft 18.5 kW 39.7 r/min 4003 Nm 0.7 3.4 kN 26.5 kN 7.6 kN 93.0 kg
CH-G K60390 31.77 DA-B14 PAM100 31.77:1 IEC 100 · 28 mm shaft 3 kW 44.1 r/min 585 Nm 4.79 3.3 kN 25.1 kN 7.2 kN 84.0 kg
CH-G K60390 31.77 DA-B14 PAM112 31.77:1 IEC 112 · 28 mm shaft 5.5 kW 44.1 r/min 1072 Nm 2.61 3.3 kN 25.1 kN 7.2 kN 84.0 kg
CH-G K60390 31.77 DA-B14 PAM132 31.77:1 IEC 132 · 38 mm shaft 7.5 kW 44.1 r/min 1462 Nm 1.91 3.3 kN 25.1 kN 7.2 kN 87.0 kg
CH-G K60390 31.77 DA-B14 PAM160 31.77:1 IEC 160 · 42 mm shaft 11 kW 44.1 r/min 2145 Nm 1.31 3.3 kN 25.1 kN 7.2 kN 93.0 kg
CH-G K60390 31.77 DA-B14 PAM180 31.77:1 IEC 180 · 48 mm shaft 18.5 kW 44.1 r/min 3607 Nm 0.78 3.3 kN 25.1 kN 7.2 kN 93.0 kg
CH-G K60390 31.39 DA-B14 PAM132 31.39:1 IEC 132 · 38 mm shaft 7.5 kW 44.6 r/min 1445 Nm 1.94 3.3 kN 24.9 kN 7.1 kN 87.0 kg
CH-G K60390 31.39 DA-B14 PAM160 31.39:1 IEC 160 · 42 mm shaft 11 kW 44.6 r/min 2120 Nm 1.32 3.3 kN 24.9 kN 7.1 kN 93.0 kg
CH-G K60390 31.39 DA-B14 PAM180 31.39:1 IEC 180 · 48 mm shaft 18.5 kW 44.6 r/min 3565 Nm 0.79 3.3 kN 24.9 kN 7.1 kN 93.0 kg
CH-G K60390 28.11 DA-B14 PAM132 28.11:1 IEC 132 · 38 mm shaft 7.5 kW 49.8 r/min 1295 Nm 2.16 3.2 kN 23.6 kN 6.7 kN 87.0 kg
CH-G K60390 28.11 DA-B14 PAM160 28.11:1 IEC 160 · 42 mm shaft 15 kW 49.8 r/min 2589 Nm 1.08 3.2 kN 23.6 kN 6.7 kN 93.0 kg
CH-G K60390 28.11 DA-B14 PAM180 28.11:1 IEC 180 · 48 mm shaft 18.5 kW 49.8 r/min 3194 Nm 0.88 3.2 kN 23.6 kN 6.7 kN 93.0 kg
CH-G K60390 26.31 DA-B14 PAM100 26.31:1 IEC 100 · 28 mm shaft 3 kW 53.2 r/min 485 Nm 5.78 3.2 kN 22.8 kN 6.5 kN 84.0 kg
CH-G K60390 26.31 DA-B14 PAM112 26.31:1 IEC 112 · 28 mm shaft 5.5 kW 53.2 r/min 889 Nm 3.15 3.2 kN 22.8 kN 6.5 kN 84.0 kg
CH-G K60390 26.31 DA-B14 PAM132 26.31:1 IEC 132 · 38 mm shaft 7.5 kW 53.2 r/min 1212 Nm 2.31 3.2 kN 22.8 kN 6.5 kN 87.0 kg
CH-G K60390 26.31 DA-B14 PAM160 26.31:1 IEC 160 · 42 mm shaft 15 kW 53.2 r/min 2424 Nm 1.16 3.2 kN 22.8 kN 6.5 kN 93.0 kg
CH-G K60390 26.31 DA-B14 PAM180 26.31:1 IEC 180 · 48 mm shaft 18.5 kW 53.2 r/min 2989 Nm 0.94 3.2 kN 22.8 kN 6.5 kN 93.0 kg
CH-G K60390 23.27 DA-B14 PAM132 23.27:1 IEC 132 · 38 mm shaft 7.5 kW 60.2 r/min 1071 Nm 2.61 3.1 kN 21.4 kN 6.1 kN 87.0 kg
CH-G K60390 23.27 DA-B14 PAM160 23.27:1 IEC 160 · 42 mm shaft 15 kW 60.2 r/min 2143 Nm 1.31 3.1 kN 21.4 kN 6.1 kN 93.0 kg
CH-G K60390 23.27 DA-B14 PAM180 23.27:1 IEC 180 · 48 mm shaft 18.5 kW 60.2 r/min 2643 Nm 1.06 3.1 kN 21.4 kN 6.1 kN 93.0 kg
CH-G K60390 21 DA-B14 PAM132 21:1 IEC 132 · 38 mm shaft 7.5 kW 66.7 r/min 967 Nm 2.59 3.1 kN 21.6 kN 6.2 kN 87.0 kg
CH-G K60390 21 DA-B14 PAM160 21:1 IEC 160 · 42 mm shaft 15 kW 66.7 r/min 1934 Nm 1.29 3.1 kN 21.6 kN 6.2 kN 93.0 kg
CH-G K60390 21 DA-B14 PAM180 21:1 IEC 180 · 48 mm shaft 18.5 kW 66.7 r/min 2385 Nm 1.05 3.1 kN 21.6 kN 6.2 kN 93.0 kg
CH-G K60390 18.92 DA-B14 PAM132 18.92:1 IEC 132 · 38 mm shaft 7.5 kW 74 r/min 871 Nm 2.53 3.1 kN 21.9 kN 6.3 kN 87.0 kg
CH-G K60390 18.92 DA-B14 PAM160 18.92:1 IEC 160 · 42 mm shaft 15 kW 74 r/min 1742 Nm 1.26 3.1 kN 21.9 kN 6.3 kN 93.0 kg
CH-G K60390 18.92 DA-B14 PAM180 18.92:1 IEC 180 · 48 mm shaft 18.5 kW 74 r/min 2149 Nm 1.02 3.1 kN 21.9 kN 6.3 kN 93.0 kg
CH-G K60390 15.67 DA-B14 PAM132 15.67:1 IEC 132 · 38 mm shaft 7.5 kW 89.3 r/min 721 Nm 2.91 3 kN 20.4 kN 5.8 kN 87.0 kg
CH-G K60390 15.67 DA-B14 PAM160 15.67:1 IEC 160 · 42 mm shaft 15 kW 89.3 r/min 1443 Nm 1.46 3 kN 20.4 kN 5.8 kN 93.0 kg
CH-G K60390 15.67 DA-B14 PAM180 15.67:1 IEC 180 · 48 mm shaft 18.5 kW 89.3 r/min 1780 Nm 1.18 3 kN 20.4 kN 5.8 kN 93.0 kg
CH-G K60390 14.15 DA-B14 PAM132 14.15:1 IEC 132 · 38 mm shaft 7.5 kW 98.9 r/min 652 Nm 3.22 2.8 kN 19.4 kN 5.5 kN 87.0 kg
CH-G K60390 14.15 DA-B14 PAM160 14.15:1 IEC 160 · 42 mm shaft 15 kW 98.9 r/min 1303 Nm 1.61 2.8 kN 19.4 kN 5.5 kN 93.0 kg
CH-G K60390 14.15 DA-B14 PAM180 14.15:1 IEC 180 · 48 mm shaft 22 kW 98.9 r/min 1911 Nm 1.1 2.8 kN 19.4 kN 5.5 kN 93.0 kg
CH-G K60390 12.75 DA-B14 PAM132 12.75:1 IEC 132 · 38 mm shaft 7.5 kW 109.8 r/min 587 Nm 3.41 2.8 kN 18.9 kN 5.4 kN 87.0 kg
CH-G K60390 12.75 DA-B14 PAM160 12.75:1 IEC 160 · 42 mm shaft 15 kW 109.8 r/min 1174 Nm 1.7 2.8 kN 18.9 kN 5.4 kN 93.0 kg
CH-G K60390 12.75 DA-B14 PAM180 12.75:1 IEC 180 · 48 mm shaft 22 kW 109.8 r/min 1722 Nm 1.16 2.8 kN 18.9 kN 5.4 kN 93.0 kg
CH-G K60390 10.56 DA-B14 PAM132 10.56:1 IEC 132 · 38 mm shaft 7.5 kW 132.6 r/min 486 Nm 4.11 2.5 kN 17.2 kN 4.9 kN 87.0 kg
CH-G K60390 10.56 DA-B14 PAM160 10.56:1 IEC 160 · 42 mm shaft 15 kW 132.6 r/min 972 Nm 2.06 2.5 kN 17.2 kN 4.9 kN 93.0 kg
CH-G K60390 10.56 DA-B14 PAM180 10.56:1 IEC 180 · 48 mm shaft 22 kW 132.6 r/min 1426 Nm 1.4 2.5 kN 17.2 kN 4.9 kN 93.0 kg
CH-G K60390 9.63 DA-B14 PAM132 9.63:1 IEC 132 · 38 mm shaft 7.5 kW 145.4 r/min 443 Nm 4.06 2.6 kN 17.5 kN 5 kN 87.0 kg
CH-G K60390 9.63 DA-B14 PAM160 9.63:1 IEC 160 · 42 mm shaft 15 kW 145.4 r/min 887 Nm 2.03 2.6 kN 17.5 kN 5 kN 93.0 kg
CH-G K60390 9.63 DA-B14 PAM180 9.63:1 IEC 180 · 48 mm shaft 22 kW 145.4 r/min 1300 Nm 1.38 2.6 kN 17.5 kN 5 kN 93.0 kg
CH-G K60390 7.97 DA-B14 PAM132 7.97:1 IEC 132 · 38 mm shaft 7.5 kW 175.8 r/min 367 Nm 4.09 2.6 kN 17.3 kN 4.9 kN 87.0 kg
CH-G K60390 7.97 DA-B14 PAM160 7.97:1 IEC 160 · 42 mm shaft 15 kW 175.8 r/min 734 Nm 2.04 2.6 kN 17.3 kN 4.9 kN 93.0 kg
CH-G K60390 7.97 DA-B14 PAM180 7.97:1 IEC 180 · 48 mm shaft 22 kW 175.8 r/min 1076 Nm 1.39 2.6 kN 17.3 kN 4.9 kN 93.0 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
