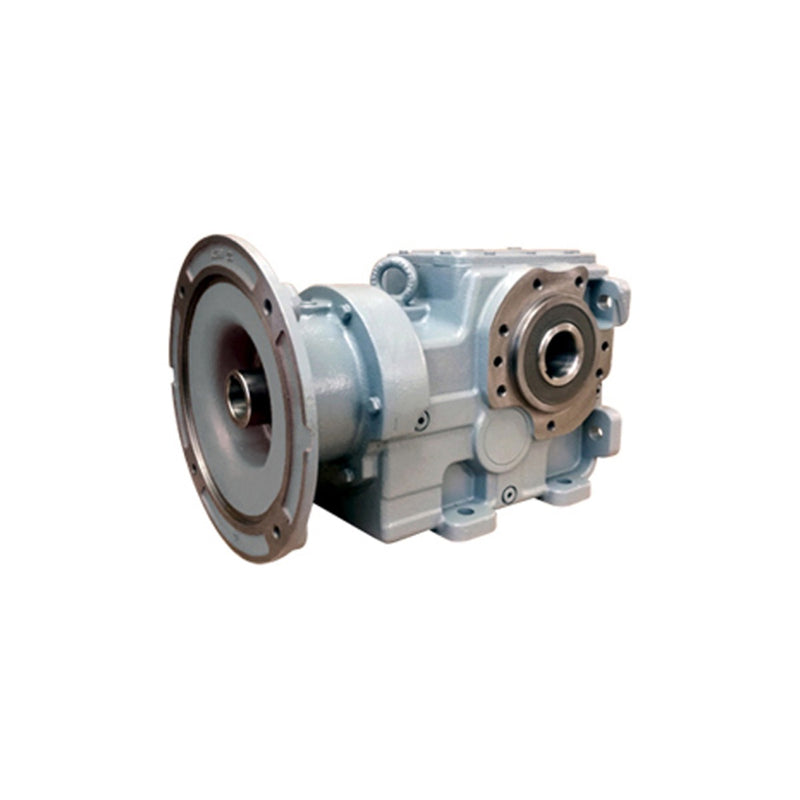

Chiaravalli CH-G K70390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K70390 Helical Bevel Gear Unit (Ø70 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K70390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 70, ratios 10.64:1 to 183.27:1. This is the K … DA-B14 version — foot-flange mounting with a Ø70 mm H7 hollow output shaft — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 100, 112, 132, 160, 180, 200 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 183.27:1 gives 8 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 4.44 to 45.93 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K70390 183.27 DA-B14 PAM100 183.27:1 IEC 100 · 28 mm shaft 3 kW 7.6 r/min 3378 Nm 1.48 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 183.27 DA-B14 PAM112 183.27:1 IEC 112 · 28 mm shaft 4 kW 7.6 r/min 4505 Nm 1.11 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 183.27 DA-B14 PAM132 183.27:1 IEC 132 · 38 mm shaft 5.5 kW 7.6 r/min 6194 Nm 0.81 3.8 kN 45 kN 45 kN 132.5 kg
CH-G K70390 162.98 DA-B14 PAM100 162.98:1 IEC 100 · 28 mm shaft 3 kW 8.6 r/min 3000 Nm 1.67 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 162.98 DA-B14 PAM112 162.98:1 IEC 112 · 28 mm shaft 4 kW 8.6 r/min 4000 Nm 1.25 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 162.98 DA-B14 PAM132 162.98:1 IEC 132 · 38 mm shaft 5.5 kW 8.6 r/min 5500 Nm 0.91 3.8 kN 45 kN 45 kN 132.5 kg
CH-G K70390 162.98 DA-B14 PAM160 162.98:1 IEC 160 · 42 mm shaft 11 kW 8.6 r/min 11000 Nm 0.45 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 162.98 DA-B14 PAM180 162.98:1 IEC 180 · 48 mm shaft 18.5 kW 8.6 r/min 18500 Nm 0.27 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 146.38 DA-B14 PAM100 146.38:1 IEC 100 · 28 mm shaft 3 kW 9.6 r/min 2698 Nm 1.85 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 146.38 DA-B14 PAM112 146.38:1 IEC 112 · 28 mm shaft 5.5 kW 9.6 r/min 4946 Nm 1.01 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 146.38 DA-B14 PAM132 146.38:1 IEC 132 · 38 mm shaft 5.5 kW 9.6 r/min 4946 Nm 1.01 3.8 kN 45 kN 45 kN 132.5 kg
CH-G K70390 146.38 DA-B14 PAM160 146.38:1 IEC 160 · 42 mm shaft 11 kW 9.6 r/min 9892 Nm 0.51 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 146.38 DA-B14 PAM180 146.38:1 IEC 180 · 48 mm shaft 18.5 kW 9.6 r/min 16637 Nm 0.3 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 133.53 DA-B14 PAM100 133.53:1 IEC 100 · 28 mm shaft 3 kW 10.5 r/min 2459 Nm 2.03 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 133.53 DA-B14 PAM112 133.53:1 IEC 112 · 28 mm shaft 5.5 kW 10.5 r/min 4508 Nm 1.11 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 133.53 DA-B14 PAM132 133.53:1 IEC 132 · 38 mm shaft 5.5 kW 10.5 r/min 4508 Nm 1.11 3.8 kN 45 kN 45 kN 132.5 kg
CH-G K70390 133.53 DA-B14 PAM160 133.53:1 IEC 160 · 42 mm shaft 11 kW 10.5 r/min 9016 Nm 0.55 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 133.53 DA-B14 PAM180 133.53:1 IEC 180 · 48 mm shaft 18.5 kW 10.5 r/min 15164 Nm 0.33 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 121.96 DA-B14 PAM100 121.96:1 IEC 100 · 28 mm shaft 3 kW 11.5 r/min 2246 Nm 2.23 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 121.96 DA-B14 PAM112 121.96:1 IEC 112 · 28 mm shaft 5.5 kW 11.5 r/min 4117 Nm 1.21 3.8 kN 45 kN 45 kN 129.5 kg
CH-G K70390 121.96 DA-B14 PAM132 121.96:1 IEC 132 · 38 mm shaft 5.5 kW 11.5 r/min 4117 Nm 1.21 3.8 kN 45 kN 45 kN 132.5 kg
CH-G K70390 121.96 DA-B14 PAM160 121.96:1 IEC 160 · 42 mm shaft 11 kW 11.5 r/min 8234 Nm 0.61 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 121.96 DA-B14 PAM180 121.96:1 IEC 180 · 48 mm shaft 18.5 kW 11.5 r/min 13847 Nm 0.36 3.8 kN 45 kN 45 kN 138.5 kg
CH-G K70390 109.54 DA-B14 PAM100 109.54:1 IEC 100 · 28 mm shaft 3 kW 12.8 r/min 2019 Nm 2.48 3.7 kN 43.1 kN 43.1 kN 129.5 kg
CH-G K70390 109.54 DA-B14 PAM112 109.54:1 IEC 112 · 28 mm shaft 5.5 kW 12.8 r/min 3701 Nm 1.35 3.7 kN 43.1 kN 43.1 kN 129.5 kg
CH-G K70390 109.54 DA-B14 PAM132 109.54:1 IEC 132 · 38 mm shaft 5.5 kW 12.8 r/min 3701 Nm 1.35 3.7 kN 43.1 kN 43.1 kN 132.5 kg
CH-G K70390 109.54 DA-B14 PAM160 109.54:1 IEC 160 · 42 mm shaft 11 kW 12.8 r/min 7402 Nm 0.68 3.7 kN 43.1 kN 43.1 kN 138.5 kg
CH-G K70390 109.54 DA-B14 PAM180 109.54:1 IEC 180 · 48 mm shaft 18.5 kW 12.8 r/min 12450 Nm 0.4 3.7 kN 43.1 kN 43.1 kN 138.5 kg
CH-G K70390 104.68 DA-B14 PAM100 104.68:1 IEC 100 · 28 mm shaft 3 kW 13.4 r/min 1928 Nm 2.59 3.7 kN 42 kN 42 kN 129.5 kg
CH-G K70390 104.68 DA-B14 PAM112 104.68:1 IEC 112 · 28 mm shaft 5.5 kW 13.4 r/min 3535 Nm 1.41 3.7 kN 42 kN 42 kN 129.5 kg
CH-G K70390 104.68 DA-B14 PAM132 104.68:1 IEC 132 · 38 mm shaft 7.5 kW 13.4 r/min 4820 Nm 1.04 3.7 kN 42 kN 42 kN 132.5 kg
CH-G K70390 93.09 DA-B14 PAM100 93.09:1 IEC 100 · 28 mm shaft 3 kW 15 r/min 1714 Nm 2.92 3.7 kN 39.7 kN 39.7 kN 129.5 kg
CH-G K70390 93.09 DA-B14 PAM112 93.09:1 IEC 112 · 28 mm shaft 5.5 kW 15 r/min 3143 Nm 1.59 3.7 kN 39.7 kN 39.7 kN 129.5 kg
CH-G K70390 93.09 DA-B14 PAM132 93.09:1 IEC 132 · 38 mm shaft 7.5 kW 15 r/min 4286 Nm 1.17 3.7 kN 39.7 kN 39.7 kN 132.5 kg
CH-G K70390 93.09 DA-B14 PAM160 93.09:1 IEC 160 · 42 mm shaft 11 kW 15 r/min 6286 Nm 0.8 3.7 kN 39.7 kN 39.7 kN 138.5 kg
CH-G K70390 93.09 DA-B14 PAM180 93.09:1 IEC 180 · 48 mm shaft 18.5 kW 15 r/min 10571 Nm 0.47 3.7 kN 39.7 kN 39.7 kN 138.5 kg
CH-G K70390 83.66 DA-B14 PAM100 83.66:1 IEC 100 · 28 mm shaft 3 kW 16.7 r/min 1542 Nm 3.24 3.6 kN 37.9 kN 37.9 kN 129.5 kg
CH-G K70390 83.66 DA-B14 PAM112 83.66:1 IEC 112 · 28 mm shaft 5.5 kW 16.7 r/min 2826 Nm 1.77 3.6 kN 37.9 kN 37.9 kN 129.5 kg
CH-G K70390 83.66 DA-B14 PAM132 83.66:1 IEC 132 · 38 mm shaft 7.5 kW 16.7 r/min 3854 Nm 1.3 3.6 kN 37.9 kN 37.9 kN 132.5 kg
CH-G K70390 83.66 DA-B14 PAM160 83.66:1 IEC 160 · 42 mm shaft 11 kW 16.7 r/min 5653 Nm 0.88 3.6 kN 37.9 kN 37.9 kN 138.5 kg
CH-G K70390 83.66 DA-B14 PAM180 83.66:1 IEC 180 · 48 mm shaft 18.5 kW 16.7 r/min 9507 Nm 0.53 3.6 kN 37.9 kN 37.9 kN 138.5 kg
CH-G K70390 83.66 DA-B14 PAM200 83.66:1 IEC 200 · 55 mm shaft 30 kW 16.7 r/min 15416 Nm 0.32 3.6 kN 37.9 kN 37.9 kN 154.5 kg
CH-G K70390 76.27 DA-B14 PAM100 76.27:1 IEC 100 · 28 mm shaft 3 kW 18.4 r/min 1404 Nm 3.56 3.6 kN 36 kN 36 kN 129.5 kg
CH-G K70390 76.27 DA-B14 PAM112 76.27:1 IEC 112 · 28 mm shaft 5.5 kW 18.4 r/min 2575 Nm 1.94 3.6 kN 36 kN 36 kN 129.5 kg
CH-G K70390 76.27 DA-B14 PAM132 76.27:1 IEC 132 · 38 mm shaft 7.5 kW 18.4 r/min 3511 Nm 1.42 3.6 kN 36 kN 36 kN 132.5 kg
CH-G K70390 76.27 DA-B14 PAM160 76.27:1 IEC 160 · 42 mm shaft 11 kW 18.4 r/min 5150 Nm 0.97 3.6 kN 36 kN 36 kN 138.5 kg
CH-G K70390 76.27 DA-B14 PAM180 76.27:1 IEC 180 · 48 mm shaft 18.5 kW 18.4 r/min 8661 Nm 0.58 3.6 kN 36 kN 36 kN 138.5 kg
CH-G K70390 69.66 DA-B14 PAM100 69.66:1 IEC 100 · 28 mm shaft 3 kW 20.1 r/min 1283 Nm 3.9 3.6 kN 34.4 kN 34.4 kN 129.5 kg
CH-G K70390 69.66 DA-B14 PAM112 69.66:1 IEC 112 · 28 mm shaft 5.5 kW 20.1 r/min 2352 Nm 2.13 3.6 kN 34.4 kN 34.4 kN 129.5 kg
CH-G K70390 69.66 DA-B14 PAM132 69.66:1 IEC 132 · 38 mm shaft 7.5 kW 20.1 r/min 3208 Nm 1.56 3.6 kN 34.4 kN 34.4 kN 132.5 kg
CH-G K70390 69.66 DA-B14 PAM160 69.66:1 IEC 160 · 42 mm shaft 11 kW 20.1 r/min 4705 Nm 1.06 3.6 kN 34.4 kN 34.4 kN 138.5 kg
CH-G K70390 69.66 DA-B14 PAM180 69.66:1 IEC 180 · 48 mm shaft 18.5 kW 20.1 r/min 7913 Nm 0.63 3.6 kN 34.4 kN 34.4 kN 138.5 kg
CH-G K70390 63.37 DA-B14 PAM100 63.37:1 IEC 100 · 28 mm shaft 3 kW 22.1 r/min 1167 Nm 4.28 3.5 kN 33 kN 33 kN 129.5 kg
CH-G K70390 63.37 DA-B14 PAM112 63.37:1 IEC 112 · 28 mm shaft 5.5 kW 22.1 r/min 2140 Nm 2.34 3.5 kN 33 kN 33 kN 129.5 kg
CH-G K70390 63.37 DA-B14 PAM132 63.37:1 IEC 132 · 38 mm shaft 7.5 kW 22.1 r/min 2918 Nm 1.71 3.5 kN 33 kN 33 kN 132.5 kg
CH-G K70390 63.37 DA-B14 PAM160 63.37:1 IEC 160 · 42 mm shaft 11 kW 22.1 r/min 4280 Nm 1.17 3.5 kN 33 kN 33 kN 138.5 kg
CH-G K70390 63.37 DA-B14 PAM180 63.37:1 IEC 180 · 48 mm shaft 18.5 kW 22.1 r/min 7198 Nm 0.69 3.5 kN 33 kN 33 kN 138.5 kg
CH-G K70390 63.37 DA-B14 PAM200 63.37:1 IEC 200 · 55 mm shaft 30 kW 22.1 r/min 11673 Nm 0.43 3.5 kN 33 kN 33 kN 154.5 kg
CH-G K70390 58.32 DA-B14 PAM100 58.32:1 IEC 100 · 28 mm shaft 3 kW 24 r/min 1074 Nm 4.65 3.5 kN 31.5 kN 31.5 kN 129.5 kg
CH-G K70390 58.32 DA-B14 PAM112 58.32:1 IEC 112 · 28 mm shaft 5.5 kW 24 r/min 1970 Nm 2.54 3.5 kN 31.5 kN 31.5 kN 129.5 kg
CH-G K70390 58.32 DA-B14 PAM132 58.32:1 IEC 132 · 38 mm shaft 7.5 kW 24 r/min 2686 Nm 1.86 3.5 kN 31.5 kN 31.5 kN 132.5 kg
CH-G K70390 58.32 DA-B14 PAM160 58.32:1 IEC 160 · 42 mm shaft 11 kW 24 r/min 3940 Nm 1.27 3.5 kN 31.5 kN 31.5 kN 138.5 kg
CH-G K70390 58.32 DA-B14 PAM180 58.32:1 IEC 180 · 48 mm shaft 18.5 kW 24 r/min 6626 Nm 0.75 3.5 kN 31.5 kN 31.5 kN 138.5 kg
CH-G K70390 58.32 DA-B14 PAM200 58.32:1 IEC 200 · 55 mm shaft 30 kW 24 r/min 10745 Nm 0.47 3.5 kN 31.5 kN 31.5 kN 154.5 kg
CH-G K70390 53.98 DA-B14 PAM100 53.98:1 IEC 100 · 28 mm shaft 3 kW 25.9 r/min 994 Nm 5.03 3.4 kN 30.2 kN 30.2 kN 129.5 kg
CH-G K70390 53.98 DA-B14 PAM112 53.98:1 IEC 112 · 28 mm shaft 5.5 kW 25.9 r/min 1822 Nm 2.74 3.4 kN 30.2 kN 30.2 kN 129.5 kg
CH-G K70390 53.98 DA-B14 PAM132 53.98:1 IEC 132 · 38 mm shaft 7.5 kW 25.9 r/min 2485 Nm 2.01 3.4 kN 30.2 kN 30.2 kN 132.5 kg
CH-G K70390 53.98 DA-B14 PAM160 53.98:1 IEC 160 · 42 mm shaft 15 kW 25.9 r/min 4970 Nm 1.01 3.4 kN 30.2 kN 30.2 kN 138.5 kg
CH-G K70390 53.98 DA-B14 PAM180 53.98:1 IEC 180 · 48 mm shaft 18.5 kW 25.9 r/min 6130 Nm 0.82 3.4 kN 30.2 kN 30.2 kN 138.5 kg
CH-G K70390 53.98 DA-B14 PAM200 53.98:1 IEC 200 · 55 mm shaft 30 kW 25.9 r/min 9940 Nm 0.5 3.4 kN 30.2 kN 30.2 kN 154.5 kg
CH-G K70390 51.92 DA-B14 PAM100 51.92:1 IEC 100 · 28 mm shaft 3 kW 27 r/min 956 Nm 5.23 3.4 kN 29.8 kN 29.8 kN 129.5 kg
CH-G K70390 51.92 DA-B14 PAM112 51.92:1 IEC 112 · 28 mm shaft 5.5 kW 27 r/min 1753 Nm 2.85 3.4 kN 29.8 kN 29.8 kN 129.5 kg
CH-G K70390 51.92 DA-B14 PAM132 51.92:1 IEC 132 · 38 mm shaft 7.5 kW 27 r/min 2390 Nm 2.09 3.4 kN 29.8 kN 29.8 kN 132.5 kg
CH-G K70390 51.92 DA-B14 PAM160 51.92:1 IEC 160 · 42 mm shaft 15 kW 27 r/min 4780 Nm 1.05 3.4 kN 29.8 kN 29.8 kN 138.5 kg
CH-G K70390 51.92 DA-B14 PAM180 51.92:1 IEC 180 · 48 mm shaft 18.5 kW 27 r/min 5895 Nm 0.85 3.4 kN 29.8 kN 29.8 kN 138.5 kg
CH-G K70390 51.92 DA-B14 PAM200 51.92:1 IEC 200 · 55 mm shaft 30 kW 27 r/min 9560 Nm 0.52 3.4 kN 29.8 kN 29.8 kN 154.5 kg
CH-G K70390 47.78 DA-B14 PAM100 47.78:1 IEC 100 · 28 mm shaft 3 kW 29.3 r/min 880 Nm 5.68 3.4 kN 28.3 kN 28.3 kN 129.5 kg
CH-G K70390 47.78 DA-B14 PAM112 47.78:1 IEC 112 · 28 mm shaft 5.5 kW 29.3 r/min 1613 Nm 3.1 3.4 kN 28.3 kN 28.3 kN 129.5 kg
CH-G K70390 47.78 DA-B14 PAM132 47.78:1 IEC 132 · 38 mm shaft 7.5 kW 29.3 r/min 2199 Nm 2.27 3.4 kN 28.3 kN 28.3 kN 132.5 kg
CH-G K70390 47.78 DA-B14 PAM160 47.78:1 IEC 160 · 42 mm shaft 15 kW 29.3 r/min 4399 Nm 1.14 3.4 kN 28.3 kN 28.3 kN 138.5 kg
CH-G K70390 47.78 DA-B14 PAM180 47.78:1 IEC 180 · 48 mm shaft 18.5 kW 29.3 r/min 5425 Nm 0.92 3.4 kN 28.3 kN 28.3 kN 138.5 kg
CH-G K70390 47.78 DA-B14 PAM200 47.78:1 IEC 200 · 55 mm shaft 30 kW 29.3 r/min 8798 Nm 0.57 3.4 kN 28.3 kN 28.3 kN 154.5 kg
CH-G K70390 43.64 DA-B14 PAM100 43.64:1 IEC 100 · 28 mm shaft 3 kW 32.1 r/min 804 Nm 5.97 3.3 kN 27.7 kN 27.7 kN 129.5 kg
CH-G K70390 43.64 DA-B14 PAM112 43.64:1 IEC 112 · 28 mm shaft 5.5 kW 32.1 r/min 1473 Nm 3.26 3.3 kN 27.7 kN 27.7 kN 129.5 kg
CH-G K70390 43.64 DA-B14 PAM132 43.64:1 IEC 132 · 38 mm shaft 7.5 kW 32.1 r/min 2009 Nm 2.39 3.3 kN 27.7 kN 27.7 kN 132.5 kg
CH-G K70390 43.64 DA-B14 PAM160 43.64:1 IEC 160 · 42 mm shaft 15 kW 32.1 r/min 4018 Nm 1.19 3.3 kN 27.7 kN 27.7 kN 138.5 kg
CH-G K70390 43.64 DA-B14 PAM180 43.64:1 IEC 180 · 48 mm shaft 18.5 kW 32.1 r/min 4955 Nm 0.97 3.3 kN 27.7 kN 27.7 kN 138.5 kg
CH-G K70390 43.64 DA-B14 PAM200 43.64:1 IEC 200 · 55 mm shaft 30 kW 32.1 r/min 8036 Nm 0.6 3.3 kN 27.7 kN 27.7 kN 154.5 kg
CH-G K70390 39.27 DA-B14 PAM132 39.27:1 IEC 132 · 38 mm shaft 7.5 kW 35.6 r/min 1808 Nm 2.65 3.3 kN 26.3 kN 26.3 kN 132.5 kg
CH-G K70390 39.27 DA-B14 PAM160 39.27:1 IEC 160 · 42 mm shaft 15 kW 35.6 r/min 3616 Nm 1.33 3.3 kN 26.3 kN 26.3 kN 138.5 kg
CH-G K70390 39.27 DA-B14 PAM180 39.27:1 IEC 180 · 48 mm shaft 18.5 kW 35.6 r/min 4460 Nm 1.08 3.3 kN 26.3 kN 26.3 kN 138.5 kg
CH-G K70390 39.27 DA-B14 PAM200 39.27:1 IEC 200 · 55 mm shaft 30 kW 35.6 r/min 7233 Nm 0.66 3.3 kN 26.3 kN 26.3 kN 154.5 kg
CH-G K70390 36.2 DA-B14 PAM100 36.2:1 IEC 100 · 28 mm shaft 3 kW 38.7 r/min 667 Nm 7.2 3.2 kN 25 kN 25 kN 129.5 kg
CH-G K70390 36.2 DA-B14 PAM112 36.2:1 IEC 112 · 28 mm shaft 5.5 kW 38.7 r/min 1222 Nm 3.93 3.2 kN 25 kN 25 kN 129.5 kg
CH-G K70390 36.2 DA-B14 PAM132 36.2:1 IEC 132 · 38 mm shaft 7.5 kW 38.7 r/min 1667 Nm 2.88 3.2 kN 25 kN 25 kN 132.5 kg
CH-G K70390 36.2 DA-B14 PAM160 36.2:1 IEC 160 · 42 mm shaft 15 kW 38.7 r/min 3333 Nm 1.44 3.2 kN 25 kN 25 kN 138.5 kg
CH-G K70390 36.2 DA-B14 PAM180 36.2:1 IEC 180 · 48 mm shaft 18.5 kW 38.7 r/min 4111 Nm 1.17 3.2 kN 25 kN 25 kN 138.5 kg
CH-G K70390 36.2 DA-B14 PAM200 36.2:1 IEC 200 · 55 mm shaft 30 kW 38.7 r/min 6667 Nm 0.72 3.2 kN 25 kN 25 kN 154.5 kg
CH-G K70390 32.18 DA-B14 PAM132 32.18:1 IEC 132 · 38 mm shaft 7.5 kW 43.5 r/min 1482 Nm 3.17 3.1 kN 23.9 kN 23.9 kN 132.5 kg
CH-G K70390 32.18 DA-B14 PAM160 32.18:1 IEC 160 · 42 mm shaft 15 kW 43.5 r/min 2963 Nm 1.59 3.1 kN 23.9 kN 23.9 kN 138.5 kg
CH-G K70390 32.18 DA-B14 PAM180 32.18:1 IEC 180 · 48 mm shaft 22 kW 43.5 r/min 4346 Nm 1.08 3.1 kN 23.9 kN 23.9 kN 138.5 kg
CH-G K70390 32.18 DA-B14 PAM200 32.18:1 IEC 200 · 55 mm shaft 30 kW 43.5 r/min 5927 Nm 0.79 3.1 kN 23.9 kN 23.9 kN 154.5 kg
CH-G K70390 29.66 DA-B14 PAM100 29.66:1 IEC 100 · 28 mm shaft 3 kW 47.2 r/min 546 Nm 8.6 3 kN 22.7 kN 22.7 kN 129.5 kg
CH-G K70390 29.66 DA-B14 PAM112 29.66:1 IEC 112 · 28 mm shaft 5.5 kW 47.2 r/min 1002 Nm 4.69 3 kN 22.7 kN 22.7 kN 129.5 kg
CH-G K70390 29.66 DA-B14 PAM132 29.66:1 IEC 132 · 38 mm shaft 7.5 kW 47.2 r/min 1366 Nm 3.44 3 kN 22.7 kN 22.7 kN 132.5 kg
CH-G K70390 29.66 DA-B14 PAM160 29.66:1 IEC 160 · 42 mm shaft 15 kW 47.2 r/min 2731 Nm 1.72 3 kN 22.7 kN 22.7 kN 138.5 kg
CH-G K70390 29.66 DA-B14 PAM180 29.66:1 IEC 180 · 48 mm shaft 22 kW 47.2 r/min 4006 Nm 1.17 3 kN 22.7 kN 22.7 kN 138.5 kg
CH-G K70390 29.66 DA-B14 PAM200 29.66:1 IEC 200 · 55 mm shaft 30 kW 47.2 r/min 5463 Nm 0.86 3 kN 22.7 kN 22.7 kN 154.5 kg
CH-G K70390 27.09 DA-B14 PAM100 27.09:1 IEC 100 · 28 mm shaft 3 kW 51.7 r/min 499 Nm 9.22 3 kN 21.9 kN 21.9 kN 129.5 kg
CH-G K70390 27.09 DA-B14 PAM112 27.09:1 IEC 112 · 28 mm shaft 5.5 kW 51.7 r/min 915 Nm 5.03 3 kN 21.9 kN 21.9 kN 129.5 kg
CH-G K70390 27.09 DA-B14 PAM132 27.09:1 IEC 132 · 38 mm shaft 7.5 kW 51.7 r/min 1247 Nm 3.69 3 kN 21.9 kN 21.9 kN 132.5 kg
CH-G K70390 27.09 DA-B14 PAM160 27.09:1 IEC 160 · 42 mm shaft 15 kW 51.7 r/min 2495 Nm 1.84 3 kN 21.9 kN 21.9 kN 138.5 kg
CH-G K70390 27.09 DA-B14 PAM180 27.09:1 IEC 180 · 48 mm shaft 22 kW 51.7 r/min 3659 Nm 1.26 3 kN 21.9 kN 21.9 kN 138.5 kg
CH-G K70390 27.09 DA-B14 PAM200 27.09:1 IEC 200 · 55 mm shaft 30 kW 51.7 r/min 4989 Nm 0.92 3 kN 21.9 kN 21.9 kN 154.5 kg
CH-G K70390 24.9 DA-B14 PAM132 24.9:1 IEC 132 · 38 mm shaft 7.5 kW 56.2 r/min 1147 Nm 4.01 2.9 kN 21 kN 21 kN 132.5 kg
CH-G K70390 24.9 DA-B14 PAM160 24.9:1 IEC 160 · 42 mm shaft 15 kW 56.2 r/min 2293 Nm 2.01 2.9 kN 21 kN 21 kN 138.5 kg
CH-G K70390 24.9 DA-B14 PAM180 24.9:1 IEC 180 · 48 mm shaft 22 kW 56.2 r/min 3363 Nm 1.37 2.9 kN 21 kN 21 kN 138.5 kg
CH-G K70390 24.9 DA-B14 PAM200 24.9:1 IEC 200 · 55 mm shaft 30 kW 56.2 r/min 4586 Nm 1 2.9 kN 21 kN 21 kN 154.5 kg
CH-G K70390 22.43 DA-B14 PAM132 22.43:1 IEC 132 · 38 mm shaft 7.5 kW 62.4 r/min 1033 Nm 4.26 2.8 kN 20.3 kN 20.3 kN 132.5 kg
CH-G K70390 22.43 DA-B14 PAM160 22.43:1 IEC 160 · 42 mm shaft 15 kW 62.4 r/min 2066 Nm 2.13 2.8 kN 20.3 kN 20.3 kN 138.5 kg
CH-G K70390 22.43 DA-B14 PAM180 22.43:1 IEC 180 · 48 mm shaft 22 kW 62.4 r/min 3030 Nm 1.45 2.8 kN 20.3 kN 20.3 kN 138.5 kg
CH-G K70390 22.43 DA-B14 PAM200 22.43:1 IEC 200 · 55 mm shaft 30 kW 62.4 r/min 4131 Nm 1.07 2.8 kN 20.3 kN 20.3 kN 154.5 kg
CH-G K70390 20.4 DA-B14 PAM132 20.4:1 IEC 132 · 38 mm shaft 7.5 kW 68.6 r/min 939 Nm 4.26 2.8 kN 20.8 kN 20.8 kN 132.5 kg
CH-G K70390 20.4 DA-B14 PAM160 20.4:1 IEC 160 · 42 mm shaft 15 kW 68.6 r/min 1879 Nm 2.13 2.8 kN 20.8 kN 20.8 kN 138.5 kg
CH-G K70390 20.4 DA-B14 PAM180 20.4:1 IEC 180 · 48 mm shaft 22 kW 68.6 r/min 2755 Nm 1.45 2.8 kN 20.8 kN 20.8 kN 138.5 kg
CH-G K70390 20.4 DA-B14 PAM200 20.4:1 IEC 200 · 55 mm shaft 30 kW 68.6 r/min 3757 Nm 1.06 2.8 kN 20.8 kN 20.8 kN 154.5 kg
CH-G K70390 18.38 DA-B14 PAM132 18.38:1 IEC 132 · 38 mm shaft 7.5 kW 76.2 r/min 846 Nm 4.25 2.8 kN 20.9 kN 20.9 kN 132.5 kg
CH-G K70390 18.38 DA-B14 PAM160 18.38:1 IEC 160 · 42 mm shaft 15 kW 76.2 r/min 1693 Nm 2.13 2.8 kN 20.9 kN 20.9 kN 138.5 kg
CH-G K70390 18.38 DA-B14 PAM180 18.38:1 IEC 180 · 48 mm shaft 22 kW 76.2 r/min 2483 Nm 1.45 2.8 kN 20.9 kN 20.9 kN 138.5 kg
CH-G K70390 18.38 DA-B14 PAM200 18.38:1 IEC 200 · 55 mm shaft 30 kW 76.2 r/min 3386 Nm 1.06 2.8 kN 20.9 kN 20.9 kN 154.5 kg
CH-G K70390 16.79 DA-B14 PAM132 16.79:1 IEC 132 · 38 mm shaft 7.5 kW 83.4 r/min 773 Nm 4.14 2.8 kN 21.3 kN 21.3 kN 132.5 kg
CH-G K70390 16.79 DA-B14 PAM160 16.79:1 IEC 160 · 42 mm shaft 15 kW 83.4 r/min 1546 Nm 2.07 2.8 kN 21.3 kN 21.3 kN 138.5 kg
CH-G K70390 16.79 DA-B14 PAM180 16.79:1 IEC 180 · 48 mm shaft 22 kW 83.4 r/min 2268 Nm 1.41 2.8 kN 21.3 kN 21.3 kN 138.5 kg
CH-G K70390 16.79 DA-B14 PAM200 16.79:1 IEC 200 · 55 mm shaft 30 kW 83.4 r/min 3093 Nm 1.03 2.8 kN 21.3 kN 21.3 kN 154.5 kg
CH-G K70390 14.23 DA-B14 PAM132 14.23:1 IEC 132 · 38 mm shaft 7.5 kW 98.4 r/min 655 Nm 4.73 2.7 kN 19.9 kN 19.9 kN 132.5 kg
CH-G K70390 14.23 DA-B14 PAM160 14.23:1 IEC 160 · 42 mm shaft 15 kW 98.4 r/min 1311 Nm 2.37 2.7 kN 19.9 kN 19.9 kN 138.5 kg
CH-G K70390 14.23 DA-B14 PAM180 14.23:1 IEC 180 · 48 mm shaft 22 kW 98.4 r/min 1922 Nm 1.61 2.7 kN 19.9 kN 19.9 kN 138.5 kg
CH-G K70390 14.23 DA-B14 PAM200 14.23:1 IEC 200 · 55 mm shaft 30 kW 98.4 r/min 2621 Nm 1.18 2.7 kN 19.9 kN 19.9 kN 154.5 kg
CH-G K70390 11.65 DA-B14 PAM132 11.65:1 IEC 132 · 38 mm shaft 7.5 kW 120.1 r/min 536 Nm 5.78 2.4 kN 18 kN 18 kN 132.5 kg
CH-G K70390 11.65 DA-B14 PAM160 11.65:1 IEC 160 · 42 mm shaft 15 kW 120.1 r/min 1073 Nm 2.89 2.4 kN 18 kN 18 kN 138.5 kg
CH-G K70390 11.65 DA-B14 PAM180 11.65:1 IEC 180 · 48 mm shaft 22 kW 120.1 r/min 1574 Nm 1.97 2.4 kN 18 kN 18 kN 138.5 kg
CH-G K70390 11.65 DA-B14 PAM200 11.65:1 IEC 200 · 55 mm shaft 30 kW 120.1 r/min 2146 Nm 1.44 2.4 kN 18 kN 18 kN 154.5 kg
CH-G K70390 10.64 DA-B14 PAM132 10.64:1 IEC 132 · 38 mm shaft 7.5 kW 131.5 r/min 490 Nm 6.12 2.3 kN 17.5 kN 17.5 kN 132.5 kg
CH-G K70390 10.64 DA-B14 PAM160 10.64:1 IEC 160 · 42 mm shaft 15 kW 131.5 r/min 980 Nm 3.06 2.3 kN 17.5 kN 17.5 kN 138.5 kg
CH-G K70390 10.64 DA-B14 PAM180 10.64:1 IEC 180 · 48 mm shaft 22 kW 131.5 r/min 1437 Nm 2.09 2.3 kN 17.5 kN 17.5 kN 138.5 kg
CH-G K70390 10.64 DA-B14 PAM200 10.64:1 IEC 200 · 55 mm shaft 30 kW 131.5 r/min 1960 Nm 1.53 2.3 kN 17.5 kN 17.5 kN 154.5 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
