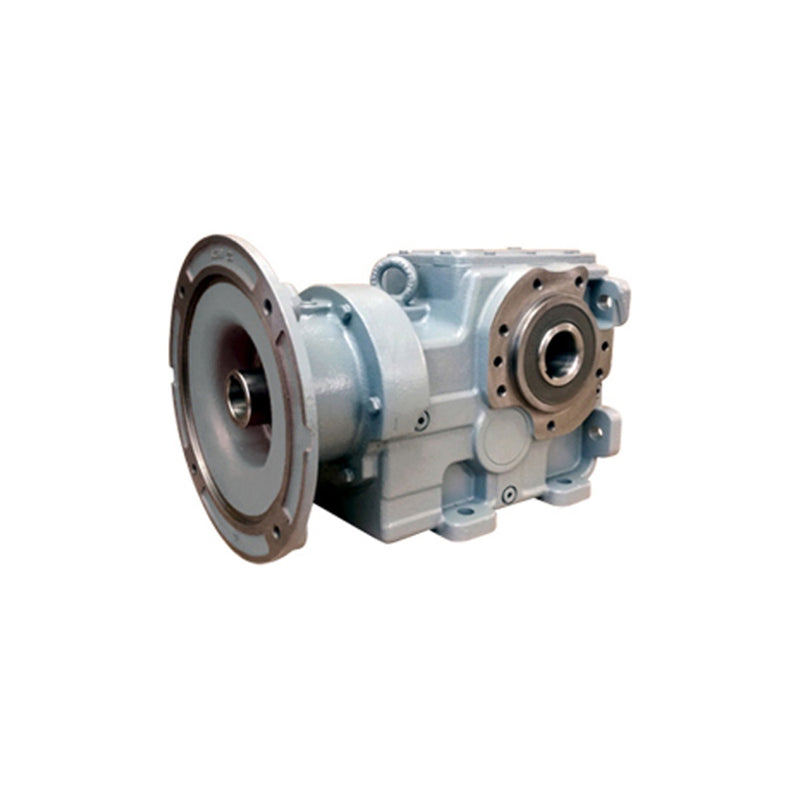

Chiaravalli CH-G K90390 helical bevel gear unit (chiaravalli.com product image)
Chiaravalli

CH-G K90390 Helical Bevel Gear Unit (Ø90 mm hollow output shaft)

Cast Iron Gearboxes CH-G

CH-G K90390 helical bevel gear unit — Chiaravalli's cast iron series: three reduction stages, 90° between input and output, size 90, ratios 10.72:1 to 168.56:1. This is the K … DA-B14 version — foot-flange mounting with a Ø90 mm H7 hollow output shaft — the version the catalogue lists as available from stock. The other K versions (DA foot / hollow, DA-KS shrink disc, TMA solid shaft, ÇMA double output shaft, DG-B14 flange, DG-TK torque arm, DA-TKP torque console, B5 flanges) are made to order — ask us. Output direction left or right (specify when ordering). PAM motor input for IEC 132, 160, 180, 200, 225 motors.

Supplied without motor. You are choosing the gear unit with its PAM motor adapter — ask us to quote a suitable motor together with it if you'd like both.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the ratio sets the output speed — e.g. ratio 168.56:1 gives 8 r/min at the output shaft. Each row shows the catalogue's maximum output torque (M2max at service factor 1) and the largest 4-pole motor that reaches it (P1max, 7.73 to 68.38 kW on this size). Choose the row whose output speed and torque match your application, then the flange that matches your motor (the frame size is on the motor's nameplate — only the frames the catalogue lists for that ratio are offered). The Motor column lists the 4-pole motors that fit that flange — pick yours and the output torque and service factor update to match. FR1 / FR2 are the permissible radial loads on the input and output shafts. More in the Selection Guide tab below.

Mounting position M1 is standard — specify yours when ordering (see the mounting-positions image). Cast iron housing.

Product Configuration

Select a row to add it to your quote

Code RatioMotor flangeMotorOutput speedOutput torqueService factorRadial load FR1Radial load FR2ARadial load FR2B Weight
CH-G K90390 168.56 DA-B14 PAM132 168.56:1 IEC 132 · 38 mm shaft 7.5 kW 8.3 r/min 7762 Nm 1.03 9.6 kN 65 kN 65 kN 203.5 kg
CH-G K90390 168.56 DA-B14 PAM160 168.56:1 IEC 160 · 42 mm shaft 11 kW 8.3 r/min 11384 Nm 0.7 9.6 kN 65 kN 65 kN 211.5 kg
CH-G K90390 168.56 DA-B14 PAM180 168.56:1 IEC 180 · 48 mm shaft 18.5 kW 8.3 r/min 19146 Nm 0.42 9.6 kN 65 kN 65 kN 211.5 kg
CH-G K90390 152.1 DA-B14 PAM132 152.1:1 IEC 132 · 38 mm shaft 7.5 kW 9.3 r/min 6961 Nm 1.15 9.5 kN 65 kN 65 kN 203.5 kg
CH-G K90390 152.1 DA-B14 PAM160 152.1:1 IEC 160 · 42 mm shaft 11 kW 9.3 r/min 10209 Nm 0.78 9.5 kN 65 kN 65 kN 211.5 kg
CH-G K90390 152.1 DA-B14 PAM180 152.1:1 IEC 180 · 48 mm shaft 18.5 kW 9.3 r/min 17169 Nm 0.47 9.5 kN 65 kN 65 kN 211.5 kg
CH-G K90390 136.87 DA-B14 PAM132 136.87:1 IEC 132 · 38 mm shaft 7.5 kW 10.2 r/min 6303 Nm 1.27 9.5 kN 65 kN 65 kN 203.5 kg
CH-G K90390 136.87 DA-B14 PAM160 136.87:1 IEC 160 · 42 mm shaft 11 kW 10.2 r/min 9244 Nm 0.87 9.5 kN 65 kN 65 kN 211.5 kg
CH-G K90390 136.87 DA-B14 PAM180 136.87:1 IEC 180 · 48 mm shaft 18.5 kW 10.2 r/min 15546 Nm 0.51 9.5 kN 65 kN 65 kN 211.5 kg
CH-G K90390 126.23 DA-B14 PAM132 126.23:1 IEC 132 · 38 mm shaft 7.5 kW 11.1 r/min 5814 Nm 1.38 9.4 kN 65 kN 65 kN 203.5 kg
CH-G K90390 126.23 DA-B14 PAM160 126.23:1 IEC 160 · 42 mm shaft 11 kW 11.1 r/min 8527 Nm 0.94 9.4 kN 65 kN 65 kN 211.5 kg
CH-G K90390 126.23 DA-B14 PAM180 126.23:1 IEC 180 · 48 mm shaft 18.5 kW 11.1 r/min 14341 Nm 0.56 9.4 kN 65 kN 65 kN 211.5 kg
CH-G K90390 105.17 DA-B14 PAM132 105.17:1 IEC 132 · 38 mm shaft 7.5 kW 13.3 r/min 4843 Nm 1.65 9.4 kN 65 kN 65 kN 203.5 kg
CH-G K90390 105.17 DA-B14 PAM160 105.17:1 IEC 160 · 42 mm shaft 11 kW 13.3 r/min 7103 Nm 1.13 9.4 kN 65 kN 65 kN 211.5 kg
CH-G K90390 105.17 DA-B14 PAM180 105.17:1 IEC 180 · 48 mm shaft 18.5 kW 13.3 r/min 11945 Nm 0.67 9.4 kN 65 kN 65 kN 211.5 kg
CH-G K90390 105.17 DA-B14 PAM200 105.17:1 IEC 200 · 55 mm shaft 30 kW 13.3 r/min 19370 Nm 0.41 9.4 kN 65 kN 65 kN 226.5 kg
CH-G K90390 105.17 DA-B14 PAM225 105.17:1 IEC 225 · 60 mm shaft 37 kW 13.3 r/min 23890 Nm 0.33 9.4 kN 65 kN 65 kN 229.5 kg
CH-G K90390 94.9 DA-B14 PAM132 94.9:1 IEC 132 · 38 mm shaft 7.5 kW 14.8 r/min 4370 Nm 1.83 9.3 kN 65 kN 65 kN 203.5 kg
CH-G K90390 94.9 DA-B14 PAM160 94.9:1 IEC 160 · 42 mm shaft 11 kW 14.8 r/min 6409 Nm 1.25 9.3 kN 65 kN 65 kN 211.5 kg
CH-G K90390 94.9 DA-B14 PAM180 94.9:1 IEC 180 · 48 mm shaft 18.5 kW 14.8 r/min 10779 Nm 0.74 9.3 kN 65 kN 65 kN 211.5 kg
CH-G K90390 94.9 DA-B14 PAM200 94.9:1 IEC 200 · 55 mm shaft 30 kW 14.8 r/min 17480 Nm 0.46 9.3 kN 65 kN 65 kN 226.5 kg
CH-G K90390 94.9 DA-B14 PAM225 94.9:1 IEC 225 · 60 mm shaft 37 kW 14.8 r/min 21559 Nm 0.37 9.3 kN 65 kN 65 kN 229.5 kg
CH-G K90390 88.87 DA-B14 PAM132 88.87:1 IEC 132 · 38 mm shaft 7.5 kW 15.8 r/min 4093 Nm 1.95 9.3 kN 65 kN 65 kN 203.5 kg
CH-G K90390 88.87 DA-B14 PAM160 88.87:1 IEC 160 · 42 mm shaft 11 kW 15.8 r/min 6003 Nm 1.33 9.3 kN 65 kN 65 kN 211.5 kg
CH-G K90390 88.87 DA-B14 PAM180 88.87:1 IEC 180 · 48 mm shaft 18.5 kW 15.8 r/min 10095 Nm 0.79 9.3 kN 65 kN 65 kN 211.5 kg
CH-G K90390 85.54 DA-B14 PAM132 85.54:1 IEC 132 · 38 mm shaft 7.5 kW 16.4 r/min 3940 Nm 2.03 9.2 kN 65 kN 65 kN 203.5 kg
CH-G K90390 85.54 DA-B14 PAM160 85.54:1 IEC 160 · 42 mm shaft 15 kW 16.4 r/min 7879 Nm 1.02 9.2 kN 65 kN 65 kN 211.5 kg
CH-G K90390 85.54 DA-B14 PAM180 85.54:1 IEC 180 · 48 mm shaft 18.5 kW 16.4 r/min 9718 Nm 0.82 9.2 kN 65 kN 65 kN 211.5 kg
CH-G K90390 78.76 DA-B14 PAM132 78.76:1 IEC 132 · 38 mm shaft 7.5 kW 17.8 r/min 3628 Nm 2.21 9.2 kN 64.1 kN 64.1 kN 203.5 kg
CH-G K90390 78.76 DA-B14 PAM160 78.76:1 IEC 160 · 42 mm shaft 15 kW 17.8 r/min 7255 Nm 1.1 9.2 kN 64.1 kN 64.1 kN 211.5 kg
CH-G K90390 78.76 DA-B14 PAM180 78.76:1 IEC 180 · 48 mm shaft 18.5 kW 17.8 r/min 8948 Nm 0.89 9.2 kN 64.1 kN 64.1 kN 211.5 kg
CH-G K90390 78.76 DA-B14 PAM200 78.76:1 IEC 200 · 55 mm shaft 30 kW 17.8 r/min 14510 Nm 0.55 9.2 kN 64.1 kN 64.1 kN 226.5 kg
CH-G K90390 78.76 DA-B14 PAM225 78.76:1 IEC 225 · 60 mm shaft 37 kW 17.8 r/min 17896 Nm 0.45 9.2 kN 64.1 kN 64.1 kN 229.5 kg
CH-G K90390 72.16 DA-B14 PAM132 72.16:1 IEC 132 · 38 mm shaft 7.5 kW 19.4 r/min 3322 Nm 2.41 9.1 kN 62.1 kN 62.1 kN 203.5 kg
CH-G K90390 72.16 DA-B14 PAM160 72.16:1 IEC 160 · 42 mm shaft 15 kW 19.4 r/min 6645 Nm 1.2 9.1 kN 62.1 kN 62.1 kN 211.5 kg
CH-G K90390 72.16 DA-B14 PAM180 72.16:1 IEC 180 · 48 mm shaft 18.5 kW 19.4 r/min 8195 Nm 0.98 9.1 kN 62.1 kN 62.1 kN 211.5 kg
CH-G K90390 64.83 DA-B14 PAM132 64.83:1 IEC 132 · 38 mm shaft 7.5 kW 21.6 r/min 2985 Nm 2.68 9 kN 59.4 kN 59.4 kN 203.5 kg
CH-G K90390 64.83 DA-B14 PAM160 64.83:1 IEC 160 · 42 mm shaft 15 kW 21.6 r/min 5970 Nm 1.34 9 kN 59.4 kN 59.4 kN 211.5 kg
CH-G K90390 64.83 DA-B14 PAM180 64.83:1 IEC 180 · 48 mm shaft 18.5 kW 21.6 r/min 7363 Nm 1.09 9 kN 59.4 kN 59.4 kN 211.5 kg
CH-G K90390 64.83 DA-B14 PAM200 64.83:1 IEC 200 · 55 mm shaft 30 kW 21.6 r/min 11940 Nm 0.67 9 kN 59.4 kN 59.4 kN 226.5 kg
CH-G K90390 64.83 DA-B14 PAM225 64.83:1 IEC 225 · 60 mm shaft 37 kW 21.6 r/min 14726 Nm 0.54 9 kN 59.4 kN 59.4 kN 229.5 kg
CH-G K90390 62.21 DA-B14 PAM132 62.21:1 IEC 132 · 38 mm shaft 7.5 kW 22.5 r/min 2864 Nm 2.79 9 kN 58.4 kN 58.4 kN 203.5 kg
CH-G K90390 62.21 DA-B14 PAM160 62.21:1 IEC 160 · 42 mm shaft 15 kW 22.5 r/min 5728 Nm 1.4 9 kN 58.4 kN 58.4 kN 211.5 kg
CH-G K90390 62.21 DA-B14 PAM180 62.21:1 IEC 180 · 48 mm shaft 18.5 kW 22.5 r/min 7064 Nm 1.13 9 kN 58.4 kN 58.4 kN 211.5 kg
CH-G K90390 62.21 DA-B14 PAM200 62.21:1 IEC 200 · 55 mm shaft 30 kW 22.5 r/min 11456 Nm 0.7 9 kN 58.4 kN 58.4 kN 226.5 kg
CH-G K90390 62.21 DA-B14 PAM225 62.21:1 IEC 225 · 60 mm shaft 37 kW 22.5 r/min 14129 Nm 0.57 9 kN 58.4 kN 58.4 kN 229.5 kg
CH-G K90390 58.5 DA-B14 PAM132 58.5:1 IEC 132 · 38 mm shaft 7.5 kW 23.9 r/min 2694 Nm 2.97 8.9 kN 57 kN 57 kN 203.5 kg
CH-G K90390 58.5 DA-B14 PAM160 58.5:1 IEC 160 · 42 mm shaft 15 kW 23.9 r/min 5388 Nm 1.48 8.9 kN 57 kN 57 kN 211.5 kg
CH-G K90390 58.5 DA-B14 PAM180 58.5:1 IEC 180 · 48 mm shaft 22 kW 23.9 r/min 7903 Nm 1.01 8.9 kN 57 kN 57 kN 211.5 kg
CH-G K90390 58.5 DA-B14 PAM200 58.5:1 IEC 200 · 55 mm shaft 30 kW 23.9 r/min 10777 Nm 0.74 8.9 kN 57 kN 57 kN 226.5 kg
CH-G K90390 58.5 DA-B14 PAM225 58.5:1 IEC 225 · 60 mm shaft 37 kW 23.9 r/min 13291 Nm 0.6 8.9 kN 57 kN 57 kN 229.5 kg
CH-G K90390 55.45 DA-B14 PAM132 55.45:1 IEC 132 · 38 mm shaft 7.5 kW 25.2 r/min 2553 Nm 3.13 8.9 kN 55.9 kN 55.9 kN 203.5 kg
CH-G K90390 55.45 DA-B14 PAM160 55.45:1 IEC 160 · 42 mm shaft 15 kW 25.2 r/min 5106 Nm 1.57 8.9 kN 55.9 kN 55.9 kN 211.5 kg
CH-G K90390 55.45 DA-B14 PAM180 55.45:1 IEC 180 · 48 mm shaft 22 kW 25.2 r/min 7489 Nm 1.07 8.9 kN 55.9 kN 55.9 kN 211.5 kg
CH-G K90390 55.45 DA-B14 PAM200 55.45:1 IEC 200 · 55 mm shaft 30 kW 25.2 r/min 10213 Nm 0.78 8.9 kN 55.9 kN 55.9 kN 226.5 kg
CH-G K90390 55.45 DA-B14 PAM225 55.45:1 IEC 225 · 60 mm shaft 37 kW 25.2 r/min 12596 Nm 0.64 8.9 kN 55.9 kN 55.9 kN 229.5 kg
CH-G K90390 51.63 DA-B14 PAM132 51.63:1 IEC 132 · 38 mm shaft 7.5 kW 27.1 r/min 2377 Nm 3.37 8.8 kN 54.2 kN 54.2 kN 203.5 kg
CH-G K90390 51.63 DA-B14 PAM160 51.63:1 IEC 160 · 42 mm shaft 15 kW 27.1 r/min 4754 Nm 1.68 8.8 kN 54.2 kN 54.2 kN 211.5 kg
CH-G K90390 51.63 DA-B14 PAM180 51.63:1 IEC 180 · 48 mm shaft 22 kW 27.1 r/min 6973 Nm 1.15 8.8 kN 54.2 kN 54.2 kN 211.5 kg
CH-G K90390 51.63 DA-B14 PAM200 51.63:1 IEC 200 · 55 mm shaft 30 kW 27.1 r/min 9509 Nm 0.84 8.8 kN 54.2 kN 54.2 kN 226.5 kg
CH-G K90390 51.63 DA-B14 PAM225 51.63:1 IEC 225 · 60 mm shaft 37 kW 27.1 r/min 11727 Nm 0.68 8.8 kN 54.2 kN 54.2 kN 229.5 kg
CH-G K90390 48.55 DA-B14 PAM132 48.55:1 IEC 132 · 38 mm shaft 7.5 kW 28.8 r/min 2235 Nm 3.58 8.8 kN 52.9 kN 52.9 kN 203.5 kg
CH-G K90390 48.55 DA-B14 PAM160 48.55:1 IEC 160 · 42 mm shaft 15 kW 28.8 r/min 4471 Nm 1.79 8.8 kN 52.9 kN 52.9 kN 211.5 kg
CH-G K90390 48.55 DA-B14 PAM180 48.55:1 IEC 180 · 48 mm shaft 22 kW 28.8 r/min 6557 Nm 1.22 8.8 kN 52.9 kN 52.9 kN 211.5 kg
CH-G K90390 48.55 DA-B14 PAM200 48.55:1 IEC 200 · 55 mm shaft 30 kW 28.8 r/min 8942 Nm 0.89 8.8 kN 52.9 kN 52.9 kN 226.5 kg
CH-G K90390 48.55 DA-B14 PAM225 48.55:1 IEC 225 · 60 mm shaft 37 kW 28.8 r/min 11028 Nm 0.73 8.8 kN 52.9 kN 52.9 kN 229.5 kg
CH-G K90390 42.94 DA-B14 PAM132 42.94:1 IEC 132 · 38 mm shaft 7.5 kW 32.6 r/min 1977 Nm 4.05 8.6 kN 50.5 kN 50.5 kN 203.5 kg
CH-G K90390 42.94 DA-B14 PAM160 42.94:1 IEC 160 · 42 mm shaft 15 kW 32.6 r/min 3954 Nm 2.02 8.6 kN 50.5 kN 50.5 kN 211.5 kg
CH-G K90390 42.94 DA-B14 PAM180 42.94:1 IEC 180 · 48 mm shaft 22 kW 32.6 r/min 5799 Nm 1.38 8.6 kN 50.5 kN 50.5 kN 211.5 kg
CH-G K90390 42.94 DA-B14 PAM200 42.94:1 IEC 200 · 55 mm shaft 30 kW 32.6 r/min 7908 Nm 1.01 8.6 kN 50.5 kN 50.5 kN 226.5 kg
CH-G K90390 42.94 DA-B14 PAM225 42.94:1 IEC 225 · 60 mm shaft 37 kW 32.6 r/min 9753 Nm 0.82 8.6 kN 50.5 kN 50.5 kN 229.5 kg
CH-G K90390 39.74 DA-B14 PAM160 39.74:1 IEC 160 · 42 mm shaft 15 kW 35.2 r/min 3660 Nm 2.19 8.5 kN 48.7 kN 48.7 kN 211.5 kg
CH-G K90390 39.74 DA-B14 PAM180 39.74:1 IEC 180 · 48 mm shaft 22 kW 35.2 r/min 5367 Nm 1.49 8.5 kN 48.7 kN 48.7 kN 211.5 kg
CH-G K90390 39.74 DA-B14 PAM200 39.74:1 IEC 200 · 55 mm shaft 30 kW 35.2 r/min 7319 Nm 1.09 8.5 kN 48.7 kN 48.7 kN 226.5 kg
CH-G K90390 39.74 DA-B14 PAM225 39.74:1 IEC 225 · 60 mm shaft 37 kW 35.2 r/min 9027 Nm 0.89 8.5 kN 48.7 kN 48.7 kN 229.5 kg
CH-G K90390 35.85 DA-B14 PAM160 35.85:1 IEC 160 · 42 mm shaft 15 kW 39.1 r/min 3301 Nm 2.42 8.4 kN 46.7 kN 46.7 kN 211.5 kg
CH-G K90390 35.85 DA-B14 PAM180 35.85:1 IEC 180 · 48 mm shaft 22 kW 39.1 r/min 4842 Nm 1.65 8.4 kN 46.7 kN 46.7 kN 211.5 kg
CH-G K90390 35.85 DA-B14 PAM200 35.85:1 IEC 200 · 55 mm shaft 30 kW 39.1 r/min 6602 Nm 1.21 8.4 kN 46.7 kN 46.7 kN 226.5 kg
CH-G K90390 35.85 DA-B14 PAM225 35.85:1 IEC 225 · 60 mm shaft 37 kW 39.1 r/min 8143 Nm 0.98 8.4 kN 46.7 kN 46.7 kN 229.5 kg
CH-G K90390 34.18 DA-B14 PAM132 34.18:1 IEC 132 · 38 mm shaft 7.5 kW 41 r/min 1574 Nm 5.08 8.3 kN 45.9 kN 45.9 kN 203.5 kg
CH-G K90390 34.18 DA-B14 PAM160 34.18:1 IEC 160 · 42 mm shaft 15 kW 41 r/min 3148 Nm 2.54 8.3 kN 45.9 kN 45.9 kN 211.5 kg
CH-G K90390 34.18 DA-B14 PAM180 34.18:1 IEC 180 · 48 mm shaft 22 kW 41 r/min 4617 Nm 1.73 8.3 kN 45.9 kN 45.9 kN 211.5 kg
CH-G K90390 34.18 DA-B14 PAM200 34.18:1 IEC 200 · 55 mm shaft 30 kW 41 r/min 6296 Nm 1.27 8.3 kN 45.9 kN 45.9 kN 226.5 kg
CH-G K90390 34.18 DA-B14 PAM225 34.18:1 IEC 225 · 60 mm shaft 37 kW 41 r/min 7765 Nm 1.03 8.3 kN 45.9 kN 45.9 kN 229.5 kg
CH-G K90390 30.84 DA-B14 PAM132 30.84:1 IEC 132 · 38 mm shaft 7.5 kW 45.4 r/min 1420 Nm 5.63 8.1 kN 44 kN 44 kN 203.5 kg
CH-G K90390 30.84 DA-B14 PAM160 30.84:1 IEC 160 · 42 mm shaft 15 kW 45.4 r/min 2840 Nm 2.82 8.1 kN 44 kN 44 kN 211.5 kg
CH-G K90390 30.84 DA-B14 PAM180 30.84:1 IEC 180 · 48 mm shaft 22 kW 45.4 r/min 4166 Nm 1.92 8.1 kN 44 kN 44 kN 211.5 kg
CH-G K90390 30.84 DA-B14 PAM200 30.84:1 IEC 200 · 55 mm shaft 30 kW 45.4 r/min 5680 Nm 1.41 8.1 kN 44 kN 44 kN 226.5 kg
CH-G K90390 30.84 DA-B14 PAM225 30.84:1 IEC 225 · 60 mm shaft 37 kW 45.4 r/min 7006 Nm 1.14 8.1 kN 44 kN 44 kN 229.5 kg
CH-G K90390 28.71 DA-B14 PAM132 28.71:1 IEC 132 · 38 mm shaft 7.5 kW 48.8 r/min 1322 Nm 6.05 8 kN 42.7 kN 42.7 kN 203.5 kg
CH-G K90390 28.71 DA-B14 PAM160 28.71:1 IEC 160 · 42 mm shaft 15 kW 48.8 r/min 2644 Nm 3.03 8 kN 42.7 kN 42.7 kN 211.5 kg
CH-G K90390 28.71 DA-B14 PAM180 28.71:1 IEC 180 · 48 mm shaft 22 kW 48.8 r/min 3878 Nm 2.06 8 kN 42.7 kN 42.7 kN 211.5 kg
CH-G K90390 28.71 DA-B14 PAM200 28.71:1 IEC 200 · 55 mm shaft 30 kW 48.8 r/min 5288 Nm 1.51 8 kN 42.7 kN 42.7 kN 226.5 kg
CH-G K90390 28.71 DA-B14 PAM225 28.71:1 IEC 225 · 60 mm shaft 45 kW 48.8 r/min 7931 Nm 1.01 8 kN 42.7 kN 42.7 kN 229.5 kg
CH-G K90390 25.6 DA-B14 PAM132 25.6:1 IEC 132 · 38 mm shaft 7.5 kW 54.7 r/min 1179 Nm 5.77 8.1 kN 42.4 kN 42.4 kN 203.5 kg
CH-G K90390 25.6 DA-B14 PAM160 25.6:1 IEC 160 · 42 mm shaft 15 kW 54.7 r/min 2357 Nm 2.88 8.1 kN 42.4 kN 42.4 kN 211.5 kg
CH-G K90390 25.6 DA-B14 PAM180 25.6:1 IEC 180 · 48 mm shaft 22 kW 54.7 r/min 3457 Nm 1.97 8.1 kN 42.4 kN 42.4 kN 211.5 kg
CH-G K90390 25.6 DA-B14 PAM200 25.6:1 IEC 200 · 55 mm shaft 30 kW 54.7 r/min 4715 Nm 1.44 8.1 kN 42.4 kN 42.4 kN 226.5 kg
CH-G K90390 25.6 DA-B14 PAM225 25.6:1 IEC 225 · 60 mm shaft 37 kW 54.7 r/min 5815 Nm 1.17 8.1 kN 42.4 kN 42.4 kN 229.5 kg
CH-G K90390 24.5 DA-B14 PAM160 24.5:1 IEC 160 · 42 mm shaft 15 kW 57.1 r/min 2256 Nm 2.97 8 kN 41.7 kN 41.7 kN 211.5 kg
CH-G K90390 24.5 DA-B14 PAM180 24.5:1 IEC 180 · 48 mm shaft 22 kW 57.1 r/min 3309 Nm 2.02 8 kN 41.7 kN 41.7 kN 211.5 kg
CH-G K90390 24.5 DA-B14 PAM200 24.5:1 IEC 200 · 55 mm shaft 30 kW 57.1 r/min 4513 Nm 1.48 8 kN 41.7 kN 41.7 kN 226.5 kg
CH-G K90390 24.5 DA-B14 PAM225 24.5:1 IEC 225 · 60 mm shaft 37 kW 57.1 r/min 5566 Nm 1.2 8 kN 41.7 kN 41.7 kN 229.5 kg
CH-G K90390 20.95 DA-B14 PAM160 20.95:1 IEC 160 · 42 mm shaft 15 kW 66.8 r/min 1929 Nm 3.37 7.8 kN 39.5 kN 39.5 kN 211.5 kg
CH-G K90390 20.95 DA-B14 PAM180 20.95:1 IEC 180 · 48 mm shaft 22 kW 66.8 r/min 2829 Nm 2.3 7.8 kN 39.5 kN 39.5 kN 211.5 kg
CH-G K90390 20.95 DA-B14 PAM200 20.95:1 IEC 200 · 55 mm shaft 30 kW 66.8 r/min 3858 Nm 1.68 7.8 kN 39.5 kN 39.5 kN 226.5 kg
CH-G K90390 20.95 DA-B14 PAM225 20.95:1 IEC 225 · 60 mm shaft 45 kW 66.8 r/min 5787 Nm 1.12 7.8 kN 39.5 kN 39.5 kN 229.5 kg
CH-G K90390 18.9 DA-B14 PAM160 18.9:1 IEC 160 · 42 mm shaft 15 kW 74.1 r/min 1740 Nm 3.45 7.7 kN 38.6 kN 38.6 kN 211.5 kg
CH-G K90390 18.9 DA-B14 PAM180 18.9:1 IEC 180 · 48 mm shaft 22 kW 74.1 r/min 2553 Nm 2.35 7.7 kN 38.6 kN 38.6 kN 211.5 kg
CH-G K90390 18.9 DA-B14 PAM200 18.9:1 IEC 200 · 55 mm shaft 30 kW 74.1 r/min 3481 Nm 1.72 7.7 kN 38.6 kN 38.6 kN 226.5 kg
CH-G K90390 18.9 DA-B14 PAM225 18.9:1 IEC 225 · 60 mm shaft 45 kW 74.1 r/min 5221 Nm 1.15 7.7 kN 38.6 kN 38.6 kN 229.5 kg
CH-G K90390 15.69 DA-B14 PAM160 15.69:1 IEC 160 · 42 mm shaft 15 kW 89.2 r/min 1445 Nm 3.46 7.7 kN 37.2 kN 37.2 kN 211.5 kg
CH-G K90390 15.69 DA-B14 PAM180 15.69:1 IEC 180 · 48 mm shaft 22 kW 89.2 r/min 2119 Nm 2.36 7.7 kN 37.2 kN 37.2 kN 211.5 kg
CH-G K90390 15.69 DA-B14 PAM200 15.69:1 IEC 200 · 55 mm shaft 30 kW 89.2 r/min 2890 Nm 1.73 7.7 kN 37.2 kN 37.2 kN 226.5 kg
CH-G K90390 15.69 DA-B14 PAM225 15.69:1 IEC 225 · 60 mm shaft 45 kW 89.2 r/min 4334 Nm 1.15 7.7 kN 37.2 kN 37.2 kN 229.5 kg
CH-G K90390 14.32 DA-B14 PAM160 14.32:1 IEC 160 · 42 mm shaft 15 kW 97.8 r/min 1319 Nm 3.79 7.5 kN 35.9 kN 35.9 kN 211.5 kg
CH-G K90390 14.32 DA-B14 PAM180 14.32:1 IEC 180 · 48 mm shaft 22 kW 97.8 r/min 1934 Nm 2.59 7.5 kN 35.9 kN 35.9 kN 211.5 kg
CH-G K90390 14.32 DA-B14 PAM200 14.32:1 IEC 200 · 55 mm shaft 30 kW 97.8 r/min 2638 Nm 1.9 7.5 kN 35.9 kN 35.9 kN 226.5 kg
CH-G K90390 14.32 DA-B14 PAM225 14.32:1 IEC 225 · 60 mm shaft 45 kW 97.8 r/min 3956 Nm 1.26 7.5 kN 35.9 kN 35.9 kN 229.5 kg
CH-G K90390 12.92 DA-B14 PAM160 12.92:1 IEC 160 · 42 mm shaft 15 kW 108.5 r/min 1190 Nm 3.78 7.5 kN 35.1 kN 35.1 kN 211.5 kg
CH-G K90390 12.92 DA-B14 PAM180 12.92:1 IEC 180 · 48 mm shaft 22 kW 108.5 r/min 1745 Nm 2.58 7.5 kN 35.1 kN 35.1 kN 211.5 kg
CH-G K90390 12.92 DA-B14 PAM200 12.92:1 IEC 200 · 55 mm shaft 30 kW 108.5 r/min 2380 Nm 1.89 7.5 kN 35.1 kN 35.1 kN 226.5 kg
CH-G K90390 12.92 DA-B14 PAM225 12.92:1 IEC 225 · 60 mm shaft 45 kW 108.5 r/min 3570 Nm 1.26 7.5 kN 35.1 kN 35.1 kN 229.5 kg
CH-G K90390 10.72 DA-B14 PAM160 10.72:1 IEC 160 · 42 mm shaft 15 kW 130.6 r/min 987 Nm 4.56 7 kN 32.7 kN 32.7 kN 211.5 kg
CH-G K90390 10.72 DA-B14 PAM180 10.72:1 IEC 180 · 48 mm shaft 22 kW 130.6 r/min 1448 Nm 3.11 7 kN 32.7 kN 32.7 kN 211.5 kg
CH-G K90390 10.72 DA-B14 PAM200 10.72:1 IEC 200 · 55 mm shaft 30 kW 130.6 r/min 1974 Nm 2.28 7 kN 32.7 kN 32.7 kN 226.5 kg
CH-G K90390 10.72 DA-B14 PAM225 10.72:1 IEC 225 · 60 mm shaft 45 kW 130.6 r/min 2961 Nm 1.52 7 kN 32.7 kN 32.7 kN 229.5 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Service factor — the number that decides how long your gearbox lives

It's the safety margin between what the gearbox can handle and what the motor asks of it: 1.0 means the gearbox works exactly at its rated limit (the catalogue's M2max); higher means reserve capacity — a cooler, quieter drive and a much longer life. As a guide: smooth, steady loads (light conveyors, centrifugal pumps) are fine near 1.0; moderate loads (heavier conveyors, packing machines) deserve 1.3 or more; heavy duty (mixers, bucket elevators, frequent starts, long running hours) should sit at 1.5–2.0.

If the service factor turns red after you pick a motor, that combination is below 1.0 — the motor can overload the gearbox in continuous use. It may be acceptable for light, intermittent duty, but for anything continuous choose a smaller motor, a different ratio, or the next gearbox size up — or ask us and we'll size it with you.

Radial loads

FR1 is the permissible radial load on the input shaft and FR2 on the output shaft (kN, applied at the shaft centre). Chain sprockets, belt pulleys and gears on the shaft all load it radially — check the figure against your drive, and ask us if your load is close to it. The catalogue also limits peak loads to 200 % of the nominal torque.
