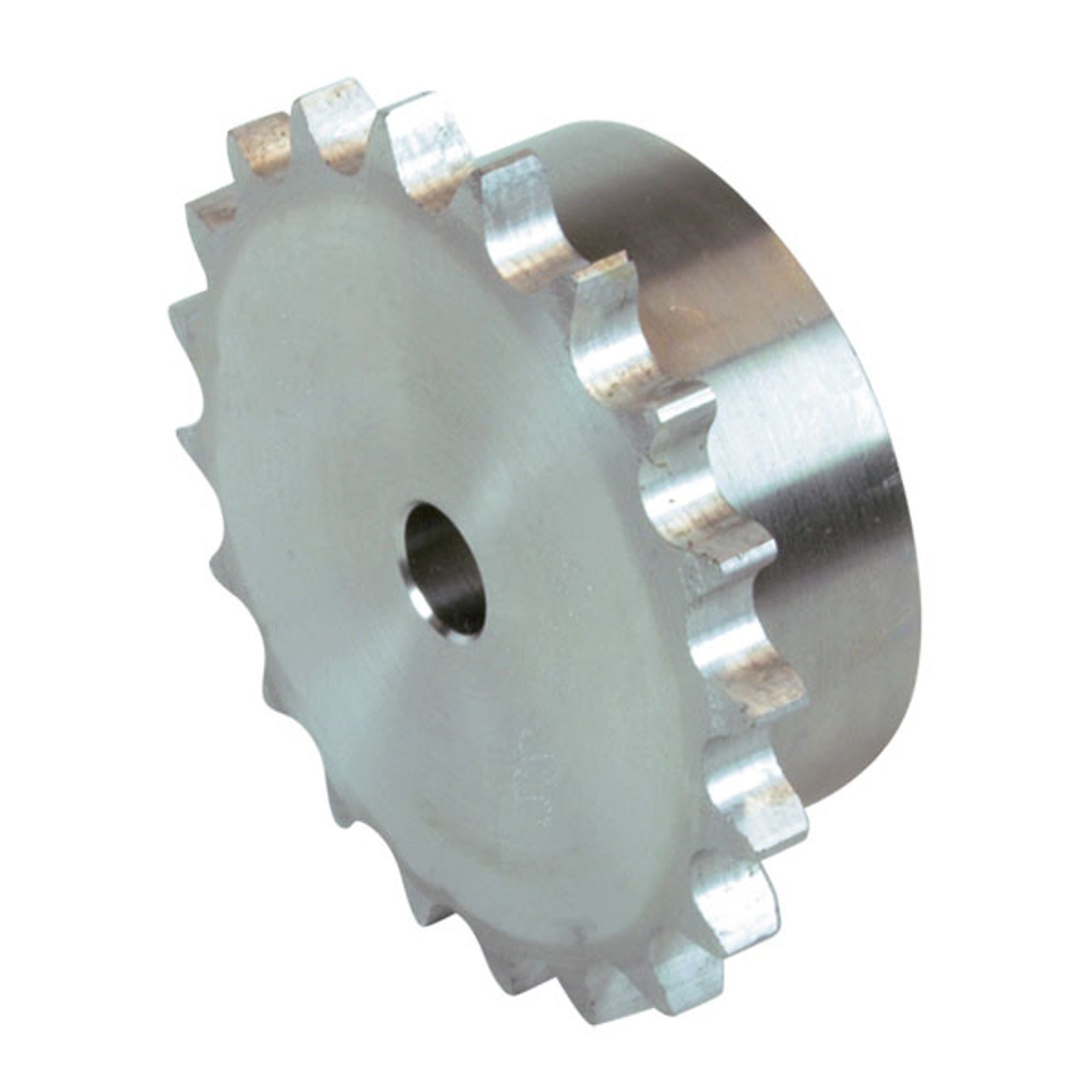

Chiaravalli Chain Sprocket 1” 1/2 × 1” Simplex
Chiaravalli

Chain Sprocket 24B-1 Simplex (1” 1/2 × 1”)

Simplex chain sprocket for 24B-1 (1” 1/2 × 1”) roller chain.

  • Chain inner width: 25.4 mm
  • Chain roller Ø: 25.4 mm
  • Tooth radius r3: 38 mm
  • Radius width C: 4 mm
  • Sprocket tooth width B1: 24.1 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10138008 8 115 mm 99.55 mm 58 mm 20 mm 45 mm C 45 UNI 7845 1.38 kg
10138009 9 126.4 mm 111.4 mm 70 mm 20 mm 45 mm C 45 UNI 7845 1.9 kg
10138010 10 138 mm 123.29 mm 80 mm 20 mm 45 mm C 45 UNI 7845 2.47 kg
10138011 11 150 mm 135.21 mm 90 mm 25 mm 50 mm C 45 UNI 7845 3.27 kg
10138012 12 162 mm 147.22 mm 102 mm 25 mm 50 mm C 45 UNI 7845 4.09 kg
10138013 13 174.2 mm 159.18 mm 114 mm 25 mm 50 mm C 45 UNI 7845 5.0 kg
10138014 14 186.2 mm 171.22 mm 128 mm 25 mm 50 mm C 45 UNI 7845 6.09 kg
10138015 15 198.2 mm 183.26 mm 140 mm 25 mm 50 mm C 45 UNI 7845 6.84 kg
10138016 16 210.3 mm 195.3 mm 140 mm 25 mm 55 mm C 45 UNI 7845 8.2 kg
10138017 17 222.3 mm 207.34 mm 140 mm 25 mm 55 mm C 45 UNI 7845 8.87 kg
10138018 18 234.3 mm 219.42 mm 140 mm 25 mm 55 mm C 45 UNI 7845 9.59 kg
10138019 19 246.5 mm 231.49 mm 140 mm 25 mm 55 mm C 45 UNI 7845 10.36 kg
10138020 20 258.6 mm 243.57 mm 140 mm 25 mm 55 mm C 45 UNI 7845 11.16 kg
10138021 21 270.6 mm 255.65 mm 150 mm 25 mm 60 mm C 45 UNI 7845 13.35 kg
10138022 22 282.7 mm 267.73 mm 150 mm 25 mm 60 mm C 45 UNI 7845 14.24 kg
10138023 23 294.8 mm 279.8 mm 150 mm 25 mm 60 mm C 45 UNI 7845 15.18 kg
10138024 24 306.8 mm 291.88 mm 150 mm 25 mm 60 mm C 45 UNI 7845 16.16 kg
10138025 25 319 mm 304 mm 150 mm 25 mm 60 mm C 45 UNI 7845 17.19 kg
10138026 26 331 mm 316.08 mm 160 mm 30 mm 60 mm C 45 UNI 7845 18.25 kg
10138027 27 343.2 mm 328.19 mm 160 mm 30 mm 60 mm C 45 UNI 7845 19.37 kg
10138028 28 355.2 mm 340.27 mm 160 mm 30 mm 60 mm FE (welded hub) 20.52 kg
10138029 29 367.3 mm 352.38 mm 160 mm 30 mm 60 mm FE (welded hub) 21.72 kg
10138030 30 379.5 mm 364.5 mm 160 mm 30 mm 60 mm FE (welded hub) 22.97 kg
10138031 31 391.6 mm 376.62 mm 160 mm 30 mm 60 mm FE (welded hub) 21.25 kg
10138032 32 403.7 mm 388.69 mm 160 mm 30 mm 60 mm FE (welded hub) 25.59 kg
10138033 33 415.8 mm 400.81 mm 160 mm 30 mm 60 mm FE (welded hub) 26.96 kg
10138034 34 427.8 mm 412.93 mm 160 mm 30 mm 60 mm FE (welded hub) 28.38 kg
10138035 35 440 mm 425.04 mm 160 mm 30 mm 60 mm FE (welded hub) 29.84 kg
10138036 36 452 mm 437.16 mm 160 mm 30 mm 60 mm FE (welded hub) 31.34 kg
10138037 37 464.2 mm 449.27 mm 160 mm 30 mm 60 mm FE (welded hub) 32.9 kg
10138038 38 476.2 mm 461.39 mm 160 mm 30 mm 60 mm FE (welded hub) 34.49 kg —
10138040 40 500.6 mm 485.62 mm 160 mm 30 mm 60 mm FE (welded hub) 37.51 kg
10138042 42 524.7 mm 509.85 mm 160 mm 30 mm 90 mm FE (welded hub) 48.52 kg
10138045 45 561.2 mm 546.2 mm 160 mm 30 mm 90 mm FE (welded hub) 54.08 kg
10138048 48 597.4 mm 582.55 mm 160 mm 30 mm 90 mm FE (welded hub) 60.04 kg
10138050 50 621.7 mm 606.78 mm 160 mm 30 mm 90 mm FE (welded hub) 64.24 kg
10138057 57 706.5 mm 691.63 mm 160 mm 30 mm 100 mm FE (welded hub) 80.28 kg
10138060 60 742.8 mm 727.97 mm 160 mm 40 mm 100 mm FE (welded hub) 87.82 kg
10138076 76 936.9 mm 921.98 mm 170 mm 40 mm 100 mm FE (welded hub) 140.54 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
24B-1
Pitch
38.1 mm
