Chiaravalli Chain Sprocket 1” 1/2 × 1” Triplex
Chiaravalli

Chain Sprocket 24B-3 Triplex (1” 1/2 × 1”)

Triplex chain sprocket for 24B-3 (1” 1/2 × 1”) roller chain.

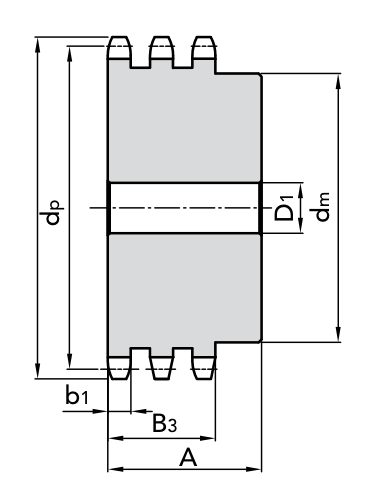

  • Chain inner width: 25.4 mm
  • Chain roller Ø: 25.4 mm
  • Tooth radius r3: 38 mm
  • Radius width C: 4 mm
  • Sprocket tooth width b1: 23.6 mm
  • Sprocket tooth width B3: 120.3 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10338008 8 115 mm 99.55 mm 58 mm 25 mm 140 mm C 45 UNI 7845 4.0 kg
10338009 9 126.4 mm 111.4 mm 70 mm 25 mm 140 mm C 45 UNI 7845 5.62 kg
10338010 10 138 mm 123.29 mm 80 mm 25 mm 140 mm C 45 UNI 7845 7.45 kg
10338011 11 150 mm 135.21 mm 90 mm 25 mm 150 mm C 45 UNI 7845 9.73 kg
10338012 12 162 mm 147.22 mm 102 mm 25 mm 150 mm C 45 UNI 7845 12.24 kg
10338013 13 174.2 mm 159.18 mm 114 mm 25 mm 150 mm C 45 UNI 7845 15.02 kg
10338014 14 186.2 mm 171.22 mm 128 mm 25 mm 150 mm C 45 UNI 7845 18.16 kg
10338015 15 198.2 mm 183.26 mm 140 mm 25 mm 150 mm C 45 UNI 7845 21.09 kg
10338016 16 210.3 mm 195.3 mm 140 mm 25 mm 150 mm FE (welded hub) 24.25 kg
10338017 17 222.3 mm 207.34 mm 150 mm 25 mm 150 mm FE (welded hub) 27.42 kg
10338018 18 234.3 mm 219.42 mm 160 mm 25 mm 150 mm FE (welded hub) 32.12 kg
10338019 19 246.5 mm 231.49 mm 160 mm 25 mm 150 mm FE (welded hub) 35.74 kg
10338020 20 258.6 mm 243.57 mm 160 mm 25 mm 150 mm FE (welded hub) 39.57 kg
10338021 21 270.6 mm 255.65 mm 160 mm 30 mm 150 mm FE (welded hub) 42.98 kg
10338022 22 282.7 mm 267.73 mm 160 mm 30 mm 150 mm FE (welded hub) 47.25 kg
10338023 23 294.8 mm 279.8 mm 160 mm 30 mm 150 mm FE (welded hub) 51.74 kg
10338024 24 306.8 mm 291.88 mm 160 mm 30 mm 150 mm FE (welded hub) 56.44 kg
10338025 25 319 mm 304 mm 160 mm 30 mm 150 mm FE (welded hub) 61.37 kg
10338026 26 331 mm 316.08 mm 160 mm 30 mm 150 mm FE (welded hub) 66.52 kg
10338027 27 343.2 mm 328.19 mm 160 mm 30 mm 150 mm FE (welded hub) 71.88 kg
10338028 28 355.2 mm 340.27 mm 160 mm 30 mm 150 mm FE (welded hub) 77.46 kg
10338030 30 379.5 mm 364.5 mm 160 mm 40 mm 150 mm FE (welded hub) 89.28 kg
10338032 32 403.7 mm 388.69 mm 170 mm 40 mm 150 mm FE (welded hub) 101.97 kg
10338035 35 440 mm 425.04 mm 170 mm 40 mm 150 mm FE (welded hub) 122.64 kg
10338038 38 476.2 mm 461.39 mm 170 mm 40 mm 150 mm FE (welded hub) 145.28 kg
10338040 40 500.6 mm 485.62 mm 170 mm 40 mm 150 mm FE (welded hub) 161.46 kg
10338045 45 561.2 mm 546.2 mm 200 mm 40 mm 150 mm FE (welded hub) 209.06 kg
10338050 50 621.7 mm 606.78 mm 200 mm 40 mm 150 mm FE (welded hub) 258.81 kg
10338057 57 706.5 mm 691.63 mm 220 mm 40 mm 150 mm FE (welded hub) 337.62 kg
10338076 76 936.9 mm 921.98 mm 250 mm 40 mm 150 mm FE (welded hub) 607.76 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
24B-3
Pitch
38.1 mm
