Chiaravalli Chain Sprocket 1” 1/4 × 3/4” Triplex
Chiaravalli

Chain Sprocket 20B-3 Triplex (1” 1/4 × 3/4”)

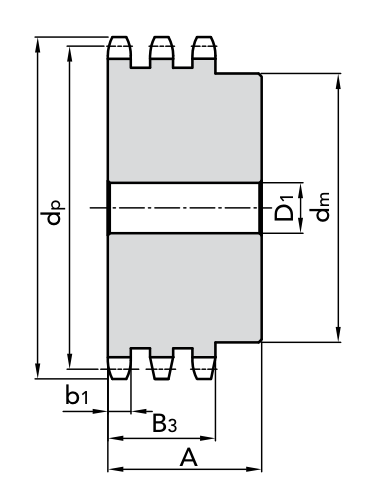

Triplex chain sprocket for 20B-3 (1” 1/4 × 3/4”) roller chain.

  • Chain inner width: 19.56 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 32 mm
  • Radius width C: 3.5 mm
  • Sprocket tooth width b1: 18.2 mm
  • Sprocket tooth width B3: 91 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10331008 8 98.1 mm 82.96 mm 53 mm 20 mm 110 mm C 45 UNI 7845 2.15 kg
10331009 9 108 mm 92.84 mm 63 mm 20 mm 110 mm C 45 UNI 7845 3.05 kg
10331010 10 117.9 mm 102.74 mm 70 mm 20 mm 110 mm C 45 UNI 7845 4.04 kg
10331011 11 127.8 mm 112.68 mm 80 mm 20 mm 115 mm C 45 UNI 7845 5.19 kg
10331012 12 137.8 mm 122.68 mm 90 mm 20 mm 115 mm C 45 UNI 7845 6.55 kg
10331013 13 147.8 mm 132.65 mm 100 mm 20 mm 115 mm C 45 UNI 7845 8.06 kg
10331014 14 157.8 mm 142.68 mm 110 mm 20 mm 115 mm C 45 UNI 7845 9.71 kg
10331015 15 167.9 mm 152.72 mm 120 mm 20 mm 115 mm C 45 UNI 7845 11.5 kg
10331016 16 177.9 mm 162.75 mm 120 mm 25 mm 115 mm C 45 UNI 7845 13.06 kg
10331017 17 187.9 mm 172.78 mm 120 mm 25 mm 115 mm C 45 UNI 7845 14.65 kg
10331018 18 198 mm 182.85 mm 120 mm 25 mm 115 mm FE (welded hub) 16.54 kg
10331019 19 208.1 mm 192.91 mm 120 mm 25 mm 115 mm FE (welded hub) 18.45 kg
10331020 20 218.1 mm 202.98 mm 120 mm 25 mm 115 mm FE (welded hub) 20.48 kg
10331021 21 228.2 mm 213.04 mm 140 mm 25 mm 115 mm FE (welded hub) 23.38 kg
10331022 22 238.3 mm 223.11 mm 140 mm 25 mm 115 mm FE (welded hub) 25.64 kg
10331023 23 248.3 mm 233.17 mm 140 mm 25 mm 115 mm FE (welded hub) 28.0 kg
10331024 24 258.4 mm 243.23 mm 140 mm 25 mm 115 mm FE (welded hub) 30.49 kg
10331025 25 268.5 mm 253.33 mm 140 mm 25 mm 115 mm FE (welded hub) 33.09 kg
10331026 26 278.6 mm 263.4 mm 150 mm 25 mm 115 mm FE (welded hub) 36.23 kg
10331027 27 288.6 mm 273.4 mm 150 mm 25 mm 115 mm FE (welded hub) 39.06 kg
10331028 28 298.7 mm 283.56 mm 150 mm 25 mm 115 mm FE (welded hub) 42.0 kg
10331029 29 308.8 mm 293.65 mm 150 mm 25 mm 115 mm FE (welded hub) 45.0 kg —
10331030 30 318.9 mm 303.75 mm 150 mm 25 mm 115 mm FE (welded hub) 48.23 kg
10331031 31 329 mm 313.85 mm 150 mm 25 mm 115 mm FE (welded hub) 51.5 kg —
10331032 32 339.1 mm 323.91 mm 150 mm 30 mm 115 mm FE (welded hub) 54.61 kg
10331033 33 349.2 mm 334.01 mm 150 mm 30 mm 115 mm FE (welded hub) 58.37 kg
10331034 34 359.3 mm 344.1 mm 150 mm 30 mm 115 mm FE (welded hub) 62.06 kg
10331035 35 369.4 mm 354.2 mm 150 mm 30 mm 115 mm FE (welded hub) 65.8 kg
10331036 36 379.5 mm 364.3 mm 150 mm 30 mm 115 mm FE (welded hub) 69.66 kg
10331037 37 389.5 mm 374.39 mm 150 mm 30 mm 115 mm FE (welded hub) 73.0 kg
10331038 38 399.6 mm 384.49 mm 150 mm 30 mm 115 mm FE (welded hub) 77.72 kg
10331040 40 419.8 mm 404.68 mm 150 mm 30 mm 115 mm FE (welded hub) 86.24 kg
10331045 45 470.3 mm 455.17 mm 180 mm 40 mm 115 mm FE (welded hub) 110.41 kg
10331050 50 520.8 mm 505.65 mm 180 mm 40 mm 115 mm FE (welded hub) 136.59 kg
10331057 57 591.5 mm 576.36 mm 180 mm 40 mm 125 mm FE (welded hub) 181.21 kg
10331076 76 783.5 mm 768.32 mm 200 mm 40 mm 140 mm FE (welded hub) 322.03 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
20B-3
Pitch
31.75 mm
