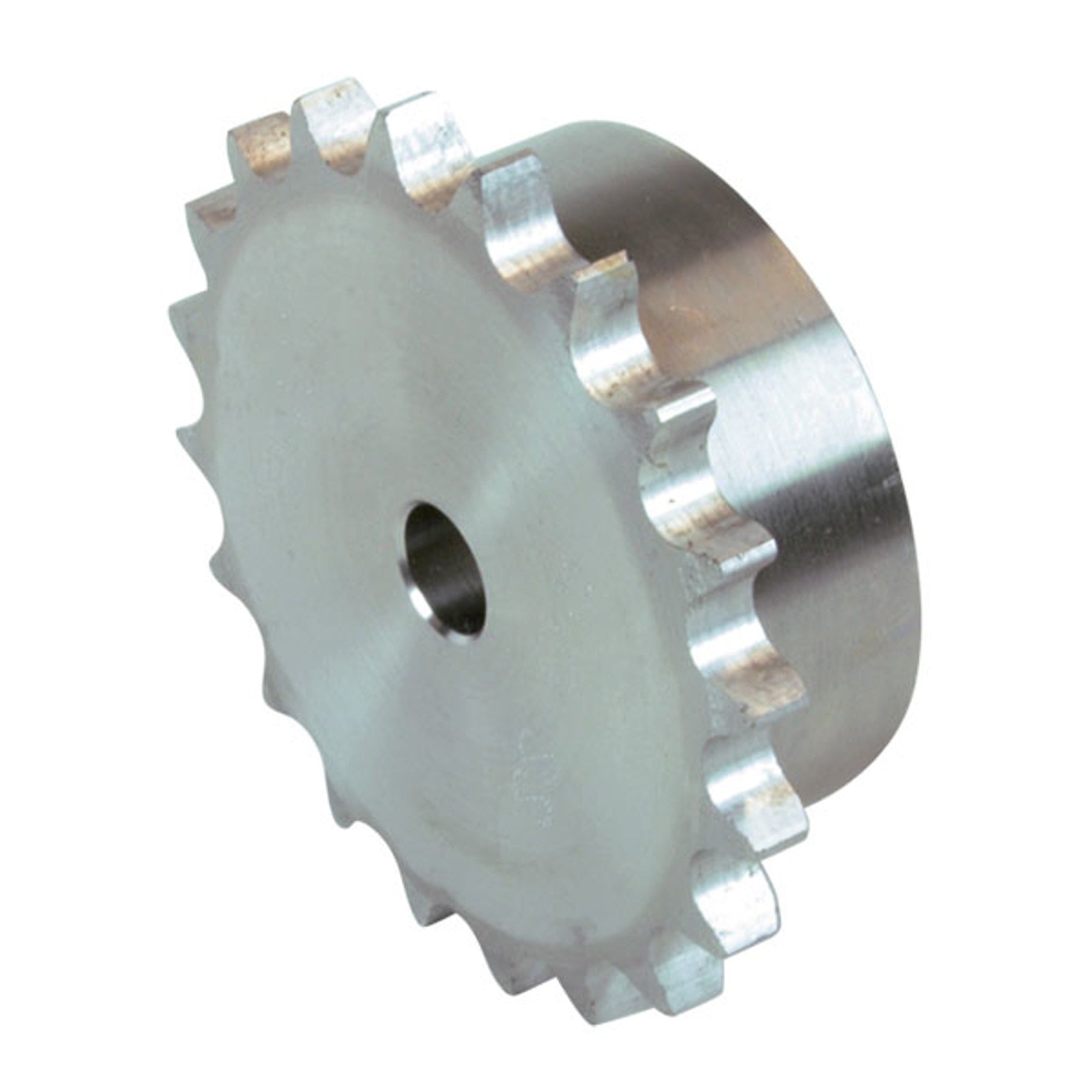

Chiaravalli Chain Sprocket 1” × 17.02 mm Simplex
Chiaravalli

Chain Sprocket 16B-1 Simplex (1” × 17.02 mm)

Simplex chain sprocket for 16B-1 (1” × 17.02 mm) roller chain.

  • Chain inner width: 17.02 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 26 mm
  • Radius width C: 2.5 mm
  • Sprocket tooth width B1: 16.2 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10125008 8 77.49 mm 66.37 mm 42 mm 16 mm 35 mm C 45 UNI 7845 0.47 kg
10125009 9 85.38 mm 74.26 mm 50 mm 16 mm 35 mm C 45 UNI 7845 0.66 kg
10125010 10 93.32 mm 82.2 mm 55 mm 16 mm 35 mm C 45 UNI 7845 0.83 kg
10125011 11 101.28 mm 90.16 mm 61 mm 16 mm 40 mm C 45 UNI 7845 1.14 kg
10125012 12 109.26 mm 98.14 mm 69 mm 16 mm 40 mm C 45 UNI 7845 1.43 kg
10125013 13 117.26 mm 106.14 mm 78 mm 16 mm 40 mm C 45 UNI 7845 1.77 kg
10125014 14 125.27 mm 114.15 mm 84 mm 16 mm 40 mm C 45 UNI 7845 2.08 kg
10125015 15 133.29 mm 122.17 mm 92 mm 20 mm 40 mm C 45 UNI 7845 2.46 kg
10125016 16 141.32 mm 130.2 mm 100 mm 20 mm 45 mm C 45 UNI 7845 3.14 kg
10125017 17 149.35 mm 138.23 mm 100 mm 20 mm 45 mm C 45 UNI 7845 3.33 kg
10125018 18 157.39 mm 146.27 mm 100 mm 20 mm 45 mm C 45 UNI 7845 3.56 kg
10125019 19 165.44 mm 154.32 mm 100 mm 20 mm 45 mm C 45 UNI 7845 3.78 kg
10125020 20 173.49 mm 162.37 mm 100 mm 20 mm 45 mm C 45 UNI 7845 4.03 kg
10125021 21 181.54 mm 170.42 mm 110 mm 20 mm 50 mm C 45 UNI 7845 5.01 kg
10125022 22 189.6 mm 178.48 mm 110 mm 20 mm 50 mm C 45 UNI 7845 5.28 kg
10125023 23 197.66 mm 186.54 mm 110 mm 20 mm 50 mm C 45 UNI 7845 5.56 kg
10125024 24 205.72 mm 194.6 mm 110 mm 20 mm 50 mm C 45 UNI 7845 5.86 kg
10125025 25 213.78 mm 202.66 mm 110 mm 20 mm 50 mm C 45 UNI 7845 6.16 kg
10125026 26 221.84 mm 210.72 mm 120 mm 20 mm 50 mm C 45 UNI 7845 6.96 kg
10125027 27 229.91 mm 218.79 mm 120 mm 20 mm 50 mm C 45 UNI 7845 7.3 kg
10125028 28 237.98 mm 226.86 mm 120 mm 20 mm 50 mm C 45 UNI 7845 7.64 kg
10125029 29 246.05 mm 234.93 mm 120 mm 20 mm 50 mm C 45 UNI 7845 8.0 kg
10125030 30 254.12 mm 243 mm 120 mm 20 mm 50 mm C 45 UNI 7845 8.38 kg
10125031 31 262.19 mm 251.07 mm 120 mm 25 mm 50 mm FE (welded hub) 8.69 kg
10125032 32 270.26 mm 259.14 mm 120 mm 25 mm 50 mm FE (welded hub) 9.09 kg
10125033 33 278.33 mm 267.21 mm 120 mm 25 mm 50 mm FE (welded hub) 9.5 kg
10125034 34 286.4 mm 275.28 mm 120 mm 25 mm 50 mm FE (welded hub) 9.93 kg
10125035 35 294.48 mm 283.36 mm 120 mm 25 mm 50 mm FE (welded hub) 10.36 kg
10125036 36 302.55 mm 291.43 mm 120 mm 25 mm 50 mm FE (welded hub) 10.81 kg
10125037 37 310.63 mm 299.51 mm 120 mm 25 mm 50 mm FE (welded hub) 11.28 kg
10125038 38 318.7 mm 307.58 mm 120 mm 25 mm 50 mm FE (welded hub) 11.76 kg
10125039 39 326.78 mm 315.66 mm 120 mm 25 mm 50 mm FE (welded hub) 12.25 kg
10125040 40 334.86 mm 323.74 mm 120 mm 25 mm 50 mm FE (welded hub) 12.75 kg
10125042 42 351.01 mm 339.89 mm 125 mm 25 mm 70 mm FE (welded hub) 16.54 kg
10125045 45 375.24 mm 364.12 mm 125 mm 25 mm 70 mm FE (welded hub) 18.15 kg
10125048 48 399.48 mm 388.36 mm 125 mm 25 mm 70 mm FE (welded hub) 19.86 kg
10125050 50 415.64 mm 404.52 mm 125 mm 25 mm 70 mm FE (welded hub) 20.89 kg
10125057 57 472.2 mm 461.08 mm 125 mm 30 mm 70 mm FE (welded hub) 25.52 kg
10125060 60 496.45 mm 485.33 mm 125 mm 30 mm 70 mm FE (welded hub) 27.76 kg
10125076 76 625.76 mm 614.64 mm 140 mm 30 mm 80 mm FE (welded hub) 42.97 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
16B-1
Pitch
25.4 mm
