Chain Sprocket 32B-1 Simplex (2” × 1” 1/4)

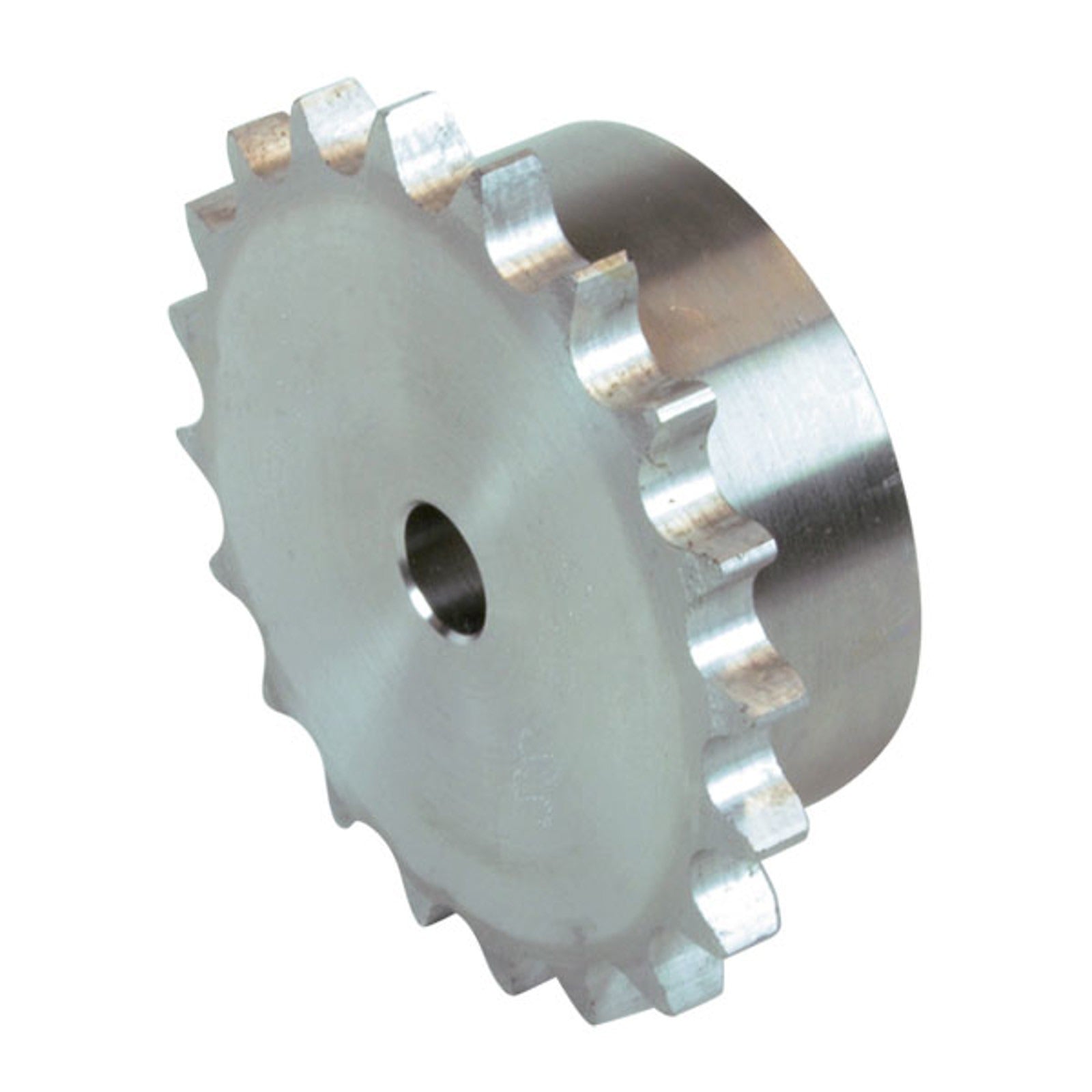

Simplex chain sprocket for 32B-1 (2” × 1” 1/4) roller chain.

Chain inner width: 30.99 mm
Chain roller Ø: 29.21 mm
Tooth radius r3: 51 mm
Radius width C: 5 mm
Sprocket tooth width B1: 29.4 mm

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	D1	A	Material	Weight	CAD
`10150008`	`8`	`153.2` mm	`132.69` mm	`82` mm	`25` mm	`80` mm	`C 45 UNI 7845`	`4.2` kg
`10150009`	`9`	`169` mm	`148.54` mm	`88` mm	`25` mm	`80` mm	`C 45 UNI 7845`	`5.78` kg
`10150010`	`10`	`185` mm	`164.44` mm	`104` mm	`25` mm	`80` mm	`C 45 UNI 7845`	`7.6` kg
`10150011`	`11`	`200.8` mm	`180.34` mm	`120` mm	`30` mm	`80` mm	`C 45 UNI 7845`	`9.26` kg
`10150012`	`12`	`216.8` mm	`196.29` mm	`133` mm	`30` mm	`80` mm	`FE (welded hub)`	`10.91` kg
`10150013`	`13`	`232.8` mm	`212.29` mm	`145` mm	`30` mm	`80` mm	`FE (welded hub)`	`13.05` kg
`10150014`	`14`	`248.8` mm	`228.29` mm	`160` mm	`30` mm	`80` mm	`FE (welded hub)`	`14.25` kg
`10150015`	`15`	`264.8` mm	`244.3` mm	`160` mm	`30` mm	`80` mm	`FE (welded hub)`	`15.53` kg
`10150016`	`16`	`280.9` mm	`260.4` mm	`160` mm	`30` mm	`90` mm	`FE (welded hub)`	`19.87` kg
`10150017`	`17`	`296.9` mm	`276.4` mm	`170` mm	`30` mm	`90` mm	`FE (welded hub)`	`21.35` kg
`10150018`	`18`	`313` mm	`292.55` mm	`170` mm	`30` mm	`90` mm	`FE (welded hub)`	`22.92` kg
`10150019`	`19`	`329.1` mm	`308.66` mm	`170` mm	`30` mm	`90` mm	`FE (welded hub)`	`24.53` kg
`10150020`	`20`	`345.2` mm	`324.71` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`28.5` kg
`10150021`	`21`	`361.3` mm	`340.82` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`30.36` kg
`10150022`	`22`	`377.5` mm	`356.98` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`32.31` kg
`10150023`	`23`	`393.6` mm	`373.08` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`34.36` kg
`10150024`	`24`	`409.7` mm	`389.18` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`36.5` kg
`10150025`	`25`	`425.8` mm	`405.33` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`38.74` kg
`10150026`	`26`	`441.9` mm	`421.44` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`41.07` kg
`10150027`	`27`	`458.1` mm	`437.69` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`46.01` kg	—
`10150028`	`28`	`474.2` mm	`453.69` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`46.01` kg
`10150030`	`30`	`506.5` mm	`486` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`51.34` kg
`10150032`	`32`	`538.8` mm	`518.28` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`59.89` kg
`10150035`	`35`	`589.5` mm	`566.72` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`69.16` kg
`10150038`	`38`	`635.5` mm	`615.14` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`79.28` kg
`10150040`	`40`	`670.3` mm	`647.49` mm	`180` mm	`30` mm	`90` mm	`FE (welded hub)`	`86.5` kg
`10150045`	`45`	`751` mm	`728.26` mm	`180` mm	`40` mm	`100` mm	`FE (welded hub)`	`118.87` kg
`10150050`	`50`	`831.8` mm	`809.04` mm	`180` mm	`40` mm	`100` mm	`FE (welded hub)`	`140.96` kg
`10150057`	`57`	`945` mm	`922.17` mm	`180` mm	`40` mm	`100` mm	`FE (welded hub)`	`175.86` kg
`10150060`	`60`	`993.4` mm	`970.63` mm	`180` mm	`40` mm	`100` mm	`FE (welded hub)`	`192.24` kg
`10150076`	`76`	—	—	`200` mm	`40` mm	`110` mm	`FE (welded hub)`	`294.0` kg

Standard: DIN 8187 - ISO/R 606
Chain Type: 32B-1
Pitch: 50.8 mm
