Chiaravalli

Chain Sprocket 32B-3 Triplex (2” × 1” 1/4)

Triplex chain sprocket for 32B-3 (2” × 1” 1/4) roller chain.

Chain inner width: 30.99 mm
Chain roller Ø: 29.21 mm
Tooth radius r3: 51 mm
Radius width C: 5 mm
Sprocket tooth width b1: 28.8 mm
Sprocket tooth width B3: 146 mm

Select a row to add it to your quote

Teeth

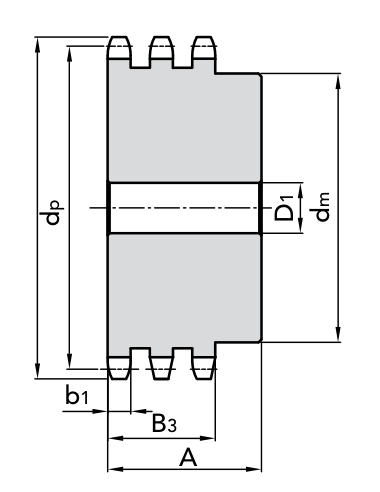

Code	Z	de	dp	dm	D1	A	Material	Weight
`10350008`	`8`	`153.2` mm	`132.69` mm	`82` mm	`30` mm	`180` mm	`C 45 UNI 7845`	`9.9` kg
`10350009`	`9`	`169` mm	`148.54` mm	`88` mm	`30` mm	`180` mm	`C 45 UNI 7845`	`13.65` kg
`10350010`	`10`	`185` mm	`164.44` mm	`104` mm	`30` mm	`180` mm	`C 45 UNI 7845`	`17.97` kg
`10350011`	`11`	`200.8` mm	`180.34` mm	`120` mm	`30` mm	`180` mm	`C 45 UNI 7845`	`22.22` kg
`10350012`	`12`	`216.8` mm	`196.29` mm	`133` mm	`30` mm	`180` mm	`FE (welded hub)`	`27.23` kg
`10350013`	`13`	`232.8` mm	`212.29` mm	`145` mm	`30` mm	`180` mm	`FE (welded hub)`	`32.98` kg
`10350014`	`14`	`248.8` mm	`228.29` mm	`160` mm	`30` mm	`180` mm	`FE (welded hub)`	`38.5` kg
`10350015`	`15`	`264.8` mm	`244.3` mm	`160` mm	`30` mm	`180` mm	`FE (welded hub)`	`45.04` kg
`10350016`	`16`	`280.9` mm	`260.4` mm	`160` mm	`30` mm	`180` mm	`FE (welded hub)`	`51.5` kg
`10350017`	`17`	`296.9` mm	`276.4` mm	`180` mm	`30` mm	`180` mm	`FE (welded hub)`	`61.45` kg
`10350018`	`18`	`313` mm	`292.55` mm	`180` mm	`30` mm	`180` mm	`FE (welded hub)`	`68.85` kg
`10350019`	`19`	`329.1` mm	`308.66` mm	`200` mm	`30` mm	`180` mm	`FE (welded hub)`	`76.73` kg
`10350020`	`20`	`345.2` mm	`324.71` mm	`200` mm	`30` mm	`180` mm	`FE (welded hub)`	`85.07` kg
`10350021`	`21`	`361.3` mm	`340.82` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`93.89` kg
`10350023`	`23`	`393.6` mm	`373.08` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`112.93` kg
`10350025`	`25`	`425.8` mm	`405.33` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`133.86` kg
`10350030`	`30`	`506.5` mm	`486` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`194.42` kg
`10350038`	`38`	`635.5` mm	`615.14` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`316.22` kg
`10350045`	`45`	`751` mm	`728.26` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`456.64` kg
`10350050`	`50`	`831.8` mm	`809.04` mm	`200` mm	`40` mm	`180` mm	`FE (welded hub)`	`564.27` kg
`10350057`	`57`	`945` mm	`922.17` mm	`250` mm	`40` mm	`180` mm	`FE (welded hub)`	`734.72` kg
`10350076`	`76`	—	—	`250` mm	`40` mm	`190` mm	`FE (welded hub)`	`1319.64` kg

Standard: DIN 8187 - ISO/R 606
Chain Type: 32B-3
Pitch: 50.8 mm
