Chiaravalli Chain Sprocket 3/4” × 7/16” Triplex
Chiaravalli

Chain Sprocket 12B-3 Triplex (3/4” × 7/16”)

Triplex chain sprocket for 12B-3 (3/4” × 7/16”) roller chain.

  • Chain inner width: 11.68 mm
  • Chain roller Ø: 12.07 mm
  • Tooth radius r3: 19 mm
  • Radius width C: 2 mm
  • Sprocket tooth width b1: 10.8 mm
  • Sprocket tooth width B3: 49.8 mm

Product Configuration

Select a row to add it to your quote

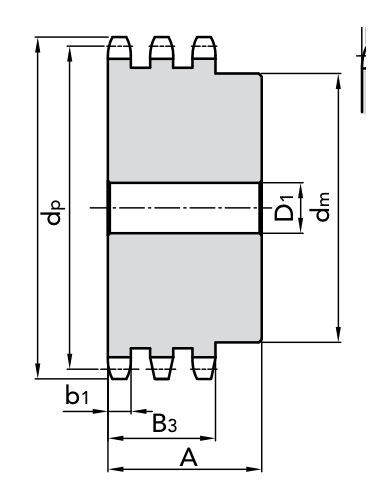

Code ZdedpdmD1AMaterial Weight CAD
10319008 8 57.31 mm 49.78 mm 31 mm 16 mm 65 mm C 45 UNI 7845 0.45 kg
10319009 9 63.23 mm 55.7 mm 37 mm 16 mm 65 mm C 45 UNI 7845 0.64 kg
10319010 10 69.18 mm 61.65 mm 42 mm 16 mm 65 mm C 45 UNI 7845 0.86 kg
10319011 11 75.15 mm 67.62 mm 47 mm 20 mm 70 mm C 45 UNI 7845 1.09 kg
10319012 12 81.13 mm 73.6 mm 53 mm 20 mm 70 mm C 45 UNI 7845 1.39 kg
10319013 13 87.13 mm 79.6 mm 59 mm 20 mm 70 mm C 45 UNI 7845 1.72 kg
10319014 14 93.14 mm 85.61 mm 65 mm 20 mm 70 mm C 45 UNI 7845 2.08 kg
10319015 15 99.16 mm 91.63 mm 71 mm 20 mm 70 mm C 45 UNI 7845 2.47 kg
10319016 16 105.18 mm 97.65 mm 77 mm 20 mm 70 mm C 45 UNI 7845 2.89 kg
10319017 17 111.2 mm 103.67 mm 83 mm 20 mm 70 mm C 45 UNI 7845 3.34 kg
10319018 18 117.23 mm 109.7 mm 89 mm 20 mm 70 mm C 45 UNI 7845 3.83 kg
10319019 19 123.27 mm 115.74 mm 95 mm 20 mm 70 mm C 45 UNI 7845 4.35 kg
10319020 20 129.31 mm 121.78 mm 100 mm 20 mm 70 mm C 45 UNI 7845 4.87 kg
10319021 21 135.35 mm 127.82 mm 100 mm 20 mm 70 mm C 45 UNI 7845 5.2 kg
10319022 22 141.39 mm 133.86 mm 100 mm 20 mm 70 mm C 45 UNI 7845 5.65 kg
10319023 23 147.43 mm 139.9 mm 110 mm 20 mm 70 mm C 45 UNI 7845 6.38 kg
10319024 24 153.48 mm 145.95 mm 110 mm 20 mm 70 mm C 45 UNI 7845 6.87 kg
10319025 25 159.52 mm 151.99 mm 120 mm 20 mm 70 mm C 45 UNI 7845 7.77 kg
10319026 26 165.57 mm 158.04 mm 120 mm 20 mm 70 mm C 45 UNI 7845 8.21 kg
10319027 27 171.62 mm 164.09 mm 120 mm 20 mm 70 mm C 45 UNI 7845 8.77 kg
10319028 28 177.67 mm 170.14 mm 120 mm 20 mm 70 mm C 45 UNI 7845 9.35 kg
10319029 29 183.72 mm 176.19 mm 120 mm 20 mm 70 mm C 45 UNI 7845 9.96 kg
10319030 30 189.78 mm 182.25 mm 120 mm 20 mm 70 mm C 45 UNI 7845 10.59 kg
10319031 31 195.83 mm 188.3 mm 130 mm 25 mm 70 mm C 45 UNI 7845 11.55 kg
10319032 32 201.88 mm 194.35 mm 130 mm 25 mm 70 mm C 45 UNI 7845 12.22 kg
10319033 33 207.94 mm 200.41 mm 130 mm 25 mm 70 mm C 45 UNI 7845 12.92 kg
10319034 34 213.99 mm 206.46 mm 130 mm 25 mm 70 mm C 45 UNI 7845 13.64 kg
10319035 35 220.05 mm 212.52 mm 130 mm 25 mm 70 mm C 45 UNI 7845 14.38 kg
10319036 36 226.1 mm 218.57 mm 130 mm 25 mm 70 mm C 45 UNI 7845 15.14 kg
10319037 37 232.16 mm 224.63 mm 130 mm 25 mm 70 mm C 45 UNI 7845 15.93 kg
10319038 38 238.22 mm 230.69 mm 130 mm 25 mm 70 mm C 45 UNI 7845 16.73 kg
10319039 39 244.27 mm 236.74 mm 130 mm 25 mm 70 mm C 45 UNI 7845 17.57 kg
10319040 40 250.33 mm 242.8 mm 130 mm 25 mm 70 mm C 45 UNI 7845 18.42 kg
10319045 45 280.62 mm 273.09 mm 140 mm 25 mm 70 mm FE (welded hub) 23.55 kg
10319050 50 310.92 mm 303.39 mm 140 mm 25 mm 70 mm FE (welded hub) 28.73 kg
10319057 57 353.34 mm 345.81 mm 140 mm 25 mm 70 mm FE (welded hub) 37.16 kg
10319060 60 371.52 mm 363.99 mm 140 mm 30 mm 70 mm FE (welded hub) 41.01 kg
10319076 76 468.51 mm 460.98 mm 140 mm 30 mm 70 mm FE (welded hub) 65.41 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
12B-3
Pitch
19.05 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
