Chiaravalli Chain Sprocket 3/8” × 7/32” Simplex
Chiaravalli

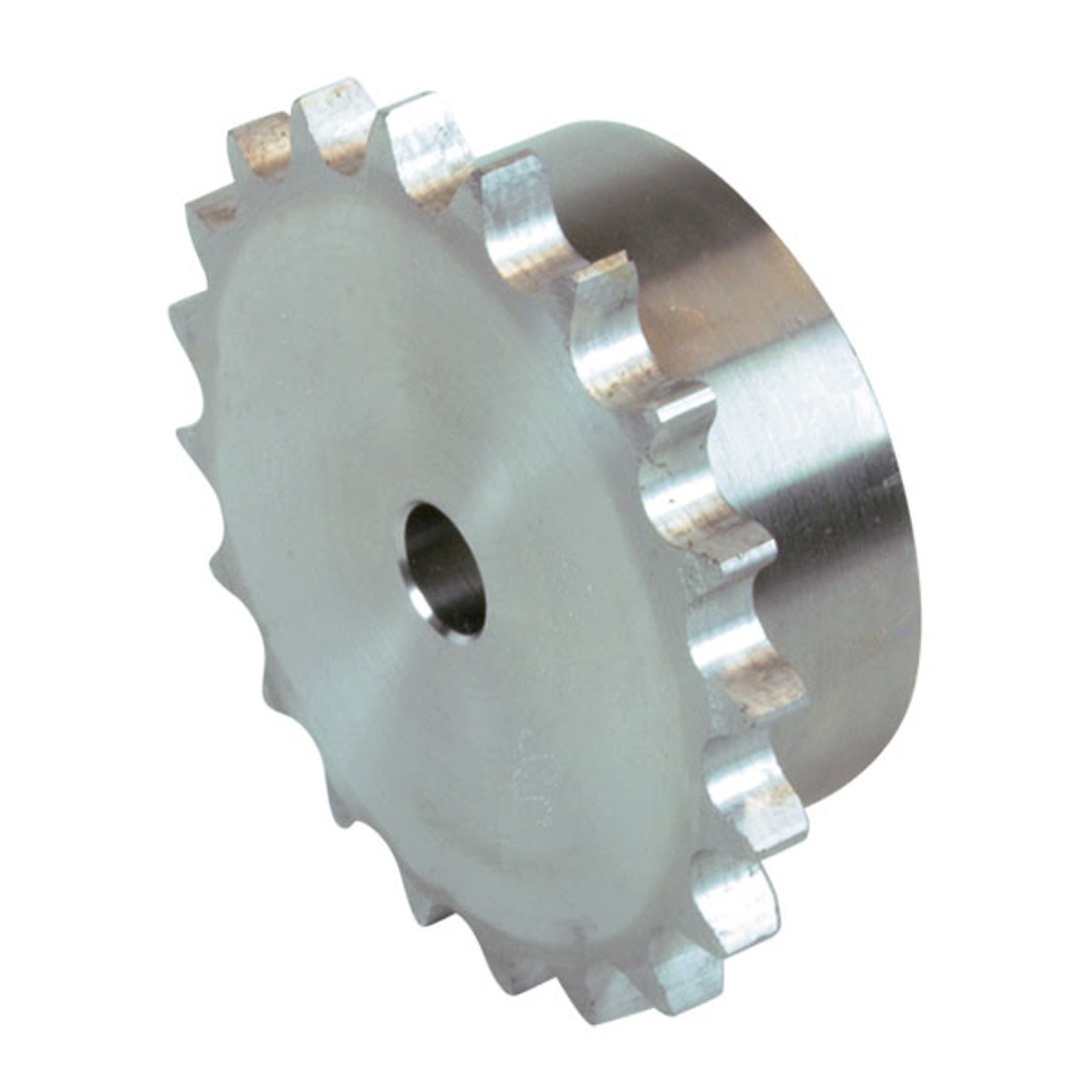

Chain Sprocket 06B-1 Simplex (3/8” × 7/32”)

Simplex chain sprocket for 06B-1 (3/8” × 7/32”) roller chain.

  • Chain inner width: 5.72 mm
  • Chain roller Ø: 6.35 mm
  • Tooth radius r3: 10 mm
  • Radius width C: 1 mm
  • Sprocket tooth width B1: 5.3 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10109008 8 28.54 mm 24.89 mm 15 mm 6 mm 22 mm C 45 UNI 7845 0.03 kg
10109009 9 31.5 mm 27.85 mm 18 mm 8 mm 22 mm C 45 UNI 7845 0.04 kg
10109010 10 34.47 mm 30.82 mm 20 mm 8 mm 22 mm C 45 UNI 7845 0.05 kg
10109011 11 37.46 mm 33.81 mm 22 mm 8 mm 25 mm C 45 UNI 7845 0.08 kg
10109012 12 40.45 mm 36.8 mm 25 mm 8 mm 25 mm C 45 UNI 7845 0.1 kg
10109013 13 43.45 mm 39.8 mm 28 mm 10 mm 25 mm C 45 UNI 7845 0.13 kg
10109014 14 46.45 mm 42.8 mm 31 mm 10 mm 25 mm C 45 UNI 7845 0.16 kg
10109015 15 49.46 mm 45.81 mm 34 mm 10 mm 25 mm C 45 UNI 7845 0.19 kg
10109016 16 52.47 mm 48.82 mm 37 mm 10 mm 28 mm C 45 UNI 7845 0.24 kg
10109017 17 55.49 mm 51.84 mm 40 mm 10 mm 28 mm C 45 UNI 7845 0.28 kg
10109018 18 58.5 mm 54.85 mm 43 mm 10 mm 28 mm C 45 UNI 7845 0.33 kg
10109019 19 61.52 mm 57.87 mm 45 mm 10 mm 28 mm C 45 UNI 7845 0.36 kg
10109020 20 64.54 mm 60.89 mm 46 mm 10 mm 28 mm C 45 UNI 7845 0.39 kg
10109021 21 67.56 mm 63.91 mm 48 mm 12 mm 28 mm C 45 UNI 7845 0.42 kg
10109022 22 70.58 mm 66.93 mm 50 mm 12 mm 28 mm C 45 UNI 7845 0.46 kg
10109023 23 73.6 mm 69.95 mm 52 mm 12 mm 28 mm C 45 UNI 7845 0.5 kg
10109024 24 76.62 mm 72.97 mm 54 mm 12 mm 28 mm C 45 UNI 7845 0.54 kg
10109025 25 79.65 mm 76 mm 57 mm 12 mm 28 mm C 45 UNI 7845 0.6 kg
10109026 26 82.67 mm 79.02 mm 60 mm 12 mm 28 mm C 45 UNI 7845 0.66 kg
10109027 27 85.7 mm 82.05 mm 60 mm 12 mm 28 mm C 45 UNI 7845 0.67 kg
10109028 28 88.72 mm 85.07 mm 60 mm 12 mm 28 mm C 45 UNI 7845 0.69 kg
10109029 29 91.75 mm 88.1 mm 60 mm 12 mm 28 mm C 45 UNI 7845 0.7 kg
10109030 30 94.77 mm 91.12 mm 60 mm 12 mm 30 mm C 45 UNI 7845 0.72 kg
10109031 31 97.8 mm 94.15 mm 65 mm 14 mm 30 mm C 45 UNI 7845 0.87 kg
10109032 32 100.83 mm 97.18 mm 65 mm 14 mm 30 mm C 45 UNI 7845 0.89 kg
10109033 33 103.85 mm 100.2 mm 65 mm 14 mm 30 mm C 45 UNI 7845 0.91 kg
10109034 34 106.88 mm 103.23 mm 65 mm 14 mm 30 mm C 45 UNI 7845 0.92 kg
10109035 35 109.91 mm 106.26 mm 65 mm 14 mm 30 mm C 45 UNI 7845 0.95 kg
10109036 36 112.94 mm 109.29 mm 70 mm 16 mm 30 mm C 45 UNI 7845 1.05 kg
10109037 37 115.97 mm 112.32 mm 70 mm 16 mm 30 mm C 45 UNI 7845 1.09 kg
10109038 38 118.99 mm 115.34 mm 70 mm 16 mm 30 mm C 45 UNI 7845 1.1 kg
10109039 39 122.02 mm 118.37 mm 70 mm 16 mm 30 mm C 45 UNI 7845 1.12 kg
10109040 40 125.05 mm 121.4 mm 70 mm 16 mm 30 mm C 45 UNI 7845 1.14 kg
10109042 42 131.11 mm 127.46 mm 80 mm 16 mm 35 mm C 45 UNI 7845 1.56 kg
10109045 45 140.2 mm 136.55 mm 80 mm 16 mm 35 mm FE (welded hub) 1.66 kg
10109048 48 149.29 mm 145.64 mm 80 mm 16 mm 35 mm FE (welded hub) 1.75 kg
10109050 50 155.34 mm 151.69 mm 80 mm 16 mm 35 mm FE (welded hub) 1.8 kg
10109057 57 176.56 mm 172.91 mm 80 mm 16 mm 35 mm FE (welded hub) 1.96 kg
10109060 60 185.65 mm 182 mm 80 mm 16 mm 35 mm FE (welded hub) 2.03 kg
10109076 76 234.14 mm 230.49 mm 80 mm 20 mm 35 mm FE (welded hub) 2.67 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
06B-1
Pitch
9.525 mm
