Chiaravalli Chain Sprocket 3/8” × 7/32” Triplex
Chiaravalli

Chain Sprocket 06B-3 Triplex (3/8” × 7/32”)

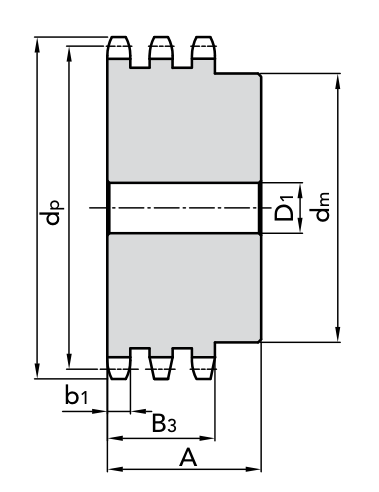

Triplex chain sprocket for 06B-3 (3/8” × 7/32”) roller chain.

  • Chain inner width: 5.72 mm
  • Chain roller Ø: 6.35 mm
  • Tooth radius r3: 10 mm
  • Radius width C: 1 mm
  • Sprocket tooth width b1: 5.2 mm
  • Sprocket tooth width B3: 25.6 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10309008 8 28.54 mm 24.89 mm 15 mm 6 mm 32 mm C 45 UNI 7845 0.05 kg
10309009 9 31.5 mm 27.85 mm 18 mm 8 mm 32 mm C 45 UNI 7845 0.06 kg
10309010 10 34.47 mm 30.82 mm 20 mm 10 mm 32 mm C 45 UNI 7845 0.09 kg
10309011 11 37.46 mm 33.81 mm 22 mm 10 mm 35 mm C 45 UNI 7845 0.11 kg
10309012 12 40.45 mm 36.8 mm 25 mm 10 mm 35 mm C 45 UNI 7845 0.15 kg
10309013 13 43.45 mm 39.8 mm 28 mm 10 mm 35 mm C 45 UNI 7845 0.18 kg
10309014 14 46.45 mm 42.8 mm 31 mm 12 mm 35 mm C 45 UNI 7845 0.23 kg
10309015 15 49.46 mm 45.81 mm 34 mm 12 mm 35 mm C 45 UNI 7845 0.27 kg
10309016 16 52.47 mm 48.82 mm 37 mm 12 mm 35 mm C 45 UNI 7845 0.35 kg
10309017 17 55.49 mm 51.84 mm 40 mm 12 mm 35 mm C 45 UNI 7845 0.4 kg
10309018 18 58.5 mm 54.85 mm 43 mm 12 mm 35 mm C 45 UNI 7845 0.45 kg
10309019 19 61.52 mm 57.87 mm 46 mm 12 mm 35 mm C 45 UNI 7845 0.5 kg
10309020 20 64.54 mm 60.89 mm 49 mm 12 mm 35 mm C 45 UNI 7845 0.55 kg
10309021 21 67.56 mm 63.91 mm 52 mm 14 mm 40 mm C 45 UNI 7845 0.7 kg
10309022 22 70.58 mm 66.93 mm 55 mm 14 mm 40 mm C 45 UNI 7845 0.8 kg
10309023 23 73.6 mm 69.95 mm 58 mm 14 mm 40 mm C 45 UNI 7845 0.9 kg
10309024 24 76.62 mm 72.97 mm 61 mm 14 mm 40 mm C 45 UNI 7845 0.98 kg
10309025 25 79.65 mm 76 mm 64 mm 14 mm 40 mm C 45 UNI 7845 1.05 kg
10309026 26 82.67 mm 79.02 mm 67 mm 14 mm 40 mm C 45 UNI 7845 1.15 kg
10309027 27 85.7 mm 82.05 mm 70 mm 14 mm 40 mm C 45 UNI 7845 1.25 kg
10309028 28 88.72 mm 85.07 mm 73 mm 14 mm 40 mm C 45 UNI 7845 1.35 kg
10309029 29 91.75 mm 88.1 mm 76 mm 14 mm 40 mm C 45 UNI 7845 1.46 kg
10309030 30 94.77 mm 91.12 mm 79 mm 14 mm 40 mm C 45 UNI 7845 1.6 kg
10309031 31 97.8 mm 94.15 mm 80 mm 16 mm 40 mm C 45 UNI 7845 1.7 kg
10309032 32 100.83 mm 97.18 mm 80 mm 16 mm 40 mm C 45 UNI 7845 1.77 kg
10309033 33 103.85 mm 100.2 mm 80 mm 16 mm 40 mm C 45 UNI 7845 1.85 kg
10309034 34 106.88 mm 103.23 mm 85 mm 16 mm 40 mm C 45 UNI 7845 2.0 kg
10309035 35 109.91 mm 106.26 mm 85 mm 16 mm 40 mm C 45 UNI 7845 2.15 kg
10309036 36 112.94 mm 109.29 mm 90 mm 16 mm 40 mm C 45 UNI 7845 2.25 kg
10309037 37 115.97 mm 112.32 mm 90 mm 16 mm 40 mm C 45 UNI 7845 2.3 kg
10309038 38 118.99 mm 115.34 mm 90 mm 16 mm 40 mm C 45 UNI 7845 2.55 kg
10309039 39 122.02 mm 118.37 mm 90 mm 16 mm 40 mm C 45 UNI 7845 2.65 kg
10309040 40 125.05 mm 121.4 mm 90 mm 16 mm 40 mm C 45 UNI 7845 2.8 kg
10309045 45 140.2 mm 136.55 mm 90 mm 16 mm 56 mm FE (welded hub) 4.72 kg
10309050 50 155.34 mm 151.69 mm 90 mm 16 mm 56 mm FE (welded hub) 5.29 kg
10309057 57 176.56 mm 172.91 mm 90 mm 16 mm 56 mm FE (welded hub) 6.24 kg
10309060 60 185.65 mm 182 mm 90 mm 20 mm 56 mm FE (welded hub) 6.67 kg
10309076 76 234.14 mm 230.49 mm 100 mm 20 mm 56 mm FE (welded hub) 9.34 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
06B-3
Pitch
9.525 mm
