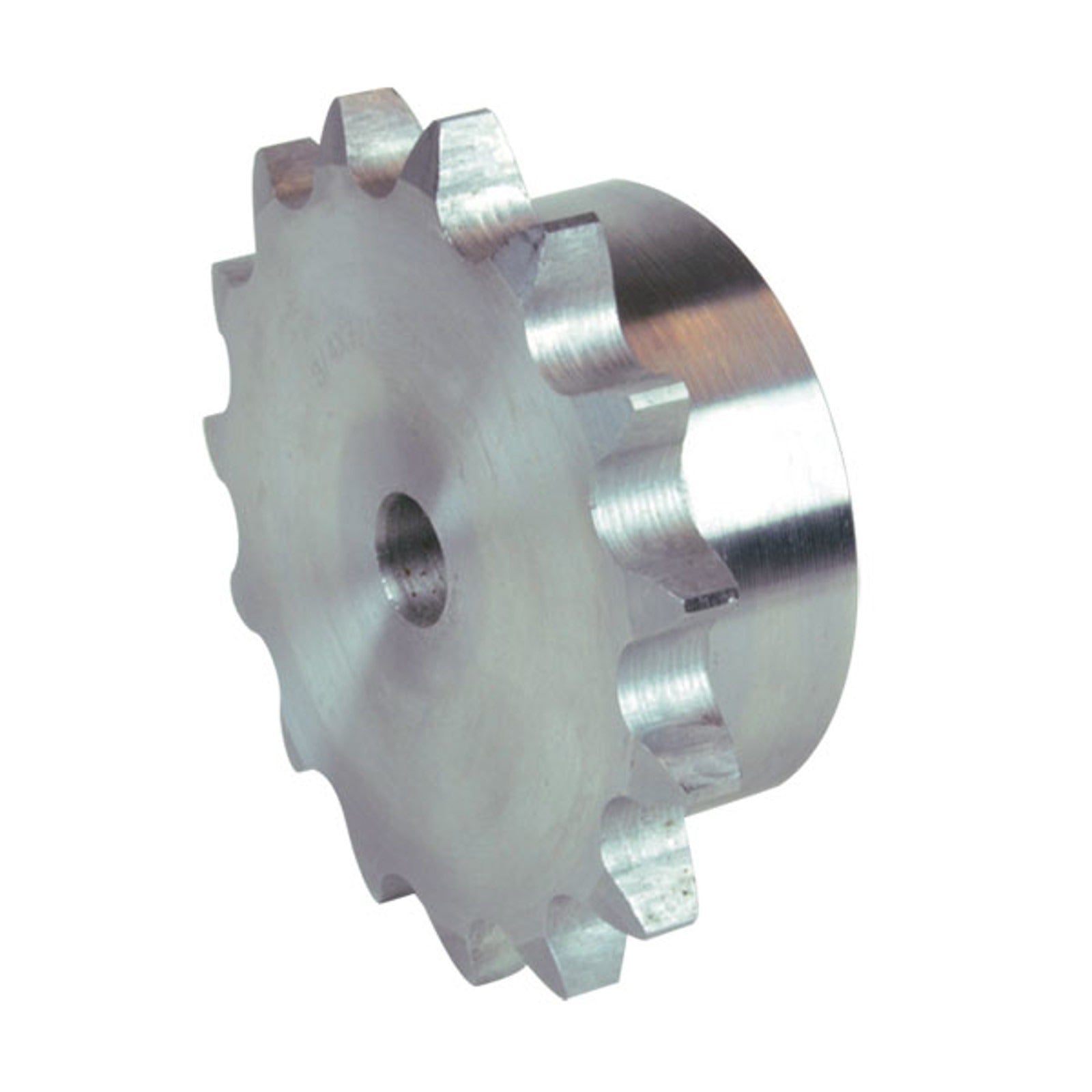

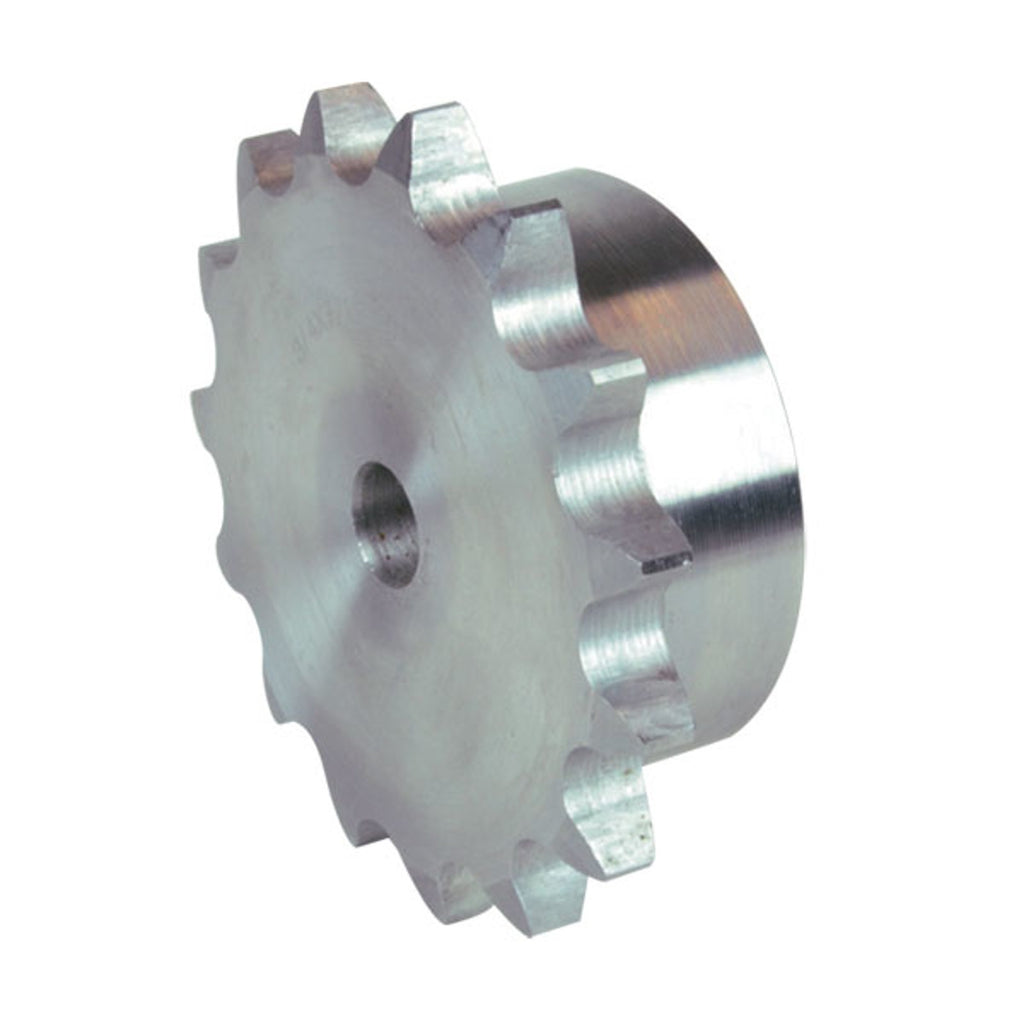

Chiaravalli Chain Sprocket 5/8” × 3/8” Simplex
Chiaravalli

Chain Sprocket 10B-1 Simplex (5/8” × 3/8”)

Simplex chain sprocket for 10B-1 (5/8” × 3/8”) roller chain.

  • Chain inner width: 9.65 mm
  • Chain roller Ø: 10.16 mm
  • Tooth radius r3: 16 mm
  • Radius width C: 1.6 mm
  • Sprocket tooth width B1: 9.1 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1AMaterial Weight CAD
10115008 8 48.32 mm 41.48 mm 25 mm 10 mm 25 mm C 45 UNI 7845 0.12 kg
10115009 9 53.26 mm 46.42 mm 30 mm 10 mm 25 mm C 45 UNI 7845 0.16 kg
10115010 10 58.21 mm 51.37 mm 35 mm 10 mm 25 mm C 45 UNI 7845 0.22 kg
10115011 11 63.19 mm 56.35 mm 37 mm 12 mm 30 mm C 45 UNI 7845 0.29 kg
10115012 12 68.18 mm 61.34 mm 42 mm 12 mm 30 mm C 45 UNI 7845 0.37 kg
10115013 13 73.17 mm 66.33 mm 47 mm 12 mm 30 mm C 45 UNI 7845 0.46 kg
10115014 14 78.18 mm 71.34 mm 52 mm 12 mm 30 mm C 45 UNI 7845 0.56 kg
10115015 15 83.19 mm 76.35 mm 57 mm 12 mm 30 mm C 45 UNI 7845 0.67 kg
10115016 16 88.21 mm 81.37 mm 60 mm 12 mm 30 mm C 45 UNI 7845 0.76 kg
10115017 17 93.23 mm 86.39 mm 60 mm 12 mm 30 mm C 45 UNI 7845 0.88 kg
10115018 18 98.26 mm 91.42 mm 70 mm 14 mm 30 mm C 45 UNI 7845 1.01 kg
10115019 19 103.29 mm 96.45 mm 70 mm 14 mm 30 mm C 45 UNI 7845 1.15 kg
10115020 20 108.32 mm 101.48 mm 75 mm 14 mm 30 mm C 45 UNI 7845 1.21 kg
10115021 21 113.35 mm 106.51 mm 75 mm 16 mm 30 mm C 45 UNI 7845 1.35 kg
10115022 22 118.39 mm 111.55 mm 80 mm 16 mm 30 mm C 45 UNI 7845 1.41 kg
10115023 23 123.43 mm 116.59 mm 80 mm 16 mm 30 mm C 45 UNI 7845 1.47 kg
10115024 24 128.46 mm 121.62 mm 80 mm 16 mm 30 mm C 45 UNI 7845 1.54 kg
10115025 25 133.5 mm 126.66 mm 80 mm 16 mm 30 mm C 45 UNI 7845 1.6 kg
10115026 26 138.54 mm 131.7 mm 85 mm 20 mm 35 mm C 45 UNI 7845 1.96 kg
10115027 27 143.58 mm 136.74 mm 85 mm 20 mm 35 mm C 45 UNI 7845 2.04 kg
10115028 28 148.63 mm 141.79 mm 90 mm 20 mm 35 mm C 45 UNI 7845 2.25 kg
10115029 29 153.67 mm 146.83 mm 90 mm 20 mm 35 mm C 45 UNI 7845 2.33 kg
10115030 30 158.71 mm 151.87 mm 90 mm 20 mm 35 mm C 45 UNI 7845 2.41 kg
10115031 31 163.76 mm 156.92 mm 95 mm 20 mm 35 mm C 45 UNI 7845 2.64 kg
10115032 32 168.8 mm 161.96 mm 95 mm 20 mm 35 mm C 45 UNI 7845 2.73 kg
10115033 33 173.85 mm 167.01 mm 95 mm 20 mm 35 mm C 45 UNI 7845 2.82 kg
10115034 34 178.89 mm 172.05 mm 95 mm 20 mm 35 mm C 45 UNI 7845 2.92 kg
10115035 35 183.94 mm 177.1 mm 95 mm 20 mm 35 mm C 45 UNI 7845 3.01 kg
10115036 36 188.99 mm 182.15 mm 100 mm 20 mm 35 mm C 45 UNI 7845 3.27 kg
10115037 37 194.03 mm 187.19 mm 100 mm 20 mm 35 mm C 45 UNI 7845 3.37 kg
10115038 38 199.08 mm 192.24 mm 100 mm 20 mm 35 mm C 45 UNI 7845 3.47 kg
10115039 39 204.13 mm 197.29 mm 100 mm 20 mm 35 mm C 45 UNI 7845 3.58 kg
10115040 40 209.17 mm 202.33 mm 100 mm 20 mm 35 mm C 45 UNI 7845 3.69 kg
10115042 42 219.27 mm 212.43 mm 100 mm 20 mm 40 mm FE (welded hub) 4.73 kg
10115045 45 234.42 mm 227.58 mm 100 mm 20 mm 40 mm FE (welded hub) 5.09 kg
10115048 48 249.57 mm 242.73 mm 100 mm 20 mm 40 mm FE (welded hub) 5.43 kg
10115050 50 259.66 mm 252.82 mm 100 mm 20 mm 40 mm FE (welded hub) 5.7 kg
10115057 57 295.02 mm 288.18 mm 100 mm 20 mm 40 mm FE (welded hub) 6.66 kg
10115060 60 310.17 mm 303.33 mm 100 mm 20 mm 40 mm FE (welded hub) 7.15 kg
10115076 76 390.99 mm 384.15 mm 100 mm 20 mm 50 mm FE (welded hub) 10.28 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
10B-1
Pitch
15.875 mm
