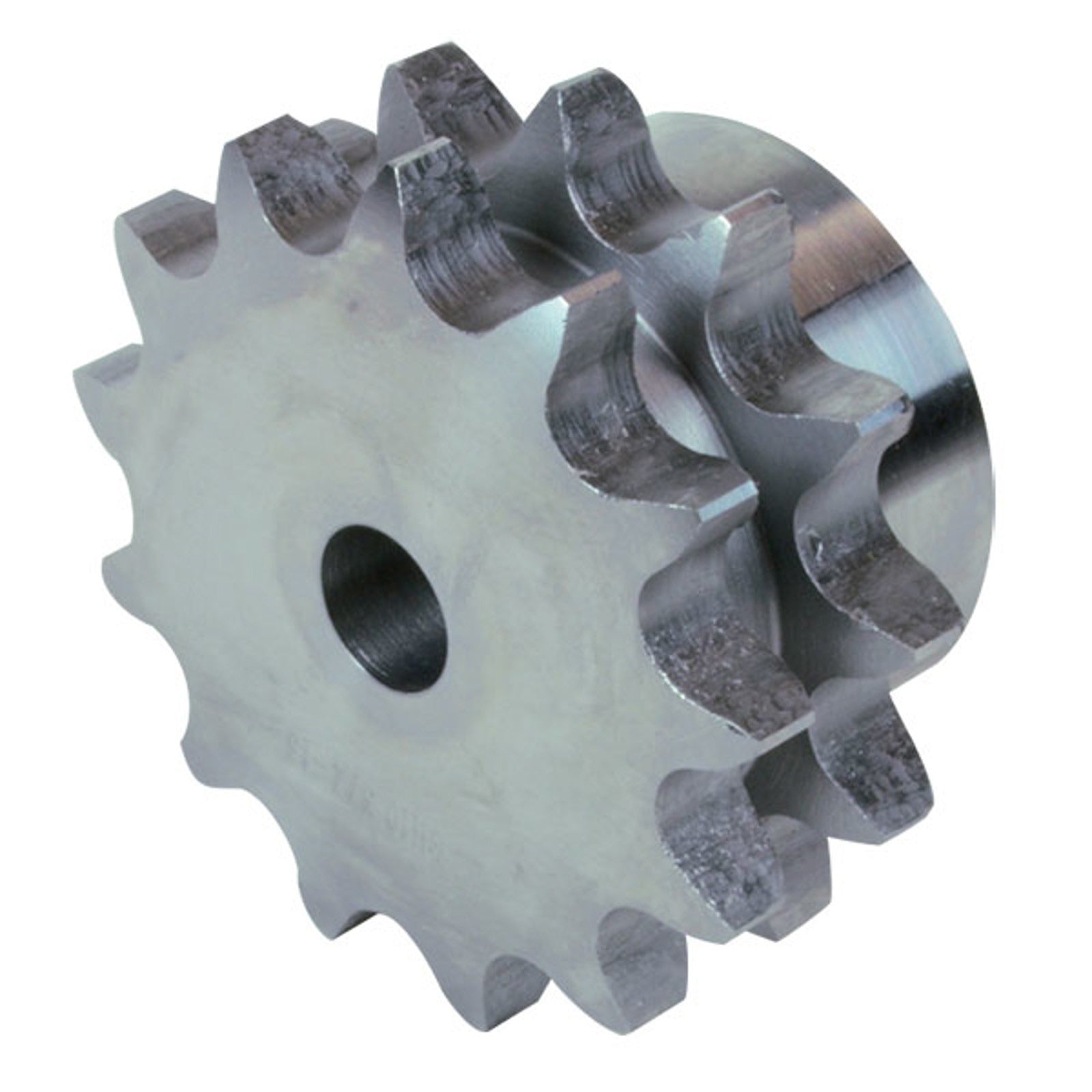

Chiaravalli Chain Sprocket 8 × 3 mm Duplex
Chiaravalli

Chain Sprocket 05B-2 Duplex (8 × 3 mm)

Duplex chain sprocket for 05B-2 (8 × 3 mm) roller chain.

  • Chain inner width: 3 mm
  • Chain roller Ø: 5 mm
  • Tooth radius r3: 8 mm
  • Radius width C: 1 mm
  • Sprocket tooth width b1: 2.7 mm
  • Sprocket tooth width B2: 8.3 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
10208008 8 24 mm 20.9 mm 12 mm 8 mm 18 mm 0.02 kg
10208009 9 26.6 mm 23.39 mm 15 mm 8 mm 18 mm 0.03 kg
10208010 10 29.2 mm 25.89 mm 17 mm 8 mm 18 mm 0.03 kg
10208011 11 31.7 mm 28.39 mm 19 mm 10 mm 18 mm 0.04 kg
10208012 12 34.2 mm 30.91 mm 21 mm 10 mm 18 mm 0.05 kg
10208013 13 36.7 mm 33.42 mm 24 mm 10 mm 18 mm 0.07 kg
10208014 14 39.2 mm 35.95 mm 26 mm 10 mm 18 mm 0.08 kg
10208015 15 41.7 mm 38.48 mm 29 mm 10 mm 18 mm 0.1 kg
10208016 16 44.3 mm 41.01 mm 32 mm 10 mm 20 mm 0.13 kg
10208017 17 46.8 mm 43.53 mm 34 mm 10 mm 20 mm 0.15 kg
10208018 18 49.3 mm 46.07 mm 37 mm 10 mm 20 mm 0.17 kg
10208019 19 51.9 mm 48.61 mm 39 mm 10 mm 20 mm 0.2 kg
10208020 20 54.4 mm 51.14 mm 40 mm 10 mm 20 mm 0.21 kg
10208021 21 57 mm 53.68 mm 40 mm 10 mm 20 mm 0.25 kg
10208022 22 59.5 mm 56.21 mm 40 mm 10 mm 20 mm 0.26 kg
10208023 23 62 mm 58.75 mm 40 mm 10 mm 20 mm 0.28 kg
10208024 24 64.6 mm 61.29 mm 40 mm 10 mm 20 mm 0.23 kg
10208025 25 67.5 mm 63.83 mm 40 mm 10 mm 20 mm 0.31 kg
10208026 26 69.5 mm 66.37 mm 50 mm 12 mm 22 mm 0.38 kg
10208027 27 72.2 mm 68.91 mm 50 mm 12 mm 22 mm 0.4 kg
10208028 28 74.8 mm 71.45 mm 50 mm 12 mm 22 mm 0.42 kg
10208029 29 77.3 mm 73.99 mm 50 mm 12 mm 22 mm 0.44 kg
10208030 30 79.8 mm 76.53 mm 50 mm 12 mm 22 mm 0.45 kg
10208031 31 82.4 mm 79.08 mm 60 mm 12 mm 22 mm 0.58 kg
10208032 32 84.9 mm 81.61 mm 60 mm 12 mm 22 mm 0.59 kg
10208033 33 87.5 mm 84.16 mm 60 mm 12 mm 22 mm 0.62 kg
10208034 34 90 mm 86.7 mm 60 mm 12 mm 22 mm 0.64 kg
10208035 35 92.5 mm 89.25 mm 60 mm 12 mm 22 mm 0.65 kg
10208036 36 95 mm 91.79 mm 60 mm 12 mm 22 mm 0.67 kg
10208037 37 97.6 mm 94.33 mm 60 mm 12 mm 22 mm 0.71 kg
10208038 38 100.2 mm 96.88 mm 60 mm 12 mm 22 mm 0.72 kg
10208039 39 102.7 mm 99.42 mm 60 mm 12 mm 22 mm 0.74 kg
10208040 40 105.3 mm 101.97 mm 60 mm 12 mm 22 mm 0.77 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8187 - ISO/R 606
Chain Type
05B-2
Pitch
8.0 mm
