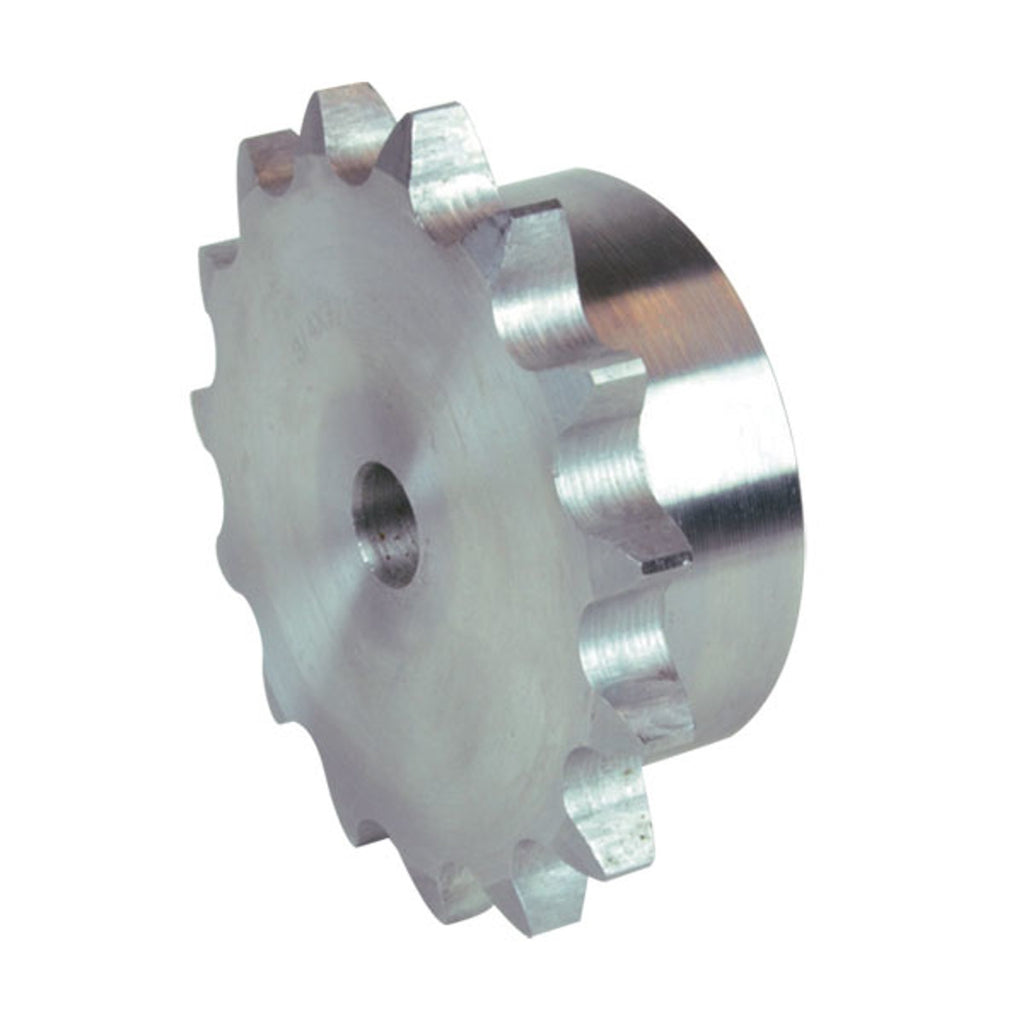

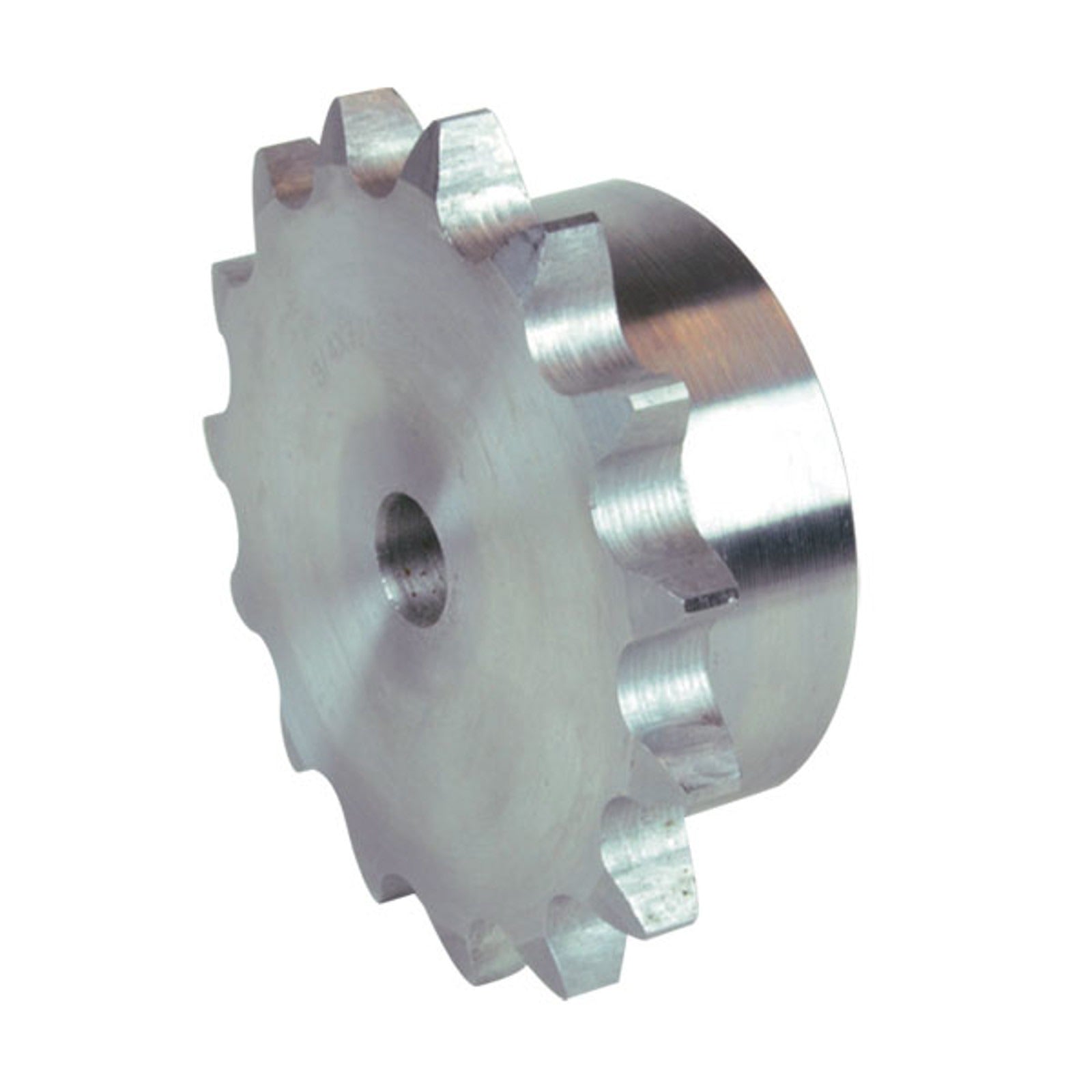

Chiaravalli Chain Sprocket ASA 100 Simplex
Chiaravalli

Chain Sprocket ASA 100 Simplex

Simplex chain sprocket for ANSI 100-1 (ASA 100) roller chain.

  • Chain inner width: 19.05 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 33.5 mm
  • Radius width C: 4 mm
  • Sprocket tooth width B1: 18 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11110008 8 98.1 mm 82.96 mm 53 mm 20 mm 40 mm 0.85 kg
11110009 9 108 mm 92.84 mm 63 mm 20 mm 40 mm 1.18 kg
11110010 10 117.9 mm 102.74 mm 70 mm 20 mm 40 mm 1.57 kg
11110011 11 127.8 mm 112.68 mm 77 mm 20 mm 45 mm 2.04 kg
11110012 12 137.8 mm 122.68 mm 88 mm 20 mm 45 mm 2.58 kg
11110013 13 147.8 mm 132.65 mm 98 mm 20 mm 45 mm 3.15 kg
11110014 14 157.8 mm 142.68 mm 108 mm 20 mm 45 mm 3.78 kg
11110015 15 167.9 mm 152.72 mm 118 mm 20 mm 45 mm 4.47 kg
11110016 16 177.9 mm 162.75 mm 120 mm 25 mm 50 mm 5.25 kg
11110017 17 187.9 mm 172.78 mm 120 mm 25 mm 50 mm 5.61 kg
11110018 18 198 mm 182.85 mm 120 mm 25 mm 50 mm 5.99 kg
11110019 19 208.1 mm 192.91 mm 120 mm 25 mm 50 mm 6.4 kg
11110020 20 218.1 mm 202.95 mm 120 mm 25 mm 50 mm 6.82 kg
11110021 21 228.2 mm 213.04 mm 140 mm 25 mm 55 mm 8.79 kg
11110022 22 238.3 mm 223.11 mm 140 mm 25 mm 55 mm 9.27 kg
11110023 23 248.3 mm 233.17 mm 140 mm 25 mm 55 mm 9.77 kg
11110024 24 258.4 mm 243.23 mm 140 mm 25 mm 55 mm 10.3 kg
11110025 25 268.5 mm 253.33 mm 140 mm 25 mm 55 mm 10.85 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 100-1
Pitch
31.75 mm
