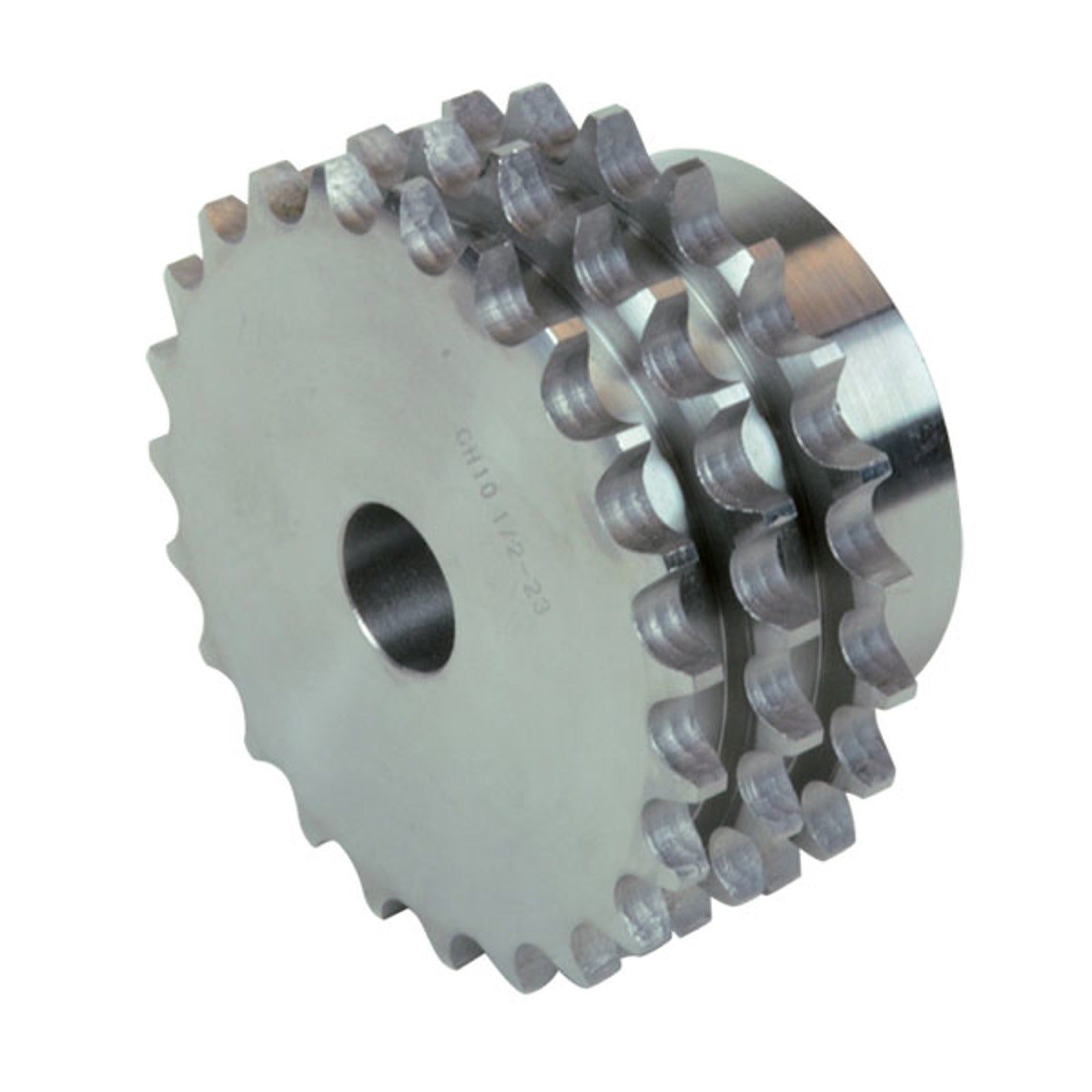

Chiaravalli Chain Sprocket ASA 100 Triplex
Chiaravalli

Chain Sprocket ASA 100 Triplex

Triplex chain sprocket for ANSI 100-3 (ASA 100) roller chain.

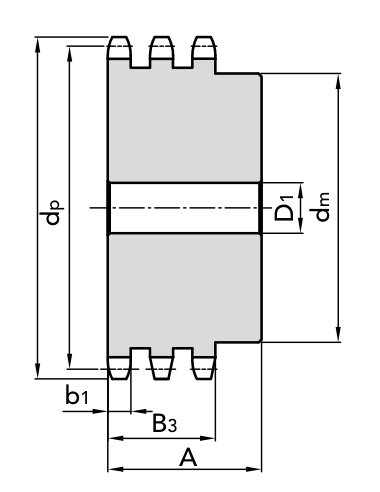

  • Chain inner width: 19.05 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 33.5 mm
  • Radius width C: 4 mm
  • Sprocket tooth width b1: 17.7 mm
  • Sprocket tooth width B3: 89.2 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11310014 14 157.8 mm 142.68 mm 110 mm 30 mm 115 mm 9.71 kg
11310017 17 187.9 mm 172.78 mm 120 mm 30 mm 115 mm 14.6 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 100-3
Pitch
31.75 mm
