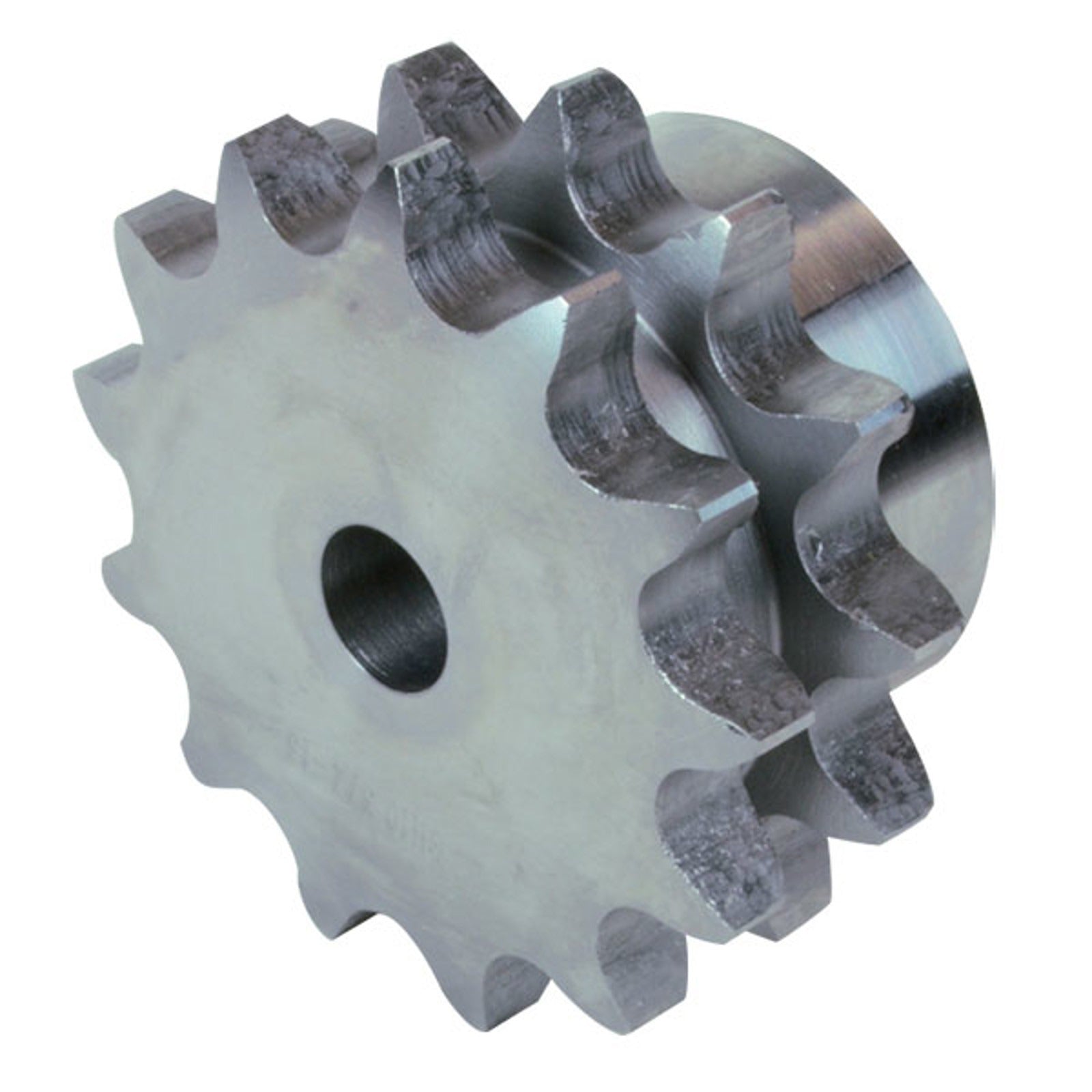

Chiaravalli Chain Sprocket ASA 120 Duplex
Chiaravalli

Chain Sprocket ASA 120 Duplex

Duplex chain sprocket for ANSI 120-2 (ASA 120) roller chain.

  • Chain inner width: 25.4 mm
  • Chain roller Ø: 22.22 mm
  • Tooth radius r3: 40.5 mm
  • Radius width C: 4.8 mm
  • Sprocket tooth width b1: 23.6 mm
  • Sprocket tooth width B2: 69 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11212011 11 154.71 mm 135.21 mm 90 mm 25 mm 100 mm 6.62 kg
11212012 12 165 mm 147.22 mm 102 mm 25 mm 100 mm 8.28 kg
11212013 13 178.68 mm 159.18 mm 114 mm 25 mm 100 mm 10.13 kg
11212014 14 190.7 mm 171.22 mm 128 mm 25 mm 100 mm 12.24 kg
11212015 15 202.73 mm 183.26 mm 140 mm 25 mm 100 mm 14.08 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 120-2
Pitch
38.1 mm
