Chiaravalli

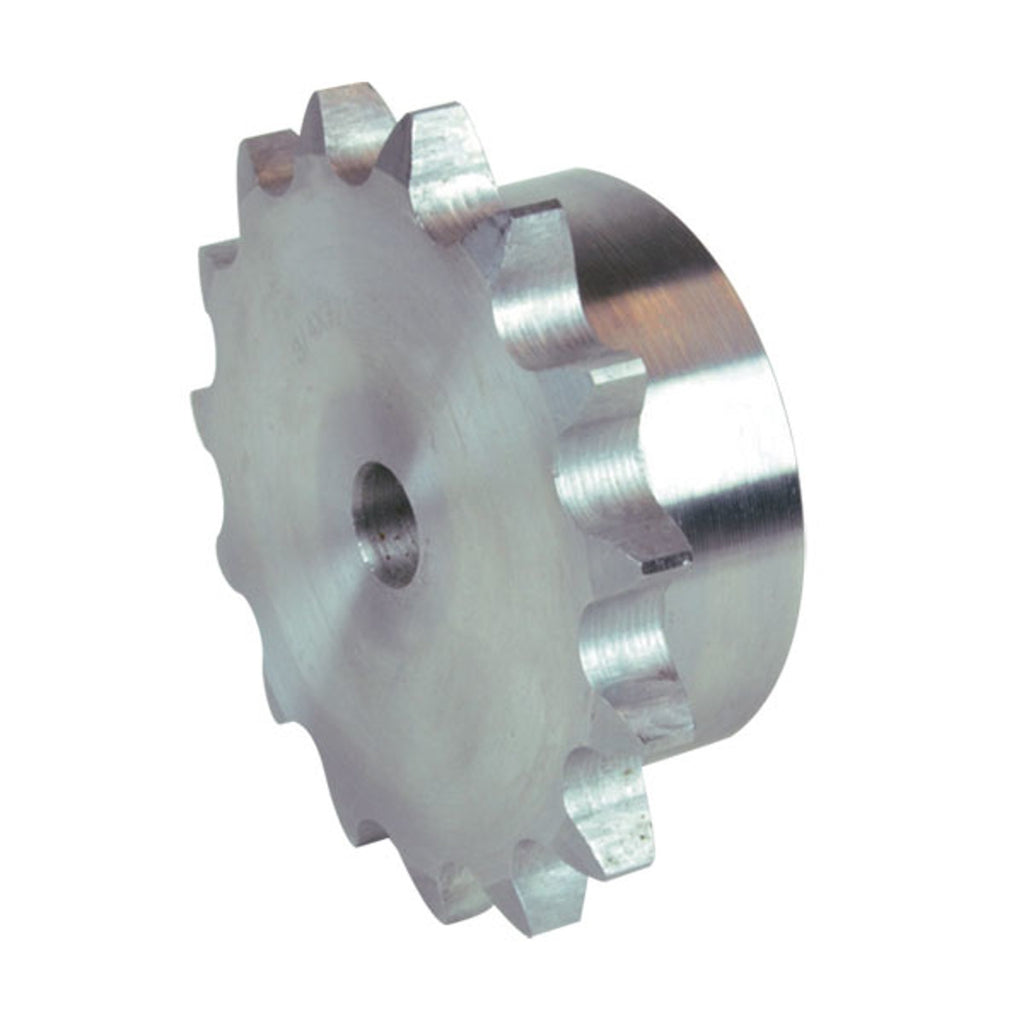

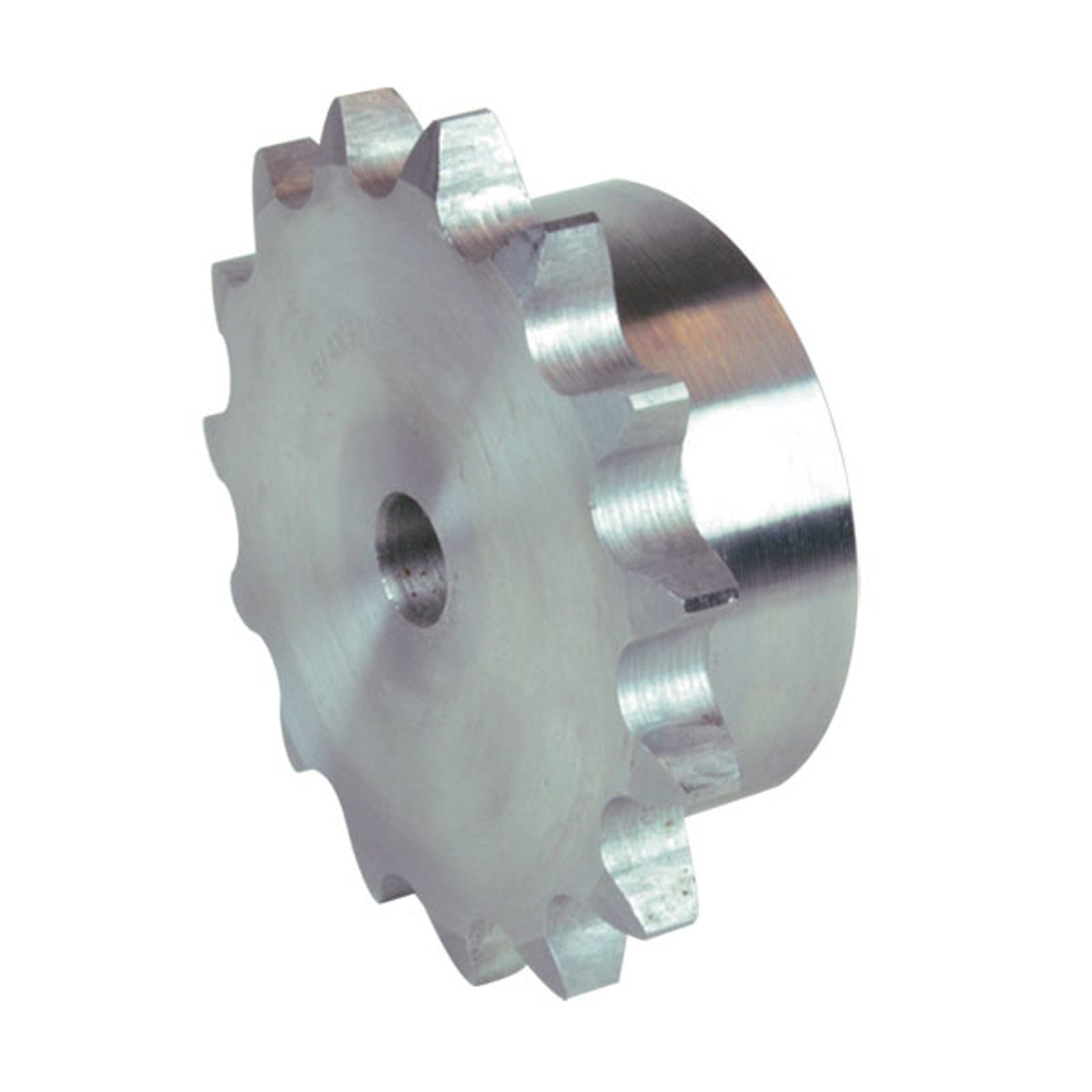

Chain Sprocket ASA 120 Simplex

Name: Chiaravalli Chain Sprocket ASA 120 Simplex
Brand: Chiaravalli

Simplex chain sprocket for ANSI 120-1 (ASA 120) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	D1	A	Weight
`11112008`	`8`	`119.04` mm	`99.55` mm	`58` mm	`20` mm	`45` mm	`2.05` kg
`11112009`	`9`	`130.88` mm	`111.4` mm	`70` mm	`20` mm	`45` mm	`2.67` kg
`11112010`	`10`	`142.77` mm	`123.29` mm	`80` mm	`20` mm	`45` mm	`3.45` kg
`11112011`	`11`	`154.71` mm	`135.21` mm	`90` mm	`25` mm	`50` mm	`4.26` kg
`11112012`	`12`	`165` mm	`147.22` mm	`102` mm	`25` mm	`50` mm	`5.22` kg
`11112013`	`13`	`178.68` mm	`159.18` mm	`114` mm	`25` mm	`50` mm	`6.29` kg
`11112014`	`14`	`190.7` mm	`171.22` mm	`128` mm	`25` mm	`50` mm	`7.05` kg
`11112015`	`15`	`202.73` mm	`183.26` mm	`140` mm	`25` mm	`50` mm	`8.12` kg
`11112019`	`19`	`245.5` mm	`231.49` mm	`136` mm	`25` mm	`55` mm	`10.05` kg
