Chiaravalli Chain Sprocket ASA 35 Simplex
Chiaravalli

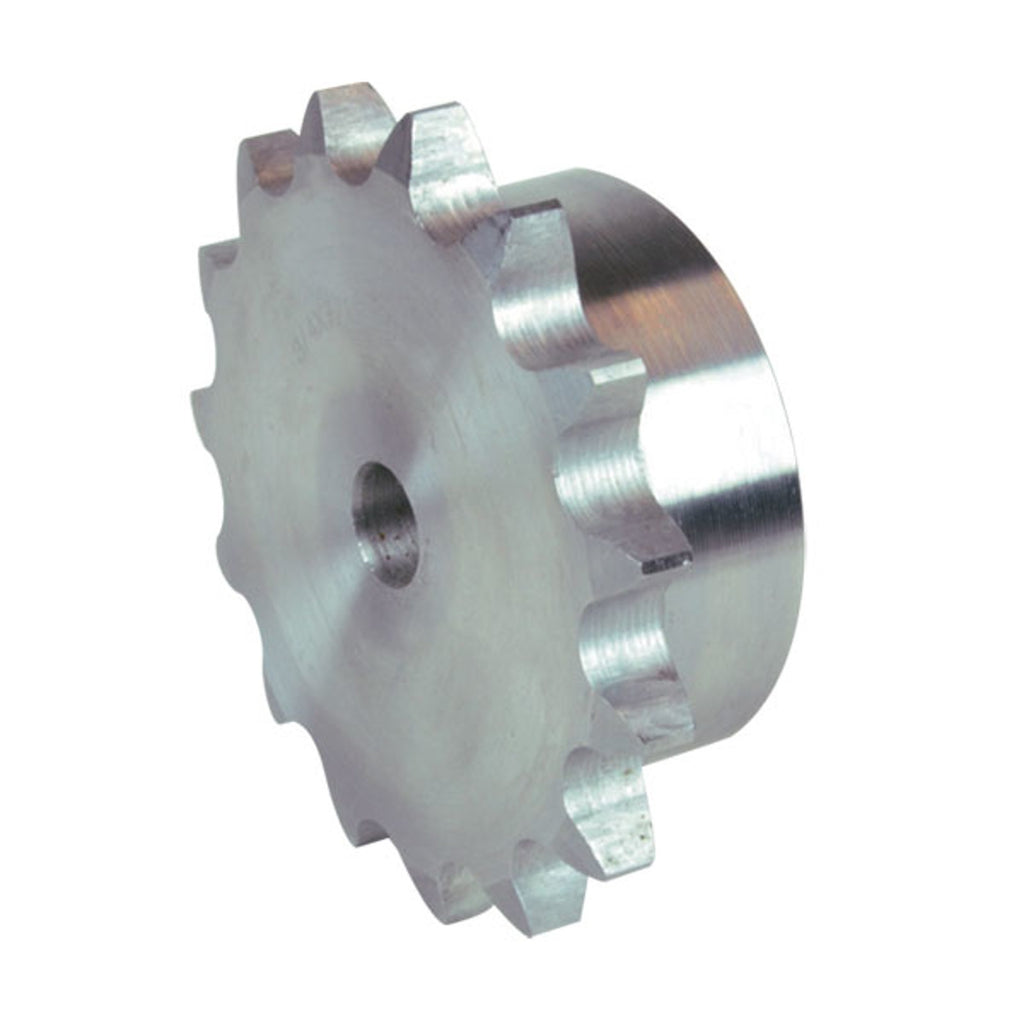

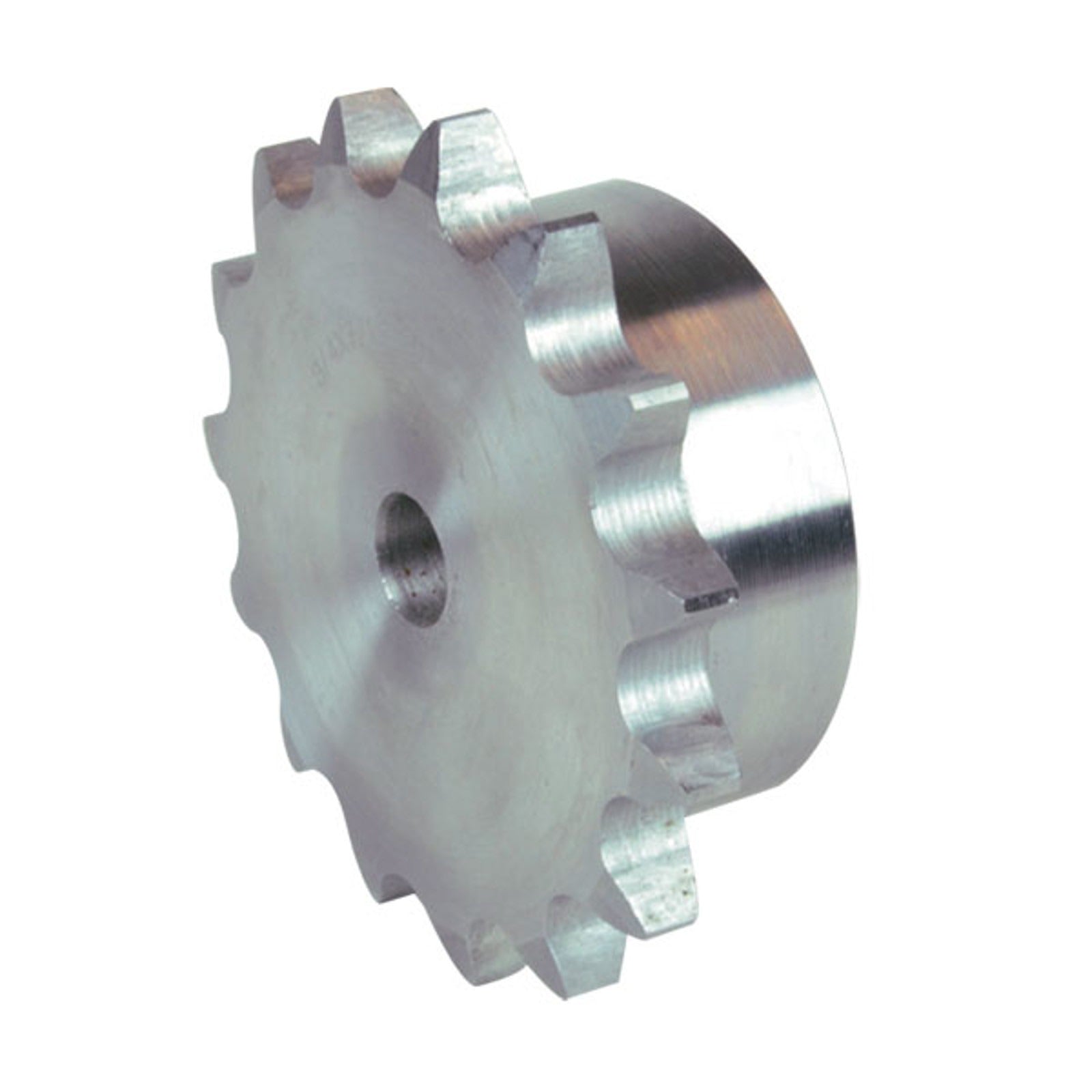

Chain Sprocket ASA 35 Simplex

Simplex chain sprocket for ANSI 35-1 (ASA 35) roller chain.

  • Chain inner width: 4.77 mm
  • Chain roller Ø: 5.08 mm
  • Tooth radius r3: 10 mm
  • Radius width C: 1.2 mm
  • Sprocket tooth width B1: 4.4 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11103009 9 31.5 mm 27.85 mm 18 mm 8 mm 20 mm 0.05 kg
11103010 10 35.7 mm 30.82 mm 20 mm 8 mm 22 mm 0.05 kg
11103011 11 38.69 mm 33.8 mm 22 mm 8 mm 25 mm 0.08 kg
11103012 12 41.68 mm 36.8 mm 25 mm 8 mm 25 mm 0.1 kg
11103013 13 44.68 mm 39.8 mm 28 mm 10 mm 25 mm 0.12 kg
11103014 14 47.68 mm 42.8 mm 31 mm 10 mm 25 mm 0.15 kg
11103015 15 50.69 mm 45.81 mm 34 mm 10 mm 25 mm 0.19 kg
11103016 16 53.7 mm 48.82 mm 37 mm 10 mm 28 mm 0.24 kg
11103017 17 56.72 mm 51.83 mm 38 mm 10 mm 28 mm 0.28 kg
11103018 18 59.73 mm 54.85 mm 38 mm 10 mm 28 mm 0.32 kg
11103019 19 62.75 mm 57.87 mm 46 mm 10 mm 28 mm 0.36 kg
11103020 20 65.77 mm 60.89 mm 46 mm 10 mm 28 mm 0.38 kg
11103021 21 68.79 mm 63.91 mm 46 mm 10 mm 28 mm 0.41 kg
11103022 22 71.81 mm 66.93 mm 52 mm 12 mm 28 mm 0.45 kg
11103023 23 74.83 mm 69.95 mm 52 mm 12 mm 28 mm 0.49 kg
11103024 24 77.85 mm 72.97 mm 52 mm 12 mm 28 mm 0.54 kg
11103025 25 80.88 mm 76 mm 58 mm 12 mm 28 mm 0.6 kg
11103026 26 83.9 mm 79.02 mm 58 mm 12 mm 28 mm 0.66 kg
11103027 27 86.93 mm 82.04 mm 58 mm 12 mm 28 mm 0.67 kg
11103028 28 89.95 mm 85.07 mm 60 mm 12 mm 28 mm 0.68 kg
11103030 30 96 mm 91.12 mm 60 mm 12 mm 28 mm 0.71 kg
11103031 31 97.9 mm 94.15 mm 65 mm 14 mm 30 mm 0.87 kg
11103032 32 100.9 mm 97.17 mm 65 mm 14 mm 30 mm 0.86 kg
11103033 33 103.9 mm 100.2 mm 65 mm 14 mm 30 mm 1.13 kg
11103035 35 110 mm 106.26 mm 65 mm 14 mm 30 mm 0.94 kg
11103036 36 114.17 mm 109.29 mm 70 mm 16 mm 30 mm 1.05 kg
11103037 37 116 mm 112.32 mm 70 mm 16 mm 30 mm 1.09 kg
11103038 38 119 mm 115.34 mm 70 mm 16 mm 30 mm 1.08 kg
11103039 39 122.1 mm 118.37 mm 70 mm 16 mm 30 mm 1.1 kg —

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 35-1
Pitch
9.525 mm
