Chiaravalli Chain Sprocket ASA 40 Simplex
Chiaravalli

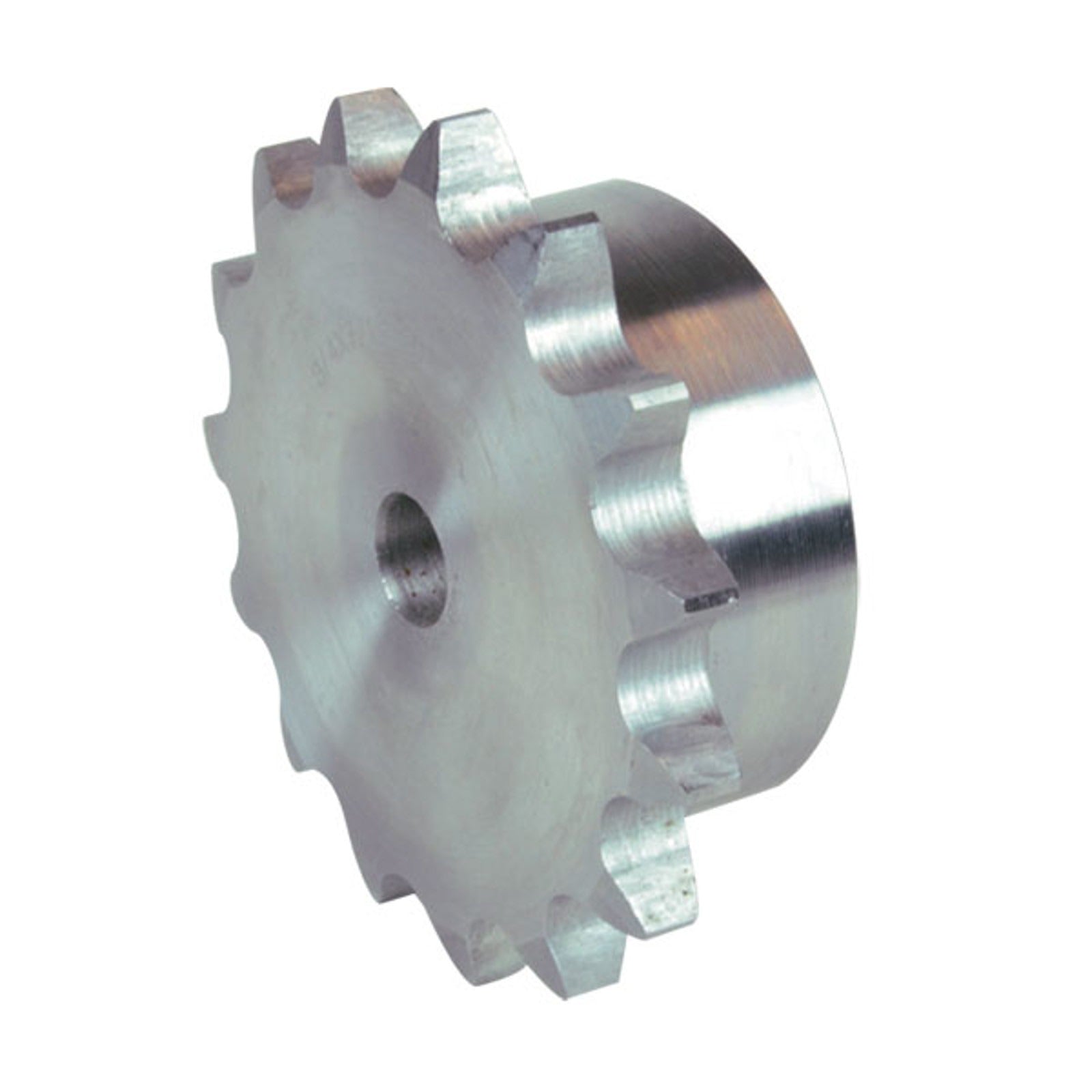

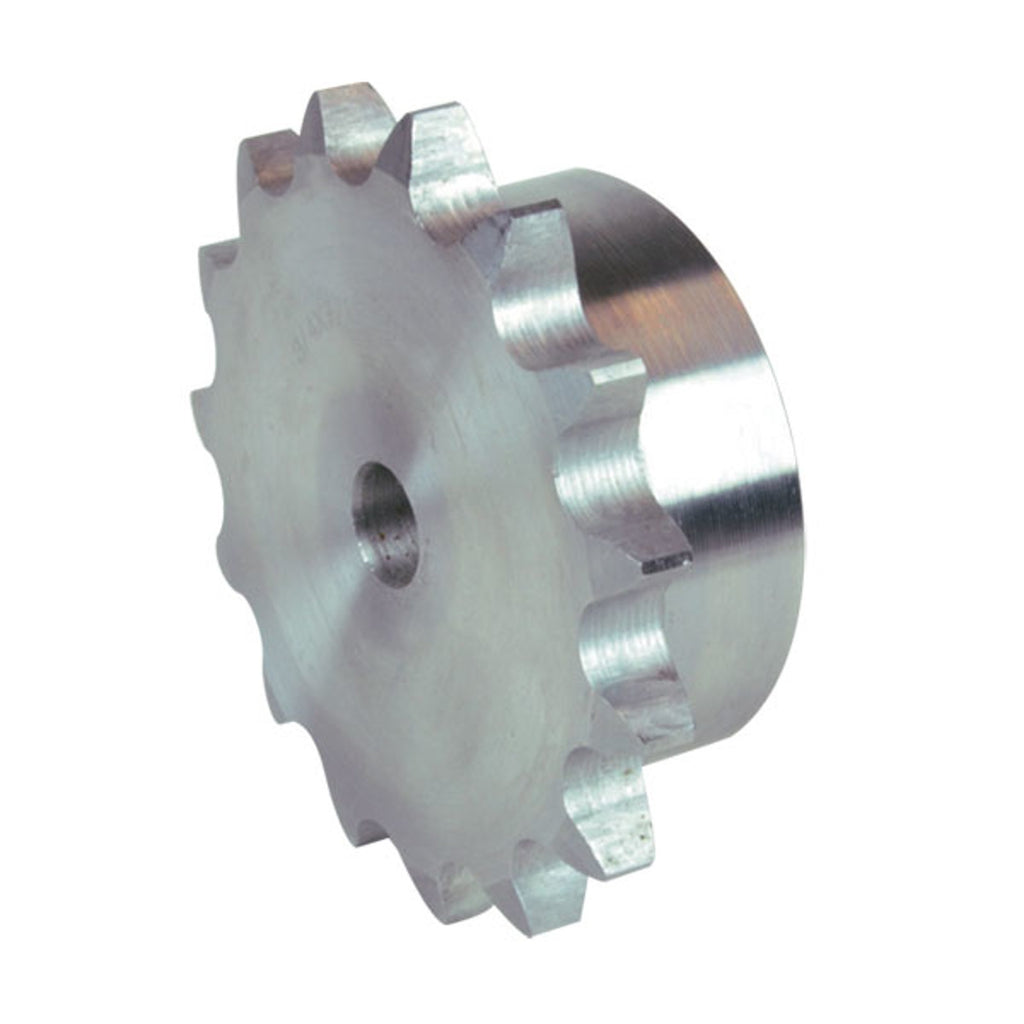

Chain Sprocket ASA 40 Simplex

Simplex chain sprocket for ANSI 40-1 (ASA 40) roller chain.

  • Chain inner width: 7.94 mm
  • Chain roller Ø: 7.94 mm
  • Tooth radius r3: 13.5 mm
  • Radius width C: 1.6 mm
  • Sprocket tooth width B1: 7.4 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11104008 8 39.3 mm 33.18 mm 26 mm 10 mm 25 mm 0.1 kg
11104010 10 47.66 mm 41.1 mm 29 mm 10 mm 25 mm 0.12 kg
11104011 11 51.64 mm 45.08 mm 35 mm 10 mm 28 mm 0.14 kg
11104012 12 55.63 mm 49.07 mm 35 mm 10 mm 28 mm 0.2 kg
11104013 13 59.63 mm 53.07 mm 35 mm 10 mm 28 mm 0.26 kg
11104014 14 63.63 mm 57.07 mm 46 mm 10 mm 28 mm 0.32 kg
11104015 15 67.64 mm 61.08 mm 48 mm 10 mm 28 mm 0.38 kg
11104016 16 71.66 mm 65.1 mm 48 mm 10 mm 28 mm 0.45 kg
11104017 17 75.68 mm 69.12 mm 48 mm 10 mm 28 mm 0.5 kg
11104018 18 79.7 mm 73.14 mm 60 mm 12 mm 28 mm 0.58 kg
11104019 19 83.72 mm 77.16 mm 60 mm 12 mm 28 mm 0.67 kg
11104020 20 87.74 mm 81.18 mm 65 mm 12 mm 28 mm 0.77 kg
11104021 21 91.77 mm 85.21 mm 65 mm 12 mm 28 mm 0.84 kg
11104022 22 95.8 mm 89.24 mm 65 mm 12 mm 28 mm 0.91 kg
11104023 23 99.83 mm 93.27 mm 70 mm 12 mm 28 mm 0.94 kg
11104024 24 103.86 mm 97.3 mm 70 mm 14 mm 28 mm 0.97 kg
11104025 25 107.89 mm 101.33 mm 70 mm 14 mm 28 mm 1.01 kg
11104026 26 111.92 mm 105.36 mm 70 mm 14 mm 28 mm 1.09 kg
11104027 27 115.96 mm 109.4 mm 70 mm 16 mm 30 mm 1.13 kg
11104028 28 119.99 mm 113.43 mm 70 mm 16 mm 30 mm 1.16 kg
11104030 30 128.06 mm 121.5 mm 80 mm 16 mm 30 mm 1.46 kg
11104032 32 136.13 mm 129.57 mm 80 mm 16 mm 30 mm 1.78 kg
11104035 35 148.24 mm 141.68 mm 90 mm 16 mm 30 mm 1.92 kg
11104036 36 152.28 mm 145.72 mm 90 mm 16 mm 30 mm 2.21 kg
11104038 38 160.35 mm 153.79 mm 90 mm 16 mm 35 mm 2.32 kg
11104040 40 168.43 mm 161.87 mm 90 mm 16 mm 35 mm 2.43 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 40-1
Pitch
12.7 mm
