Chiaravalli Chain Sprocket ASA 40 Triplex
Chiaravalli

Chain Sprocket ASA 40 Triplex

Triplex chain sprocket for ANSI 40-3 (ASA 40) roller chain.

  • Chain inner width: 7.94 mm
  • Chain roller Ø: 7.94 mm
  • Tooth radius r3: 13.5 mm
  • Radius width C: 1.6 mm
  • Sprocket tooth width b1: 7.2 mm
  • Sprocket tooth width B3: 36 mm

Product Configuration

Select a row to add it to your quote

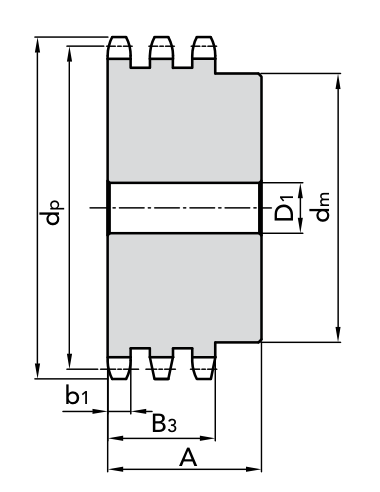

Code ZdedpdmD1A Weight CAD
11304010 10 47.66 mm 41.1 mm 28 mm 14 mm 50 mm 0.24 kg
11304012 12 55.63 mm 49.07 mm 35 mm 14 mm 50 mm 0.39 kg
11304013 13 59.63 mm 53.07 mm 38 mm 14 mm 50 mm 0.49 kg
11304014 14 63.63 mm 57.07 mm 42 mm 14 mm 50 mm 0.6 kg
11304015 15 67.64 mm 61.08 mm 46 mm 14 mm 50 mm 72.0 kg
11304016 16 71.66 mm 65.1 mm 50 mm 16 mm 50 mm 0.85 kg
11304017 17 75.68 mm 69.12 mm 54 mm 16 mm 50 mm 0.99 kg
11304018 18 79.7 mm 73.14 mm 58 mm 16 mm 50 mm 1.14 kg
11304019 19 83.72 mm 77.16 mm 62 mm 16 mm 50 mm 1.3 kg
11304020 20 87.74 mm 81.18 mm 66 mm 16 mm 50 mm 1.47 kg
11304021 21 91.77 mm 85.21 mm 70 mm 20 mm 55 mm 1.79 kg
11304022 22 95.8 mm 89.24 mm 70 mm 20 mm 55 mm 1.93 kg
11304023 23 99.83 mm 93.27 mm 70 mm 20 mm 55 mm 2.08 kg
11304024 24 103.86 mm 97.3 mm 75 mm 20 mm 55 mm 2.32 kg
11304025 25 107.89 mm 101.33 mm 80 mm 20 mm 55 mm 2.57 kg
11304026 26 111.92 mm 105.36 mm 85 mm 20 mm 55 mm 2.79 kg
11304027 27 115.96 mm 109.4 mm 85 mm 20 mm 55 mm 2.96 kg
11304028 28 119.99 mm 113.43 mm 90 mm 20 mm 55 mm 3.25 kg
11304033 33 — — 110 mm 20 mm 55 mm 4.74 kg
11304038 38 160.35 mm 153.79 mm 120 mm 25 mm 55 mm 6.14 kg
11304040 40 168.43 mm 161.87 mm 120 mm 25 mm 55 mm 6.66 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 40-3
Pitch
12.7 mm
