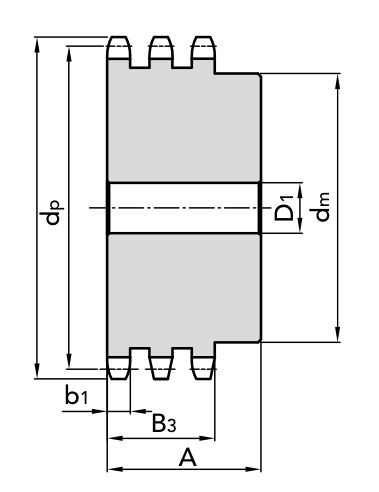

Chiaravalli Chain Sprocket ASA 50 Triplex
Chiaravalli

Chain Sprocket ASA 50 Triplex

Triplex chain sprocket for ANSI 50-3 (ASA 50) roller chain.

  • Chain inner width: 9.52 mm
  • Chain roller Ø: 10.16 mm
  • Tooth radius r3: 17 mm
  • Radius width C: 2 mm
  • Sprocket tooth width b1: 8.8 mm
  • Sprocket tooth width B3: 45 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11305012 12 68 mm 61.34 mm 44 mm 16 mm 55 mm 0.54 kg
11305013 13 73 mm 66.32 mm 49 mm 16 mm 55 mm 0.67 kg
11305014 14 78 mm 71.34 mm 54 mm 16 mm 55 mm 0.82 kg
11305015 15 83 mm 76.36 mm 59 mm 16 mm 55 mm 0.97 kg
11305016 16 88 mm 81.37 mm 64 mm 16 mm 60 mm 1.25 kg
11305017 17 93 mm 86.39 mm 69 mm 16 mm 60 mm 1.45 kg
11305018 18 98 mm 91.42 mm 74 mm 16 mm 60 mm 1.56 kg
11305019 19 103.3 mm 96.45 mm 79 mm 16 mm 60 mm 1.67 kg
11305020 20 108.4 mm 101.49 mm 84 mm 16 mm 60 mm 2.14 kg
11305021 21 113.4 mm 106.52 mm 85 mm 20 mm 60 mm 2.27 kg
11305022 22 118 mm 111.55 mm 90 mm 20 mm 60 mm 2.54 kg
11305023 23 123.4 mm 116.58 mm 95 mm 20 mm 60 mm 2.81 kg
11305024 24 128.3 mm 121.62 mm 100 mm 20 mm 60 mm 3.11 kg
11305025 25 134 mm 126.66 mm 105 mm 20 mm 60 mm 3.14 kg
11305026 26 139 mm 131.7 mm 110 mm 20 mm 60 mm 3.74 kg
11305027 27 144 mm 136.75 mm 110 mm 20 mm 60 mm 3.94 kg
11305028 28 148.7 mm 141.78 mm 115 mm 20 mm 60 mm 4.28 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 50-3
Pitch
15.875 mm
