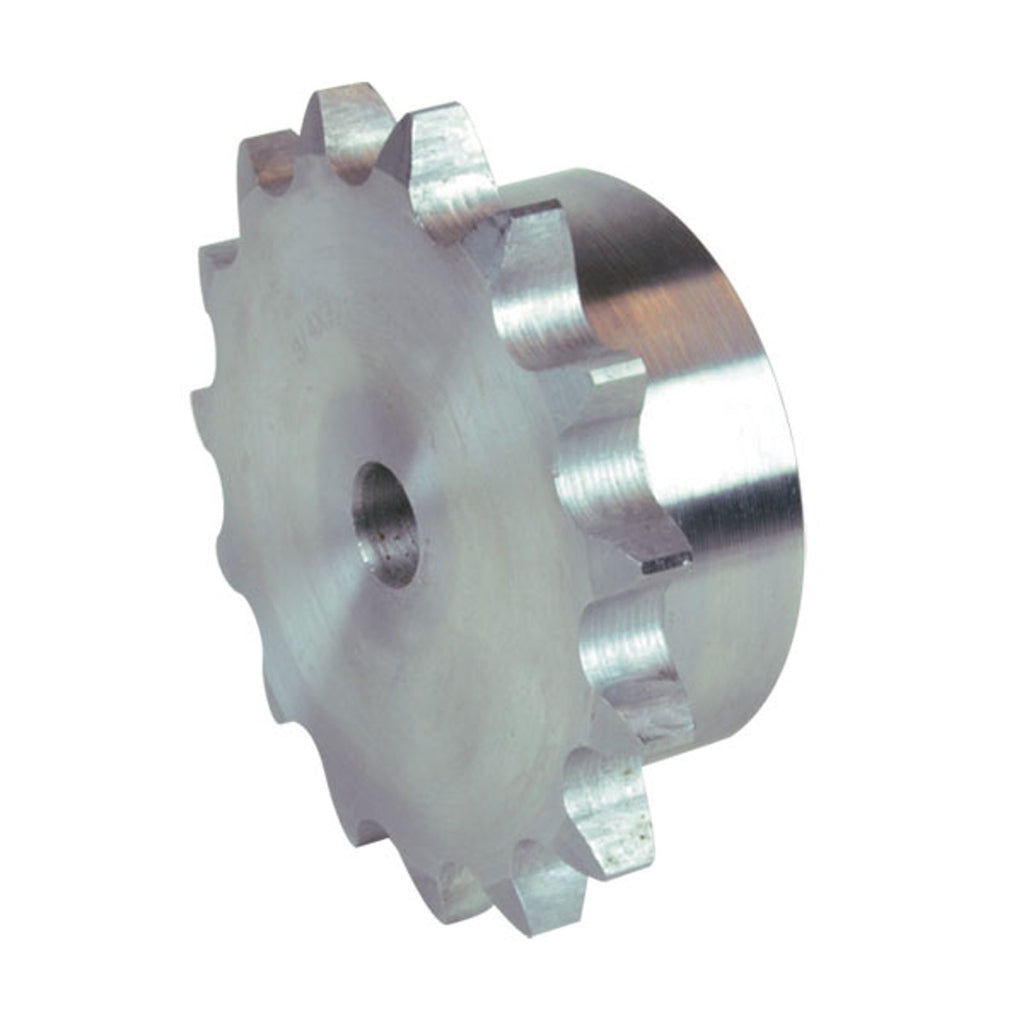

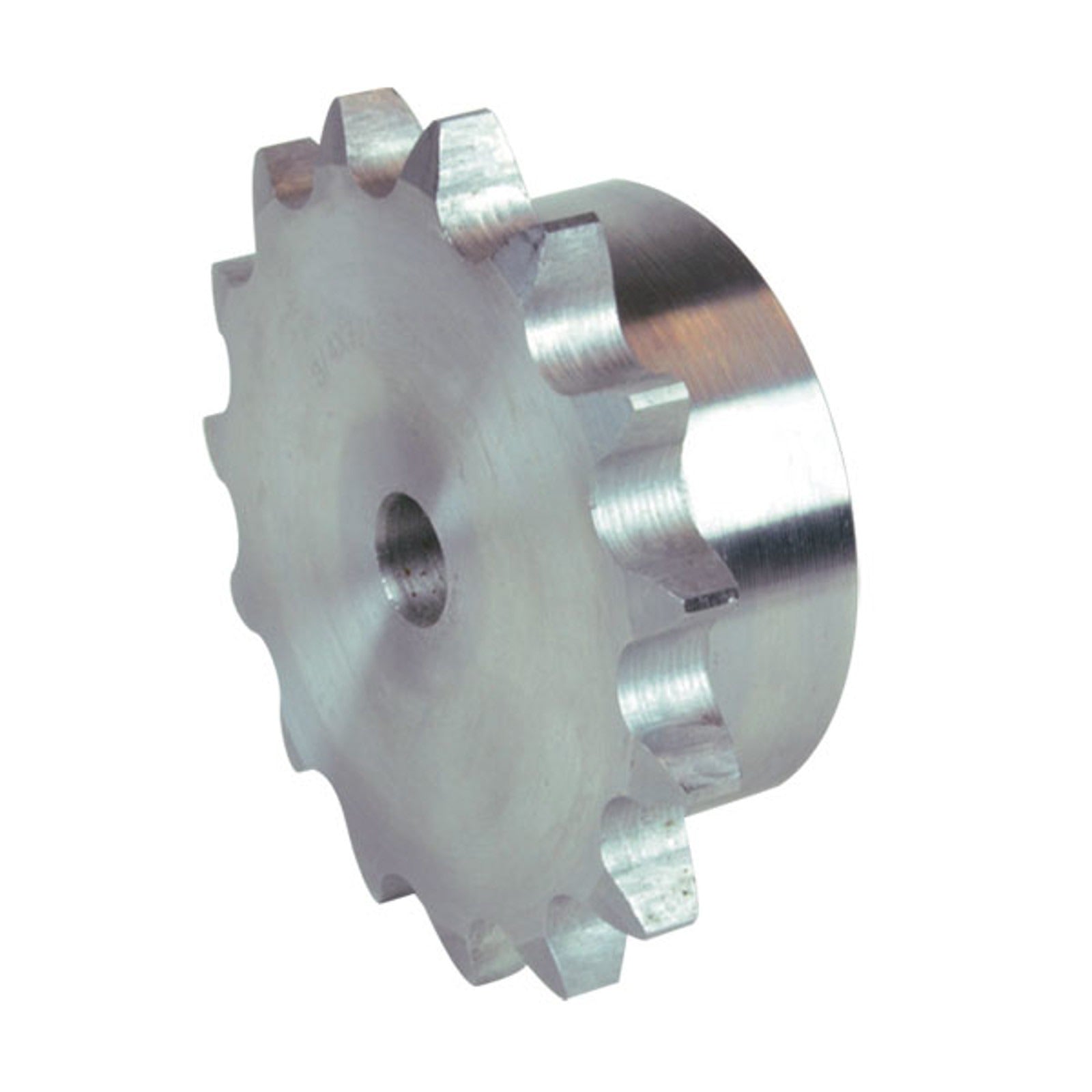

Chiaravalli Chain Sprocket ASA 60 Simplex
Chiaravalli

Chain Sprocket ASA 60 Simplex

Simplex chain sprocket for ANSI 60-1 (ASA 60) roller chain.

  • Chain inner width: 12.7 mm
  • Chain roller Ø: 11.91 mm
  • Tooth radius r3: 20 mm
  • Radius width C: 2.4 mm
  • Sprocket tooth width B1: 12 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11106010 10 71.54 mm 61.64 mm 42 mm 12 mm 30 mm 0.38 kg
11106011 11 77.51 mm 67.61 mm 45 mm 12 mm 30 mm 0.5 kg
11106012 12 83.49 mm 73.61 mm 45 mm 12 mm 30 mm 0.64 kg
11106013 13 89.49 mm 79.59 mm 60 mm 14 mm 35 mm 0.8 kg
11106014 14 95.5 mm 85.61 mm 60 mm 14 mm 35 mm 0.97 kg
11106015 15 101.52 mm 91.63 mm 60 mm 14 mm 35 mm 1.16 kg
11106016 16 107.54 mm 97.65 mm 75 mm 16 mm 35 mm 1.34 kg
11106017 17 113.56 mm 103.67 mm 75 mm 16 mm 35 mm 1.53 kg
11106018 18 119.59 mm 109.71 mm 75 mm 16 mm 35 mm 1.61 kg
11106019 19 125.63 mm 115.75 mm 80 mm 16 mm 35 mm 1.7 kg
11106020 20 131.67 mm 121.78 mm 80 mm 16 mm 35 mm 1.84 kg
11106021 21 137.71 mm 127.82 mm 80 mm 16 mm 35 mm 2.35 kg
11106022 22 143.75 mm 133.86 mm 90 mm 20 mm 40 mm 2.45 kg
11106023 23 149.79 mm 139.9 mm 90 mm 20 mm 40 mm 2.56 kg
11106024 24 155.84 mm 145.94 mm 90 mm 20 mm 40 mm 2.67 kg
11106025 25 161.88 mm 152 mm 90 mm 20 mm 40 mm 2.79 kg
11106026 26 167.93 mm 158.04 mm 90 mm 20 mm 40 mm 3.08 kg
11106027 27 173.98 mm 164.09 mm 90 mm 20 mm 40 mm 3.21 kg
11106028 28 180.03 mm 170.13 mm 95 mm 20 mm 40 mm 3.34 kg
11106030 30 192.14 mm 182.25 mm 95 mm 20 mm 40 mm 3.62 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 60-1
Pitch
19.05 mm
