Chiaravalli Chain Sprocket ASA 60 Triplex
Chiaravalli

Chain Sprocket ASA 60 Triplex

Triplex chain sprocket for ANSI 60-3 (ASA 60) roller chain.

  • Chain inner width: 12.7 mm
  • Chain roller Ø: 11.91 mm
  • Tooth radius r3: 20 mm
  • Radius width C: 2.4 mm
  • Sprocket tooth width b1: 11.8 mm
  • Sprocket tooth width B3: 57.4 mm

Product Configuration

Select a row to add it to your quote

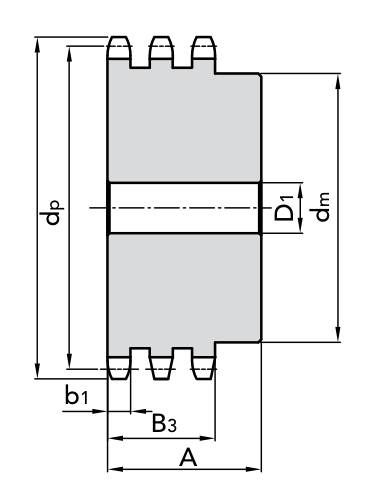

Code ZdedpdmD1A Weight CAD
11306010 10 71.54 mm 61.64 mm 42 mm 16 mm 65 mm 0.86 kg
11306012 12 83.49 mm 73.61 mm 53 mm 20 mm 70 mm 1.47 kg
11306013 13 89.49 mm 79.59 mm 59 mm 20 mm 70 mm 1.78 kg
11306014 14 95.5 mm 85.61 mm 65 mm 20 mm 70 mm 2.16 kg
11306015 15 101.52 mm 91.63 mm 71 mm 20 mm 70 mm 2.52 kg
11306016 16 107.54 mm 97.65 mm 77 mm 20 mm 70 mm 2.93 kg
11306017 17 113.56 mm 103.67 mm 83 mm 20 mm 70 mm 3.44 kg
11306018 18 119.59 mm 109.71 mm 89 mm 20 mm 70 mm 3.91 kg
11306019 19 125.63 mm 115.75 mm 95 mm 20 mm 70 mm 4.43 kg
11306020 20 131.67 mm 121.78 mm 100 mm 20 mm 70 mm 4.96 kg
11306021 21 137.71 mm 127.82 mm 100 mm 20 mm 70 mm 5.41 kg
11306022 22 143.75 mm 133.86 mm 100 mm 20 mm 70 mm 59.7 kg
11306023 23 149.79 mm 139.9 mm 110 mm 20 mm 70 mm 6.64 kg
11306024 24 155.84 mm 145.94 mm 110 mm 20 mm 70 mm 7.21 kg
11306025 25 161.88 mm 152 mm 120 mm 20 mm 70 mm 7.97 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 60-3
Pitch
19.05 mm
