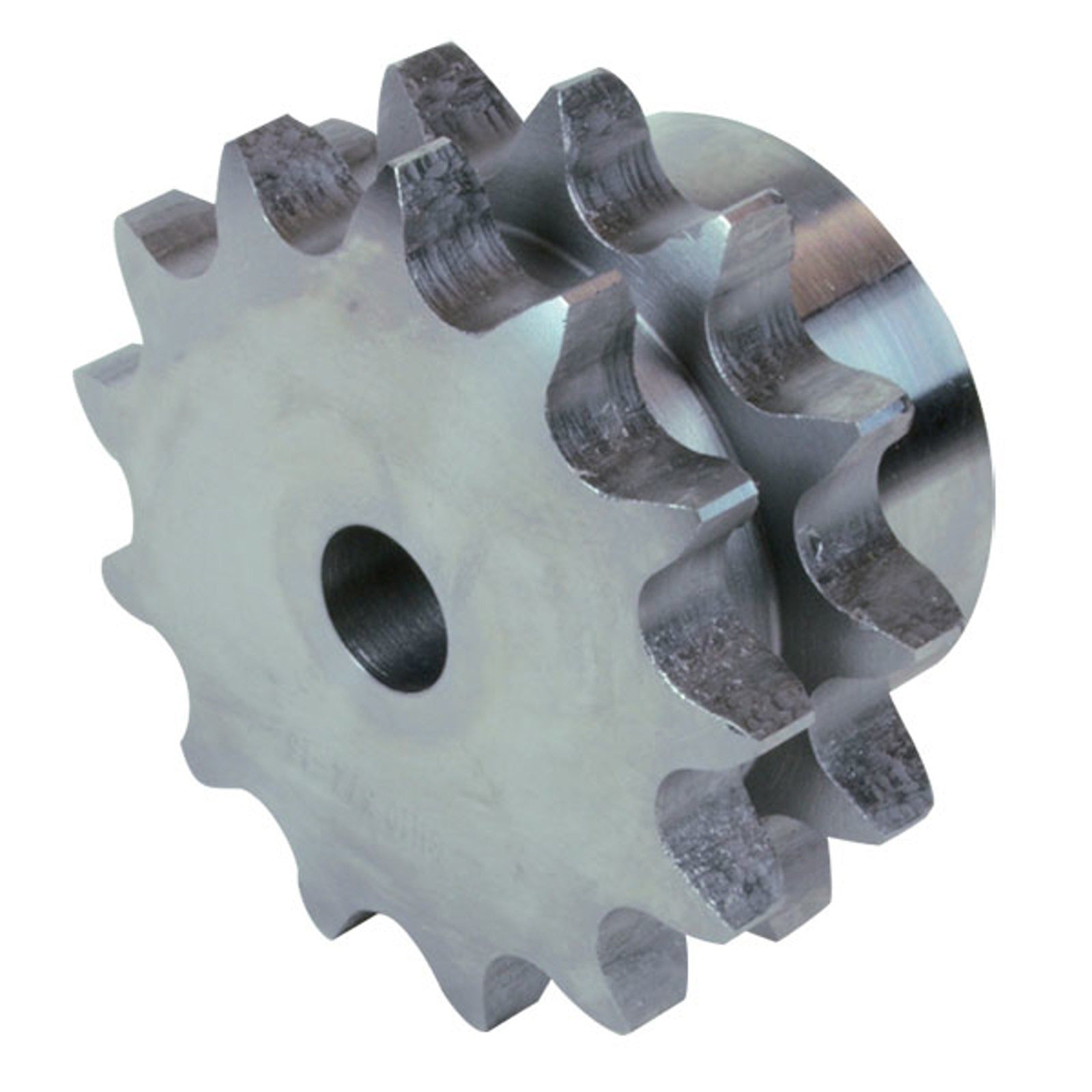

Chiaravalli Chain Sprocket ASA 80 Duplex
Chiaravalli

Chain Sprocket ASA 80 Duplex

Duplex chain sprocket for ANSI 80-2 (ASA 80) roller chain.

  • Chain inner width: 15.88 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 27 mm
  • Radius width C: 3.2 mm
  • Sprocket tooth width b1: 14.7 mm
  • Sprocket tooth width B2: 44 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11208010 10 95.32 mm 82.79 mm 56 mm 20 mm 65 mm 1.52 kg
11208012 12 111.26 mm 98.14 mm 72 mm 20 mm 70 mm 2.6 kg
11208013 13 119.26 mm 106.12 mm 78 mm 20 mm 70 mm 3.22 kg
11208014 14 127.27 mm 114.15 mm 86 mm 20 mm 70 mm 3.82 kg
11208015 15 135.29 mm 122.17 mm 94 mm 20 mm 70 mm 4.51 kg
11208016 16 143.32 mm 130.2 mm 102 mm 20 mm 70 mm 5.17 kg
11208017 17 151.35 mm 138.22 mm 110 mm 20 mm 70 mm 5.97 kg
11208018 18 159.39 mm 146.28 mm 118 mm 20 mm 70 mm 6.84 kg
11208019 19 167.44 mm 154.33 mm 126 mm 20 mm 70 mm 7.75 kg
11208020 20 175.49 mm 162.38 mm 130 mm 20 mm 70 mm 8.43 kg
11208021 21 183.54 mm 170.43 mm 130 mm 25 mm 70 mm 9.24 kg
11208025 25 215.78 mm 202.66 mm 130 mm 25 mm 70 mm 12.52 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 80-2
Pitch
25.4 mm
