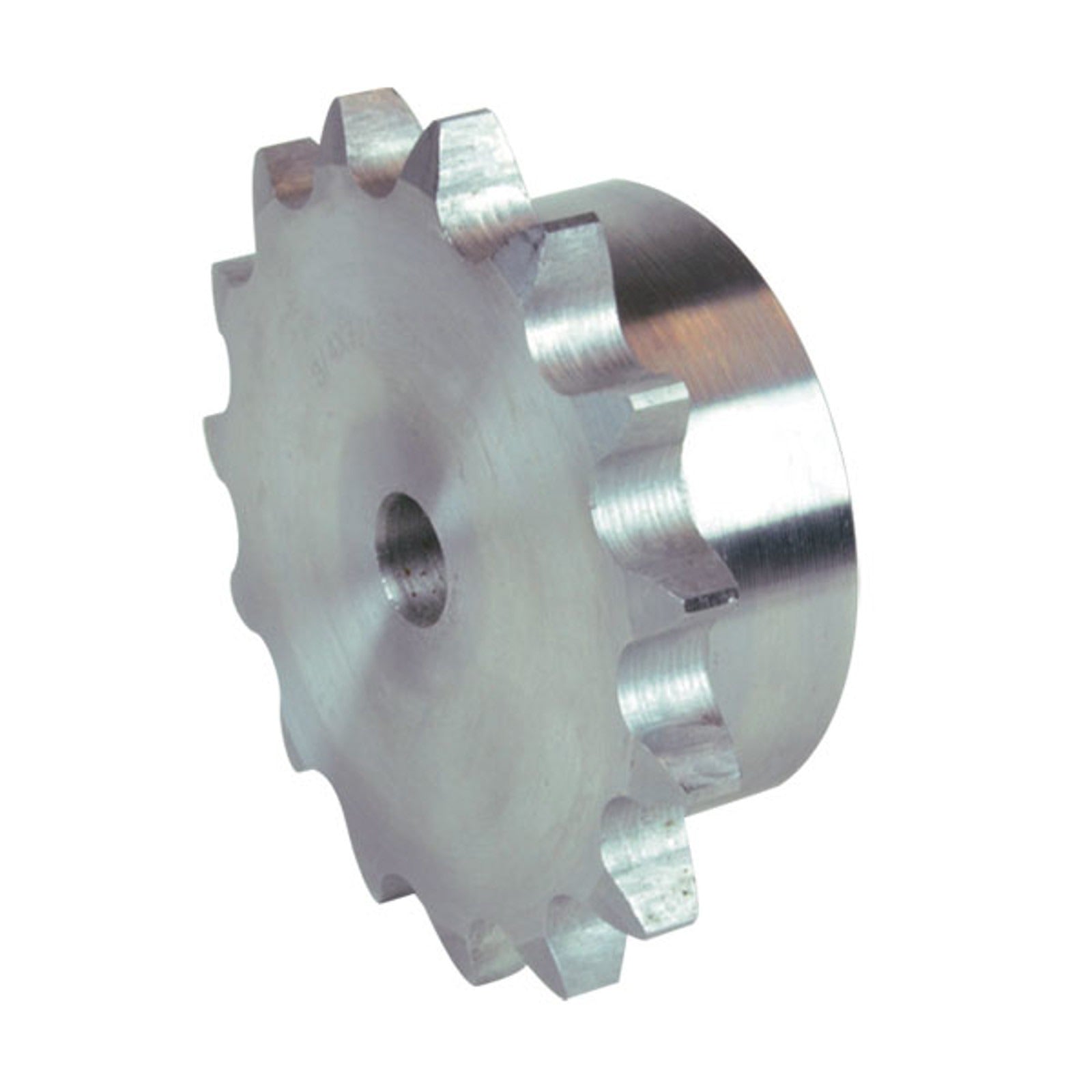

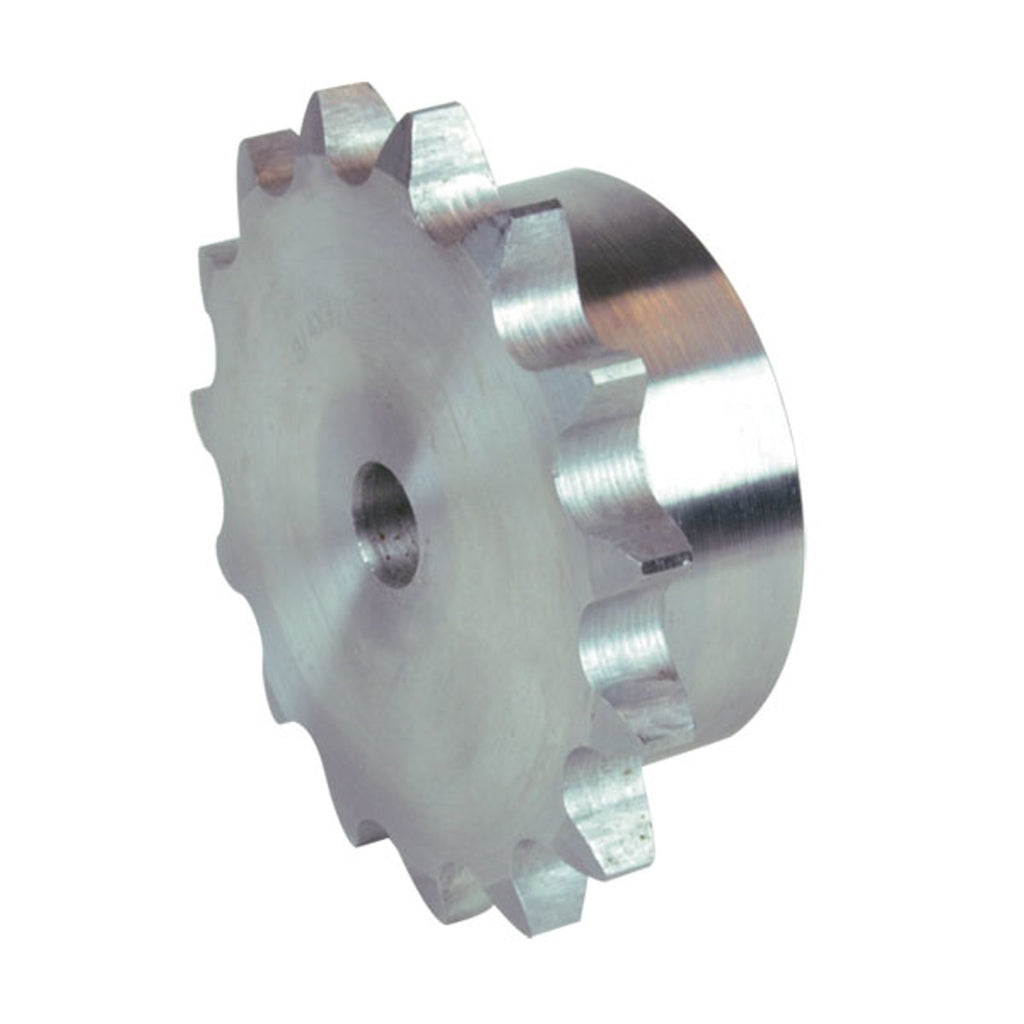

Chiaravalli Chain Sprocket ASA 80 Simplex
Chiaravalli

Chain Sprocket ASA 80 Simplex

Simplex chain sprocket for ANSI 80-1 (ASA 80) roller chain.

  • Chain inner width: 15.88 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 27 mm
  • Radius width C: 3.2 mm
  • Sprocket tooth width B1: 15 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11108010 10 95.32 mm 82.79 mm 55 mm 16 mm 35 mm 0.82 kg
11108011 11 103.28 mm 90.14 mm 61 mm 16 mm 40 mm 1.13 kg
11108012 12 111.26 mm 98.14 mm 69 mm 16 mm 40 mm 1.42 kg
11108013 13 119.26 mm 106.12 mm 78 mm 16 mm 40 mm 1.77 kg
11108014 14 127.27 mm 114.15 mm 84 mm 16 mm 40 mm 2.07 kg
11108015 15 135.29 mm 122.17 mm 92 mm 16 mm 40 mm 2.46 kg
11108016 16 143.32 mm 130.2 mm 100 mm 20 mm 45 mm 3.13 kg
11108017 17 151.35 mm 138.22 mm 100 mm 20 mm 45 mm 3.34 kg
11108018 18 159.39 mm 146.28 mm 100 mm 20 mm 45 mm 3.55 kg
11108019 19 167.44 mm 154.33 mm 100 mm 20 mm 45 mm 3.78 kg
11108020 20 175.49 mm 162.38 mm 100 mm 20 mm 45 mm 4.02 kg
11108021 21 183.54 mm 170.43 mm 110 mm 20 mm 50 mm 5.01 kg
11108022 22 191.6 mm 178.48 mm 110 mm 20 mm 50 mm 5.26 kg
11108023 23 199.66 mm 156.53 mm 110 mm 20 mm 50 mm 5.56 kg
11108024 24 207.72 mm 194.59 mm 110 mm 20 mm 50 mm 5.85 kg
11108025 25 215.78 mm 202.66 mm 110 mm 20 mm 50 mm 6.16 kg
11108026 26 223.84 mm 210.72 mm 120 mm 20 mm 50 mm 6.96 kg
11108027 27 231.91 mm 218.79 mm 120 mm 20 mm 50 mm 7.29 kg
11108028 28 239.98 mm 226.85 mm 120 mm 20 mm 50 mm 7.64 kg
11108030 30 256.12 mm 243 mm 120 mm 20 mm 50 mm 7.96 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 80-1
Pitch
25.4 mm
