Chiaravalli Chain Sprocket ASA 80 Triplex
Chiaravalli

Chain Sprocket ASA 80 Triplex

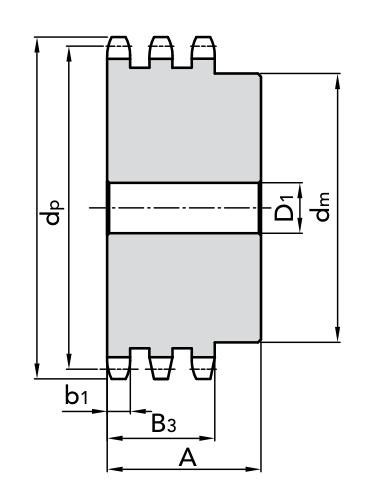

Triplex chain sprocket for ANSI 80-3 (ASA 80) roller chain.

  • Chain inner width: 15.88 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 27 mm
  • Radius width C: 3.2 mm
  • Sprocket tooth width b1: 14.7 mm
  • Sprocket tooth width B3: 73.3 mm

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
11308012 12 111.26 mm 98.14 mm 72 mm 25 mm 100 mm 3.62 kg
11308013 13 119.26 mm 106.12 mm 78 mm 25 mm 100 mm 4.45 kg
11308014 14 127.27 mm 114.15 mm 86 mm 25 mm 100 mm 5.37 kg
11308015 15 135.29 mm 122.17 mm 94 mm 25 mm 100 mm 6.37 kg
11308016 16 143.32 mm 130.2 mm 102 mm 30 mm 100 mm 7.45 kg
11308017 17 151.35 mm 138.22 mm 110 mm 30 mm 100 mm 8.6 kg
11308018 18 159.39 mm 146.28 mm 118 mm 30 mm 100 mm 9.84 kg
11308019 19 167.44 mm 154.33 mm 126 mm 30 mm 100 mm 11.16 kg
11308020 20 175.49 mm 162.38 mm 130 mm 30 mm 100 mm 12.36 kg

Product Information

Material
C 45 UNI 7845
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 80-3
Pitch
25.4 mm
