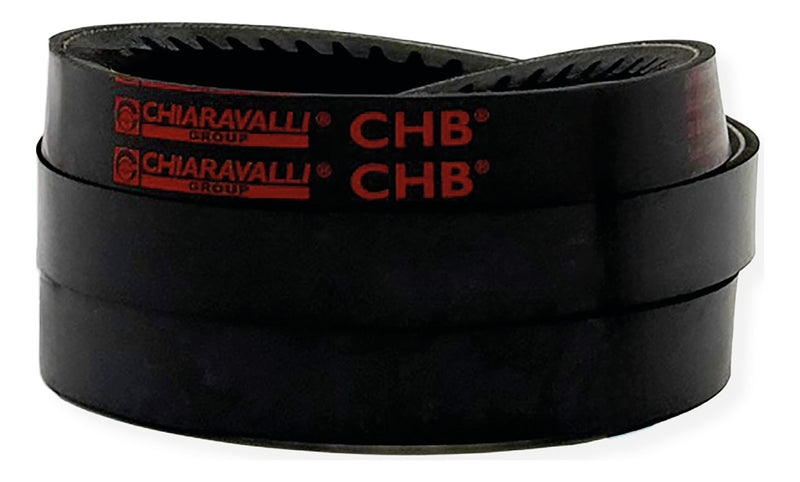

Chiaravalli CHB® Classical Raw Edge Cogged V-Belt AX — product photo
Chiaravalli

CHB® Classical Raw Edge Cogged V-Belt AX

Classical raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios; up to 40 % more power than a classical wrapped belt. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section AX: width W 13 mm × height H 8 mm
  • Minimum datum pulley diameter: 50 mm
  • Weight: 0,092 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -40 °C to +120 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 30 mm). External length Le = Li + 50 mm.

Code TypeLiLp
860100020 AX 20 508 mm 538 mm
860100022 AX 22 559 mm 589 mm
860100025 AX 25 635 mm 665 mm
860100028 AX 28 711 mm 741 mm
860100029 AX 29 737 mm 767 mm
860100030 AX 30 762 mm 792 mm
860100031 AX 31 787 mm 817 mm
860100032 AX 32 810 mm 840 mm
860100033 AX 33 838 mm 868 mm
860100034 AX 34 863 mm 893 mm
860100035 AX 35 890 mm 920 mm
860100036 AX 36 914 mm 944 mm
860100037 AX 37 940 mm 970 mm
860100038 AX 38 965 mm 995 mm
860100039 AX 39 990 mm 1020 mm
860100040 AX 40 1016 mm 1046 mm
860100041 AX 41 1041 mm 1071 mm
860100042 AX 42 1067 mm 1097 mm
860100043 AX 43 1092 mm 1122 mm
860100044 AX 44 1120 mm 1150 mm
860100045 AX 45 1143 mm 1173 mm
860100046 AX 46 1168 mm 1198 mm
860100047 AX 47 1194 mm 1224 mm
860100048 AX 48 1220 mm 1250 mm
860100049 AX 49 1250 mm 1280 mm
860100050 AX 50 1270 mm 1300 mm
860100051 AX 51 1295 mm 1325 mm
860100052 AX 52 1320 mm 1350 mm
860100053 AX 53 1346 mm 1376 mm
860100054 AX 54 1372 mm 1402 mm
860100055 AX 55 1400 mm 1430 mm
860100056 AX 56 1425 mm 1455 mm
860100057 AX 57 1450 mm 1480 mm
860100058 AX 58 1475 mm 1505 mm
860100059 AX 59 1500 mm 1530 mm
860100060 AX 60 1525 mm 1555 mm
860100061 AX 61 1550 mm 1580 mm
860100062 AX 62 1575 mm 1605 mm
860100063 AX 63 1600 mm 1630 mm
860100064 AX 64 1625 mm 1655 mm
860100065 AX 65 1650 mm 1680 mm
860100066 AX 66 1675 mm 1705 mm
860100067 AX 67 1700 mm 1730 mm
860100068 AX 68 1725 mm 1755 mm
860100069 AX 69 1750 mm 1780 mm
860100070 AX 70 1775 mm 1805 mm
860100071 AX 71 1800 mm 1830 mm
860100072 AX 72 1826 mm 1856 mm
860100073 AX 73 1854 mm 1884 mm
860100074 AX 74 1880 mm 1910 mm
860100075 AX 75 1905 mm 1935 mm
860100076 AX 76 1930 mm 1960 mm
860100077 AX 77 1956 mm 1986 mm
860100078 AX 78 1981 mm 2011 mm
860100079 AX 79 2005 mm 2035 mm
860100080 AX 80 2031 mm 2061 mm
860100081 AX 81 2057 mm 2087 mm
860100082 AX 82 2083 mm 2113 mm
860100083 AX 83 2100 mm 2130 mm
860100084 AX 84 2133 mm 2163 mm
860100085 AX 85 2160 mm 2190 mm
860100086 AX 86 2185 mm 2215 mm
860100087 AX 87 2210 mm 2240 mm
860100088 AX 88 2235 mm 2265 mm
860100089 AX 89 2260 mm 2290 mm
860100090 AX 90 2286 mm 2316 mm
860100091 AX 91 2311 mm 2341 mm
860100092 AX 92 2337 mm 2367 mm
860100093 AX 93 2362 mm 2392 mm
860100094 AX 94 2383 mm 2413 mm
860100095 AX 95 2413 mm 2443 mm
860100096 AX 96 2438 mm 2468 mm
860100097 AX 97 2464 mm 2494 mm

Product Information

Material
EPDM rubber, polyester tensile cords, raw edge
Standard
ISO 4184
