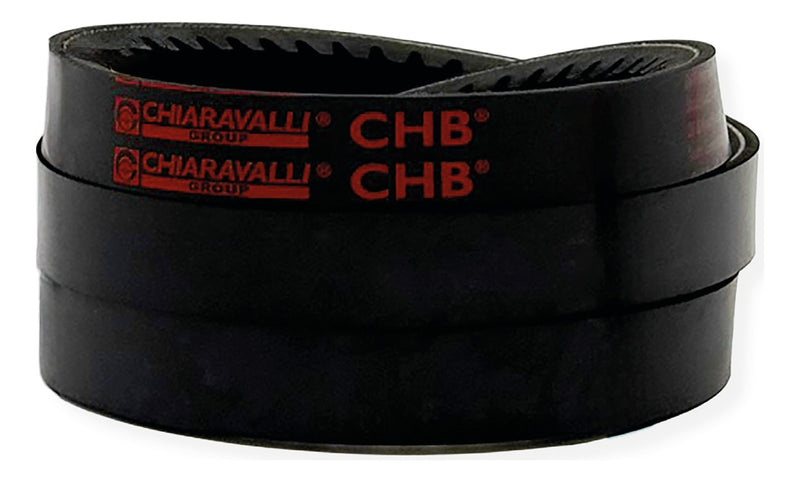

CHB® Classical Raw Edge Cogged V-Belt BX

Classical raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios; up to 40 % more power than a classical wrapped belt. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section BX: width W 17 mm × height H 11 mm
  • Minimum datum pulley diameter: 80 mm
  • Weight: 0,148 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -40 °C to +120 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 40 mm). External length Le = Li + 66 mm.

Code TypeLiLp
860200028 BX 28 710 mm 750 mm
860200032 BX 32 813 mm 853 mm
860200034 BX 34 863 mm 903 mm
860200035 BX 35 890 mm 930 mm
860200036 BX 36 914 mm 954 mm
860200038 BX 38 965 mm 1005 mm
860200039 BX 39 990 mm 1030 mm
860200040 BX 40 1016 mm 1056 mm
860200041 BX 41 1041 mm 1081 mm
860200042 BX 42 1067 mm 1107 mm
860200043 BX 43 1092 mm 1132 mm
860200044 BX 44 1120 mm 1160 mm
860200045 BX 45 1143 mm 1183 mm
860200046 BX 46 1168 mm 1208 mm
860200047 BX 47 1194 mm 1234 mm
860200048 BX 48 1220 mm 1260 mm
860200049 BX 49 1250 mm 1290 mm
860200050 BX 50 1270 mm 1310 mm
860200051 BX 51 1295 mm 1335 mm
860200052 BX 52 1320 mm 1360 mm
860200053 BX 53 1346 mm 1386 mm
860200054 BX 54 1372 mm 1412 mm
860200055 BX 55 1400 mm 1440 mm
860200056 BX 56 1425 mm 1465 mm
860200057 BX 57 1450 mm 1490 mm
860200058 BX 58 1475 mm 1515 mm
860200059 BX 59 1500 mm 1540 mm
860200060 BX 60 1525 mm 1565 mm
860200061 BX 61 1550 mm 1590 mm
860200062 BX 62 1575 mm 1615 mm
860200063 BX 63 1600 mm 1640 mm
860200064 BX 64 1625 mm 1665 mm
860200065 BX 65 1650 mm 1690 mm
860200066 BX 66 1675 mm 1715 mm
860200067 BX 67 1700 mm 1740 mm
860200068 BX 68 1725 mm 1765 mm
860200069 BX 69 1750 mm 1790 mm
860200070 BX 70 1775 mm 1815 mm
860200071 BX 71 1800 mm 1840 mm
860200072 BX 72 1825 mm 1865 mm
860200073 BX 73 1854 mm 1894 mm
860200074 BX 74 1880 mm 1920 mm
860200075 BX 75 1905 mm 1945 mm
860200076 BX 76 1930 mm 1970 mm
860200077 BX 77 1956 mm 1996 mm
860200078 BX 78 1981 mm 2021 mm
860200079 BX 79 2005 mm 2045 mm
860200080 BX 80 2031 mm 2071 mm
860200081 BX 81 2058 mm 2098 mm
860200082 BX 82 2083 mm 2123 mm
860200083 BX 83 2100 mm 2140 mm
860200084 BX 84 2133 mm 2173 mm
860200085 BX 85 2160 mm 2200 mm
860200086 BX 86 2185 mm 2225 mm
860200087 BX 87 2210 mm 2250 mm
860200088 BX 88 2235 mm 2275 mm
860200089 BX 89 2260 mm 2300 mm
860200090 BX 90 2286 mm 2326 mm
860200091 BX 91 2311 mm 2351 mm
860200092 BX 92 2337 mm 2377 mm
860200093 BX 93 2362 mm 2402 mm
860200094 BX 94 2388 mm 2428 mm
860200095 BX 95 2413 mm 2453 mm
860200096 BX 96 2438 mm 2478 mm
860200097 BX 97 2465 mm 2505 mm
860200098 BX 98 2500 mm 2540 mm
860200100 BX 100 2540 mm 2580 mm
860200105 BX 105 2667 mm 2707 mm
860200110 BX 110 2795 mm 2835 mm
860200115 BX 115 2921 mm 2961 mm
860200116 BX 116 2945 mm 2985 mm
860200120 BX 120 3048 mm 3088 mm

Product Information

Material
EPDM rubber, polyester tensile cords, raw edge
Standard
ISO 4184
