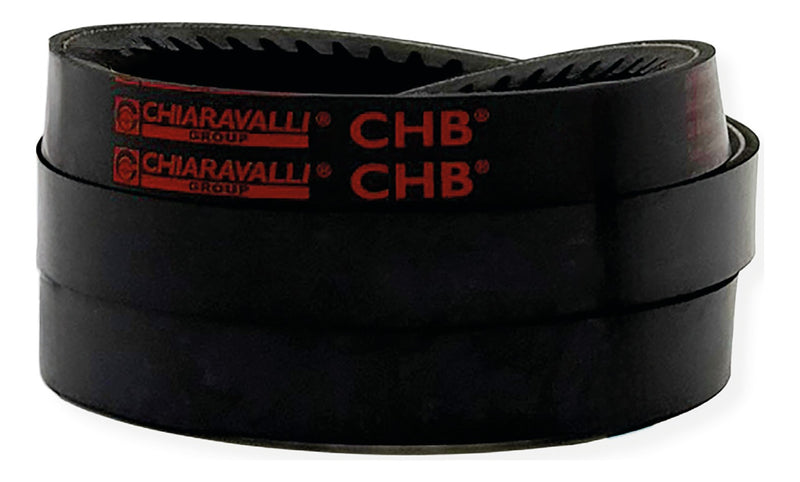

CHB® Classical Raw Edge Cogged V-Belt CX
Classical raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios; up to 40 % more power than a classical wrapped belt. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.
- Section CX: width W 22 mm × height H 14 mm
- Minimum datum pulley diameter: 140 mm
- Weight: 0,23 kg/m
- Maximum belt speed: 33 m/s
- Temperature range: -40 °C to +120 °C
- Section standard: ISO 4184
Product Configuration
Select a row to add it to your quote
Li = inside length, Lp = datum length (Lp = Li + 58 mm). External length Le = Li + 85 mm.
| Code | Type | Li | Lp |
|---|---|---|---|
860300051 |
CX 51
|
1295 mm
|
1353 mm
|
860300053 |
CX 53
|
1350 mm
|
1408 mm
|
860300055 |
CX 55
|
1400 mm
|
1458 mm
|
860300060 |
CX 60
|
1524 mm
|
1582 mm
|
860300068 |
CX 68
|
1727 mm
|
1785 mm
|
860300072 |
CX 72
|
1829 mm
|
1887 mm
|
860300075 |
CX 75
|
1905 mm
|
1963 mm
|
860300078 |
CX 78
|
1981 mm
|
2039 mm
|
860300081 |
CX 81
|
2057 mm
|
2115 mm
|
860300085 |
CX 85
|
2159 mm
|
2217 mm
|
860300087 |
CX 87
|
2211 mm
|
2269 mm
|
860300090 |
CX 90
|
2286 mm
|
2344 mm
|
860300093 |
CX 93
|
2362 mm
|
2420 mm
|
860300096 |
CX 96
|
2438 mm
|
2496 mm
|
860300100 |
CX 100
|
2540 mm
|
2598 mm
|
860300110 |
CX 110
|
2800 mm
|
2858 mm
|
860300114 |
CX 114
|
2896 mm
|
2954 mm
|
No products match the selected filters.
Product Information
- Material
- EPDM rubber, polyester tensile cords, raw edge
- Standard
ISO 4184
