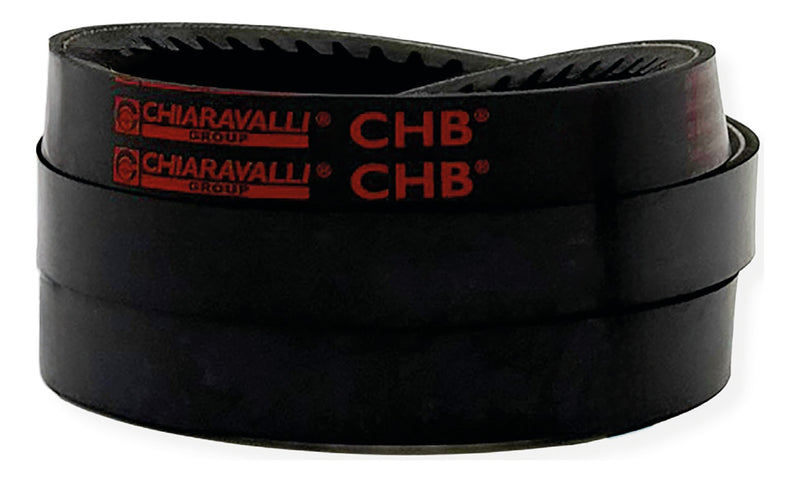

CHB® Classical Raw Edge Cogged V-Belt ZX
Classical raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios; up to 40 % more power than a classical wrapped belt. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.
- Section ZX: width W 10 mm × height H 6 mm
- Minimum datum pulley diameter: 40 mm
- Weight: 0,055 kg/m
- Maximum belt speed: 33 m/s
- Temperature range: -40 °C to +120 °C
- Section standard: ISO 4184
Product Configuration
Select a row to add it to your quote
Li = inside length, Lp = datum length (Lp = Li + 22 mm). External length Le = Li + 38 mm.
| Code | Type | Li | Lp |
|---|---|---|---|
860000200 |
ZX 20
|
508 mm
|
530 mm
|
860000210 |
ZX 21
|
533 mm
|
555 mm
|
860000250 |
ZX 25
|
635 mm
|
657 mm
|
860000280 |
ZX 28
|
711 mm
|
733 mm
|
860000300 |
ZX 30
|
762 mm
|
784 mm
|
860000315 |
ZX 31 1/2
|
794 mm
|
816 mm
|
860000320 |
ZX 32
|
813 mm
|
835 mm
|
860000330 |
ZX 33
|
838 mm
|
860 mm
|
860000340 |
ZX 34
|
863 mm
|
885 mm
|
860000360 |
ZX 36
|
914 mm
|
936 mm
|
860000380 |
ZX 38
|
965 mm
|
987 mm
|
860000410 |
ZX 41
|
1041 mm
|
1063 mm
|
860000435 |
ZX 43 1/2
|
1105 mm
|
1127 mm
|
860000450 |
ZX 45
|
1143 mm
|
1165 mm
|
860000480 |
ZX 48
|
1220 mm
|
1242 mm
|
860000500 |
ZX 50
|
1270 mm
|
1292 mm
|
860000520 |
ZX 52
|
1320 mm
|
1342 mm
|
860000550 |
ZX 55
|
1400 mm
|
1422 mm
|
No products match the selected filters.
Product Information
- Material
- EPDM rubber, polyester tensile cords, raw edge
- Standard
ISO 4184
