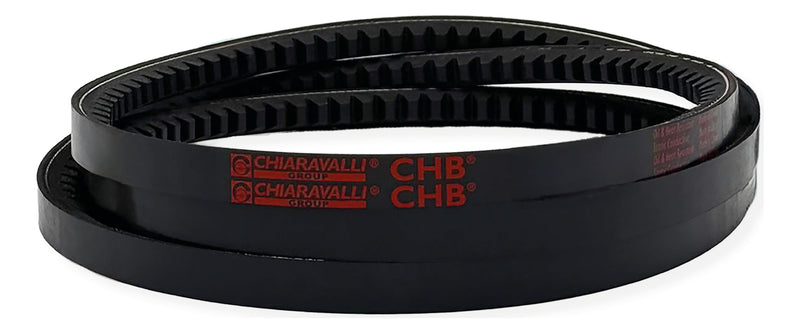

CHB® Narrow Raw Edge Cogged V-Belt XPA

Narrow raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

Section XPA: width W 12,7 mm × height H 10 mm
Minimum datum pulley diameter: 71 mm
Weight: 0,092 kg/m
Maximum belt speed: 48 m/s
Temperature range: -40 °C to +120 °C
Section standard: ISO 4184

Select a row to add it to your quote

Lp = datum length. Inside length Li = Lp − 45 mm, external length Le = Lp + 18 mm.

Code	Type	Lp
`860500690`	`XPA 690`	`690` mm
`860500732`	`XPA 732`	`732` mm
`860500750`	`XPA 750`	`750` mm
`860500775`	`XPA 775`	`775` mm
`860500782`	`XPA 782`	`782` mm
`860500800`	`XPA 800`	`800` mm
`860500807`	`XPA 807`	`807` mm
`860500825`	`XPA 825`	`825` mm
`860500832`	`XPA 832`	`832` mm
`860500850`	`XPA 850`	`850` mm
`860500857`	`XPA 857`	`857` mm
`860500875`	`XPA 875`	`875` mm
`860500882`	`XPA 882`	`882` mm
`860500900`	`XPA 900`	`900` mm
`860500907`	`XPA 907`	`907` mm
`860500925`	`XPA 925`	`925` mm
`860500932`	`XPA 932`	`932` mm
`860500950`	`XPA 950`	`950` mm
`860500957`	`XPA 957`	`957` mm
`860500975`	`XPA 975`	`975` mm
`860500982`	`XPA 982`	`982` mm
`860501000`	`XPA 1000`	`1000` mm
`860501007`	`XPA 1007`	`1007` mm
`860501030`	`XPA 1030`	`1030` mm
`860501060`	`XPA 1060`	`1060` mm
`860501069`	`XPA 1069`	`1069` mm
`860501082`	`XPA 1082`	`1082` mm
`860501090`	`XPA 1090`	`1090` mm
`860501107`	`XPA 1107`	`1107` mm
`860501120`	`XPA 1120`	`1120` mm
`860501132`	`XPA 1132`	`1132` mm
`860501140`	`XPA 1140`	`1140` mm
`860501142`	`XPA 1142`	`1142` mm
`860501150`	`XPA 1150`	`1150` mm
`860501157`	`XPA 1157`	`1157` mm
`860501172`	`XPA 1172`	`1172` mm
`860501180`	`XPA 1180`	`1180` mm
`860501207`	`XPA 1207`	`1207` mm
`860501215`	`XPA 1215`	`1215` mm
`860501220`	`XPA 1220`	`1220` mm
`860501232`	`XPA 1232`	`1232` mm
`860501250`	`XPA 1250`	`1250` mm
`860501257`	`XPA 1257`	`1257` mm
`860501272`	`XPA 1272`	`1272` mm
`860501282`	`XPA 1282`	`1282` mm
`860501285`	`XPA 1285`	`1285` mm
`860501307`	`XPA 1307`	`1307` mm
`860501320`	`XPA 1320`	`1320` mm
`860501332`	`XPA 1332`	`1332` mm
`860501357`	`XPA 1357`	`1357` mm
`860501360`	`XPA 1360`	`1360` mm
`860501367`	`XPA 1367`	`1367` mm
`860501382`	`XPA 1382`	`1382` mm
`860501400`	`XPA 1400`	`1400` mm
`860501407`	`XPA 1407`	`1407` mm
`860501432`	`XPA 1432`	`1432` mm
`860501442`	`XPA 1442`	`1442` mm
`860501450`	`XPA 1450`	`1450` mm
`860501457`	`XPA 1457`	`1457` mm
`860501462`	`XPA 1462`	`1462` mm
`860501482`	`XPA 1482`	`1482` mm
`860501500`	`XPA 1500`	`1500` mm
`860501507`	`XPA 1507`	`1507` mm
`860501522`	`XPA 1522`	`1522` mm
`860501532`	`XPA 1532`	`1532` mm
`860501550`	`XPA 1550`	`1550` mm
`860501557`	`XPA 1557`	`1557` mm
`860501582`	`XPA 1582`	`1582` mm
`860501600`	`XPA 1600`	`1600` mm
`860501607`	`XPA 1607`	`1607` mm
`860501632`	`XPA 1632`	`1632` mm
`860501650`	`XPA 1650`	`1650` mm
`860501657`	`XPA 1657`	`1657` mm
`860501680`	`XPA 1680`	`1680` mm
`860501682`	`XPA 1682`	`1682` mm
`860501700`	`XPA 1700`	`1700` mm
`860501707`	`XPA 1707`	`1707` mm
`860501732`	`XPA 1732`	`1732` mm
`860501750`	`XPA 1750`	`1750` mm
`860501757`	`XPA 1757`	`1757` mm
`860501782`	`XPA 1782`	`1782` mm
`860501800`	`XPA 1800`	`1800` mm
`860501807`	`XPA 1807`	`1807` mm
`860501832`	`XPA 1832`	`1832` mm
`860501850`	`XPA 1850`	`1850` mm
`860501857`	`XPA 1857`	`1857` mm
`860501882`	`XPA 1882`	`1882` mm
`860501900`	`XPA 1900`	`1900` mm
`860501907`	`XPA 1907`	`1907` mm
`860501932`	`XPA 1932`	`1932` mm
`860501950`	`XPA 1950`	`1950` mm
`860501957`	`XPA 1957`	`1957` mm
`860501982`	`XPA 1982`	`1982` mm
`860502000`	`XPA 2000`	`2000` mm
`860502032`	`XPA 2032`	`2032` mm
`860502057`	`XPA 2057`	`2057` mm
`860502060`	`XPA 2060`	`2060` mm
`860502082`	`XPA 2082`	`2082` mm
`860502120`	`XPA 2120`	`2120` mm
`860502132`	`XPA 2132`	`2132` mm
`860502180`	`XPA 2180`	`2180` mm
`860502207`	`XPA 2207`	`2207` mm
`860502232`	`XPA 2232`	`2232` mm
`860502240`	`XPA 2240`	`2240` mm
`860502282`	`XPA 2282`	`2282` mm
`860502300`	`XPA 2300`	`2300` mm
`860502307`	`XPA 2307`	`2307` mm
`860502332`	`XPA 2332`	`2332` mm
`860502360`	`XPA 2360`	`2360` mm
`860502382`	`XPA 2382`	`2382` mm
`860502430`	`XPA 2430`	`2430` mm
`860502482`	`XPA 2482`	`2482` mm
`860502500`	`XPA 2500`	`2500` mm
`860502532`	`XPA 2532`	`2532` mm
`860502582`	`XPA 2582`	`2582` mm
`860502607`	`XPA 2607`	`2607` mm
`860502632`	`XPA 2632`	`2632` mm
`860502650`	`XPA 2650`	`2650` mm
`860502682`	`XPA 2682`	`2682` mm
`860502732`	`XPA 2732`	`2732` mm
`860502782`	`XPA 2782`	`2782` mm
`860502800`	`XPA 2800`	`2800` mm
`860502832`	`XPA 2832`	`2832` mm
`860502847`	`XPA 2847`	`2847` mm
`860502882`	`XPA 2882`	`2882` mm
`860502900`	`XPA 2900`	`2900` mm
`860502932`	`XPA 2932`	`2932` mm
`860502982`	`XPA 2982`	`2982` mm
`860503000`	`XPA 3000`	`3000` mm
`860503150`	`XPA 3150`	`3150` mm
`860503350`	`XPA 3350`	`3350` mm
`860503550`	`XPA 3550`	`3550` mm
`860503750`	`XPA 3750`	`3750` mm
`860504000`	`XPA 4000`	`4000` mm

Material: EPDM rubber, polyester tensile cords, raw edge
Standard: ISO 4184
