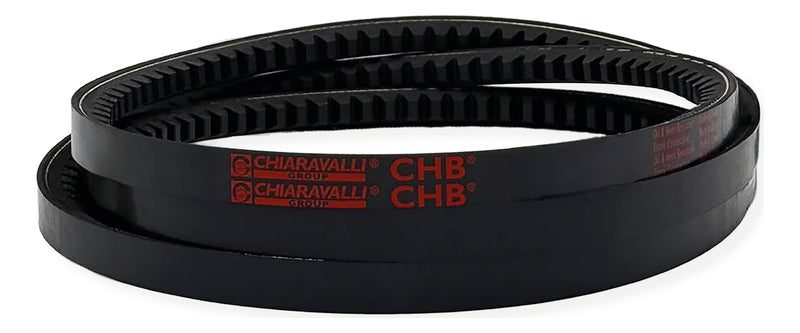

CHB® Narrow Raw Edge Cogged V-Belt XPB

Narrow raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

Section XPB: width W 16,3 mm × height H 13 mm
Minimum datum pulley diameter: 112 mm
Weight: 0,158 kg/m
Maximum belt speed: 48 m/s
Temperature range: -40 °C to +120 °C
Section standard: ISO 4184

Select a row to add it to your quote

Lp = datum length. Inside length Li = Lp − 60 mm, external length Le = Lp + 22 mm.

Code	Type	Lp
`860601000`	`XPB 1000`	`1000` mm
`860601120`	`XPB 1120`	`1120` mm
`860601180`	`XPB 1180`	`1180` mm
`860601250`	`XPB 1250`	`1250` mm
`860601280`	`XPB 1280`	`1280` mm
`860601320`	`XPB 1320`	`1320` mm
`860601340`	`XPB 1340`	`1340` mm
`860601360`	`XPB 1360`	`1360` mm
`860601400`	`XPB 1400`	`1400` mm
`860601450`	`XPB 1450`	`1450` mm
`860601500`	`XPB 1500`	`1500` mm
`860601550`	`XPB 1550`	`1550` mm
`860601590`	`XPB 1590`	`1590` mm
`860601600`	`XPB 1600`	`1600` mm
`860601650`	`XPB 1650`	`1650` mm
`860601690`	`XPB 1690`	`1690` mm
`860601700`	`XPB 1700`	`1700` mm
`860601750`	`XPB 1750`	`1750` mm
`860601800`	`XPB 1800`	`1800` mm
`860601850`	`XPB 1850`	`1850` mm
`860601900`	`XPB 1900`	`1900` mm
`860601950`	`XPB 1950`	`1950` mm
`860602000`	`XPB 2000`	`2000` mm
`860602020`	`XPB 2020`	`2020` mm
`860602060`	`XPB 2060`	`2060` mm
`860602120`	`XPB 2120`	`2120` mm
`860602150`	`XPB 2150`	`2150` mm
`860602180`	`XPB 2180`	`2180` mm
`860602240`	`XPB 2240`	`2240` mm
`860602280`	`XPB 2280`	`2280` mm
`860602300`	`XPB 2300`	`2300` mm
`860602360`	`XPB 2360`	`2360` mm
`860602400`	`XPB 2400`	`2400` mm
`860602410`	`XPB 2410`	`2410` mm
`860602430`	`XPB 2430`	`2430` mm
`860602500`	`XPB 2500`	`2500` mm
`860602530`	`XPB 2530`	`2530` mm
`860602580`	`XPB 2580`	`2580` mm
`860602650`	`XPB 2650`	`2650` mm
`860602680`	`XPB 2680`	`2680` mm
`860602730`	`XPB 2730`	`2730` mm
`860602800`	`XPB 2800`	`2800` mm
`860602840`	`XPB 2840`	`2840` mm
`860602900`	`XPB 2900`	`2900` mm
`860603000`	`XPB 3000`	`3000` mm
`860603150`	`XPB 3150`	`3150` mm
`860603250`	`XPB 3250`	`3250` mm
`860603350`	`XPB 3350`	`3350` mm
`860603550`	`XPB 3550`	`3550` mm
`860603750`	`XPB 3750`	`3750` mm
`860603800`	`XPB 3800`	`3800` mm
`860604000`	`XPB 4000`	`4000` mm
`860604050`	`XPB 4050`	`4050` mm
`860604250`	`XPB 4250`	`4250` mm
`860604500`	`XPB 4500`	`4500` mm
`860604750`	`XPB 4750`	`4750` mm
`860605000`	`XPB 5000`	`5000` mm

Material: EPDM rubber, polyester tensile cords, raw edge
Standard: ISO 4184
