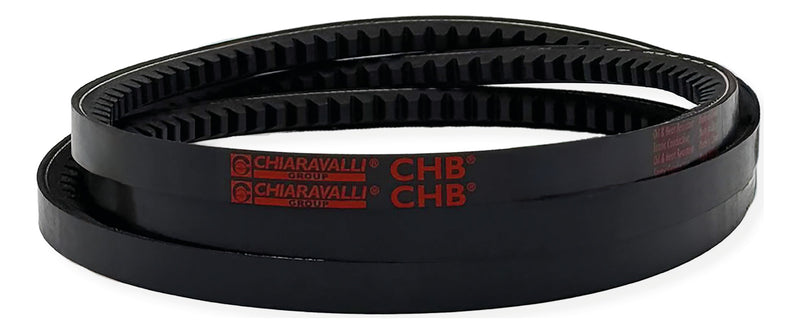

CHB® Narrow Raw Edge Cogged V-Belt XPC
Narrow raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.
- Section XPC: width W 22 mm × height H 18 mm
- Minimum datum pulley diameter: 180 mm
- Weight: 0,316 kg/m
- Maximum belt speed: 48 m/s
- Temperature range: -40 °C to +120 °C
- Section standard: ISO 4184
Product Configuration
Select a row to add it to your quote
Lp = datum length. Inside length Li = Lp − 83 mm, external length Le = Lp + 30 mm.
| Code | Type | Lp |
|---|---|---|
860702000 |
XPC 2000
|
2000 mm
|
860702120 |
XPC 2120
|
2120 mm
|
860702240 |
XPC 2240
|
2240 mm
|
860702360 |
XPC 2360
|
2360 mm
|
860702500 |
XPC 2500
|
2500 mm
|
860702650 |
XPC 2650
|
2650 mm
|
860702800 |
XPC 2800
|
2800 mm
|
860703000 |
XPC 3000
|
3000 mm
|
860703150 |
XPC 3150
|
3150 mm
|
860703350 |
XPC 3350
|
3350 mm
|
860703550 |
XPC 3550
|
3550 mm
|
860703750 |
XPC 3750
|
3750 mm
|
860704000 |
XPC 4000
|
4000 mm
|
860704250 |
XPC 4250
|
4250 mm
|
860704500 |
XPC 4500
|
4500 mm
|
860704750 |
XPC 4750
|
4750 mm
|
860705000 |
XPC 5000
|
5000 mm
|
No products match the selected filters.
Product Information
- Material
- EPDM rubber, polyester tensile cords, raw edge
- Standard
ISO 4184
