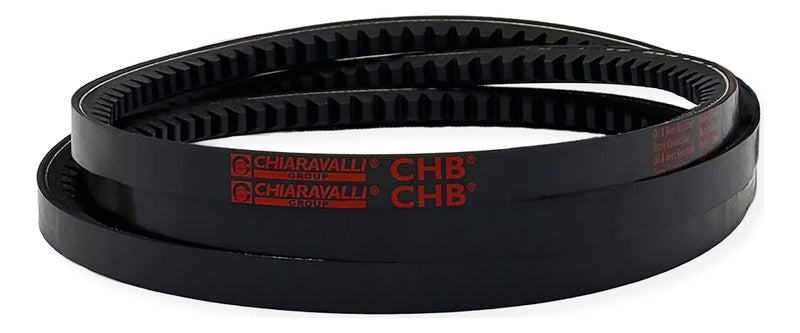

CHB® Narrow Raw Edge Cogged V-Belt XPZ

Narrow raw edge cogged CHB® V-belt — the raw-edge construction and notch design suit drives with little space, small pulley diameters, short centre distances, high speeds and high ratios. EPDM compound for -40 °C to +120 °C; oil, heat, ozone, UV and chemical resistant; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

Section XPZ: width W 9,7 mm × height H 8 mm
Minimum datum pulley diameter: 56 mm
Weight: 0,063 kg/m
Maximum belt speed: 48 m/s
Temperature range: -40 °C to +120 °C
Section standard: ISO 4184

Select a row to add it to your quote

Lp = datum length. Inside length Li = Lp − 37 mm, external length Le = Lp + 13 mm.

Code	Type	Lp
`860400587`	`XPZ 587`	`587` mm
`860400600`	`XPZ 600`	`600` mm
`860400612`	`XPZ 612`	`612` mm
`860400630`	`XPZ 630`	`630` mm
`860400637`	`XPZ 637`	`637` mm
`860400660`	`XPZ 660`	`660` mm
`860400670`	`XPZ 670`	`670` mm
`860400687`	`XPZ 687`	`687` mm
`860400710`	`XPZ 710`	`710` mm
`860400722`	`XPZ 722`	`722` mm
`860400730`	`XPZ 730`	`730` mm
`860400737`	`XPZ 737`	`737` mm
`860400750`	`XPZ 750`	`750` mm
`860400762`	`XPZ 762`	`762` mm
`860400775`	`XPZ 775`	`775` mm
`860400787`	`XPZ 787`	`787` mm
`860400800`	`XPZ 800`	`800` mm
`860400825`	`XPZ 825`	`825` mm
`860400837`	`XPZ 837`	`837` mm
`860400850`	`XPZ 850`	`850` mm
`860400862`	`XPZ 862`	`862` mm
`860400875`	`XPZ 875`	`875` mm
`860400887`	`XPZ 887`	`887` mm
`860400900`	`XPZ 900`	`900` mm
`860400912`	`XPZ 912`	`912` mm
`860400925`	`XPZ 925`	`925` mm
`860400937`	`XPZ 937`	`937` mm
`860400950`	`XPZ 950`	`950` mm
`860400975`	`XPZ 975`	`975` mm
`860400987`	`XPZ 987`	`987` mm
`860401000`	`XPZ 1000`	`1000` mm
`860401012`	`XPZ 1012`	`1012` mm
`860401025`	`XPZ 1025`	`1025` mm
`860401030`	`XPZ 1030`	`1030` mm
`860401037`	`XPZ 1037`	`1037` mm
`860401047`	`XPZ 1047`	`1047` mm
`860401060`	`XPZ 1060`	`1060` mm
`860401080`	`XPZ 1080`	`1080` mm
`860401087`	`XPZ 1087`	`1087` mm
`860401110`	`XPZ 1110`	`1110` mm
`860401112`	`XPZ 1112`	`1112` mm
`860401120`	`XPZ 1120`	`1120` mm
`860401137`	`XPZ 1137`	`1137` mm
`860401140`	`XPZ 1140`	`1140` mm
`860401150`	`XPZ 1150`	`1150` mm
`860401162`	`XPZ 1162`	`1162` mm
`860401180`	`XPZ 1180`	`1180` mm
`860401187`	`XPZ 1187`	`1187` mm
`860401202`	`XPZ 1202`	`1202` mm
`860401212`	`XPZ 1212`	`1212` mm
`860401220`	`XPZ 1220`	`1220` mm
`860401237`	`XPZ 1237`	`1237` mm
`860401250`	`XPZ 1250`	`1250` mm
`860401262`	`XPZ 1262`	`1262` mm
`860401270`	`XPZ 1270`	`1270` mm
`860401280`	`XPZ 1280`	`1280` mm
`860401287`	`XPZ 1287`	`1287` mm
`860401312`	`XPZ 1312`	`1312` mm
`860401320`	`XPZ 1320`	`1320` mm
`860401337`	`XPZ 1337`	`1337` mm
`860401347`	`XPZ 1347`	`1347` mm
`860401360`	`XPZ 1360`	`1360` mm
`860401362`	`XPZ 1362`	`1362` mm
`860401387`	`XPZ 1387`	`1387` mm
`860401400`	`XPZ 1400`	`1400` mm
`860401412`	`XPZ 1412`	`1412` mm
`860401420`	`XPZ 1420`	`1420` mm
`860401437`	`XPZ 1437`	`1437` mm
`860401450`	`XPZ 1450`	`1450` mm
`860401462`	`XPZ 1462`	`1462` mm
`860401487`	`XPZ 1487`	`1487` mm
`860401500`	`XPZ 1500`	`1500` mm
`860401512`	`XPZ 1512`	`1512` mm
`860401520`	`XPZ 1520`	`1520` mm
`860401537`	`XPZ 1537`	`1537` mm
`860401550`	`XPZ 1550`	`1550` mm
`860401562`	`XPZ 1562`	`1562` mm
`860401587`	`XPZ 1587`	`1587` mm
`860401600`	`XPZ 1600`	`1600` mm
`860401612`	`XPZ 1612`	`1612` mm
`860401637`	`XPZ 1637`	`1637` mm
`860401650`	`XPZ 1650`	`1650` mm
`860401662`	`XPZ 1662`	`1662` mm
`860401687`	`XPZ 1687`	`1687` mm
`860401700`	`XPZ 1700`	`1700` mm
`860401737`	`XPZ 1737`	`1737` mm
`860401750`	`XPZ 1750`	`1750` mm
`860401762`	`XPZ 1762`	`1762` mm
`860401787`	`XPZ 1787`	`1787` mm
`860401800`	`XPZ 1800`	`1800` mm
`860401812`	`XPZ 1812`	`1812` mm
`860401837`	`XPZ 1837`	`1837` mm
`860401850`	`XPZ 1850`	`1850` mm
`860401862`	`XPZ 1862`	`1862` mm
`860401887`	`XPZ 1887`	`1887` mm
`860401900`	`XPZ 1900`	`1900` mm
`860401937`	`XPZ 1937`	`1937` mm
`860401950`	`XPZ 1950`	`1950` mm
`860401987`	`XPZ 1987`	`1987` mm
`860402000`	`XPZ 2000`	`2000` mm
`860402030`	`XPZ 2030`	`2030` mm
`860402037`	`XPZ 2037`	`2037` mm
`860402060`	`XPZ 2060`	`2060` mm
`860402120`	`XPZ 2120`	`2120` mm
`860402137`	`XPZ 2137`	`2137` mm
`860402160`	`XPZ 2160`	`2160` mm
`860402187`	`XPZ 2187`	`2187` mm
`860402240`	`XPZ 2240`	`2240` mm
`860402262`	`XPZ 2262`	`2262` mm
`860402280`	`XPZ 2280`	`2280` mm
`860402287`	`XPZ 2287`	`2287` mm
`860402360`	`XPZ 2360`	`2360` mm
`860402410`	`XPZ 2410`	`2410` mm
`860402430`	`XPZ 2430`	`2430` mm
`860402500`	`XPZ 2500`	`2500` mm
`860402540`	`XPZ 2540`	`2540` mm
`860402650`	`XPZ 2650`	`2650` mm
`860402690`	`XPZ 2690`	`2690` mm
`860402800`	`XPZ 2800`	`2800` mm
`860402840`	`XPZ 2840`	`2840` mm
`860403000`	`XPZ 3000`	`3000` mm
`860403150`	`XPZ 3150`	`3150` mm
`860403350`	`XPZ 3350`	`3350` mm
`860403550`	`XPZ 3550`	`3550` mm

Material: EPDM rubber, polyester tensile cords, raw edge
Standard: ISO 4184
