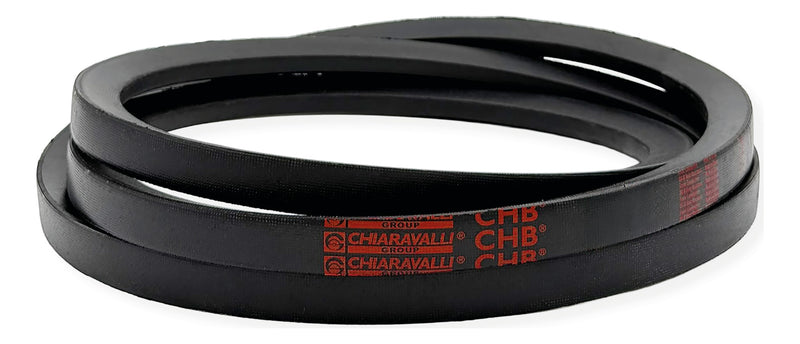

Chiaravalli CHB® Wrapped Classical Section V-Belt A — product photo
Chiaravalli

CHB® Wrapped Classical Section V-Belt A

Wrapped classical section CHB® V-belt — oil and heat resistant, a reliable choice for industrial and agricultural drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section A: width W 13 mm × height H 8 mm
  • Minimum datum pulley diameter: 63 mm
  • Weight: 0,115 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -30 °C to +80 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 30 mm). External length Le = Li + 50 mm.

Code TypeLiLp
851100150 A15 382 mm 412 mm
851100160 A16 407 mm 437 mm
851100170 A17 432 mm 462 mm
851100180 A18 457 mm 487 mm
851100190 A19 480 mm 510 mm
851100200 A20 510 mm 540 mm
851100210 A21 530 mm 560 mm
851100220 A22 560 mm 590 mm
851100230 A23 590 mm 620 mm
851100235 A23.5 600 mm 630 mm
851100240 A24 610 mm 640 mm
851100250 A25 640 mm 670 mm
851100260 A26 670 mm 700 mm
851100270 A27 690 mm 720 mm
851100275 A27.5 700 mm 730 mm
851100280 A28 710 mm 740 mm
851100285 A28.5 720 mm 750 mm
851100290 A29 735 mm 765 mm
851100295 A29.5 750 mm 780 mm
851100300 A30 770 mm 800 mm
851100310 A31 795 mm 825 mm
851100320 A32 820 mm 850 mm
851100325 A32.5 830 mm 860 mm
851100330 A33 840 mm 870 mm
851100340 A34 870 mm 900 mm
851100350 A35 890 mm 920 mm
851100360 A36 920 mm 950 mm
851100370 A37 940 mm 970 mm
851100380 A38 960 mm 990 mm
851100385 A38.5 970 mm 1000 mm
851100390 A39 990 mm 1020 mm
851100400 A40 1010 mm 1040 mm
851100405 A40.5 1030 mm 1060 mm
851100410 A41 1040 mm 1070 mm
851100420 A42 1070 mm 1100 mm
851100430 A43 1090 mm 1120 mm
851100440 A44 1120 mm 1150 mm
851100450 A45 1150 mm 1180 mm
851100460 A46 1170 mm 1200 mm
851100465 A46.5 1180 mm 1210 mm
851100470 A47 1200 mm 1230 mm
851100480 A48 1220 mm 1250 mm
851100490 A49 1250 mm 1280 mm
851100500 A50 1270 mm 1300 mm
851100510 A51 1300 mm 1330 mm
851100520 A52 1320 mm 1350 mm
851100530 A53 1350 mm 1380 mm
851100540 A54 1370 mm 1400 mm
851100550 A55 1400 mm 1430 mm
851100560 A56 1425 mm 1455 mm
851100570 A57 1450 mm 1480 mm
851100580 A58 1470 mm 1500 mm
851100590 A59 1500 mm 1530 mm
851100600 A60 1520 mm 1550 mm
851100610 A61 1550 mm 1580 mm
851100620 A62 1580 mm 1610 mm
851100630 A63 1610 mm 1640 mm
851100640 A64 1630 mm 1660 mm
851100650 A65 1660 mm 1690 mm
851100655 A65.5 1670 mm 1700 mm
851100660 A66 1680 mm 1710 mm
851100670 A67 1710 mm 1740 mm
851100680 A68 1730 mm 1760 mm
851100690 A69 1760 mm 1790 mm
851100695 A69.5 1770 mm 1800 mm
851100700 A70 1780 mm 1810 mm
851100710 A71 1810 mm 1840 mm
851100720 A72 1830 mm 1860 mm
851100730 A73 1860 mm 1890 mm
851100735 A73.5 1870 mm 1900 mm
851100740 A74 1890 mm 1920 mm
851100750 A75 1910 mm 1940 mm
851100760 A76 1930 mm 1960 mm
851100770 A77 1960 mm 1990 mm
851100775 A77.5 1970 mm 2000 mm
851100780 A78 1980 mm 2010 mm
851100790 A79 2010 mm 2040 mm
851100800 A80 2032 mm 2062 mm
851100810 A81 2060 mm 2090 mm
851100820 A82 2090 mm 2120 mm
851100830 A83 2110 mm 2140 mm
851100840 A84 2140 mm 2170 mm
851100850 A85 2170 mm 2200 mm
851100860 A86 2190 mm 2220 mm
851100870 A87 2210 mm 2240 mm
851100880 A88 2240 mm 2270 mm
851100890 A89 2270 mm 2300 mm
851100900 A90 2290 mm 2320 mm
851100910 A91 2320 mm 2350 mm
851100920 A92 2340 mm 2370 mm
851100930 A93 2370 mm 2400 mm
851100940 A94 2390 mm 2420 mm
851100950 A95 2420 mm 2450 mm
851100960 A96 2450 mm 2480 mm
851100970 A97 2470 mm 2500 mm
851100980 A98 2500 mm 2530 mm
851100990 A99 2520 mm 2550 mm
851101000 A100 2540 mm 2570 mm
851101020 A102 2590 mm 2620 mm
851101030 A103 2620 mm 2650 mm
851101040 A104 2650 mm 2680 mm
851101050 A105 2670 mm 2700 mm
851101070 A107 2720 mm 2750 mm
851101080 A108 2745 mm 2775 mm
851101090 A109 2770 mm 2800 mm
851101100 A110 2800 mm 2830 mm
851101120 A112 2850 mm 2880 mm
851101140 A114 2896 mm 2926 mm
851101150 A115 2930 mm 2960 mm
851101160 A116 2950 mm 2980 mm
851101180 A118 3000 mm 3030 mm
851101200 A120 3050 mm 3080 mm
851101230 A123 3120 mm 3150 mm
851101240 A124 3150 mm 3180 mm
851101280 A128 3250 mm 3280 mm
851101300 A130 3305 mm 3335 mm
851101320 A132 3350 mm 3380 mm
851101360 A136 3455 mm 3485 mm
851101400 A140 3555 mm 3585 mm
851101440 A144 3660 mm 3690 mm
851101480 A148 3750 mm 3780 mm
851101580 A158 4015 mm 4045 mm
851101670 A167 4245 mm 4275 mm
851101870 A187 4750 mm 4780 mm
851101970 A197 5000 mm 5030 mm

Product Information

Material
Chloroprene rubber, polyester tensile cords, fabric cover
Standard
ISO 4184
