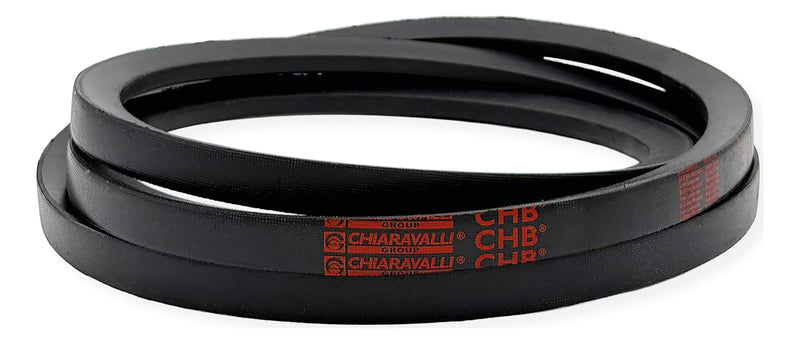

Chiaravalli CHB® Wrapped Classical Section V-Belt B — product photo
Chiaravalli

CHB® Wrapped Classical Section V-Belt B

Wrapped classical section CHB® V-belt — oil and heat resistant, a reliable choice for industrial and agricultural drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section B: width W 17 mm × height H 11 mm
  • Minimum datum pulley diameter: 100 mm
  • Weight: 0,193 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -30 °C to +80 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 40 mm). External length Le = Li + 66 mm.

Code TypeLiLp
851200230 B23 587 mm 627 mm
851200240 B24 612 mm 652 mm
851200260 B26 660 mm 700 mm
851200270 B27 690 mm 730 mm
851200280 B28 710 mm 750 mm
851200290 B29 730 mm 770 mm
851200300 B30 760 mm 800 mm
851200310 B31 790 mm 830 mm
851200320 B32 820 mm 860 mm
851200330 B33 840 mm 880 mm
851200335 B33.5 850 mm 890 mm
851200340 B34 865 mm 905 mm
851200350 B35 890 mm 930 mm
851200355 B35.5 905 mm 945 mm
851200360 B36 920 mm 960 mm
851200365 B36.5 930 mm 970 mm
851200370 B37 950 mm 990 mm
851200375 B37.5 960 mm 1000 mm
851200380 B38 970 mm 1010 mm
851200385 B38.5 980 mm 1020 mm
851200390 B39 990 mm 1030 mm
851200400 B40 1020 mm 1060 mm
851200410 B41 1040 mm 1080 mm
851200420 B42 1070 mm 1110 mm
851200430 B43 1090 mm 1130 mm
851200440 B44 1120 mm 1160 mm
851200450 B45 1150 mm 1190 mm
851200460 B46 1170 mm 1210 mm
851200470 B47 1200 mm 1240 mm
851200480 B48 1220 mm 1260 mm
851200490 B49 1250 mm 1290 mm
851200500 B50 1280 mm 1320 mm
851200510 B51 1300 mm 1340 mm
851200520 B52 1330 mm 1370 mm
851200530 B53 1350 mm 1390 mm
851200540 B54 1370 mm 1410 mm
851200550 B55 1400 mm 1440 mm
851200560 B56 1420 mm 1460 mm
851200570 B57 1450 mm 1490 mm
851200580 B58 1470 mm 1510 mm
851200590 B59 1500 mm 1540 mm
851200600 B60 1520 mm 1560 mm
851200610 B61 1550 mm 1590 mm
851200620 B62 1580 mm 1620 mm
851200630 B63 1600 mm 1640 mm
851200640 B64 1630 mm 1670 mm
851200650 B65 1660 mm 1700 mm
851200660 B66 1680 mm 1720 mm
851200670 B67 1700 mm 1740 mm
851200680 B68 1730 mm 1770 mm
851200690 B69 1760 mm 1800 mm
851200700 B70 1780 mm 1820 mm
851200710 B71 1810 mm 1850 mm
851200720 B72 1830 mm 1870 mm
851200730 B73 1860 mm 1900 mm
851200740 B74 1880 mm 1920 mm
851200750 B75 1910 mm 1950 mm
851200760 B76 1930 mm 1970 mm
851200770 B77 1960 mm 2000 mm
851200780 B78 1980 mm 2020 mm
851200790 B79 2010 mm 2050 mm
851200800 B80 2030 mm 2070 mm
851200810 B81 2060 mm 2100 mm
851200820 B82 2090 mm 2130 mm
851200830 B83 2110 mm 2150 mm
851200840 B84 2140 mm 2180 mm
851200850 B85 2160 mm 2200 mm
851200860 B86 2190 mm 2230 mm
851200870 B87 2210 mm 2250 mm
851200880 B88 2240 mm 2280 mm
851200890 B89 2260 mm 2300 mm
851200900 B90 2290 mm 2330 mm
851200910 B91 2310 mm 2350 mm
851200920 B92 2340 mm 2380 mm
851200930 B93 2360 mm 2400 mm
851200940 B94 2380 mm 2420 mm
851200950 B95 2410 mm 2450 mm
851200960 B96 2440 mm 2480 mm
851200970 B97 2460 mm 2500 mm
851200980 B98 2490 mm 2530 mm
851200990 B99 2520 mm 2560 mm
851201000 B100 2540 mm 2580 mm
851201010 B101 2570 mm 2610 mm
851201020 B102 2590 mm 2630 mm
851201030 B103 2610 mm 2650 mm
851201040 B104 2640 mm 2680 mm
851201050 B105 2660 mm 2700 mm
851201060 B106 2700 mm 2740 mm
851201070 B107 2725 mm 2765 mm
851201080 B108 2750 mm 2790 mm
851201100 B110 2800 mm 2840 mm
851201120 B112 2850 mm 2890 mm
851201140 B114 2900 mm 2940 mm
851201150 B115 2925 mm 2965 mm
851201160 B116 2950 mm 2990 mm
851201180 B118 3000 mm 3040 mm
851201200 B120 3050 mm 3090 mm
851201240 B124 3150 mm 3190 mm
851201260 B126 3200 mm 3240 mm
851201280 B128 3250 mm 3290 mm
851201300 B130 3310 mm 3350 mm
851201320 B132 3360 mm 3400 mm
851201340 B134 3410 mm 3450 mm
851201360 B136 3460 mm 3500 mm
851201380 B138 3510 mm 3550 mm
851201400 B140 3560 mm 3600 mm
851201410 B141 3585 mm 3625 mm
851201420 B142 3610 mm 3650 mm
851201440 B144 3660 mm 3700 mm
851201460 B146 3710 mm 3750 mm
851201470 B147 3740 mm 3780 mm
851201480 B148 3760 mm 3800 mm
851201520 B152 3860 mm 3900 mm
851201540 B154 3910 mm 3950 mm
851201580 B158 4020 mm 4060 mm
851201600 B160 4070 mm 4110 mm
851201620 B162 4120 mm 4160 mm
851201670 B167 4240 mm 4280 mm
851201730 B173 4400 mm 4440 mm
851201750 B175 4450 mm 4490 mm
851201800 B180 4570 mm 4610 mm
851201870 B187 4750 mm 4790 mm
851201920 B192 4880 mm 4920 mm
851201950 B195 4960 mm 5000 mm
851202080 B208 5280 mm 5320 mm
851202100 B210 5330 mm 5370 mm
851202400 B240 6100 mm 6140 mm
851202480 B248 6300 mm 6340 mm
851202700 B270 6860 mm 6900 mm
851202800 B280 7110 mm 7150 mm

Product Information

Material
Chloroprene rubber, polyester tensile cords, fabric cover
Standard
ISO 4184
