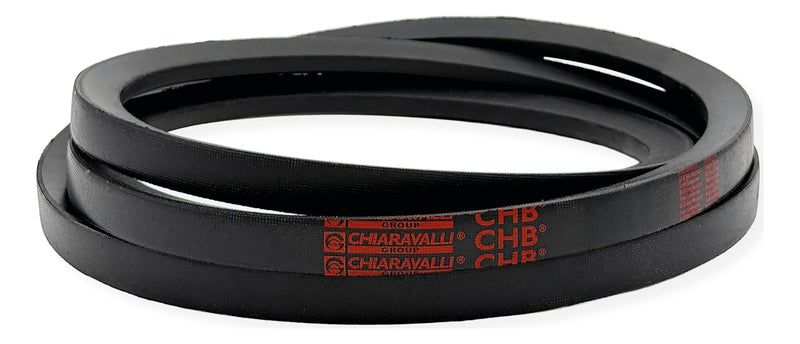

Chiaravalli CHB® Wrapped Classical Section V-Belt C — product photo
Chiaravalli

CHB® Wrapped Classical Section V-Belt C

Wrapped classical section CHB® V-belt — oil and heat resistant, a reliable choice for industrial and agricultural drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section C: width W 22 mm × height H 14 mm
  • Minimum datum pulley diameter: 160 mm
  • Weight: 0,32 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -30 °C to +80 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 58 mm). External length Le = Li + 85 mm.

Code TypeLiLp
851300390 C39 990 mm 1048 mm
851300410 C41 1041 mm 1099 mm
851300420 C42 1067 mm 1125 mm
851300430 C43 1092 mm 1150 mm
851300470 C47 1192 mm 1250 mm
851300480 C48 1222 mm 1280 mm
851300490 C49 1242 mm 1300 mm
851300510 C51 1292 mm 1350 mm
851300520 C52 1320 mm 1378 mm
851300530 C53 1342 mm 1400 mm
851300550 C55 1392 mm 1450 mm
851300560 C56 1422 mm 1480 mm
851300570 C57 1442 mm 1500 mm
851300580 C58 1472 mm 1530 mm
851300590 C59 1502 mm 1560 mm
851300600 C60 1522 mm 1580 mm
851300610 C61 1542 mm 1600 mm
851300620 C62 1572 mm 1630 mm
851300630 C63 1592 mm 1650 mm
851300640 C64 1617 mm 1675 mm
851300650 C65 1642 mm 1700 mm
851300660 C66 1672 mm 1730 mm
851300670 C67 1702 mm 1760 mm
851300680 C68 1727 mm 1785 mm
851300690 C69 1752 mm 1810 mm
851300700 C70 1772 mm 1830 mm
851300710 C71 1802 mm 1860 mm
851300720 C72 1829 mm 1887 mm
851300750 C75 1907 mm 1965 mm
851300760 C76 1932 mm 1990 mm
851300770 C77 1952 mm 2010 mm
851300780 C78 1982 mm 2040 mm
851300800 C80 2032 mm 2090 mm
851300810 C81 2052 mm 2110 mm
851300820 C82 2082 mm 2140 mm
851300830 C83 2102 mm 2160 mm
851300840 C84 2132 mm 2190 mm
851300850 C85 2162 mm 2220 mm
851300860 C86 2182 mm 2240 mm
851300880 C88 2232 mm 2290 mm
851300890 C89 2262 mm 2320 mm
851300900 C90 2282 mm 2340 mm
851300930 C93 2362 mm 2420 mm
851300940 C94 2382 mm 2440 mm
851300950 C95 2412 mm 2470 mm
851300960 C96 2432 mm 2490 mm
851300970 C97 2462 mm 2520 mm
851300980 C98 2492 mm 2550 mm
851300990 C99 2512 mm 2570 mm
851301000 C100 2542 mm 2600 mm
851301010 C101 2562 mm 2620 mm
851301020 C102 2592 mm 2650 mm
851301030 C103 2617 mm 2675 mm
851301040 C104 2642 mm 2700 mm
851301050 C105 2662 mm 2720 mm
851301060 C106 2692 mm 2750 mm
851301080 C108 2742 mm 2800 mm
851301100 C110 2792 mm 2850 mm
851301110 C111 2817 mm 2875 mm
851301120 C112 2842 mm 2900 mm
851301140 C114 2892 mm 2950 mm
851301150 C115 2922 mm 2980 mm
851301160 C116 2942 mm 3000 mm
851301170 C117 2967 mm 3025 mm
851301180 C118 2992 mm 3050 mm
851301200 C120 3042 mm 3100 mm
851301220 C122 3092 mm 3150 mm
851301240 C124 3152 mm 3210 mm
851301250 C125 3177 mm 3235 mm
851301280 C128 3252 mm 3310 mm
851301300 C130 3302 mm 3360 mm
851301320 C132 3352 mm 3410 mm
851301340 C134 3402 mm 3460 mm
851301360 C136 3462 mm 3520 mm
851301400 C140 3552 mm 3610 mm
851301440 C144 3652 mm 3710 mm
851301480 C148 3762 mm 3820 mm
851301530 C153 3887 mm 3945 mm
851301580 C158 4002 mm 4060 mm
851301620 C162 4112 mm 4170 mm
851301650 C165 4192 mm 4250 mm
851301670 C167 4242 mm 4300 mm
851301700 C170 4318 mm 4376 mm
851301730 C173 4392 mm 4450 mm
851301740 C174 4417 mm 4475 mm
851301750 C175 4442 mm 4500 mm
851301770 C177 4502 mm 4560 mm
851301800 C180 4572 mm 4630 mm
851301840 C184 4672 mm 4730 mm
851301850 C185 4702 mm 4760 mm
851301870 C187 4752 mm 4810 mm
851301900 C190 4822 mm 4880 mm
851301950 C195 4952 mm 5010 mm
851301970 C197 5002 mm 5060 mm
851302000 C200 5082 mm 5140 mm
851302040 C204 5182 mm 5240 mm
851302080 C208 5282 mm 5340 mm
851302100 C210 5334 mm 5392 mm
851302200 C220 5592 mm 5650 mm
851302210 C221 5617 mm 5675 mm
851302220 C222 5642 mm 5700 mm
851302250 C225 5712 mm 5770 mm
851302300 C230 5842 mm 5900 mm
851302380 C238 6042 mm 6100 mm
851302400 C240 6092 mm 6150 mm
851302450 C245 6222 mm 6280 mm
851302500 C250 6352 mm 6410 mm
851302550 C255 6477 mm 6535 mm
851302600 C260 6602 mm 6660 mm
851302650 C265 6732 mm 6790 mm
851302700 C270 6852 mm 6910 mm
851302750 C275 6982 mm 7040 mm
851302800 C280 7112 mm 7170 mm
851302850 C285 7242 mm 7300 mm
851303000 C300 7622 mm 7680 mm
851303050 C305 7747 mm 7805 mm
851303170 C317 8052 mm 8110 mm
851303240 C324 8232 mm 8290 mm
851303270 C327 8307 mm 8365 mm
851303360 C336 8532 mm 8590 mm
851303450 C 345 8763 mm 8821 mm
851303520 C 352 8940 mm 8998 mm
851303600 C 360 9145 mm 9203 mm
851303940 C 394 10008 mm 10066 mm
851304200 C 420 10668 mm 10726 mm

Product Information

Material
Chloroprene rubber, polyester tensile cords, fabric cover
Standard
ISO 4184
