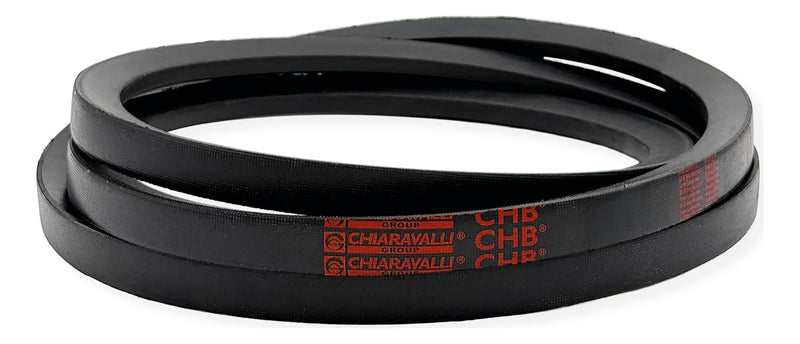

Chiaravalli CHB® Wrapped Classical Section V-Belt D — product photo
Chiaravalli

CHB® Wrapped Classical Section V-Belt D

Wrapped classical section CHB® V-belt — oil and heat resistant, a reliable choice for industrial and agricultural drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section D: width W 32 mm × height H 20 mm
  • Minimum datum pulley diameter: 300 mm
  • Weight: 0,669 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -30 °C to +80 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 75 mm). External length Le = Li + 126 mm.

Code TypeLiLp
851400980 D98 2500 mm 2575 mm
851401040 D104 2650 mm 2725 mm
851401100 D110 2800 mm 2875 mm
851401180 D118 3000 mm 3075 mm
851401200 D120 3050 mm 3125 mm
851401240 D124 3150 mm 3225 mm
851401260 D126 3200 mm 3275 mm
851401280 D128 3250 mm 3325 mm
851401320 D132 3350 mm 3425 mm
851401360 D136 3450 mm 3525 mm
851401400 D140 3550 mm 3625 mm
851401440 D144 3660 mm 3735 mm
851401480 D148 3750 mm 3825 mm
851401540 D154 3925 mm 4000 mm
851401560 D156 3960 mm 4035 mm
851401580 D158 4000 mm 4075 mm
851401620 D162 4115 mm 4190 mm
851401630 D163 4140 mm 4215 mm
851401670 D167 4250 mm 4325 mm
851401730 D173 4395 mm 4470 mm
851401770 D177 4500 mm 4575 mm
851401800 D180 4570 mm 4645 mm
851401810 D181 4595 mm 4670 mm
851401870 D187 4750 mm 4825 mm
851401950 D195 4953 mm 5028 mm
851401970 D197 5000 mm 5075 mm
851402080 D208 5300 mm 5375 mm
851402100 D210 5335 mm 5410 mm
851402200 D220 5600 mm 5675 mm
851402250 D225 5715 mm 5790 mm
851402330 D233 5925 mm 6000 mm
851402360 D236 6000 mm 6075 mm
851402400 D240 6100 mm 6175 mm
851402480 D248 6300 mm 6375 mm
851402500 D250 6350 mm 6425 mm
851402550 D255 6480 mm 6555 mm
851402640 D264 6700 mm 6775 mm
851402700 D270 6860 mm 6935 mm
851402800 D280 7110 mm 7185 mm
851402850 D285 7240 mm 7315 mm
851402950 D295 7500 mm 7575 mm
851403000 D300 7620 mm 7695 mm
851403150 D315 8000 mm 8075 mm
851403300 D330 8382 mm 8457 mm
851403350 D335 8500 mm 8575 mm
851403450 D345 8765 mm 8840 mm
851403540 D354 9000 mm 9075 mm
851403600 D360 9145 mm 9220 mm
851403740 D374 9500 mm 9575 mm
851403900 D390 9900 mm 9975 mm
851403940 D394 10000 mm 10075 mm
851404180 D418 10615 mm 10690 mm
851404410 D441 11200 mm 11275 mm
851404780 D478 12140 mm 12215 mm
851404920 D492 12500 mm 12575 mm
851405400 D540 13715 mm 13790 mm
851406000 D600 15240 mm 15315 mm

Product Information

Material
Chloroprene rubber, polyester tensile cords, fabric cover
Standard
ISO 4184
