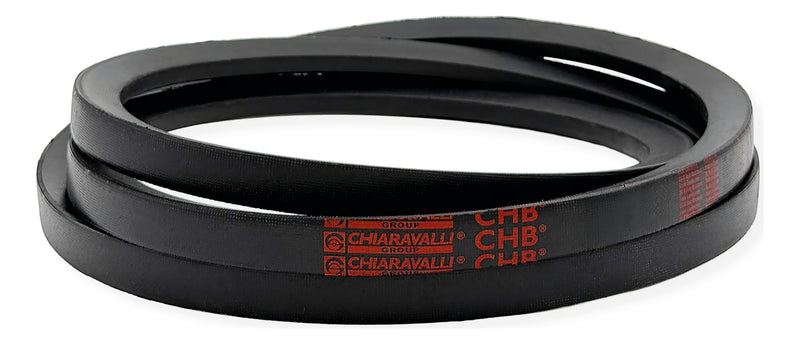

Chiaravalli CHB® Wrapped Classical Section V-Belt Z — product photo
Chiaravalli

CHB® Wrapped Classical Section V-Belt Z

Wrapped classical section CHB® V-belt — oil and heat resistant, a reliable choice for industrial and agricultural drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

  • Section Z: width W 10 mm × height H 6 mm
  • Minimum datum pulley diameter: 50 mm
  • Weight: 0,051 kg/m
  • Maximum belt speed: 33 m/s
  • Temperature range: -30 °C to +80 °C
  • Section standard: ISO 4184

Product Configuration

Select a row to add it to your quote

Li = inside length, Lp = datum length (Lp = Li + 22 mm). External length Le = Li + 38 mm.

Code TypeLiLp
851000160 Z16 413 mm 435 mm
851000175 Z17.5 438 mm 460 mm
851000185 Z18.5 478 mm 500 mm
851000195 Z19.5 493 mm 515 mm
851000200 Z20 508 mm 530 mm
851000205 Z20.5 521 mm 543 mm
851000210 Z21 533 mm 555 mm
851000225 Z22.5 568 mm 590 mm
851000230 Z23 578 mm 600 mm
851000240 Z24 608 mm 630 mm
851000250 Z25 635 mm 657 mm
851000255 Z25.5 648 mm 670 mm
851000265 Z26.5 668 mm 690 mm
851000270 Z27 688 mm 710 mm
851000280 Z28 703 mm 725 mm
851000290 Z29 733 mm 755 mm
851000300 Z30 765 mm 787 mm
851000305 Z30.5 778 mm 800 mm
851000310 Z31 788 mm 810 mm
851000325 Z32.5 828 mm 850 mm
851000335 Z33.5 853 mm 875 mm
851000345 Z34.5 878 mm 900 mm
851000360 Z36 913 mm 935 mm
851000365 Z36.5 928 mm 950 mm
851000375 Z37.5 948 mm 970 mm
851000385 Z38.5 978 mm 1000 mm
851000395 Z39.5 998 mm 1020 mm
851000410 Z41 1038 mm 1060 mm
851000415 Z41.5 1050 mm 1072 mm
851000430 Z43 1098 mm 1120 mm
851000440 Z44 1123 mm 1145 mm
851000450 Z45 1143 mm 1165 mm
851000460 Z46 1168 mm 1190 mm
851000470 Z47 1193 mm 1215 mm
851000480 Z48 1223 mm 1245 mm
851000490 Z49 1245 mm 1267 mm
851000500 Z50 1273 mm 1295 mm
851000510 Z51 1298 mm 1320 mm
851000520 Z52 1318 mm 1340 mm
851000530 Z53 1348 mm 1370 mm
851000540 Z54 1378 mm 1400 mm
851000550 Z55 1398 mm 1420 mm
851000570 Z57 1448 mm 1470 mm
851000580 Z58 1478 mm 1500 mm
851000590 Z59 1498 mm 1520 mm
851000600 Z60 1523 mm 1545 mm
851000610 Z61 1553 mm 1575 mm
851000620 Z62 1578 mm 1600 mm
851000630 Z63 1603 mm 1625 mm
851000650 Z65 1653 mm 1675 mm
851000660 Z66 1678 mm 1700 mm
851000670 Z67 1703 mm 1725 mm
851000690 Z69 1753 mm 1775 mm
851000700 Z70 1778 mm 1800 mm
851000710 Z71 1803 mm 1825 mm
851000720 Z72 1829 mm 1851 mm

Product Information

Material
Chloroprene rubber, polyester tensile cords, fabric cover
Standard
ISO 4184

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
