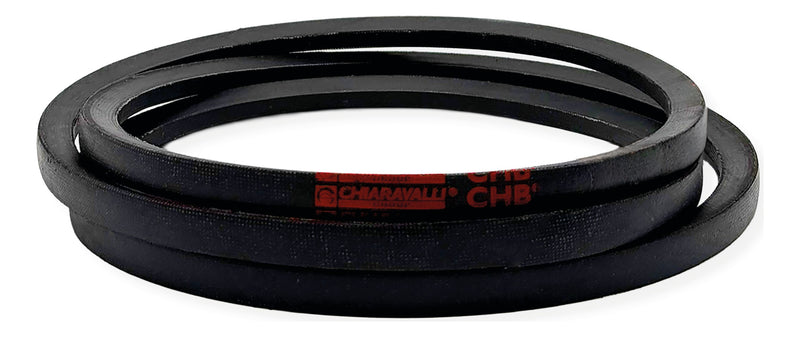

CHB® Wrapped Narrow Section V-Belt 8V
Wrapped narrow section CHB® V-belt — the strength of a wrapped construction with the compactness of a narrow section: more power in a given space than a classical belt, oil and heat resistant, recommended for high-speed drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.
- Section 8V: width W 25 mm × height H 23 mm
- Minimum datum pulley diameter: 315 mm
- Weight: 0,504 kg/m
- Maximum belt speed: 42 m/s
- Section standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
Product Configuration
Select a row to add it to your quote
Lp = datum length in mm; the 8V type number is the belt's effective length in tenths of an inch (8V 1000 = 100 in).
| Code | Type | Lp |
|---|---|---|
851901000 |
8V 1000
|
2540 mm
|
851901060 |
8V 1060
|
2690 mm
|
851901120 |
8V 1120
|
2845 mm
|
851901180 |
8V 1180
|
2995 mm
|
851901250 |
8V 1250
|
3175 mm
|
851901320 |
8V 1320
|
3355 mm
|
851901400 |
8V 1400
|
3555 mm
|
851901500 |
8V 1500
|
3810 mm
|
851901600 |
8V 1600
|
4065 mm
|
851901700 |
8V 1700
|
4320 mm
|
851901800 |
8V 1800
|
4570 mm
|
851901900 |
8V 1900
|
4825 mm
|
851902000 |
8V 2000
|
5080 mm
|
851902120 |
8V 2120
|
5385 mm
|
851902240 |
8V 2240
|
5690 mm
|
851902360 |
8V 2360
|
5995 mm
|
851902500 |
8V 2500
|
6350 mm
|
851902650 |
8V 2650
|
6730 mm
|
851902800 |
8V 2800
|
7110 mm
|
851903000 |
8V 3000
|
7620 mm
|
851903150 |
8V 3150
|
8000 mm
|
851903350 |
8V 3350
|
8510 mm
|
851903550 |
8V 3550
|
9015 mm
|
851903750 |
8V 3750
|
9525 mm
|
851904000 |
8V 4000
|
10160 mm
|
851904250 |
8V 4250
|
10795 mm
|
851904500 |
8V 4500
|
11430 mm
|
851904750 |
8V 4750
|
12065 mm
|
851905000 |
8V 5000
|
12700 mm
|
851905600 |
8V 5600
|
14225 mm
|
No products match the selected filters.
Product Information
- Material
- Chloroprene rubber, polyester tensile cords, fabric cover
- Standard
ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
