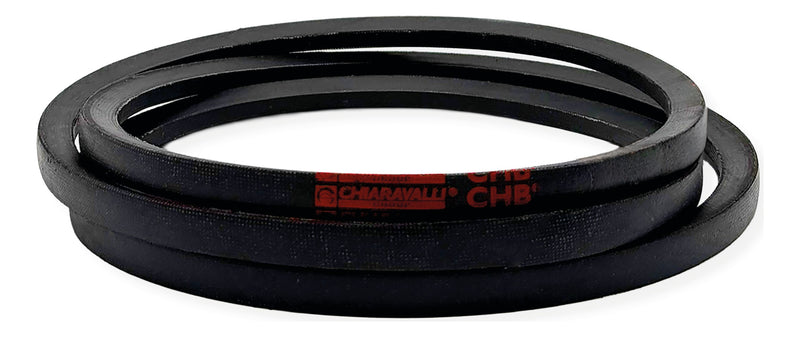

CHB® Wrapped Narrow Section V-Belt SPB

Wrapped narrow section CHB® V-belt — the strength of a wrapped construction with the compactness of a narrow section: more power in a given space than a classical belt, oil and heat resistant, recommended for high-speed drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

Section SPB: width W 16,3 mm × height H 13 mm
Minimum datum pulley diameter: 140 mm
Weight: 0,223 kg/m
Maximum belt speed: 42 m/s
Section standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22

Select a row to add it to your quote

Lp = datum length. Inside length Li = Lp − 60 mm, external length Le = Lp + 22 mm.

Code	Type	Lp
`851701250`	`SPB 1250`	`1250` mm
`851701280`	`SPB 1280`	`1280` mm
`851701320`	`SPB 1320`	`1320` mm
`851701360`	`SPB 1360`	`1360` mm
`851701400`	`SPB 1400`	`1400` mm
`851701450`	`SPB 1450`	`1450` mm
`851701500`	`SPB 1500`	`1500` mm
`851701550`	`SPB 1550`	`1550` mm
`851701600`	`SPB 1600`	`1600` mm
`851701650`	`SPB 1650`	`1650` mm
`851701700`	`SPB 1700`	`1700` mm
`851701720`	`SPB 1720`	`1720` mm
`851701750`	`SPB 1750`	`1750` mm
`851701800`	`SPB 1800`	`1800` mm
`851701850`	`SPB 1850`	`1850` mm
`851701900`	`SPB 1900`	`1900` mm
`851701950`	`SPB 1950`	`1950` mm
`851702000`	`SPB 2000`	`2000` mm
`851702020`	`SPB 2020`	`2020` mm
`851702060`	`SPB 2060`	`2060` mm
`851702120`	`SPB 2120`	`2120` mm
`851702180`	`SPB 2180`	`2180` mm
`851702240`	`SPB 2240`	`2240` mm
`851702264`	`SPB 2264`	`2264` mm
`851702300`	`SPB 2300`	`2300` mm
`851702360`	`SPB 2360`	`2360` mm
`851702400`	`SPB 2400`	`2400` mm
`851702410`	`SPB 2410`	`2410` mm
`851702430`	`SPB 2430`	`2430` mm
`851702450`	`SPB 2450`	`2450` mm
`851702500`	`SPB 2500`	`2500` mm
`851702580`	`SPB 2580`	`2580` mm
`851702600`	`SPB 2600`	`2600` mm
`851702650`	`SPB 2650`	`2650` mm
`851702680`	`SPB 2680`	`2680` mm
`851702720`	`SPB 2720`	`2720` mm
`851702800`	`SPB 2800`	`2800` mm
`851702840`	`SPB 2840`	`2840` mm
`851702900`	`SPB 2900`	`2900` mm
`851703000`	`SPB 3000`	`3000` mm
`851703150`	`SPB 3150`	`3150` mm
`851703250`	`SPB 3250`	`3250` mm
`851703350`	`SPB 3350`	`3350` mm
`851703450`	`SPB 3450`	`3450` mm
`851703550`	`SPB 3550`	`3550` mm
`851703650`	`SPB 3650`	`3650` mm
`851703750`	`SPB 3750`	`3750` mm
`851703870`	`SPB 3870`	`3870` mm
`851704000`	`SPB 4000`	`4000` mm
`851704120`	`SPB 4120`	`4120` mm
`851704250`	`SPB 4250`	`4250` mm
`851704370`	`SPB 4370`	`4370` mm
`851704500`	`SPB 4500`	`4500` mm
`851704560`	`SPB 4560`	`4560` mm
`851704620`	`SPB 4620`	`4620` mm
`851704750`	`SPB 4750`	`4750` mm
`851704870`	`SPB 4870`	`4870` mm
`851705000`	`SPB 5000`	`5000` mm
`851705300`	`SPB 5300`	`5300` mm
`851705600`	`SPB 5600`	`5600` mm
`851706000`	`SPB 6000`	`6000` mm
`851706300`	`SPB 6300`	`6300` mm
`851706700`	`SPB 6700`	`6700` mm
`851707100`	`SPB 7100`	`7100` mm
`851707500`	`SPB 7500`	`7500` mm
`851708000`	`SPB 8000`	`8000` mm
`851708500`	`SPB 8500`	`8500` mm

Material: Chloroprene rubber, polyester tensile cords, fabric cover
Standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
